FRHIGPUFence Class Reference

#include <RHIResources.h>

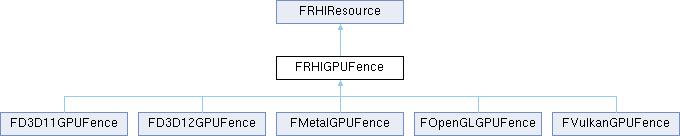

Inheritance diagram for FRHIGPUFence:

Public Member Functions
	FRHIGPUFence (FName InName)
virtual void	Clear ()=0
virtual bool	Poll () const =0
virtual bool	Poll (FRHIGPUMask GPUMask) const
virtual void	Wait (FRHICommandListImmediate &RHICmdList, FRHIGPUMask GPUMask) const =0
FName	GetFName () const
Public Member Functions inherited from FRHIResource
RHI_API	FRHIResource (ERHIResourceType InResourceType)
uint32	AddRef () const
uint32	Release () const
uint32	GetRefCount () const
bool	IsValid () const
void	DisableLifetimeExtension ()
ERHIResourceType	GetType () const
FName	GetOwnerName () const
void	SetOwnerName (FName InOwnerName)

Public Attributes
FThreadSafeCounter	NumPendingWriteCommands

Protected Attributes
const FName	FenceName

Additional Inherited Members
Protected Member Functions inherited from FRHIResource
virtual RHI_API	~FRHIResource ()

Constructor & Destructor Documentation

FRHIGPUFence()

FRHIGPUFence::FRHIGPUFence ( FName  InName )

inline

Member Function Documentation

Clear()

virtual void FRHIGPUFence::Clear ( )

pure virtual

Implemented in FMetalGPUFence, FD3D12GPUFence, FOpenGLGPUFence, FVulkanGPUFence, and FD3D11GPUFence.

GetFName()

FName FRHIGPUFence::GetFName ( ) const

inline

Poll() [1/2]

virtual bool FRHIGPUFence::Poll ( ) const

pure virtual

Poll the fence to see if the GPU has signaled it.

Returns

True if and only if the GPU fence has been inserted and the GPU has signaled the fence.

CAUTION: Do not call poll in a loop to block until completion. Some platform RHIs will not signal fences unless the RHI thread continues to make progress and submit GPU work.

To block for completion, call Wait(), which can only be done from the render thread.

Use Poll() only to check a fence. If it returns false, continue to do useful work and recheck later, ideally on the following frame.

Implemented in FMetalGPUFence, FD3D12GPUFence, FOpenGLGPUFence, FVulkanGPUFence, and FD3D11GPUFence.

Poll() [2/2]

virtual bool FRHIGPUFence::Poll ( FRHIGPUMask  GPUMask ) const

inlinevirtual

Poll on a subset of the GPUs that this fence supports.

CAUTION: Do not call poll in a loop to block until completion. Some platform RHIs will not signal fences unless the RHI thread continues to make progress and submit GPU work.

To block for completion, call Wait(), which can only be done from the render thread.

Use Poll() only to check a fence. If it returns false, continue to do useful work and recheck later, ideally on the following frame.

Reimplemented in FD3D12GPUFence.

Wait()

virtual void FRHIGPUFence::Wait ( FRHICommandListImmediate &  RHICmdList, FRHIGPUMask  GPUMask  ) const

pure virtual

Blocks the caller until the fence has passed on the GPU. Can only be called from the render thread.

CAUTION: Use of this function may cause a hitch if the fence is not yet signalled and we have to wait for the GPU to catch up. Rendering code should be written to avoid immediately waiting on GPU fences.

Implemented in FMetalGPUFence, FD3D12GPUFence, FOpenGLGPUFence, FVulkanGPUFence, and FD3D11GPUFence.

Member Data Documentation

FenceName

const FName FRHIGPUFence::FenceName

protected

NumPendingWriteCommands

FThreadSafeCounter FRHIGPUFence::NumPendingWriteCommands

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/RHI/Public/RHIResources.h
