IMultiBlockBaseWidget Class Reference

#include <MultiBox.h>

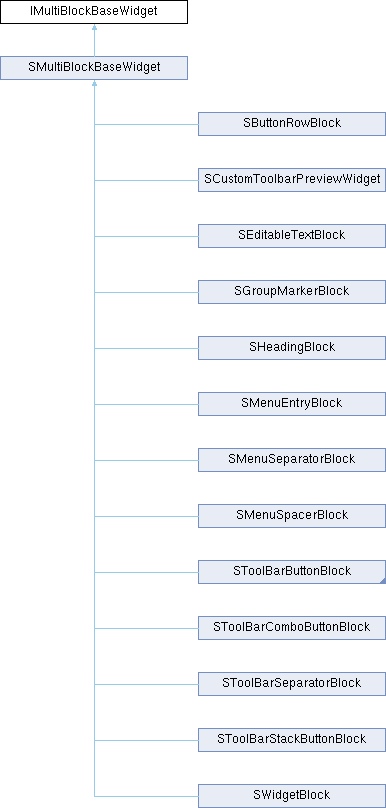

Inheritance diagram for IMultiBlockBaseWidget:

Public Member Functions
virtual TSharedRef< SWidget >	AsWidget ()=0
virtual TSharedRef< const SWidget >	AsWidget () const =0
virtual void	SetOwnerMultiBoxWidget (TSharedRef< SMultiBoxWidget > InOwnerMultiBoxWidget)=0
virtual void	SetMultiBlock (TSharedRef< const FMultiBlock > InMultiBlock)=0
virtual void	SetOptionsBlockWidget (TSharedPtr< SWidget > InOptionsBlockWidget)=0
virtual void	BuildMultiBlockWidget (const ISlateStyle *StyleSet, const FName &StyleName)=0
virtual void	SetMultiBlockLocation (EMultiBlockLocation::Type InLocation, bool bSectionContainsIcons)=0
virtual EMultiBlockLocation::Type	GetMultiBlockLocation ()=0
virtual EMultiBlockLocation::Type	GetMultiBlockLocation () const =0
virtual bool	IsInEditMode () const =0

Detailed Description

MultiBlock Slate widget interface

Member Function Documentation

AsWidget() [1/2]

virtual TSharedRef< const SWidget > IMultiBlockBaseWidget::AsWidget ( ) const

pure virtual

Interprets this object as a SWidget

Returns

Widget reference

Implemented in SMultiBlockBaseWidget.

AsWidget() [2/2]

virtual TSharedRef< SWidget > IMultiBlockBaseWidget::AsWidget ( )

pure virtual

Interprets this object as a SWidget

Returns

Widget reference

Implemented in SMultiBlockBaseWidget.

BuildMultiBlockWidget()

virtual void IMultiBlockBaseWidget::BuildMultiBlockWidget ( const ISlateStyle *  StyleSet, const FName &  StyleName  )

pure virtual

Builds this MultiBlock widget up from the MultiBlock associated with it

Parameters

StyleSet	The Slate style to use to build the widget
StyleName	The style name to use from the StyleSet

Implemented in SCustomToolbarPreviewWidget, SButtonRowBlock, SEditableTextBlock, SGroupMarkerBlock, SHeadingBlock, SMenuEntryBlock, SMenuSeparatorBlock, SMenuSpacerBlock, SToolBarSeparatorBlock, SWidgetBlock, SToolBarButtonBlock, SToolBarComboButtonBlock, and SToolBarStackButtonBlock.

GetMultiBlockLocation() [1/2]

virtual EMultiBlockLocation::Type IMultiBlockBaseWidget::GetMultiBlockLocation ( ) const

pure virtual

Returns this MultiBlocks location

Implemented in SMultiBlockBaseWidget.

GetMultiBlockLocation() [2/2]

virtual EMultiBlockLocation::Type IMultiBlockBaseWidget::GetMultiBlockLocation ( )

pure virtual

Returns this MultiBlocks location

Implemented in SMultiBlockBaseWidget.

IsInEditMode()

virtual bool IMultiBlockBaseWidget::IsInEditMode ( ) const

pure virtual

Returns true if editing this widget

Implemented in SMultiBlockBaseWidget.

SetMultiBlock()

virtual void IMultiBlockBaseWidget::SetMultiBlock ( TSharedRef< const FMultiBlock >  InMultiBlock )

pure virtual

Associates this widget with a MultiBlock

Parameters

InMultiBlock

The MultiBlock we'll be associated with

Implemented in SMultiBlockBaseWidget.

SetMultiBlockLocation()

virtual void IMultiBlockBaseWidget::SetMultiBlockLocation ( EMultiBlockLocation::Type  InLocation, bool  bSectionContainsIcons  )

pure virtual

Sets the blocks location relative to the other blocks

Parameters

InLocation	The MultiBlocks location
bSectionContainsIcons	Does the section contain icons?

Implemented in SMultiBlockBaseWidget.

SetOptionsBlockWidget()

virtual void IMultiBlockBaseWidget::SetOptionsBlockWidget ( TSharedPtr< SWidget >  InOptionsBlockWidget )

pure virtual

Adds a dropdown widget for options associated with this widget. The usage of this is block specific

Parameters

InOptionsBlockWidget

The options block to associate with this widget

Implemented in SMultiBlockBaseWidget.

SetOwnerMultiBoxWidget()

virtual void IMultiBlockBaseWidget::SetOwnerMultiBoxWidget ( TSharedRef< SMultiBoxWidget >  InOwnerMultiBoxWidget )

pure virtual

Associates the owner MultiBox widget with this widget

Parameters

InOwnerMultiBoxWidget

The MultiBox widget that owns us

Implemented in SMultiBlockBaseWidget.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Slate/Public/Framework/MultiBox/MultiBox.h
