UARComponent Class Reference

#include <ARComponent.h>

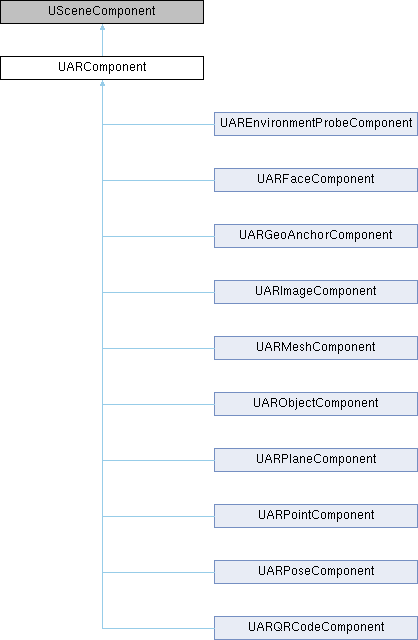

Inheritance diagram for UARComponent:

Public Member Functions
UE_API	UARComponent ()
UE_API void	SetNativeID (FGuid NativeID)
UMRMeshComponent *	GetMRMesh ()
UE_API void	ReceiveRemove ()
UE_API void	UpdateVisualization ()
virtual void	Update (UARTrackedGeometry *TrackedGeometry)
virtual UE_API void	Remove (UARTrackedGeometry *TrackedGeometry)
	DECLARE_MULTICAST_DELEGATE_OneParam (FMRMeshDelegate, UMRMeshComponent *)

Public Attributes
FGuid	NativeID
FMRMeshDelegate	OnMRMeshCreated
FMRMeshDelegate	OnMRMeshDestroyed

Protected Member Functions
virtual UE_API void	OnUnregister () override
virtual UE_API void	OnRep_Payload ()
UE_API void	RemoveMeshComponent (UARTrackedGeometry *TrackedGeometry)
UE_API void	ManageMeshComponentForDebugMode (bool bDebugModeEnabled, const FARSessionPayload &SessionPayload)
UE_API FLinearColor	GetDebugColor () const

Protected Attributes
bool	bUseDefaultReplication = true
TObjectPtr< UMaterialInterface >	DefaultMeshMaterial = nullptr
TObjectPtr< UMaterialInterface >	DefaultWireframeMeshMaterial = nullptr
TObjectPtr< UMRMeshComponent >	MRMeshComponent
TObjectPtr< UARTrackedGeometry >	MyTrackedGeometry
bool	bFirstUpdate = true
bool	bIsRemoved = false
bool	bInDebugMode = false
bool	bSavedWireframeMode
FLinearColor	SavedWireframeColor

Detailed Description

ARComponent handles replication and visualization update for AR tracked geometries ARComponent is created in either multiplayer or local only environment

To customize the visualization logic, override 'UpdateVisualization' in Blueprint or 'UpdateVisualization_Implementation' in C++

To customize the replication logic, disable 'bUseDefaultReplication' and implement your own replication logic when the ARComponent is updated (see how 'Update' is implemented in the sub classes)

A MRMeshComponent will be created if mesh visualization is enabled (see UARSessionConfig::bGenerateMeshDataFromTrackedGeometry) It can be accessed via 'GetMRMesh' or 'UARTrackedGeometry::GetUnderlyingMesh'

Constructor & Destructor Documentation

UARComponent()

UARComponent::UARComponent

(

)

Member Function Documentation

DECLARE_MULTICAST_DELEGATE_OneParam()

UARComponent::DECLARE_MULTICAST_DELEGATE_OneParam	(	FMRMeshDelegate	,
		UMRMeshComponent *
	)

GetDebugColor()

FLinearColor UARComponent::GetDebugColor ( ) const

protected

GetMRMesh()

UMRMeshComponent * UARComponent::GetMRMesh ( )

inline

ManageMeshComponentForDebugMode()

void UARComponent::ManageMeshComponentForDebugMode ( bool  bDebugModeEnabled, const FARSessionPayload &  SessionPayload  )

protected

OnRep_Payload()

void UARComponent::OnRep_Payload ( )

protectedvirtual

Reimplemented in UARPlaneComponent, UARPointComponent, UARFaceComponent, UARImageComponent, UARQRCodeComponent, UARPoseComponent, UAREnvironmentProbeComponent, UARObjectComponent, UARMeshComponent, and UARGeoAnchorComponent.

OnUnregister()

void UARComponent::OnUnregister ( )

overrideprotectedvirtual

ReceiveRemove()

UE_API void UARComponent::ReceiveRemove

(

)

Event when native representation is removed, called on server and clients.

Remove()

void UARComponent::Remove ( UARTrackedGeometry *  TrackedGeometry )

virtual

RemoveMeshComponent()

void UARComponent::RemoveMeshComponent ( UARTrackedGeometry *  TrackedGeometry )

protected

SetNativeID()

void UARComponent::SetNativeID

(

FGuid

NativeID

)

Update()

virtual void UARComponent::Update ( UARTrackedGeometry *  TrackedGeometry )

inlinevirtual

Reimplemented in UARPlaneComponent, UARPointComponent, UARFaceComponent, UARImageComponent, UARQRCodeComponent, UARPoseComponent, UAREnvironmentProbeComponent, UARObjectComponent, UARMeshComponent, and UARGeoAnchorComponent.

UpdateVisualization()

UE_API void UARComponent::UpdateVisualization

(

)

Member Data Documentation

bFirstUpdate

bool UARComponent::bFirstUpdate = true

protected

If this component has ever been updated

bInDebugMode

bool UARComponent::bInDebugMode = false

protected

bIsRemoved

bool UARComponent::bIsRemoved = false

protected

If 'ReceiveRemove' has been called for this component

bSavedWireframeMode

bool UARComponent::bSavedWireframeMode

protected

bUseDefaultReplication

bool UARComponent::bUseDefaultReplication = true

protected

If the default replication logic should be used for this component

DefaultMeshMaterial

TObjectPtr<UMaterialInterface> UARComponent::DefaultMeshMaterial = nullptr

protected

The default material to be used for the generated mesh component. If not set, the DefaultMeshMaterial from ARSessionConfig will be used.

DefaultWireframeMeshMaterial

TObjectPtr<UMaterialInterface> UARComponent::DefaultWireframeMeshMaterial = nullptr

protected

The default wireframe material to be used for the generated mesh component. If not set, the DefaultMeshMaterial from ARSessionConfig will be used.

MRMeshComponent

TObjectPtr<UMRMeshComponent> UARComponent::MRMeshComponent

protected

MyTrackedGeometry

TObjectPtr<UARTrackedGeometry> UARComponent::MyTrackedGeometry

protected

The tracked geometry used for updating this component, only set on "local" client

NativeID

FGuid UARComponent::NativeID

OnMRMeshCreated

FMRMeshDelegate UARComponent::OnMRMeshCreated

OnMRMeshDestroyed

FMRMeshDelegate UARComponent::OnMRMeshDestroyed

SavedWireframeColor

FLinearColor UARComponent::SavedWireframeColor

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/AugmentedReality/Public/ARComponent.h
• Engine/Source/Runtime/AugmentedReality/Private/ARComponent.cpp
