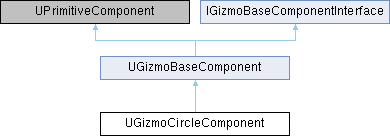

Inheritance diagram for UGizmoCircleComponent:

Public Attributes
FVector	Normal = FVector(0,0,1)

float	Radius = 100.0f

float	Thickness = 2.0f

int	NumSides = 64

bool	bViewAligned = false

bool	bDrawFullCircle = false

bool	bOnlyAllowFrontFacingHits = true

Public Attributes inherited from UGizmoBaseComponent
FLinearColor	Color = FLinearColor::Red

float	HoverSizeMultiplier = 2.0f

float	PixelHitDistanceThreshold = 7.0f

Additional Inherited Members
Public Member Functions inherited from UGizmoBaseComponent
	UGizmoBaseComponent ()

void	NotifyExternalPropertyUpdates ()

void	SetGizmoViewContext (UGizmoViewContext *GizmoViewContextIn)

virtual void	UpdateHoverState (bool bHoveringIn) override

virtual void	UpdateWorldLocalState (bool bWorldIn) override

Public Member Functions inherited from IGizmoBaseComponentInterface
virtual void	UpdateInteractingState (bool bInteractingIn)

Protected Attributes inherited from UGizmoBaseComponent
bool	bHovering = false

bool	bWorld = false

TObjectPtr< UGizmoViewContext >	GizmoViewContext = nullptr

bool	bIsViewDependent = false

Detailed Description

Simple Component intended to be used as part of 3D Gizmos. Draws a 3D circle based on parameters.

Member Data Documentation

bool UGizmoCircleComponent::bDrawFullCircle = false

bool UGizmoCircleComponent::bOnlyAllowFrontFacingHits = true

bool UGizmoCircleComponent::bViewAligned = false

FVector UGizmoCircleComponent::Normal = FVector(0,0,1)

int UGizmoCircleComponent::NumSides = 64

float UGizmoCircleComponent::Radius = 100.0f

float UGizmoCircleComponent::Thickness = 2.0f

The documentation for this class was generated from the following files:

Engine/Source/Runtime/InteractiveToolsFramework/Public/BaseGizmos/GizmoCircleComponent.h
Engine/Source/Runtime/InteractiveToolsFramework/Private/BaseGizmos/GizmoCircleComponent.cpp
