Extension of the container_base class for computing regular Voronoi tessellations. More...

#include <container.hh>

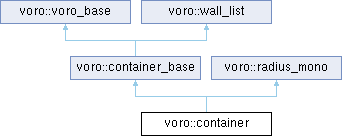

Inheritance diagram for voro::container:

Public Member Functions
	container (double ax_, double bx_, double ay_, double by_, double az_, double bz_, int nx_, int ny_, int nz_, bool xperiodic_, bool yperiodic_, bool zperiodic_, int init_mem)

voro_compute< container >	make_compute () const

void	clear ()

void	put (int n, double x, double y, double z)

void	put (particle_order &vo, int n, double x, double y, double z)

void	compute_all_cells (voro_compute< container > &vc)

double	sum_cell_volumes (voro_compute< container > &vc)

bool	find_voronoi_cell (double x, double y, double z, double &rx, double &ry, double &rz, int &pid, voro_compute< container > &vc) const

template<class v_cell , class c_loop >
bool	compute_cell (v_cell &c, c_loop &vl, voro_compute< container > &vc) const

template<class v_cell >
bool	compute_cell (v_cell &c, int ijk, int q, voro_compute< container > &vc) const

template<class v_cell >
bool	compute_ghost_cell (v_cell &c, double x, double y, double z, voro_compute< container > &vc)

Public Member Functions inherited from voro::container_base
	container_base (double ax_, double bx_, double ay_, double by_, double az_, double bz_, int nx_, int ny_, int nz_, bool xperiodic_, bool yperiodic_, bool zperiodic_, int init_mem, int ps_)

	container_base (container_base &Other)=delete

container_base &	operator= (const container_base &Other)=delete

	container_base (container_base &&Other) noexcept

container_base &	operator= (container_base &&Other)=delete

	~container_base ()

bool	point_inside (double x, double y, double z) const

void	region_count () const

template<class v_cell >
bool	initialize_voronoicell (v_cell &c, int ijk, int q, int ci, int cj, int ck, int &i, int &j, int &k, double &x, double &y, double &z, int &disp) const

void	initialize_search (int ci, int cj, int ck, int ijk, int &i, int &j, int &k, int &disp) const

void	frac_pos (double x, double y, double z, double ci, double cj, double ck, double &fx, double &fy, double &fz) const

int	region_index (int ci, int cj, int ck, int ei, int ej, int ek, double &qx, double &qy, double &qz, int &disp) const

int	total_particles () const

Public Member Functions inherited from voro::voro_base
bool	contains_neighbor (const char *format) const

	voro_base (int nx_, int ny_, int nz_, double boxx_, double boxy_, double boxz_)

	voro_base (const voro_base &Other)=delete

voro_base &	operator= (const voro_base &Other)=delete

	voro_base (voro_base &&Other) noexcept

voro_base &	operator= (voro_base &&Other)=delete

	~voro_base ()

Public Member Functions inherited from voro::wall_list
	wall_list ()

	wall_list (const wall_list &Other)=delete

wall_list &	operator= (const wall_list &Other)=delete

	wall_list (wall_list &&Other) noexcept

wall_list &	operator= (wall_list &&Other)

	~wall_list ()

void	add_wall (wall *w)

void	add_wall (wall &w)

void	add_wall (wall_list &wl)

bool	point_inside_walls (double x, double y, double z) const

template<class c_class >
bool	apply_walls (c_class &c, double x, double y, double z) const

void	deallocate ()

Friends
class	voro_compute< container >

Additional Inherited Members
Public Attributes inherited from voro::container_base
const double	ax

const double	bx

const double	ay

const double	by

const double	az

const double	bz

const bool	xperiodic

const bool	yperiodic

const bool	zperiodic

int **	id

double **	p

int *	co

int *	mem

const int	ps

Public Attributes inherited from voro::voro_base
const int	nx

const int	ny

const int	nz

const int	nxy

const int	nxyz

const double	boxx

const double	boxy

const double	boxz

const double	xsp

const double	ysp

const double	zsp

double *	mrad

Public Attributes inherited from voro::wall_list
wall **	walls

wall **	wep

Static Public Attributes inherited from voro::voro_base
static const unsigned int	wl [wl_seq_length *wl_hgridcu]

Protected Member Functions inherited from voro::container_base
void	add_particle_memory (int i)

bool	put_locate_block (int &ijk, double &x, double &y, double &z)

bool	put_remap (int &ijk, double &x, double &y, double &z) const

bool	remap (int &ai, int &aj, int &ak, int &ci, int &cj, int &ck, double &x, double &y, double &z, int &ijk) const

Protected Member Functions inherited from voro::voro_base
int	step_int (double a) const

int	step_mod (int a, int b) const

int	step_div (int a, int b) const

Protected Member Functions inherited from voro::wall_list
void	increase_wall_memory ()

Protected Member Functions inherited from voro::radius_mono
void	r_init (int ijk, int s, radius_info &radius_out) const

void	r_prime (double rv, radius_info &radius_out) const

bool	r_ctest (double crs, double mrs, const radius_info &rad_info) const

double	r_cutoff (double lrs, const radius_info &rad_info) const

double	r_max_add (double rs) const

double	r_current_sub (double rs, int ijk, int q) const

double	r_scale (double rs, int ijk, int q, const radius_info &rad_info) const

bool	r_scale_check (double &rs, double mrs, int ijk, int q, const radius_info &rad_info) const

Protected Attributes inherited from voro::wall_list
wall **	wel

int	current_wall_size

Detailed Description

Extension of the container_base class for computing regular Voronoi tessellations.

This class is an extension of the container_base class that has routines specifically for computing the regular Voronoi tessellation with no dependence on particle radii.

Constructor & Destructor Documentation

◆ container()

voro::container::container	(	double	ax_,
		double	bx_,
		double	ay_,
		double	by_,
		double	az_,
		double	bz_,
		int	nx_,
		int	ny_,
		int	nz_,
		bool	xperiodic_,
		bool	yperiodic_,
		bool	zperiodic_,
		int	init_mem
	)

The class constructor sets up the geometry of container.

Parameters

[in]	(ax_,bx_)	the minimum and maximum x coordinates.
[in]	(ay_,by_)	the minimum and maximum y coordinates.
[in]	(az_,bz_)	the minimum and maximum z coordinates.
[in]	(nx_,ny_,nz_)	the number of grid blocks in each of the three coordinate directions.
[in]	(xperiodic_,yperiodic_,zperiodic_)	flags setting whether the container is periodic in each coordinate direction.
[in]	init_mem	the initial memory allocation for each block.

Member Function Documentation

◆ clear()

void voro::container::clear ( )

Clears a container of particles.

◆ compute_all_cells()

void voro::container::compute_all_cells ( voro_compute< container > & vc )

Computes all of the Voronoi cells in the container, but does nothing with the output. It is useful for measuring the pure computation time of the Voronoi algorithm, without any additional calculations such as volume evaluation or cell output.

◆ compute_cell() [1/2]

template<class v_cell , class c_loop >

bool voro::container::compute_cell	(	v_cell &	c,
		c_loop &	vl,
		voro_compute< container > &	vc
	)		const

inline

Computes the Voronoi cell for a particle currently being referenced by a loop class.

Parameters

[out]	c	a Voronoi cell class in which to store the computed cell.
[in]	vl	the loop class to use.

Returns: True if the cell was computed. If the cell cannot be computed, if it is removed entirely by a wall or boundary condition, then the routine returns false.

◆ compute_cell() [2/2]

template<class v_cell >

bool voro::container::compute_cell	(	v_cell &	c,
		int	ijk,
		int	q,
		voro_compute< container > &	vc
	)		const

inline

Computes the Voronoi cell for given particle.

Parameters

[out]	c	a Voronoi cell class in which to store the computed cell.
[in]	ijk	the block that the particle is within.
[in]	q	the index of the particle within the block.

Returns: True if the cell was computed. If the cell cannot be computed, if it is removed entirely by a wall or boundary condition, then the routine returns false.

◆ compute_ghost_cell()

template<class v_cell >

bool voro::container::compute_ghost_cell	(	v_cell &	c,
		double	x,
		double	y,
		double	z,
		voro_compute< container > &	vc
	)

inline

Computes the Voronoi cell for a ghost particle at a given location. NOT thread-safe; temporarily places particle into the container!

Parameters

[out]	c	a Voronoi cell class in which to store the computed cell.
[in]	(x,y,z)	the location of the ghost particle.

Returns: True if the cell was computed. If the cell cannot be computed, if it is removed entirely by a wall or boundary condition, then the routine returns false.

◆ find_voronoi_cell()

bool voro::container::find_voronoi_cell	(	double	x,
		double	y,
		double	z,
		double &	rx,
		double &	ry,
		double &	rz,
		int &	pid,
		voro_compute< container > &	vc
	)		const

Takes a vector and finds the particle whose Voronoi cell contains that vector. This is equivalent to finding the particle which is nearest to the vector. Additional wall classes are not considered by this routine.

Parameters

[in]	(x,y,z)	the vector to test.
[out]	(rx,ry,rz)	the position of the particle whose Voronoi cell contains the vector. If the container is periodic, this may point to a particle in a periodic image of the primary domain.
[out]	pid	the ID of the particle.

Returns: True if a particle was found. If the container has no particles, then the search will not find a Voronoi cell and false is returned.

◆ make_compute()

voro_compute< container > voro::container::make_compute ( ) const

◆ put() [1/2]

void voro::container::put	(	int	n,
		double	x,
		double	y,
		double	z
	)

Put a particle into the correct region of the container.

Parameters

[in]	n	the numerical ID of the inserted particle.
[in]	(x,y,z)	the position vector of the inserted particle.

◆ put() [2/2]

void voro::container::put	(	particle_order &	vo,
		int	n,
		double	x,
		double	y,
		double	z
	)

Put a particle into the correct region of the container, also recording into which region it was stored.

Parameters

[in]	vo	the ordering class in which to record the region.
[in]	n	the numerical ID of the inserted particle.
[in]	(x,y,z)	the position vector of the inserted particle.

◆ sum_cell_volumes()

double voro::container::sum_cell_volumes ( voro_compute< container > & vc )

Calculates all of the Voronoi cells and sums their volumes. In most cases without walls, the sum of the Voronoi cell volumes should equal the volume of the container to numerical precision.

Returns: The sum of all of the computed Voronoi volumes.

Friends And Related Symbol Documentation

◆ voro_compute< container >

friend class voro_compute< container >

friend

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Experimental/Voronoi/Private/voro++/src/container.hh
Engine/Source/Runtime/Experimental/Voronoi/Private/voro++/src/container.cc
