#include <TextureAtlas.h>

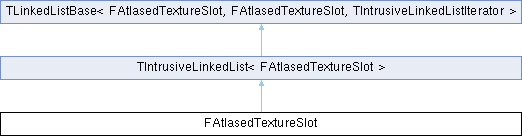

Inheritance diagram for FAtlasedTextureSlot:

Public Member Functions
	FAtlasedTextureSlot (uint32 InX, uint32 InY, uint32 InWidth, uint32 InHeight, uint8 InPadding)

Public Member Functions inherited from TIntrusiveLinkedList< FAtlasedTextureSlot >
	TIntrusiveLinkedList ()

Public Member Functions inherited from TLinkedListBase< ContainerType, ElementType, IteratorType >
	TLinkedListBase ()

void	Unlink ()

void	LinkBefore (ContainerType *Before)

void	LinkAfter (ContainerType *After)

void	LinkReplace (ContainerType *Replace)

void	LinkHead (ContainerType *&Head)

UE_FORCEINLINE_HINT bool	IsLinked ()

UE_FORCEINLINE_HINT ContainerType **	GetPrevLink () const

UE_FORCEINLINE_HINT ContainerType *	GetNextLink () const

UE_FORCEINLINE_HINT ContainerType *	Next ()

Public Attributes
uint32	X

uint32	Y

uint32	Width

uint32	Height

uint8	Padding

Additional Inherited Members
Public Types inherited from TLinkedListBase< ContainerType, ElementType, IteratorType >
typedef IteratorType< ContainerType, ElementType >	TIterator

typedef IteratorType< ContainerType, const ElementType >	TConstIterator

Detailed Description

Structure holding information about where a texture is located in the atlas. Inherits a linked-list interface.

When a slot is occupied by texture data, the remaining space in the slot (if big enough) is split off into two new (smaller) slots, building a tree of texture rectangles which, instead of being stored as a tree, are flattened into two linked-lists:

AtlasEmptySlots: A linked-list of empty slots ready for texture data - iterates in same order as a depth-first-search on a tree
AtlasUsedSlots: An unordered linked-list of slots containing texture data

Constructor & Destructor Documentation

◆ FAtlasedTextureSlot()

FAtlasedTextureSlot::FAtlasedTextureSlot	(	uint32	InX,
		uint32	InY,
		uint32	InWidth,
		uint32	InHeight,
		uint8	InPadding
	)

inline

Member Data Documentation

◆ Height

uint32 FAtlasedTextureSlot::Height

The height of the character

◆ Padding

uint8 FAtlasedTextureSlot::Padding

Uniform Padding. can only be zero or one. See ESlateTextureAtlasPaddingStyle.

◆ Width

uint32 FAtlasedTextureSlot::Width

The width of the character

◆ X

uint32 FAtlasedTextureSlot::X

The X position of the character in the texture

◆ Y

uint32 FAtlasedTextureSlot::Y

The Y position of the character in the texture

The documentation for this struct was generated from the following file:

Engine/Source/Runtime/SlateCore/Public/Textures/TextureAtlas.h
