#include <GenericPlatformStackWalk.h>

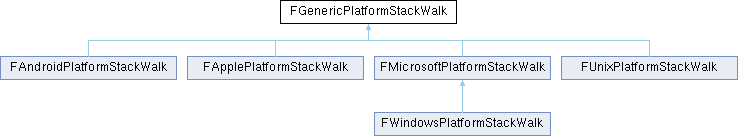

Inheritance diagram for FGenericPlatformStackWalk:

Classes
struct	EStackWalkFlags

Public Types
typedef FGenericPlatformStackWalk	Base

Static Public Member Functions
static CORE_API void	Init ()

static bool	InitStackWalking ()

static bool	InitStackWalkingForProcess (const FProcHandle &Process)

static CORE_API bool	ProgramCounterToHumanReadableString (int32 CurrentCallDepth, uint64 ProgramCounter, ANSICHAR HumanReadableString, SIZE_T HumanReadableStringSize, FGenericCrashContext Context=nullptr)

static CORE_API bool	SymbolInfoToHumanReadableString (const FProgramCounterSymbolInfo &SymbolInfo, ANSICHAR *HumanReadableString, SIZE_T HumanReadableStringSize)

static CORE_API bool	SymbolInfoToHumanReadableStringEx (const FProgramCounterSymbolInfoEx &SymbolInfo, FString &out_HumanReadableString)

static void	ProgramCounterToSymbolInfo (uint64 ProgramCounter, FProgramCounterSymbolInfo &out_SymbolInfo)

static void	ProgramCounterToSymbolInfoEx (uint64 ProgramCounter, FProgramCounterSymbolInfoEx &out_SymbolInfo)

static CORE_API uint32	CaptureStackBackTrace (uint64 BackTrace, uint32 MaxDepth, void Context=nullptr)

static CORE_API uint32	CaptureThreadStackBackTrace (uint64 ThreadId, uint64 BackTrace, uint32 MaxDepth, void Context=nullptr)

CORE_API static FORCENOINLINE void	StackWalkAndDump (ANSICHAR HumanReadableString, SIZE_T HumanReadableStringSize, int32 IgnoreCount, void Context=nullptr)

static CORE_API void	StackWalkAndDump (ANSICHAR HumanReadableString, SIZE_T HumanReadableStringSize, void ProgramCounter, void *Context=nullptr)

static CORE_API TArray< FProgramCounterSymbolInfo >	GetStack (int32 IgnoreCount, int32 MaxDepth=100, void *Context=nullptr)

static void	ThreadStackWalkAndDump (ANSICHAR *HumanReadableString, SIZE_T HumanReadableStringSize, int32 IgnoreCount, uint32 ThreadId)

static CORE_API void	StackWalkAndDumpEx (ANSICHAR HumanReadableString, SIZE_T HumanReadableStringSize, int32 IgnoreCount, uint32 Flags, void Context=nullptr)

static CORE_API void	StackWalkAndDumpEx (ANSICHAR HumanReadableString, SIZE_T HumanReadableStringSize, void ProgramCounter, uint32 Flags, void *Context=nullptr)

static FORCEINLINE int32	GetProcessModuleCount ()

static FORCEINLINE int32	GetProcessModuleSignatures (FStackWalkModuleInfo *ModuleSignatures, const int32 ModuleSignaturesSize)

static CORE_API TMap< FName, FString >	GetSymbolMetaData ()

static CORE_API void	CopyVirtualPathToLocal (char Dest, int32 DestCapacity, const char Source)

Static Protected Member Functions
static CORE_API bool	WantsDetailedCallstacksInNonMonolithicBuilds ()

Detailed Description

Generic implementation for most platforms

Member Typedef Documentation

◆ Base

typedef FGenericPlatformStackWalk FGenericPlatformStackWalk::Base

Member Function Documentation

◆ CaptureStackBackTrace()

uint32 FGenericPlatformStackWalk::CaptureStackBackTrace	(	uint64 *	BackTrace,
		uint32	MaxDepth,
		void *	Context = `nullptr`
	)

static

Capture a stack backtrace and optionally use the passed in exception pointers.

Parameters

BackTrace	[out] Pointer to array to take backtrace
MaxDepth	Entries in BackTrace array
Context	Optional thread context information

◆ CaptureThreadStackBackTrace()

uint32 FGenericPlatformStackWalk::CaptureThreadStackBackTrace	(	uint64	ThreadId,
		uint64 *	BackTrace,
		uint32	MaxDepth,
		void *	Context = `nullptr`
	)

static

Capture a stack backtrace for a specific thread.

Parameters

ThreadId	ID of the thread to trace
BackTrace	[out] Pointer to array to take backtrace
MaxDepth	Entries in BackTrace array
Context	Optional thread context information

◆ CopyVirtualPathToLocal()

void FGenericPlatformStackWalk::CopyVirtualPathToLocal	(	char *	Dest,
		int32	DestCapacity,
		const char *	Source
	)

static

Converts virtual path to local and write local path to Dest. If no virtual path if sound, Source will be written

◆ GetProcessModuleCount()

static FORCEINLINE int32 FGenericPlatformStackWalk::GetProcessModuleCount ( )

inlinestatic

Returns the number of modules loaded by the currently running process.

◆ GetProcessModuleSignatures()

static FORCEINLINE int32 FGenericPlatformStackWalk::GetProcessModuleSignatures	(	FStackWalkModuleInfo *	ModuleSignatures,
		const int32	ModuleSignaturesSize
	)

inlinestatic

Gets the signature for every module loaded by the currently running process.

Parameters

ModuleSignatures	An array to retrieve the module signatures.
ModuleSignaturesSize	The size of the array pointed to by ModuleSignatures.

Returns: The number of modules copied into ModuleSignatures

◆ GetStack()

TArray< FProgramCounterSymbolInfo > FGenericPlatformStackWalk::GetStack	(	int32	IgnoreCount,
		int32	MaxDepth = `100`,
		void *	Context = `nullptr`
	)

static

Walks the stack and updates the Stack array with the symbol information for each line in the stack.

Parameters

IgnoreCount	Number of stack entries to ignore (some are guaranteed to be in the stack walking code)
MaxDepth	The maximum depth to trace, can't be more than 100, offset from IgnoreCount.
Context	Optional thread context information

Returns: The stack of symbols to return.

◆ GetSymbolMetaData()

TMap< FName, FString > FGenericPlatformStackWalk::GetSymbolMetaData ( )

static

Gets the meta-data associated with all symbols of this target. This may include things that are needed to perform further offline processing of symbol information (eg, the source binary).

Returns: A map containing the meta-data (if any).

◆ Init()

void FGenericPlatformStackWalk::Init ( )

static

Initializes options related to stack walking from ini, i.e. how detailed the stack walking should be, performance settings etc.

◆ InitStackWalking()

static bool FGenericPlatformStackWalk::InitStackWalking ( )

inlinestatic

Initializes stack traversal and symbol. Must be called before any other stack/symbol functions. Safe to reenter.

◆ InitStackWalkingForProcess()

static bool FGenericPlatformStackWalk::InitStackWalkingForProcess ( const FProcHandle & Process )

inlinestatic

Like InitStackWalking but initializes stack walking for another process.

Parameters

Process Process that is going to be queried

Returns: True if successful, false otherwise.

◆ ProgramCounterToHumanReadableString()

bool FGenericPlatformStackWalk::ProgramCounterToHumanReadableString	(	int32	CurrentCallDepth,
		uint64	ProgramCounter,
		ANSICHAR *	HumanReadableString,
		SIZE_T	HumanReadableStringSize,
		FGenericCrashContext *	Context = `nullptr`
	)

static

Converts the passed in program counter address to a human readable string and appends it to the passed in one.

Warning: : The code assumes that HumanReadableString is large enough to contain the information.; : Please, do not override this method. Can't be modified or altered without notice.

This method is the same for all platforms to simplify parsing by the crash processor.

Example formatted line:

UE4Editor_Core!FOutputDeviceWindowsErrorSerialize() (0xddf1bae5) + 620 bytes [\engine\source\runtime\core\private\windows\windowsplatformoutputdevices.cpp:110] ModuleName!FunctionName (ProgramCounter) + offset bytes [StrippedFilepath:LineNumber]

Parameters

CurrentCallDepth	Depth of the call, if known (-1 if not - note that some platforms may not return meaningful information in the latter case)
ProgramCounter	Address to look symbol information up for
HumanReadableString	String to concatenate information with
HumanReadableStringSize	size of string in characters
Context	Pointer to crash context, if any

Returns: true if the symbol was found, otherwise false

◆ ProgramCounterToSymbolInfo()

static void FGenericPlatformStackWalk::ProgramCounterToSymbolInfo	(	uint64	ProgramCounter,
		FProgramCounterSymbolInfo &	out_SymbolInfo
	)

inlinestatic

Converts the passed in program counter address to a symbol info struct, filling in module and filename, line number and displacement.

Warning: : The code assumes that the destination strings are big enough

Parameters

ProgramCounter	Address to look symbol information up for
out_SymbolInfo	Symbol information associated with program counter

◆ ProgramCounterToSymbolInfoEx()

static void FGenericPlatformStackWalk::ProgramCounterToSymbolInfoEx	(	uint64	ProgramCounter,
		FProgramCounterSymbolInfoEx &	out_SymbolInfo
	)

inlinestatic

Same as above, but can be used with external applications since it doesn't re-initialize the active process.

◆ StackWalkAndDump() [1/2]

void FGenericPlatformStackWalk::StackWalkAndDump	(	ANSICHAR *	HumanReadableString,
		SIZE_T	HumanReadableStringSize,
		int32	IgnoreCount,
		void *	Context = `nullptr`
	)

static

Walks the stack and appends the human readable string to the passed in one.

Warning: : The code assumes that HumanReadableString is large enough to contain the information.

Parameters

HumanReadableString	String to concatenate information with
HumanReadableStringSize	size of string in characters
IgnoreCount	Number of stack entries to ignore (some are guaranteed to be in the stack walking code)
Context	Optional thread context information

◆ StackWalkAndDump() [2/2]

void FGenericPlatformStackWalk::StackWalkAndDump	(	ANSICHAR *	HumanReadableString,
		SIZE_T	HumanReadableStringSize,
		void *	ProgramCounter,
		void *	Context = `nullptr`
	)

static

Walks the stack and appends the human readable string to the passed in one.

Warning: : The code assumes that HumanReadableString is large enough to contain the information.

Parameters

HumanReadableString	String to concatenate information with
HumanReadableStringSize	size of string in characters
ProgramCounter	Instruction address that should be at the top of the stack
Context	Optional thread context information

◆ StackWalkAndDumpEx() [1/2]

void FGenericPlatformStackWalk::StackWalkAndDumpEx	(	ANSICHAR *	HumanReadableString,
		SIZE_T	HumanReadableStringSize,
		int32	IgnoreCount,
		uint32	Flags,
		void *	Context = `nullptr`
	)

static

Walks the stack and appends the human readable string to the passed in one.

Warning: : The code assumes that HumanReadableString is large enough to contain the information.

Parameters

HumanReadableString	String to concatenate information with
HumanReadableStringSize	size of string in characters
IgnoreCount	Number of stack entries to ignore (some are guaranteed to be in the stack walking code)
Flags	Used to pass additional information (see StackWalkFlags)
Context	Optional thread context information

◆ StackWalkAndDumpEx() [2/2]

void FGenericPlatformStackWalk::StackWalkAndDumpEx	(	ANSICHAR *	HumanReadableString,
		SIZE_T	HumanReadableStringSize,
		void *	ProgramCounter,
		uint32	Flags,
		void *	Context = `nullptr`
	)

static

Walks the stack and appends the human readable string to the passed in one.

Warning: : The code assumes that HumanReadableString is large enough to contain the information.

Parameters

HumanReadableString	String to concatenate information with
HumanReadableStringSize	size of string in characters
ProgramCounter	Instruction address that should be at the top of the stack
Flags	Used to pass additional information (see StackWalkFlags)
Context	Optional thread context information

◆ SymbolInfoToHumanReadableString()

bool FGenericPlatformStackWalk::SymbolInfoToHumanReadableString	(	const FProgramCounterSymbolInfo &	SymbolInfo,
		ANSICHAR *	HumanReadableString,
		SIZE_T	HumanReadableStringSize
	)

static

Converts the passed in symbol information to a human readable string and appends it to the passed in one.

Warning: : The code assumes that HumanReadableString is large enough to contain the information.; : Please, do not override this method. Can't be modified or altered without notice.

This method is the same for all platforms to simplify parsing by the crash processor.

Example formatted line:

UE4Editor_Core!FOutputDeviceWindowsErrorSerialize() (0xddf1bae5) + 620 bytes [\engine\source\runtime\core\private\windows\windowsplatformoutputdevices.cpp:110] ModuleName!FunctionName (ProgramCounter) + offset bytes [StrippedFilepath:LineNumber]

Parameters

SymbolInfo	Symbol information
HumanReadableString	String to concatenate information with
HumanReadableStringSize	size of string in characters
Context	Pointer to crash context, if any

Returns: true if the symbol was found, otherwise false

◆ SymbolInfoToHumanReadableStringEx()

bool FGenericPlatformStackWalk::SymbolInfoToHumanReadableStringEx	(	const FProgramCounterSymbolInfoEx &	SymbolInfo,
		FString &	out_HumanReadableString
	)

static

Same as above, but can be used with external applications.

◆ ThreadStackWalkAndDump()

static void FGenericPlatformStackWalk::ThreadStackWalkAndDump	(	ANSICHAR *	HumanReadableString,
		SIZE_T	HumanReadableStringSize,
		int32	IgnoreCount,
		uint32	ThreadId
	)

inlinestatic

Walks the stack for the specified thread and appends the human readable string to the passed in one.

Warning: : The code assumes that HumanReadableString is large enough to contain the information.

Parameters

HumanReadableString	String to concatenate information with
HumanReadableStringSize	size of string in characters
IgnoreCount	Number of stack entries to ignore (some are guaranteed to be in the stack walking code)
ThreadId	ThreadId to walk the strack for.

◆ WantsDetailedCallstacksInNonMonolithicBuilds()

bool FGenericPlatformStackWalk::WantsDetailedCallstacksInNonMonolithicBuilds ( )

staticprotected

Returns true if non-monolithic builds should produce full callstacks in the log (and load all debug symbols)

The documentation for this struct was generated from the following files:

Engine/Source/Runtime/Core/Public/GenericPlatform/GenericPlatformStackWalk.h
Engine/Source/Runtime/Core/Private/GenericPlatform/GenericPlatformStackWalk.cpp

Classes

Public Types

Static Public Member Functions

Static Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ Base

Member Function Documentation

◆ CaptureStackBackTrace()

◆ CaptureThreadStackBackTrace()

◆ CopyVirtualPathToLocal()

◆ GetProcessModuleCount()

◆ GetProcessModuleSignatures()

◆ GetStack()

◆ GetSymbolMetaData()

◆ Init()

◆ InitStackWalking()

◆ InitStackWalkingForProcess()

◆ ProgramCounterToHumanReadableString()

◆ ProgramCounterToSymbolInfo()

◆ ProgramCounterToSymbolInfoEx()

◆ StackWalkAndDump() [1/2]

◆ StackWalkAndDump() [2/2]

◆ StackWalkAndDumpEx() [1/2]

◆ StackWalkAndDumpEx() [2/2]

◆ SymbolInfoToHumanReadableString()

◆ SymbolInfoToHumanReadableStringEx()

◆ ThreadStackWalkAndDump()

◆ WantsDetailedCallstacksInNonMonolithicBuilds()
