FRHITextureDesc Struct Reference

#include <RHIResources.h>

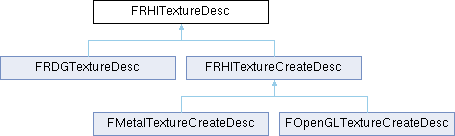

Inheritance diagram for FRHITextureDesc:

Public Member Functions
	FRHITextureDesc ()=default
	FRHITextureDesc (const FRHITextureDesc &Other)
	FRHITextureDesc (ETextureDimension InDimension)
	FRHITextureDesc (ETextureDimension InDimension, ETextureCreateFlags InFlags, EPixelFormat InFormat, FClearValueBinding InClearValue, FIntPoint InExtent, uint16 InDepth, uint16 InArraySize, uint8 InNumMips, uint8 InNumSamples, uint32 InExtData)
bool	operator== (const FRHITextureDesc &Other) const
bool	operator!= (const FRHITextureDesc &Other) const
FRHITextureDesc &	operator= (const FRHITextureDesc &Other)
bool	IsTexture2D () const
bool	IsTexture3D () const
bool	IsTextureCube () const
bool	IsTextureArray () const
bool	IsMipChain () const
bool	IsMultisample () const
FIntVector	GetSize () const
void	Reset ()
bool	IsValid () const
RHI_API uint64	CalcMemorySizeEstimate (uint32 FirstMipIndex, uint32 LastMipIndex) const
uint64	CalcMemorySizeEstimate (uint32 FirstMipIndex=0) const
uint16	GetSubresourceCount () const

Static Public Member Functions
static bool	CheckValidity (const FRHITextureDesc &Desc, const TCHAR *Name)

Public Attributes
ETextureCreateFlags	Flags = TexCreate_None
FClearValueBinding	ClearValue
FRHIGPUMask	GPUMask = FRHIGPUMask::All()
uint32	ExtData = 0
FIntPoint	Extent = FIntPoint(1, 1)
uint16	Depth = 1
uint16	ArraySize = 1
uint8	NumMips = 1
uint8	NumSamples = 1
ETextureDimension	Dimension = ETextureDimension::Texture2D
EPixelFormat	Format = PF_Unknown
EPixelFormat	UAVFormat = PF_Unknown
uint8	FastVRAMPercentage = 0xFF
TArray< EPixelFormat, TInlineAllocator< 1 > >	AliasableFormats

Friends
uint32	GetTypeHash (const FRHITextureDesc &Desc)

Detailed Description

Descriptor used to create a texture resource

Constructor & Destructor Documentation

FRHITextureDesc() [1/4]

FRHITextureDesc::FRHITextureDesc ( )

default

FRHITextureDesc() [2/4]

FRHITextureDesc::FRHITextureDesc ( const FRHITextureDesc &  Other )

inline

FRHITextureDesc() [3/4]

FRHITextureDesc::FRHITextureDesc ( ETextureDimension  InDimension )

inline

FRHITextureDesc() [4/4]

FRHITextureDesc::FRHITextureDesc ( ETextureDimension  InDimension, ETextureCreateFlags  InFlags, EPixelFormat  InFormat, FClearValueBinding  InClearValue, FIntPoint  InExtent, uint16  InDepth, uint16  InArraySize, uint8  InNumMips, uint8  InNumSamples, uint32  InExtData  )

inline

Member Function Documentation

CalcMemorySizeEstimate() [1/2]

uint64 FRHITextureDesc::CalcMemorySizeEstimate	(	uint32	FirstMipIndex,
		uint32	LastMipIndex
	)		const

Returns an estimated total memory size the described texture will occupy in GPU memory. This is an estimate because it only considers the dimensions / format etc of the texture, not any specifics about platform texture layout.

To get a true measure of a texture resource for the current running platform RHI, use RHICalcTexturePlatformSize().

Parameters

FirstMipIndex	- the index of the most detailed mip to consider in the memory size calculation. Must be < NumMips and <= LastMipIndex.
LastMipIndex	- the index of the least detailed mip to consider in the memory size calculation. Must be < NumMips and >= FirstMipIndex.

CalcMemorySizeEstimate() [2/2]

uint64 FRHITextureDesc::CalcMemorySizeEstimate ( uint32  FirstMipIndex = 0 ) const

inline

CheckValidity()

static bool FRHITextureDesc::CheckValidity ( const FRHITextureDesc &  Desc, const TCHAR *  Name  )

inlinestatic

Check the validity.

GetSize()

FIntVector FRHITextureDesc::GetSize ( ) const

inline

GetSubresourceCount()

uint16 FRHITextureDesc::GetSubresourceCount ( ) const

inline

IsMipChain()

bool FRHITextureDesc::IsMipChain ( ) const

inline

IsMultisample()

bool FRHITextureDesc::IsMultisample ( ) const

inline

IsTexture2D()

bool FRHITextureDesc::IsTexture2D ( ) const

inline

IsTexture3D()

bool FRHITextureDesc::IsTexture3D ( ) const

inline

IsTextureArray()

bool FRHITextureDesc::IsTextureArray ( ) const

inline

IsTextureCube()

bool FRHITextureDesc::IsTextureCube ( ) const

inline

IsValid()

bool FRHITextureDesc::IsValid ( ) const

inline

Returns whether this descriptor conforms to requirements.

operator!=()

bool FRHITextureDesc::operator!= ( const FRHITextureDesc &  Other ) const

inline

operator=()

FRHITextureDesc & FRHITextureDesc::operator= ( const FRHITextureDesc &  Other )

inline

operator==()

bool FRHITextureDesc::operator== ( const FRHITextureDesc &  Other ) const

inline

Reset()

void FRHITextureDesc::Reset ( )

inline

Friends And Related Symbol Documentation

GetTypeHash

uint32 GetTypeHash ( const FRHITextureDesc &  Desc )

friend

Member Data Documentation

AliasableFormats

TArray<EPixelFormat, TInlineAllocator<1> > FRHITextureDesc::AliasableFormats

Array of pixel formats that this texture can alias to

ArraySize

uint16 FRHITextureDesc::ArraySize = 1

The number of array elements in the texture. (Keep at 1 if dimension is 3D).

ClearValue

FClearValueBinding FRHITextureDesc::ClearValue

Clear value to use when fast-clearing the texture.

Depth

uint16 FRHITextureDesc::Depth = 1

Depth of the texture if the dimension is 3D.

Dimension

ETextureDimension FRHITextureDesc::Dimension = ETextureDimension::Texture2D

Texture dimension to use when creating the RHI texture.

ExtData

uint32 FRHITextureDesc::ExtData = 0

Platform-specific additional data. Used for offline processed textures on some platforms.

Extent

FIntPoint FRHITextureDesc::Extent = FIntPoint(1, 1)

Extent of the texture in x and y.

FastVRAMPercentage

uint8 FRHITextureDesc::FastVRAMPercentage = 0xFF

Resource memory percentage which should be allocated onto fast VRAM (hint-only). (encoding into 8bits, 0..255 -> 0%..100%)

Flags

ETextureCreateFlags FRHITextureDesc::Flags = TexCreate_None

Texture flags passed on to RHI texture.

Format

EPixelFormat FRHITextureDesc::Format = PF_Unknown

Pixel format used to create RHI texture.

GPUMask

FRHIGPUMask FRHITextureDesc::GPUMask = FRHIGPUMask::All()

NumMips

uint8 FRHITextureDesc::NumMips = 1

Number of mips in the texture mip-map chain.

NumSamples

uint8 FRHITextureDesc::NumSamples = 1

Number of samples in the texture. >1 for MSAA.

UAVFormat

EPixelFormat FRHITextureDesc::UAVFormat = PF_Unknown

Texture format used when creating the UAV. PF_Unknown means to use the default one (same as Format).

---

The documentation for this struct was generated from the following files:

• Engine/Source/Runtime/RHI/Public/RHIResources.h
• Engine/Source/Runtime/RHI/Private/RHI.cpp
