#include <QuadricError.h>

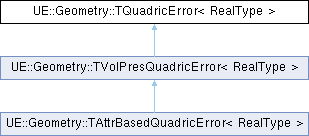

Inheritance diagram for UE::Geometry::TQuadricError< RealType >:

Public Types
typedef RealType	ScalarType

Public Member Functions
	TQuadricError ()

	TQuadricError (const TVector< RealType > &Normal, const TVector< RealType > &Point)

	TQuadricError (const TQuadricError &a, const TQuadricError &b)

void	Add (RealType w, const TQuadricError &b)

void	Add (const TQuadricError &b)

void	Subtract (const TQuadricError &b)

void	AddSeamQuadric (const TQuadricError &b)

void	SubtractSeamQuadric (const TQuadricError &b)

void	Scale (RealType w)

RealType	Evaluate (const UE::Math::TVector< RealType > &pt) const

TVector< RealType >	MultiplyA (const UE::Math::TVector< RealType > &pt) const

bool	SolveAxEqualsb (UE::Math::TVector< RealType > &OutResult, const RealType bvecx, const RealType bvecy, const RealType bvecz, const RealType minThresh=1000.0 *TMathUtil< RealType >::Epsilon) const

bool	OptimalPoint (UE::Math::TVector< RealType > &OutResult, RealType minThresh=1000.0 *TMathUtil< RealType >::Epsilon) const

Static Public Member Functions
static TQuadricError	Zero ()

static bool	InvertSymmetricMatrix (const RealType SM[6], RealType InvSM[6], RealType minThresh=1000.0 *TMathUtil< RealType >::Epsilon)

static TVector< RealType >	MultiplySymmetricMatrix (const RealType SM[6], const RealType vec[3])

static TVector< RealType >	MultiplySymmetricMatrix (const RealType SM[6], const UE::Math::TVector< RealType > &vec)

Public Attributes
RealType	Axx

RealType	Axy

RealType	Axz

RealType	Ayy

RealType	Ayz

RealType	Azz

RealType	bx

RealType	by

RealType	bz

RealType	c

Detailed Description

template<typename RealType>
struct UE::Geometry::TQuadricError< RealType >

QuadricError represents a quadratic function that evaluates distance to plane. Stores minimal 10-coefficient form, following http://mgarland.org/files/papers/qtheory.pdf (symmetric matrix A, vector b, constant c)

Member Typedef Documentation

◆ ScalarType

template<typename RealType >

typedef RealType UE::Geometry::TQuadricError< RealType >::ScalarType

Constructor & Destructor Documentation

◆ TQuadricError() [1/3]

template<typename RealType >

UE::Geometry::TQuadricError< RealType >::TQuadricError ( )

inline

◆ TQuadricError() [2/3]

template<typename RealType >

UE::Geometry::TQuadricError< RealType >::TQuadricError	(	const TVector< RealType > &	Normal,
		const TVector< RealType > &	Point
	)

inline

Construct TQuadricError a plane with the given normal and a point on plane

◆ TQuadricError() [3/3]

template<typename RealType >

UE::Geometry::TQuadricError< RealType >::TQuadricError	(	const TQuadricError< RealType > &	a,
		const TQuadricError< RealType > &	b
	)

inline

Construct TQuadricError that is the sum of two other TQuadricErrors

Member Function Documentation

◆ Add() [1/2]

template<typename RealType >

void UE::Geometry::TQuadricError< RealType >::Add ( const TQuadricError< RealType > & b )

inline

◆ Add() [2/2]

template<typename RealType >

void UE::Geometry::TQuadricError< RealType >::Add	(	RealType	w,
		const TQuadricError< RealType > &	b
	)

inline

Add scalar multiple of a TQuadricError to this TQuadricError

◆ AddSeamQuadric()

template<typename RealType >

void UE::Geometry::TQuadricError< RealType >::AddSeamQuadric ( const TQuadricError< RealType > & b )

inline

◆ Evaluate()

template<typename RealType >

RealType UE::Geometry::TQuadricError< RealType >::Evaluate ( const UE::Math::TVector< RealType > & pt ) const

inline

Evaluates p*A*p + 2*dot(p,b) + c

Returns

◆ InvertSymmetricMatrix()

template<typename RealType >

static bool UE::Geometry::TQuadricError< RealType >::InvertSymmetricMatrix	(	const RealType	SM[6],
		RealType	InvSM[6],
		RealType	minThresh = `1000.0*TMathUtil<RealType>::Epsilon`
	)

inlinestatic

◆ MultiplyA()

template<typename RealType >

TVector< RealType > UE::Geometry::TQuadricError< RealType >::MultiplyA ( const UE::Math::TVector< RealType > & pt ) const

inline

◆ MultiplySymmetricMatrix() [1/2]

template<typename RealType >

static TVector< RealType > UE::Geometry::TQuadricError< RealType >::MultiplySymmetricMatrix	(	const RealType	SM[6],
		const RealType	vec[3]
	)

inlinestatic

◆ MultiplySymmetricMatrix() [2/2]

template<typename RealType >

static TVector< RealType > UE::Geometry::TQuadricError< RealType >::MultiplySymmetricMatrix	(	const RealType	SM[6],
		const UE::Math::TVector< RealType > &	vec
	)

inlinestatic

◆ OptimalPoint()

template<typename RealType >

bool UE::Geometry::TQuadricError< RealType >::OptimalPoint	(	UE::Math::TVector< RealType > &	OutResult,
		RealType	minThresh = `1000.0*TMathUtil<RealType>::Epsilon`
	)		const

inline

◆ Scale()

template<typename RealType >

void UE::Geometry::TQuadricError< RealType >::Scale ( RealType w )

inline

Scale this quadric by the weight 'w'

◆ SolveAxEqualsb()

template<typename RealType >

bool UE::Geometry::TQuadricError< RealType >::SolveAxEqualsb	(	UE::Math::TVector< RealType > &	OutResult,
		const RealType	bvecx,
		const RealType	bvecy,
		const RealType	bvecz,
		const RealType	minThresh = `1000.0*TMathUtil<RealType>::Epsilon`
	)		const
