AVEncoder::FVideoDecoderMPEG4_Impl Class Reference

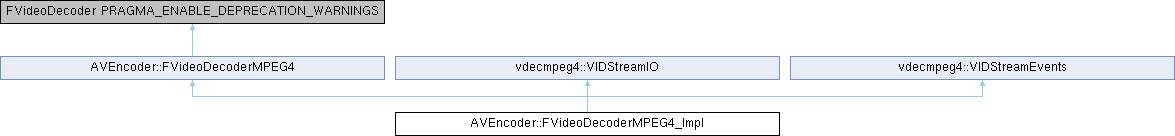

Inheritance diagram for AVEncoder::FVideoDecoderMPEG4_Impl:

Classes
struct	FInDecoderData

Public Member Functions
virtual PRAGMA_DISABLE_DEPRECATION_WARNINGS bool	Setup (const FInit &InInit) override
virtual PRAGMA_ENABLE_DEPRECATION_WARNINGS void	Shutdown () override
virtual PRAGMA_DISABLE_DEPRECATION_WARNINGS EDecodeResult	Decode (const FVideoDecoderInput *InInput) override
PRAGMA_ENABLE_DEPRECATION_WARNINGS	FVideoDecoderMPEG4_Impl ()
virtual	~FVideoDecoderMPEG4_Impl ()

Protected Member Functions
virtual void	FoundVideoObjectLayer (const VOLInfo &volInfo) override
virtual vdecmpeg4::VIDStreamResult	Read (uint8_t *pRequestedDataBuffer, uint32_t requestedDataBytes, uint32_t &actualDataBytes) override
virtual bool	IsEof () override
bool	FirstUseInit ()
Protected Member Functions inherited from AVEncoder::FVideoDecoderMPEG4
virtual PRAGMA_DISABLE_DEPRECATION_WARNINGS	~FVideoDecoderMPEG4 ()=default
	FVideoDecoderMPEG4 ()=default

Static Protected Member Functions
static void *	vidMalloc (uint32_t size, uint32_t alignment)
static void	vidFree (void *block)
static void	vidReport (const char *pMessage)

Protected Attributes
TQueue< TUniquePtr< FInDecoderData >, EQueueMode::Spsc >	PendingDecodeData
TUniquePtr< FInDecoderData >	CurrentAU
vdecmpeg4::VIDDecoderSetup	DecoderSetup
vdecmpeg4::VIDDecoder	DecoderHandle
vdecmpeg4::VIDError	LastDecoderError
bool	bIsInitialized
bool	bDataReaderAttached

Additional Inherited Members
Static Public Member Functions inherited from AVEncoder::FVideoDecoderMPEG4
static PRAGMA_DISABLE_DEPRECATION_WARNINGS void	Register (FVideoDecoderFactory &InFactory)

Constructor & Destructor Documentation

FVideoDecoderMPEG4_Impl()

AVEncoder::FVideoDecoderMPEG4_Impl::FVideoDecoderMPEG4_Impl

(

)

~FVideoDecoderMPEG4_Impl()

AVEncoder::FVideoDecoderMPEG4_Impl::~FVideoDecoderMPEG4_Impl ( )

virtual

Member Function Documentation

Decode()

PRAGMA_DISABLE_DEPRECATION_WARNINGS FVideoDecoder::EDecodeResult AVEncoder::FVideoDecoderMPEG4_Impl::Decode ( const FVideoDecoderInput *  InInput )

overridevirtual

Implements AVEncoder::FVideoDecoderMPEG4.

FirstUseInit()

bool AVEncoder::FVideoDecoderMPEG4_Impl::FirstUseInit ( )

protected

FoundVideoObjectLayer()

void AVEncoder::FVideoDecoderMPEG4_Impl::FoundVideoObjectLayer ( const VOLInfo &  volInfo )

overrideprotectedvirtual

Provide information about a new VOL found in the stream

Parameters

volInfo

information about VOL

Implements vdecmpeg4::VIDStreamEvents.

IsEof()

bool AVEncoder::FVideoDecoderMPEG4_Impl::IsEof ( )

overrideprotectedvirtual

Check if stream is at eof

Returns

True if stream is at eof

Implements vdecmpeg4::VIDStreamIO.

Read()

vdecmpeg4::VIDStreamResult AVEncoder::FVideoDecoderMPEG4_Impl::Read ( uint8_t *  pRequestedDataBuffer, uint32_t  requestedDataBytes, uint32_t &  actualDataBytes  )

overrideprotectedvirtual

Read data from stream

The decoder calls this method for reading 'requestedDataBytes' from the stream to the memory pointed via 'pRequestedDataBuffer'. The real amount of data which can be returned needs to be assigned to 'actualDataBytes' and a proper VIDStreamResult must be returned.

Parameters

pRequestedDataBuffer	where to put the read data
requestedDataBytes	actual size request of the decoder
actualDataBytes	available number of bytes in buffer after read

Returns

VIDStreamResult

Implements vdecmpeg4::VIDStreamIO.

Setup()

PRAGMA_DISABLE_DEPRECATION_WARNINGS bool AVEncoder::FVideoDecoderMPEG4_Impl::Setup ( const FInit &  InInit )

overridevirtual

Implements AVEncoder::FVideoDecoderMPEG4.

Shutdown()

void AVEncoder::FVideoDecoderMPEG4_Impl::Shutdown ( )

overridevirtual

Implements AVEncoder::FVideoDecoderMPEG4.

vidFree()

static void AVEncoder::FVideoDecoderMPEG4_Impl::vidFree ( void *  block )

inlinestaticprotected

vidMalloc()

static void * AVEncoder::FVideoDecoderMPEG4_Impl::vidMalloc ( uint32_t  size, uint32_t  alignment  )

inlinestaticprotected

vidReport()

static void AVEncoder::FVideoDecoderMPEG4_Impl::vidReport ( const char *  pMessage )

inlinestaticprotected

Member Data Documentation

bDataReaderAttached

bool AVEncoder::FVideoDecoderMPEG4_Impl::bDataReaderAttached

protected

bIsInitialized

bool AVEncoder::FVideoDecoderMPEG4_Impl::bIsInitialized

protected

CurrentAU

TUniquePtr<FInDecoderData> AVEncoder::FVideoDecoderMPEG4_Impl::CurrentAU

protected

DecoderHandle

vdecmpeg4::VIDDecoder AVEncoder::FVideoDecoderMPEG4_Impl::DecoderHandle

protected

DecoderSetup

vdecmpeg4::VIDDecoderSetup AVEncoder::FVideoDecoderMPEG4_Impl::DecoderSetup

protected

LastDecoderError

vdecmpeg4::VIDError AVEncoder::FVideoDecoderMPEG4_Impl::LastDecoderError

protected

PendingDecodeData

TQueue<TUniquePtr<FInDecoderData>, EQueueMode::Spsc> AVEncoder::FVideoDecoderMPEG4_Impl::PendingDecodeData

protected

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/AVEncoder/Private/Decoders/VideoDecoderMpeg4.cpp
