Chaos::FConstraintContainerSolver Class Reference

#include <SolverConstraintContainer.h>

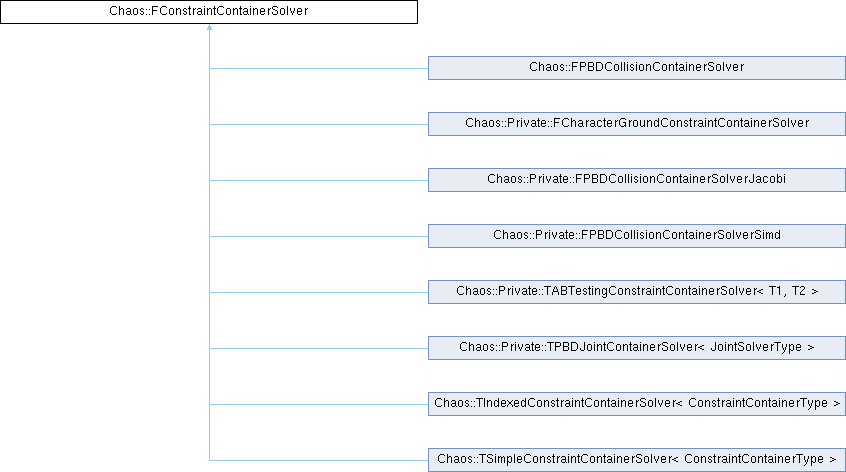

Inheritance diagram for Chaos::FConstraintContainerSolver:

Public Member Functions
	FConstraintContainerSolver (const int32 InPriority)
virtual	~FConstraintContainerSolver ()
void	SetPriority (const int32 InPriority)
int32	GetPriority () const
virtual void	Reset (const int32 MaxConstraints)=0
virtual int32	GetNumConstraints () const =0
virtual void	AddConstraints ()=0
virtual void	AddConstraints (const TArrayView< Private::FPBDIslandConstraint * > &Constraints)=0
virtual void	AddBodies (FSolverBodyContainer &SolverBodyContainer)=0
virtual void	GatherInput (const FReal Dt)=0
virtual void	GatherInput (const FReal Dt, const int32 BeginIndex, const int32 EndIndex)=0
virtual void	ScatterOutput (const FReal Dt)=0
virtual void	ScatterOutput (const FReal Dt, const int32 BeginIndex, const int32 EndIndex)=0
virtual void	PreApplyPositionConstraints (const FReal Dt)
virtual void	PreApplyVelocityConstraints (const FReal Dt)
virtual void	PreApplyProjectionConstraints (const FReal Dt)
virtual void	ApplyPositionConstraints (const FReal Dt, const int32 It, const int32 NumIts)=0
virtual void	ApplyVelocityConstraints (const FReal Dt, const int32 It, const int32 NumIts)=0
virtual void	ApplyProjectionConstraints (const FReal Dt, const int32 It, const int32 NumIts)=0

Detailed Description

Base class for all the solver for a set of constraints of a specific type.

A SolverContainer is used to solve a set constraints in sequential order. There will be one solver container for each thread on which we solve constraints (see FPBDIslandConstraintGroupSolver). How constraints are assigned to groups depends on the constraint type and settings, but usually a group contains all constraints from one or more islands (unless we are coloring).

NOTE: there are two main use-case for FConstraintContainerSolver objects: the main physics scene and RBAN. The main scene uses the IslandManager to break the scene up into groups of constraints that can be solved in parallel (Islands). Those islands are then put into IslandGroups, and each IslandGroup is solved in a task, therefore we will have one FConstraintContainerSolver per type of constraint per IslandGroup. RBAN does not attempt to partition its scene into islands and just solves all constraints on its main thread, so it only has one FConstraintContainerSolver (per constraint type).

Constructor & Destructor Documentation

FConstraintContainerSolver()

Chaos::FConstraintContainerSolver::FConstraintContainerSolver ( const int32  InPriority )

inline

~FConstraintContainerSolver()

virtual Chaos::FConstraintContainerSolver::~FConstraintContainerSolver ( )

inlinevirtual

Member Function Documentation

AddBodies()

virtual void Chaos::FConstraintContainerSolver::AddBodies ( FSolverBodyContainer &  SolverBodyContainer )

pure virtual

Add all the required bodies to the body container (required for the constraints added with AddConstraints)

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

AddConstraints() [1/2]

virtual void Chaos::FConstraintContainerSolver::AddConstraints ( )

pure virtual

RBAN API. Add all (active) constraints to the solver.

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

AddConstraints() [2/2]

virtual void Chaos::FConstraintContainerSolver::AddConstraints ( const TArrayView< Private::FPBDIslandConstraint * > &  Constraints )

pure virtual

Island API. Add a set of constraints to the solver. This can be called multiple times: once for each island in an IslandGroup, but there will never be more constraints added than specified in Reset(). NOTE: this should not do any actual data gathering - it should just add to the list of constraints in this group. All data gathering is handled in GatherInput.

Implemented in Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

ApplyPositionConstraints()

virtual void Chaos::FConstraintContainerSolver::ApplyPositionConstraints ( const FReal  Dt, const int32  It, const int32  NumIts  )

pure virtual

Apply the position solve to all constraints in the container

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

ApplyProjectionConstraints()

virtual void Chaos::FConstraintContainerSolver::ApplyProjectionConstraints ( const FReal  Dt, const int32  It, const int32  NumIts  )

pure virtual

Apply the projection solve to all constraints in the container

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

ApplyVelocityConstraints()

virtual void Chaos::FConstraintContainerSolver::ApplyVelocityConstraints ( const FReal  Dt, const int32  It, const int32  NumIts  )

pure virtual

Apply the velocity solve to all constraints in the container

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

GatherInput() [1/2]

virtual void Chaos::FConstraintContainerSolver::GatherInput ( const FReal  Dt )

pure virtual

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

GatherInput() [2/2]

virtual void Chaos::FConstraintContainerSolver::GatherInput ( const FReal  Dt, const int32  BeginIndex, const int32  EndIndex  )

pure virtual

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

GetNumConstraints()

virtual int32 Chaos::FConstraintContainerSolver::GetNumConstraints ( ) const

pure virtual

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

GetPriority()

int32 Chaos::FConstraintContainerSolver::GetPriority ( ) const

inline

Get the solver priority

PreApplyPositionConstraints()

virtual void Chaos::FConstraintContainerSolver::PreApplyPositionConstraints ( const FReal  Dt )

inlinevirtual

Reimplemented in Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >.

PreApplyProjectionConstraints()

virtual void Chaos::FConstraintContainerSolver::PreApplyProjectionConstraints ( const FReal  Dt )

inlinevirtual

Reimplemented in Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >.

PreApplyVelocityConstraints()

virtual void Chaos::FConstraintContainerSolver::PreApplyVelocityConstraints ( const FReal  Dt )

inlinevirtual

Reimplemented in Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >.

Reset()

virtual void Chaos::FConstraintContainerSolver::Reset ( const int32  MaxConstraints )

pure virtual

Set the maximum number of constraints the solver will have to handle. This will be called only once per tick, so containers resized here will not have to resize again this tick so that pointers to elements in the container will remain valid for the tick (but not beyond).

Implemented in Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TPBDJointContainerSolver< JointSolverType >, Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, and Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >.

ScatterOutput() [1/2]

virtual void Chaos::FConstraintContainerSolver::ScatterOutput ( const FReal  Dt )

pure virtual

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

ScatterOutput() [2/2]

virtual void Chaos::FConstraintContainerSolver::ScatterOutput ( const FReal  Dt, const int32  BeginIndex, const int32  EndIndex  )

pure virtual

Implemented in Chaos::Private::FCharacterGroundConstraintContainerSolver, Chaos::FPBDCollisionContainerSolver, Chaos::Private::FPBDCollisionContainerSolverJacobi, Chaos::Private::FPBDCollisionContainerSolverSimd, Chaos::Private::TABTestingConstraintContainerSolver< T1, T2 >, Chaos::TIndexedConstraintContainerSolver< ConstraintContainerType >, Chaos::TSimpleConstraintContainerSolver< ConstraintContainerType >, and Chaos::Private::TPBDJointContainerSolver< JointSolverType >.

SetPriority()

void Chaos::FConstraintContainerSolver::SetPriority ( const int32  InPriority )

inline

Set the solver priority. Solvers are sorted by priority. Lower values are solved first so solvers with higher priorty values with "win" over lower ones.

See also

FPBDConstraintGroupSolver

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Experimental/Chaos/Public/Chaos/Evolution/SolverConstraintContainer.h
