#include <BulkData.h>

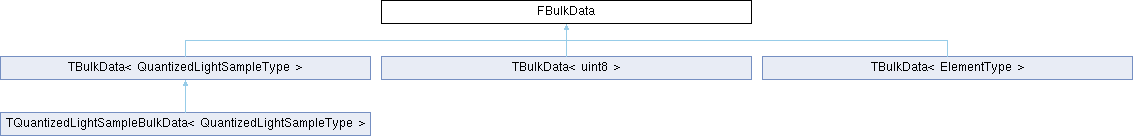

Inheritance diagram for FBulkData:

Public Types
using	BulkDataRangeArray = TArray< FBulkData *, TInlineAllocator< 8 > >

using	FSerializeBulkDataElements = TFunction< void(FArchive &, void *, int64, EBulkDataFlags)>

Public Member Functions
	FBulkData ()=default

COREUOBJECT_API	FBulkData (const FBulkData &Other)

COREUOBJECT_API	~FBulkData ()

COREUOBJECT_API FBulkData &	operator= (const FBulkData &Other)

COREUOBJECT_API int64	GetBulkDataSize () const

COREUOBJECT_API int64	GetBulkDataSizeOnDisk () const

COREUOBJECT_API int64	GetBulkDataOffsetInFile () const

COREUOBJECT_API bool	IsStoredCompressedOnDisk () const

COREUOBJECT_API bool	CanLoadFromDisk () const

COREUOBJECT_API bool	DoesExist () const

COREUOBJECT_API FName	GetDecompressionFormat () const

COREUOBJECT_API bool	IsBulkDataLoaded () const

COREUOBJECT_API bool	IsAsyncLoadingComplete () const

COREUOBJECT_API bool	IsAvailableForUse () const

bool	IsOptional () const

bool	IsInlined () const

bool	IsInSeparateFile () const

bool	IsInExternalResource () const

bool	IsUsingIODispatcher () const

bool	IsDataMemoryMapped () const

bool	IsSingleUse () const

bool	IsDuplicateNonOptional () const

COREUOBJECT_API void	SetBulkDataFlags (uint32 BulkDataFlagsToSet)

COREUOBJECT_API void	ResetBulkDataFlags (uint32 BulkDataFlagsToSet)

COREUOBJECT_API uint32	GetBulkDataFlags () const

COREUOBJECT_API uint32	GetBulkDataAlignment () const

COREUOBJECT_API void	ClearBulkDataFlags (uint32 BulkDataFlagsToClear)

FIoFilenameHash	GetIoFilenameHash () const

COREUOBJECT_API FIoChunkId	CreateChunkId () const

COREUOBJECT_API FString	GetDebugName () const

COREUOBJECT_API void	GetCopy (void **Dest, bool bDiscardInternalCopy=true)

COREUOBJECT_API void *	Lock (uint32 LockFlags)

COREUOBJECT_API const void *	LockReadOnly () const

COREUOBJECT_API void *	Realloc (int64 ElementCount, int64 ElementSize)

COREUOBJECT_API void	Unlock () const

bool	IsLocked () const

bool	IsUnlocked () const

COREUOBJECT_API void	RemoveBulkData ()

COREUOBJECT_API void	ForceBulkDataResident ()

COREUOBJECT_API void	StoreCompressedOnDisk (FName CompressionFormat)

COREUOBJECT_API bool	UnloadBulkData ()

COREUOBJECT_API void	Serialize (FArchive &Ar, UObject *Owner, bool bAttemptFileMapping, int32 ElementSize, EFileRegionType FileRegionType)

void	SerializeBulkData (FArchive &Ar, void *Data, EBulkDataFlags InBulkDataFlags)

FOwnedBulkDataPtr *	StealFileMapping ()

COREUOBJECT_API void	GetBulkDataVersions (FArchive &InlineArchive, FPackageFileVersion &OutUEVersion, int32 &OutLicenseeUEVersion, FCustomVersionContainer &OutCustomVersions) const

COREUOBJECT_API IAsyncReadFileHandle *	OpenAsyncReadHandle () const

COREUOBJECT_API IBulkDataIORequest *	CreateStreamingRequest (EAsyncIOPriorityAndFlags Priority, FBulkDataIORequestCallBack CompleteCallback, uint8 UserSuppliedMemory) const

COREUOBJECT_API IBulkDataIORequest *	CreateStreamingRequest (int64 OffsetInBulkData, int64 BytesToRead, EAsyncIOPriorityAndFlags Priority, FBulkDataIORequestCallBack CompleteCallback, uint8 UserSuppliedMemory) const

Static Public Attributes
static constexpr SIZE_T	MaxBulkDataSize = (1ull << 40) - 1

Protected Member Functions
COREUOBJECT_API void	SerializeBulkData (FArchive &Ar, void *Data, int64 DataSize, EBulkDataFlags InBulkDataFlags)

Friends
class	FLinkerLoad

class	FLinkerSave

class	FExportArchive

class	UE::Serialization::FEditorBulkData

class	FBulkDataBatchRequest

Detailed Description

@documentation

Member Typedef Documentation

◆ BulkDataRangeArray

using FBulkData::BulkDataRangeArray = TArray<FBulkData*, TInlineAllocator<8> >

◆ FSerializeBulkDataElements

using FBulkData::FSerializeBulkDataElements = TFunction<void(FArchive&, void*, int64, EBulkDataFlags)>

Constructor & Destructor Documentation

◆ FBulkData() [1/2]

FBulkData::FBulkData ( )

default

Constructor, initializing all member variables.

◆ FBulkData() [2/2]

FBulkData::FBulkData ( const FBulkData & Other )

Copy constructor. Use the common routine to perform the copy.

Parameters

Other the source array to copy

◆ ~FBulkData()

FBulkData::~FBulkData ( )

Virtual destructor, free'ing allocated memory.

Member Function Documentation

◆ CanLoadFromDisk()

bool FBulkData::CanLoadFromDisk ( ) const

Returns true if the data can be loaded from disk.

◆ ClearBulkDataFlags()

void FBulkData::ClearBulkDataFlags ( uint32 BulkDataFlagsToClear )

Clears the passed in bulk data flags.

Parameters

BulkDataFlagsToClear Bulk data flags to clear

◆ ClearBulkDataFlagsOn()

void FBulkData::ClearBulkDataFlagsOn	(	EBulkDataFlags &	InOutAccumulator,
		EBulkDataFlags	FlagsToClear
	)

static

Disable the given flags in the given accumulator variable.

◆ CreateChunkId()

FIoChunkId FBulkData::CreateChunkId ( ) const

Returns a FIoChunkId for the bulkdata payload, this will be invalid if the bulkdata is not stored in the IoStore

◆ CreateStreamingRequest() [1/2]

IBulkDataIORequest * FBulkData::CreateStreamingRequest	(	EAsyncIOPriorityAndFlags	Priority,
		FBulkDataIORequestCallBack *	CompleteCallback,
		uint8 *	UserSuppliedMemory
	)		const

Create an async read request for the bulk data. This version will load the entire data range that the FBulkData represents.

Parameters

Priority	Priority and flags of the request. If this includes AIOP_FLAG_PRECACHE, then memory will never be returned. The request should always be canceled and waited for, even for a precache request.
CompleteCallback	Called from an arbitrary thread when the request is complete. Can be nullptr, if non-null, must remain valid until it is called. It will always be called.
UserSuppliedMemory	A pointer to memory for the IO request to be written to, it is up to the caller to make sure that it is large enough. If the pointer is null then the system will allocate memory instead.

Returns: A request for the read. This is owned by the caller and must be deleted by the caller.

◆ CreateStreamingRequest() [2/2]

IBulkDataIORequest * FBulkData::CreateStreamingRequest	(	int64	OffsetInBulkData,
		int64	BytesToRead,
		EAsyncIOPriorityAndFlags	Priority,
		FBulkDataIORequestCallBack *	CompleteCallback,
		uint8 *	UserSuppliedMemory
	)		const

Create an async read request for the bulk data. This version allows the user to request a subset of the data that the FBulkData represents.

Parameters

OffsetInBulkData	Offset into the bulk data to start reading from.
BytesToRead	The number of bytes to read. If this request is AIOP_Preache, the size can be anything, even MAX_int64, otherwise the size and offset must be fully contained in the file.
Priority	Priority and flags of the request. If this includes AIOP_FLAG_PRECACHE, then memory will never be returned. The request should always be canceled and waited for, even for a precache request.
CompleteCallback	Called from an arbitrary thread when the request is complete. Can be nullptr, if non-null, must remain valid until it is called. It will always be called.
UserSuppliedMemory	A pointer to memory for the IO request to be written to, it is up to the caller to make sure that it is large enough. If the pointer is null then the system will allocate memory instead.

Returns: A request for the read. This is owned by the caller and must be deleted by the caller.

◆ DoesExist()

bool FBulkData::DoesExist ( ) const

Returns true if the data references a file that currently exists and can be referenced by the file system.

◆ DumpBulkDataUsage()

void FBulkData::DumpBulkDataUsage ( FOutputDevice & Log )

static

Dumps detailed information of bulk data usage.

Parameters

Log	FOutputDevice to use for logging

◆ ForceBulkDataResident()

void FBulkData::ForceBulkDataResident ( )

Forces the bulk data to be resident in memory and detaches the archive.

◆ GetBulkDataAlignment()

uint32 FBulkData::GetBulkDataAlignment ( ) const

Gets the current bulk data alignment.

Returns: Bulk data alignment currently set

◆ GetBulkDataFlags()

uint32 FBulkData::GetBulkDataFlags ( ) const

Gets the current bulk data flags.

Returns: Bulk data flags currently set

◆ GetBulkDataOffsetInFile()

int64 FBulkData::GetBulkDataOffsetInFile ( ) const

Returns the offset into the file the bulk data is located at.

Returns: Offset into the file or INDEX_NONE in case there is no association

◆ GetBulkDataSize()

int64 FBulkData::GetBulkDataSize ( ) const

Returns the size of the bulk data in bytes.

Returns: Size of the bulk data in bytes

◆ GetBulkDataSizeOnDisk()

int64 FBulkData::GetBulkDataSizeOnDisk ( ) const

Returns the size of the bulk data on disk. This can differ from GetBulkDataSize if BULKDATA_SerializeCompressed is set.

Returns: Size of the bulk data on disk or INDEX_NONE in case there's no association

◆ GetBulkDataVersions()

void FBulkData::GetBulkDataVersions	(	FArchive &	InlineArchive,
		FPackageFileVersion &	OutUEVersion,
		int32 &	OutLicenseeUEVersion,
		FCustomVersionContainer &	OutCustomVersions
	)		const

Get the CustomVersions used in the file containing the BulkData payload. If !IsInSeparateFile, this will be the custom versions from the archive used to serialize the FBulkData, which the caller must provide. Otherwise, the CustomVersions come from the separate file and this function will look them up.

Parameters

InlineArchive The archive that was used to load this object

◆ GetCopy()

void FBulkData::GetCopy	(	void **	Dest,
		bool	bDiscardInternalCopy = `true`
	)

Retrieves a copy of the bulk data.

Parameters

Dest	[in/out] Pointer to pointer going to hold copy, can point to NULL pointer in which case memory is allocated
bDiscardInternalCopy	Whether to discard/ free the potentially internally allocated copy of the data

◆ GetDebugName()

FString FBulkData::GetDebugName ( ) const

Returns a string representing the bulk data for debugging purposes.

◆ GetDecompressionFormat() [1/2]

FName FBulkData::GetDecompressionFormat ( ) const

Returns flags usable to decompress the bulk data

Returns: NAME_None if the data was not compressed on disk, or valid format to pass to FCompression::UncompressMemory for this data

Returns flags usable to decompress the bulk data

Returns: COMPRESS_NONE if the data was not compressed on disk, or valid flags to pass to FCompression::UncompressMemory for this data

◆ GetDecompressionFormat() [2/2]

FName FBulkData::GetDecompressionFormat ( EBulkDataFlags InFlags )

static

Returns decompress method flags specified by the given bulk data flags.

◆ GetIoFilenameHash()

FIoFilenameHash FBulkData::GetIoFilenameHash ( ) const

inline

Returns the io filename hash associated with this bulk data.

Returns: Hash or INVALID_IO_FILENAME_HASH if invalid.

◆ HasFlags()

bool FBulkData::HasFlags	(	EBulkDataFlags	Flags,
		EBulkDataFlags	Contains
	)

static

Returns whether all of the specified flags are set.

◆ IsAsyncLoadingComplete()

bool FBulkData::IsAsyncLoadingComplete ( ) const

Deprecated

Returns: As of 5.5 this will always return true as StartAsyncLoading was removed

◆ IsAvailableForUse()

bool FBulkData::IsAvailableForUse ( ) const

Returns whether this bulk data is used

Returns: true if BULKDATA_Unused is not set

◆ IsBulkDataLoaded()

bool FBulkData::IsBulkDataLoaded ( ) const

Returns whether the bulk data is currently loaded and resident in memory.

Returns: true if bulk data is loaded, false otherwise

◆ IsDataMemoryMapped()

bool FBulkData::IsDataMemoryMapped ( ) const

inline

Returns whether this bulk data is memory mapped or not.

◆ IsDuplicateNonOptional()

bool FBulkData::IsDuplicateNonOptional ( ) const

inline

Returns whether this bulk data represents duplicate non-optional data or not

Returns: true if BULKDATA_DuplicateNonOptionalPayload is set

◆ IsInExternalResource()

bool FBulkData::IsInExternalResource ( ) const

inline

Returns whether this bulk data is stored in a PackageExternalResource rather than in a neighboring segment of its owner's PackagePath.

◆ IsInlined()

bool FBulkData::IsInlined ( ) const

inline

Returns whether this bulk data is currently stored inline or not

Returns: true if BULKDATA_PayloadAtEndOfFile is not set

◆ IsInSeparateFile()

bool FBulkData::IsInSeparateFile ( ) const

inline

Returns whether this bulk data is currently stored in it's own file or not

Returns: true if BULKDATA_PayloadInSeparateFile is set

◆ IsLocked()

bool FBulkData::IsLocked ( ) const

inline

Checks if this bulk is locked

◆ IsOptional()

bool FBulkData::IsOptional ( ) const

inline

Returns whether this bulk data represents optional data or not

Returns: true if BULKDATA_OptionalPayload is set

◆ IsSingleUse()

bool FBulkData::IsSingleUse ( ) const

inline

Returns whether to deallocate the bulk data after lock

◆ IsStoredCompressedOnDisk()

bool FBulkData::IsStoredCompressedOnDisk ( ) const

Returns whether the bulk data is stored compressed on disk.

Returns: true if data is compressed on disk, false otherwise

◆ IsUnlocked()

bool FBulkData::IsUnlocked ( ) const

inline

Checks if this bulk is unlocked

◆ IsUsingIODispatcher()

bool FBulkData::IsUsingIODispatcher ( ) const

inline

Returns whether this bulk data is accessed via the IoDispatcher or not.

Returns: false as the old BulkData API does not support it

◆ Lock()

void * FBulkData::Lock ( uint32 LockFlags )

Locks the bulk data and returns a pointer to it.

Parameters

LockFlags Flags determining lock behavior

◆ LockReadOnly()

const void * FBulkData::LockReadOnly ( ) const

Locks the bulk data and returns a read-only pointer to it. This variant can be called on a const bulkdata

◆ OpenAsyncReadHandle()

IAsyncReadFileHandle * FBulkData::OpenAsyncReadHandle ( ) const

Opens a new IAsyncReadFileHandle that references the file that the BulkData object represents.

Returns: A valid handle if the file can be accessed, if it cannot then nullptr.

◆ operator=()

FBulkData & FBulkData::operator= ( const FBulkData & Other )

Copies the source array into this one after detaching from archive.

Parameters

Other the source array to copy

◆ Realloc()

void * FBulkData::Realloc	(	int64	ElementCount,
		int64	ElementSize
	)

Change size of locked bulk data. Only valid if locked via read-write lock.

Parameters

ElementCount	Number of elements to allocate.
ElementSize	Size in bytes of the individual element.

WITH_EDITOR

◆ RemoveBulkData()

void FBulkData::RemoveBulkData ( )

Clears/removes any currently allocated data payload and resets element count to 0.

Note that once this has been called, the bulkdata object will no longer be able to reload it's payload from disk!

Clears/ removes the bulk data and resets element count to 0.

◆ ResetBulkDataFlags()

void FBulkData::ResetBulkDataFlags ( uint32 BulkDataFlagsToSet )

Enable the given flags and disable all other flags. This can be used with GetBulkDataFlags() to effectively reset the flags to a previous state.

Parameters

BulkDataFlagsToSet Bulk data flags to set

◆ Serialize()

void FBulkData::Serialize	(	FArchive &	Ar,
		UObject *	Owner,
		bool	bAttemptFileMapping,
		int32	ElementSize,
		EFileRegionType	FileRegionType
	)

Serialize function used to serialize this bulk data structure.

Parameters

Ar	Archive to serialize with
Owner	Object owning the bulk data
Idx	Index of bulk data item being serialized
bAttemptFileMapping	If true, attempt to map this instead of loading it into malloc'ed memory
FileRegionType	When cooking, a hint describing the type of data, used by some platforms to improve compression ratios

WITH_EDITOR

◆ SerializeBulkData() [1/2]

void FBulkData::SerializeBulkData	(	FArchive &	Ar,
		void *	Data,
		EBulkDataFlags	InBulkDataFlags
	)

inline

Serialize just the bulk data portion to/ from the passed in memory.

Parameters

Ar	Archive to serialize with
Data	Memory to serialize either to or from
InBulkDataFlags	Flags describing how the data was/shouldbe serialized

◆ SerializeBulkData() [2/2]

void FBulkData::SerializeBulkData	(	FArchive &	Ar,
		void *	Data,
		int64	DataSize,
		EBulkDataFlags	InBulkDataFlags
	)

protected

◆ SetBulkDataFlags()

void FBulkData::SetBulkDataFlags ( uint32 BulkDataFlagsToSet )

Enables the given flags without affecting any previously set flags.

Parameters

BulkDataFlagsToSet Bulk data flags to set

Sets the passed in bulk data flags.

Parameters

BulkDataFlagsToSet Bulk data flags to set

◆ SetBulkDataFlagsOn()

void FBulkData::SetBulkDataFlagsOn	(	EBulkDataFlags &	InOutAccumulator,
		EBulkDataFlags	FlagsToSet
	)

static

Enable the given flags in the given accumulator variable.

◆ StealFileMapping()

FOwnedBulkDataPtr * FBulkData::StealFileMapping ( )

inline

◆ StoreCompressedOnDisk()

void FBulkData::StoreCompressedOnDisk ( FName CompressionFormat )

Sets whether we should store the data compressed on disk.

Parameters

CompressionFormat The format to use for compression e.g. NAME_None or NAME_Oodle.

This should likely not be used - bulk data that gets deployed should be compressed via UnrealPak so that it can leverage hardware compression as available, and editor bulk data is compressed by default and should use FEditorBulkData::SetCompressionOptions to control that if necessary.

◆ UnloadBulkData()

bool FBulkData::UnloadBulkData ( )

Deallocates bulk data without detaching the archive, so that further bulk data accesses require a reload. Only supported in editor builds.

Returns: Whether the operation succeeded.

Deallocates bulk data without detaching the archive.

◆ Unlock()

void FBulkData::Unlock ( ) const

Unlocks bulk data after which point the pointer returned by Lock no longer is valid.

Friends And Related Symbol Documentation

◆ FBulkDataBatchRequest

friend class FBulkDataBatchRequest

friend

◆ FExportArchive

friend class FExportArchive

friend

◆ FLinkerLoad

friend class FLinkerLoad

friend

◆ FLinkerSave

friend class FLinkerSave

friend

◆ UE::Serialization::FEditorBulkData

friend class UE::Serialization::FEditorBulkData

friend

Member Data Documentation

◆ MaxBulkDataSize

constexpr SIZE_T FBulkData::MaxBulkDataSize = (1ull << 40) - 1

staticconstexpr

The documentation for this class was generated from the following files:

Engine/Source/Runtime/CoreUObject/Public/Serialization/BulkData.h
Engine/Source/Runtime/CoreUObject/Private/Serialization/BulkData.cpp

Static Public Member Functions
static COREUOBJECT_API void	DumpBulkDataUsage (FOutputDevice &Log)

static COREUOBJECT_API void	SetBulkDataFlagsOn (EBulkDataFlags &InOutAccumulator, EBulkDataFlags FlagsToSet)

static COREUOBJECT_API void	ClearBulkDataFlagsOn (EBulkDataFlags &InOutAccumulator, EBulkDataFlags FlagsToClear)

static COREUOBJECT_API bool	HasFlags (EBulkDataFlags Flags, EBulkDataFlags Contains)

static COREUOBJECT_API FName	GetDecompressionFormat (EBulkDataFlags InFlags)

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ BulkDataRangeArray

◆ FSerializeBulkDataElements

Constructor & Destructor Documentation

◆ FBulkData() [1/2]

◆ FBulkData() [2/2]

◆ ~FBulkData()

Member Function Documentation

◆ CanLoadFromDisk()

◆ ClearBulkDataFlags()

◆ ClearBulkDataFlagsOn()

◆ CreateChunkId()

◆ CreateStreamingRequest() [1/2]

◆ CreateStreamingRequest() [2/2]

◆ DoesExist()

◆ DumpBulkDataUsage()

◆ ForceBulkDataResident()

◆ GetBulkDataAlignment()

◆ GetBulkDataFlags()

◆ GetBulkDataOffsetInFile()

◆ GetBulkDataSize()

◆ GetBulkDataSizeOnDisk()

◆ GetBulkDataVersions()

◆ GetCopy()

◆ GetDebugName()

◆ GetDecompressionFormat() [1/2]

◆ GetDecompressionFormat() [2/2]

◆ GetIoFilenameHash()

◆ HasFlags()

◆ IsAsyncLoadingComplete()

◆ IsAvailableForUse()

◆ IsBulkDataLoaded()

◆ IsDataMemoryMapped()

◆ IsDuplicateNonOptional()

◆ IsInExternalResource()

◆ IsInlined()

◆ IsInSeparateFile()

◆ IsLocked()

◆ IsOptional()

◆ IsSingleUse()

◆ IsStoredCompressedOnDisk()

◆ IsUnlocked()

◆ IsUsingIODispatcher()

◆ Lock()

◆ LockReadOnly()

◆ OpenAsyncReadHandle()

◆ operator=()

◆ Realloc()

◆ RemoveBulkData()

◆ ResetBulkDataFlags()

◆ Serialize()

◆ SerializeBulkData() [1/2]

◆ SerializeBulkData() [2/2]

◆ SetBulkDataFlags()

◆ SetBulkDataFlagsOn()

◆ StealFileMapping()

◆ StoreCompressedOnDisk()

◆ UnloadBulkData()

◆ Unlock()

Friends And Related Symbol Documentation

◆ FBulkDataBatchRequest

◆ FExportArchive

◆ FLinkerLoad

◆ FLinkerSave

◆ UE::Serialization::FEditorBulkData

Member Data Documentation

◆ MaxBulkDataSize
