FD3D12RenderTargetView Class Reference

#include <D3D12View.h>

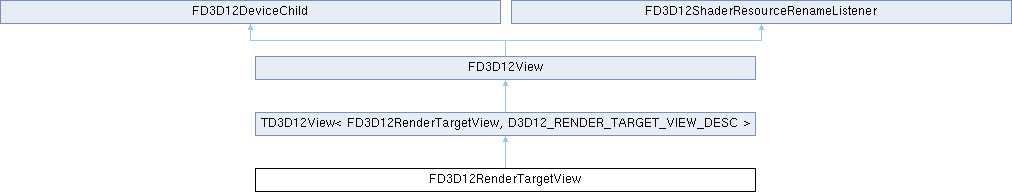

Inheritance diagram for FD3D12RenderTargetView:

Public Member Functions
	FD3D12RenderTargetView (FD3D12Device *InDevice, FD3D12RenderTargetView *FirstLinkedObject)
void	CreateView (FResourceInfo const &InResource, TDesc const &InD3DViewDesc)
Public Member Functions inherited from TD3D12View< FD3D12RenderTargetView, D3D12_RENDER_TARGET_VIEW_DESC >
D3D12_RENDER_TARGET_VIEW_DESC const &	GetD3DDesc () const
Public Member Functions inherited from FD3D12View
FD3D12Resource *	GetResource () const
FD3D12BaseShaderResource *	GetShaderResource () const
FD3D12ResourceLocation *	GetResourceLocation () const
TConstArrayView< FD3D12ResidencyHandle * >	GetResidencyHandles () const
FD3D12ViewSubset const &	GetViewSubset () const
FD3D12OfflineDescriptor	GetOfflineCpuHandle () const
FRHIDescriptorHandle	GetBindlessHandle () const
constexpr bool	IsBindless () const
Public Member Functions inherited from FD3D12DeviceChild
	FD3D12DeviceChild (FD3D12Device *InParent=nullptr)
FORCEINLINE FD3D12Device *	GetParentDevice () const
FD3D12Device *	GetParentDevice_Unsafe () const

Static Public Attributes
static constexpr FD3D12OfflineDescriptor FD3D12DefaultViews::*	Null { &FD3D12DefaultViews::NullRTV }

Additional Inherited Members
Public Types inherited from FD3D12View
enum class	EReason { InitialCreate , UpdateOrRename }
Protected Member Functions inherited from TD3D12View< FD3D12RenderTargetView, D3D12_RENDER_TARGET_VIEW_DESC >
	TD3D12View (FD3D12Device *InDevice, ERHIDescriptorType InDescriptorType, ERHIDescriptorHeapType InHeapType, TD3D12View *FirstLinkedObject)
void	CreateView (FResourceInfo const &InResource, D3D12_RENDER_TARGET_VIEW_DESC const &InD3DViewDesc)
void	UpdateView (FD3D12ContextArray const &Contexts, FResourceInfo const &InResource, D3D12_RENDER_TARGET_VIEW_DESC const &InD3DViewDesc)
virtual void	ResourceRenamed (FD3D12ContextArray const &Contexts, FD3D12BaseShaderResource *InRenamedResource, FD3D12ResourceLocation *InNewResourceLocation) override
Protected Member Functions inherited from FD3D12View
	FD3D12View ()=delete
	FD3D12View (FD3D12Device *InDevice, ERHIDescriptorType InDescriptorType, ERHIDescriptorHeapType InHeapType, FD3D12View *FirstLinkedObject)
virtual	~FD3D12View ()
void	UpdateResourceInfo (FResourceInfo const &InResource, FNullDescPtr NullDescriptor)
void	CreateView (FResourceInfo const &InResource, FNullDescPtr NullDescriptor)
void	UpdateView (FD3D12ContextArray const &Contexts, const FResourceInfo &InResource, FNullDescPtr NullDescriptor)
bool	IsInitialized () const
void	InitializeBindlessSlot ()
void	UpdateBindlessSlot (FD3D12ContextArray const &Contexts)
Protected Attributes inherited from TD3D12View< FD3D12RenderTargetView, D3D12_RENDER_TARGET_VIEW_DESC >
D3D12_RENDER_TARGET_VIEW_DESC	D3DViewDesc
Protected Attributes inherited from FD3D12View
FResourceInfo	ResourceInfo
FD3D12ViewSubset	ViewSubset
FD3D12OfflineDescriptor	OfflineCpuHandle
ERHIDescriptorHeapType const	HeapType
Protected Attributes inherited from FD3D12DeviceChild
FD3D12Device *	Parent

Constructor & Destructor Documentation

FD3D12RenderTargetView()

FD3D12RenderTargetView::FD3D12RenderTargetView	(	FD3D12Device *	InDevice,
		FD3D12RenderTargetView *	FirstLinkedObject
	)

Member Function Documentation

CreateView()

void TD3D12View< TParent, TDesc >::CreateView ( FResourceInfo const &  InResource, TDesc const &  InD3DViewDesc  )

inline

Member Data Documentation

Null

constexpr FD3D12OfflineDescriptor FD3D12DefaultViews::* FD3D12RenderTargetView::Null { &FD3D12DefaultViews::NullRTV }

staticconstexpr

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/D3D12RHI/Private/D3D12View.h
• Engine/Source/Runtime/D3D12RHI/Private/D3D12View.cpp
