FD3D12Resource Class Reference

#include <D3D12Resources.h>

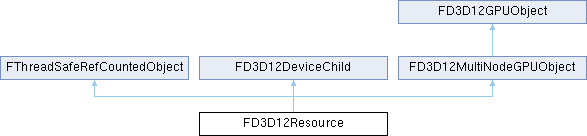

Inheritance diagram for FD3D12Resource:

Classes
struct	FD3D12ResourceTypeHelper

Public Member Functions
	FD3D12Resource ()=delete
	FD3D12Resource (FD3D12Device *ParentDevice, FRHIGPUMask VisibleNodes, ID3D12Resource *InResource, ED3D12Access InInitialD3D12Access, FD3D12ResourceDesc const &InDesc, FD3D12Heap *InHeap=nullptr, D3D12_HEAP_TYPE InHeapType=D3D12_HEAP_TYPE_DEFAULT)
	FD3D12Resource (FD3D12Device *ParentDevice, FRHIGPUMask VisibleNodes, ID3D12Resource *InResource, ED3D12Access InInitialD3D12Access, ED3D12ResourceStateMode InResourceStateMode, ED3D12Access InDefaultD3D12Access, FD3D12ResourceDesc const &InDesc, FD3D12Heap *InHeap, D3D12_HEAP_TYPE InHeapType)
virtual	~FD3D12Resource ()
	operator ID3D12Resource & ()
ID3D12Resource *	GetResource () const
const D3D12_RESOURCE_DESC *	GetUAVAccessResourceDesc () const
void	SetUAVAccessResourceDesc (const D3D12_RESOURCE_DESC &InUAVAccessResourceDesc)
void *	Map (const D3D12_RANGE *ReadRange=nullptr)
void	Unmap ()
ID3D12Pageable *	GetPageable ()
const FD3D12ResourceDesc &	GetDesc () const
D3D12_HEAP_TYPE	GetHeapType () const
D3D12_GPU_VIRTUAL_ADDRESS	GetGPUVirtualAddress () const
void	SetGPUVirtualAddress (D3D12_GPU_VIRTUAL_ADDRESS Value)
void *	GetResourceBaseAddress () const
uint16	GetMipLevels () const
uint16	GetArraySize () const
uint8	GetPlaneCount () const
uint16	GetSubresourceCount () const
ED3D12Access	GetInitialAccess () const
ED3D12Access	GetDefaultAccess () const
bool	RequiresResourceStateTracking () const
bool	IsBackBuffer () const
void	SetName (const TCHAR *Name)
FName	GetName () const
void	DoNotDeferDelete ()
bool	ShouldDeferDelete () const
void	DeferDelete ()
bool	IsReservedResource () const
bool	IsPlacedResource () const
FD3D12Heap *	GetHeap () const
bool	IsDepthStencilResource () const
uint64	GetCommittedReservedResourceSize () const
bool	NeedsDeferredResidencyUpdate () const
void	StartTrackingForResidency ()
bool	IsResident () const
TConstArrayView< FD3D12ResidencyHandle * >	GetResidencyHandles () const
template<typename TLambda >
FORCEINLINE_DEBUGGABLE void	GetBackingHeapsGpuAddresses (TLambda &&Lambda) const
void	CommitReservedResource (ID3D12CommandQueue *D3DCommandQueue, uint64 RequiredCommitSizeInBytes)
Public Member Functions inherited from FThreadSafeRefCountedObject
	FThreadSafeRefCountedObject ()=default
	FThreadSafeRefCountedObject (const FThreadSafeRefCountedObject &Rhs)=delete
FThreadSafeRefCountedObject &	operator= (const FThreadSafeRefCountedObject &Rhs)=delete
virtual	~FThreadSafeRefCountedObject ()
FReturnedRefCountValue	AddRef () const
uint32	Release () const
uint32	GetRefCount () const
Public Member Functions inherited from FD3D12DeviceChild
	FD3D12DeviceChild (FD3D12Device *InParent=nullptr)
FORCEINLINE FD3D12Device *	GetParentDevice () const
FD3D12Device *	GetParentDevice_Unsafe () const
Public Member Functions inherited from FD3D12MultiNodeGPUObject
	FD3D12MultiNodeGPUObject (FRHIGPUMask NodeMask, FRHIGPUMask VisibiltyMask)
Public Member Functions inherited from FD3D12GPUObject
	FD3D12GPUObject (FRHIGPUMask InGPUMask, FRHIGPUMask InVisibiltyMask)
SGPU_CONSTEXPR FRHIGPUMask	GetGPUMask () const
SGPU_CONSTEXPR FRHIGPUMask	GetVisibilityMask () const

Friends
class	FD3D12Buffer

Additional Inherited Members
Protected Attributes inherited from FD3D12DeviceChild
FD3D12Device *	Parent

Constructor & Destructor Documentation

FD3D12Resource() [1/3]

FD3D12Resource::FD3D12Resource ( )

delete

FD3D12Resource() [2/3]

FD3D12Resource::FD3D12Resource ( FD3D12Device *  ParentDevice, FRHIGPUMask  VisibleNodes, ID3D12Resource *  InResource, ED3D12Access  InInitialD3D12Access, FD3D12ResourceDesc const &  InDesc, FD3D12Heap *  InHeap = nullptr, D3D12_HEAP_TYPE  InHeapType = D3D12_HEAP_TYPE_DEFAULT  )

explicit

FD3D12Resource() [3/3]

FD3D12Resource::FD3D12Resource ( FD3D12Device *  ParentDevice, FRHIGPUMask  VisibleNodes, ID3D12Resource *  InResource, ED3D12Access  InInitialD3D12Access, ED3D12ResourceStateMode  InResourceStateMode, ED3D12Access  InDefaultD3D12Access, FD3D12ResourceDesc const &  InDesc, FD3D12Heap *  InHeap, D3D12_HEAP_TYPE  InHeapType  )

explicit

~FD3D12Resource()

FD3D12Resource::~FD3D12Resource ( )

virtual

Member Function Documentation

CommitReservedResource()

void FD3D12Resource::CommitReservedResource	(	ID3D12CommandQueue *	D3DCommandQueue,
		uint64	RequiredCommitSizeInBytes
	)

DeferDelete()

void FD3D12Resource::DeferDelete

(

)

DoNotDeferDelete()

void FD3D12Resource::DoNotDeferDelete ( )

inline

GetArraySize()

uint16 FD3D12Resource::GetArraySize ( ) const

inline

GetBackingHeapsGpuAddresses()

template<typename TLambda >

FORCEINLINE_DEBUGGABLE void FD3D12Resource::GetBackingHeapsGpuAddresses ( TLambda &&  Lambda ) const

inline

GetCommittedReservedResourceSize()

uint64 FD3D12Resource::GetCommittedReservedResourceSize ( ) const

inline

GetDefaultAccess()

ED3D12Access FD3D12Resource::GetDefaultAccess ( ) const

inline

GetDesc()

const FD3D12ResourceDesc & FD3D12Resource::GetDesc ( ) const

inline

GetGPUVirtualAddress()

D3D12_GPU_VIRTUAL_ADDRESS FD3D12Resource::GetGPUVirtualAddress ( ) const

inline

GetHeap()

FD3D12Heap * FD3D12Resource::GetHeap ( ) const

inline

GetHeapType()

D3D12_HEAP_TYPE FD3D12Resource::GetHeapType ( ) const

inline

GetInitialAccess()

ED3D12Access FD3D12Resource::GetInitialAccess ( ) const

inline

GetMipLevels()

uint16 FD3D12Resource::GetMipLevels ( ) const

inline

GetName()

FName FD3D12Resource::GetName ( ) const

inline

GetPageable()

ID3D12Pageable * FD3D12Resource::GetPageable

(

)

GetPlaneCount()

uint8 FD3D12Resource::GetPlaneCount ( ) const

inline

GetResidencyHandles()

TConstArrayView< FD3D12ResidencyHandle * > FD3D12Resource::GetResidencyHandles ( ) const

inline

GetResource()

ID3D12Resource * FD3D12Resource::GetResource ( ) const

inline

GetResourceBaseAddress()

void * FD3D12Resource::GetResourceBaseAddress ( ) const

inline

GetSubresourceCount()

uint16 FD3D12Resource::GetSubresourceCount ( ) const

inline

GetUAVAccessResourceDesc()

const D3D12_RESOURCE_DESC * FD3D12Resource::GetUAVAccessResourceDesc ( ) const

inline

IsBackBuffer()

bool FD3D12Resource::IsBackBuffer ( ) const

inline

IsDepthStencilResource()

bool FD3D12Resource::IsDepthStencilResource ( ) const

inline

IsPlacedResource()

bool FD3D12Resource::IsPlacedResource ( ) const

inline

IsReservedResource()

bool FD3D12Resource::IsReservedResource ( ) const

inline

IsResident()

bool FD3D12Resource::IsResident ( ) const

inline

Map()

void * FD3D12Resource::Map ( const D3D12_RANGE *  ReadRange = nullptr )

inline

NeedsDeferredResidencyUpdate()

bool FD3D12Resource::NeedsDeferredResidencyUpdate ( ) const

inline

operator ID3D12Resource &()

FD3D12Resource::operator ID3D12Resource & ( )

inline

RequiresResourceStateTracking()

bool FD3D12Resource::RequiresResourceStateTracking ( ) const

inline

SetGPUVirtualAddress()

void FD3D12Resource::SetGPUVirtualAddress ( D3D12_GPU_VIRTUAL_ADDRESS  Value )

inline

SetName()

void FD3D12Resource::SetName ( const TCHAR *  Name )

inline

SetUAVAccessResourceDesc()

void FD3D12Resource::SetUAVAccessResourceDesc ( const D3D12_RESOURCE_DESC &  InUAVAccessResourceDesc )

inline

ShouldDeferDelete()

bool FD3D12Resource::ShouldDeferDelete ( ) const

inline

StartTrackingForResidency()

void FD3D12Resource::StartTrackingForResidency

(

)

Unmap()

void FD3D12Resource::Unmap ( )

inline

Friends And Related Symbol Documentation

FD3D12Buffer

friend class FD3D12Buffer

friend

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/D3D12RHI/Private/D3D12Resources.h
• Engine/Source/Runtime/D3D12RHI/Private/D3D12Resources.cpp
