FD3D12Buffer Class Reference

#include <D3D12Resources.h>

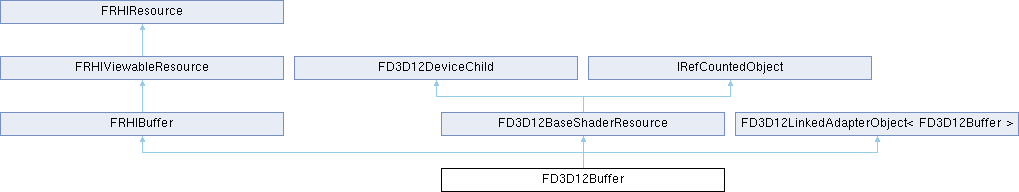

+ Inheritance diagram for FD3D12Buffer:

Public Member Functions

 FD3D12Buffer (FD3D12Device *InParent, const FRHIBufferCreateDesc &InCreateDesc)

virtual ~FD3D12Buffer ()

FD3D12SyncPointRef UploadResourceDataViaCopyQueue (FD3D12CommandContext &OwningContext, FResourceArrayUploadInterface *InResourceArray)

void Rename (FD3D12ContextArray const &Contexts, FD3D12ResourceLocation &NewLocation)

void RenameLDAChain (FD3D12ContextArray const &Contexts, FD3D12ResourceLocation &NewLocation)

void TakeOwnership (FD3D12Buffer &Other)

void ReleaseOwnership ()

virtual FReturnedRefCountValue AddRef () const

virtual uint32 Release () const

virtual uint32 GetRefCount () const

- Public Member Functions inherited from FRHIBuffer
const FRHIBufferDesc & GetDesc () const

uint32 GetSize () const

uint32 GetStride () const

EBufferUsageFlags GetUsage () const

void SetName (FName InName)

- Public Member Functions inherited from FRHIViewableResource
ERHIAccess GetTrackedAccess_Unsafe () const

FName GetName () const

- Public Member Functions inherited from FRHIResource
RHI_API FRHIResource (ERHIResourceType InResourceType)

uint32 AddRef () const

uint32 Release () const

uint32 GetRefCount () const

bool IsValid () const

void DisableLifetimeExtension ()

ERHIResourceType GetType () const

FName GetOwnerName () const

void SetOwnerName (FName InOwnerName)

- Public Member Functions inherited from FD3D12BaseShaderResource
FD3D12Resource * GetResource () const

void AddRenameListener (FD3D12ShaderResourceRenameListener *InRenameListener)

void RemoveRenameListener (FD3D12ShaderResourceRenameListener *InRenameListener)

bool HasLinkedViews () const

void ResourceRenamed (FD3D12ContextArray const &Contexts)

 FD3D12BaseShaderResource (FD3D12Device *InParent)

 ~FD3D12BaseShaderResource ()

- Public Member Functions inherited from FD3D12DeviceChild
 FD3D12DeviceChild (FD3D12Device *InParent=nullptr)

FORCEINLINE FD3D12Device * GetParentDevice () const

FD3D12Device * GetParentDevice_Unsafe () const

- Public Member Functions inherited from IRefCountedObject
virtual ~IRefCountedObject ()

- Public Member Functions inherited from FD3D12LinkedAdapterObject< FD3D12Buffer >
 ~FD3D12LinkedAdapterObject ()

FORCEINLINE bool IsHeadLink () const

FD3D12Buffer * GetLinkedObject (uint32 GPUIndex) const

FD3D12Buffer * GetFirstLinkedObject () const

FRHIGPUMask GetLinkedObjectsGPUMask () const

FLinkedObjectIterator begin ()

FLinkedObjectIterator end ()


Static Public Member Functions

static void UploadResourceData (FD3D12CommandContext &CommandContext, ED3D12Access DestinationD3D12Access, FD3D12ResourceLocation &DestinationResourceLocation, const FD3D12ResourceLocation &SourceResourceLocation, uint32 Size)

static void GetResourceDescAndAlignment (const FRHIBufferCreateDesc &CreateDesc, D3D12_RESOURCE_DESC &ResourceDesc, uint32 &Alignment)

- Static Public Member Functions inherited from FD3D12LinkedAdapterObject< FD3D12Buffer >
static ReturnType * CreateLinkedObjects (FRHIGPUMask GPUMask, const CreationParameterFunction &pfnGetCreationParameter, const CreationCoreFunction &pfnCreationCore)


Public Attributes

FD3D12LockedResource LockedData

uint32 BufferAlignment = 0

- Public Attributes inherited from FD3D12BaseShaderResource
FD3D12ResourceLocation ResourceLocation


Additional Inherited Members

- Public Types inherited from FD3D12LinkedAdapterObject< FD3D12Buffer >
using LinkedObjectType = FD3D12Buffer

using FDualLinkedObjectIterator = TD3D12DualLinkedObjectIterator< FD3D12Buffer, FD3D12Buffer >

- Protected Member Functions inherited from FRHIBuffer
 FRHIBuffer ()=delete

RHI_API FRHIBuffer (const FRHIBufferCreateDesc &CreateDesc)

void TakeOwnership (FRHIBuffer &Other)

void ReleaseOwnership ()

- Protected Member Functions inherited from FRHIViewableResource
 FRHIViewableResource (ERHIResourceType InResourceType, ERHIAccess InAccess, const TCHAR *InName, FName InOwnerName)

virtual void SetTrackedAccessFromContext (FRHITrackedAccess InTrackedAccess)

void TakeOwnership (FRHIViewableResource &Other)

void ReleaseOwnership ()

- Protected Member Functions inherited from FRHIResource
virtual RHI_API ~FRHIResource ()

- Protected Member Functions inherited from FD3D12LinkedAdapterObject< FD3D12Buffer >
 FD3D12LinkedAdapterObject ()

- Protected Attributes inherited from FRHIViewableResource
FName Name

- Protected Attributes inherited from FD3D12DeviceChild
FD3D12Device * Parent


Constructor & Destructor Documentation

◆ FD3D12Buffer()

FD3D12Buffer::FD3D12Buffer ( FD3D12Device *  InParent,
const FRHIBufferCreateDesc &  InCreateDesc
)
inline

◆ ~FD3D12Buffer()

FD3D12Buffer::~FD3D12Buffer ( )
virtual

Member Function Documentation

◆ AddRef()

virtual FReturnedRefCountValue FD3D12Buffer::AddRef ( ) const
inlinevirtual

Implements IRefCountedObject.

◆ GetRefCount()

virtual uint32 FD3D12Buffer::GetRefCount ( ) const
inlinevirtual

Implements IRefCountedObject.

◆ GetResourceDescAndAlignment()

void FD3D12Buffer::GetResourceDescAndAlignment ( const FRHIBufferCreateDesc &  CreateDesc,
D3D12_RESOURCE_DESC &  ResourceDesc,
uint32 &  Alignment
)
static

◆ Release()

virtual uint32 FD3D12Buffer::Release ( ) const
inlinevirtual

Implements IRefCountedObject.

◆ ReleaseOwnership()

void FD3D12Buffer::ReleaseOwnership ( )

◆ Rename()

void FD3D12Buffer::Rename ( FD3D12ContextArray const &  Contexts,
FD3D12ResourceLocation &  NewLocation
)

◆ RenameLDAChain()

void FD3D12Buffer::RenameLDAChain ( FD3D12ContextArray const &  Contexts,
FD3D12ResourceLocation &  NewLocation
)

◆ TakeOwnership()

void FD3D12Buffer::TakeOwnership ( FD3D12Buffer &  Other)

◆ UploadResourceData()

void FD3D12Buffer::UploadResourceData ( FD3D12CommandContext &  CommandContext,
ED3D12Access  DestinationD3D12Access,
FD3D12ResourceLocation &  DestinationResourceLocation,
const FD3D12ResourceLocation &  SourceResourceLocation,
uint32  Size
)
static

◆ UploadResourceDataViaCopyQueue()

FD3D12SyncPointRef FD3D12Buffer::UploadResourceDataViaCopyQueue ( FD3D12CommandContext &  OwningContext,
FResourceArrayUploadInterface *  InResourceArray
)

Member Data Documentation

◆ BufferAlignment

uint32 FD3D12Buffer::BufferAlignment = 0

◆ LockedData

FD3D12LockedResource FD3D12Buffer::LockedData
The documentation for this class was generated from the following files:
