FD3D12CommandContext Class Reference

#include <D3D12CommandContext.h>

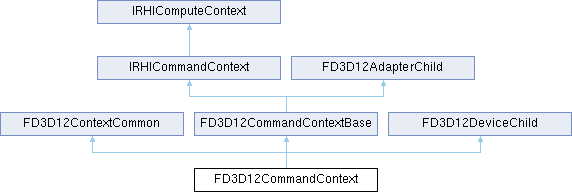

Inheritance diagram for FD3D12CommandContext:

Public Member Functions
	FD3D12CommandContext (class FD3D12Device *InParent, ED3D12QueueType QueueType, bool InIsDefaultContext)
virtual	~FD3D12CommandContext ()
virtual void	OpenCommandList () override
virtual void	CloseCommandList () override final
virtual ERHIPipeline	GetPipeline () const override
virtual void	ClearState (EClearStateMode ClearStateMode=EClearStateMode::All) override final
virtual void	ConditionalClearShaderResource (FD3D12ResourceLocation *Resource, EShaderParameterTypeMask ShaderParameterTypeMask) override final
void	ClearShaderResources (FD3D12UnorderedAccessView *UAV, EShaderParameterTypeMask ShaderParameterTypeMask)
void	ClearShaderResources (FD3D12BaseShaderResource *Resource, EShaderParameterTypeMask ShaderParameterTypeMask)
void	ClearAllShaderResources ()
void	CommitNonComputeShaderConstants ()
void	CommitComputeShaderConstants ()
template<class ShaderType >
void	SetResourcesFromTables (const ShaderType *RESTRICT)
void	SetSRVParameter (EShaderFrequency Frequency, uint32 SRVIndex, FD3D12ShaderResourceView *SRV)
void	SetUAVParameter (EShaderFrequency Frequency, uint32 UAVIndex, FD3D12UnorderedAccessView *UAV)
void	SetUAVParameter (EShaderFrequency Frequency, uint32 UAVIndex, FD3D12UnorderedAccessView *UAV, uint32 InitialCount)
void	CommitGraphicsResourceTables ()
void	CommitComputeResourceTables ()
template<typename TPixelShader >
void	ResolveTextureUsingShader (FD3D12Texture *SourceTexture, FD3D12Texture *DestTexture, FD3D12RenderTargetView *DestSurfaceRTV, FD3D12DepthStencilView *DestSurfaceDSV, const D3D12_RESOURCE_DESC &ResolveTargetDesc, const FResolveRect &SourceRect, const FResolveRect &DestRect, typename TPixelShader::FParameter PixelShaderParameter)
virtual void	SetDepthBounds (float MinDepth, float MaxDepth)
virtual void	SetShadingRate (EVRSShadingRate ShadingRate, FD3D12Resource *ShadingRateImage, const TStaticArray< EVRSRateCombiner, ED3D12VRSCombinerStages::Num > &Combiners)
virtual void	SetAsyncComputeBudgetInternal (EAsyncComputeBudget Budget)
virtual void	RHIBeginTransitions (TArrayView< const FRHITransition * > Transitions) final override
virtual void	RHIEndTransitions (TArrayView< const FRHITransition * > Transitions) final override
virtual void	RHISetComputePipelineState (FRHIComputePipelineState *ComputePipelineState) final override
virtual void	RHIDispatchComputeShader (uint32 ThreadGroupCountX, uint32 ThreadGroupCountY, uint32 ThreadGroupCountZ) final override
virtual void	RHIDispatchIndirectComputeShader (FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset) final override
virtual void	RHISetStaticUniformBuffers (const FUniformBufferStaticBindings &InUniformBuffers) final override
virtual void	RHISetStaticUniformBuffer (FUniformBufferStaticSlot Slot, FRHIUniformBuffer *Buffer) final override
virtual void	RHISetShaderParameters (FRHIComputeShader *Shader, TConstArrayView< uint8 > InParametersData, TConstArrayView< FRHIShaderParameter > InParameters, TConstArrayView< FRHIShaderParameterResource > InResourceParameters, TConstArrayView< FRHIShaderParameterResource > InBindlessParameters) final override
virtual void	RHISetShaderUnbinds (FRHIComputeShader *Shader, TConstArrayView< FRHIShaderParameterUnbind > InUnbinds) final override
virtual void	RHISetShaderUnbinds (FRHIGraphicsShader *Shader, TConstArrayView< FRHIShaderParameterUnbind > InUnbinds) final override
virtual void	RHISetMultipleViewports (uint32 Count, const FViewportBounds *Data) final override
virtual void	RHIClearUAVFloat (FRHIUnorderedAccessView *UnorderedAccessViewRHI, const FVector4f &Values) final override
virtual void	RHIClearUAVUint (FRHIUnorderedAccessView *UnorderedAccessViewRHI, const FUintVector4 &Values) final override
virtual void	RHICopyTexture (FRHITexture *SourceTexture, FRHITexture *DestTexture, const FRHICopyTextureInfo &CopyInfo) final override
virtual void	RHICopyBufferRegion (FRHIBuffer *DestBuffer, uint64 DstOffset, FRHIBuffer *SourceBuffer, uint64 SrcOffset, uint64 NumBytes) final override
virtual void	RHICopyToStagingBuffer (FRHIBuffer *SourceBuffer, FRHIStagingBuffer *DestinationStagingBuffer, uint32 Offset, uint32 NumBytes) final override
virtual void	RHIBeginRenderQuery (FRHIRenderQuery *RenderQuery) final override
virtual void	RHIEndRenderQuery (FRHIRenderQuery *RenderQuery) final override
virtual void	RHICalibrateTimers (FRHITimestampCalibrationQuery *CalibrationQuery) final override
virtual void	RHISetStreamSource (uint32 StreamIndex, FRHIBuffer *VertexBuffer, uint32 Offset) final override
virtual void	RHISetViewport (float MinX, float MinY, float MinZ, float MaxX, float MaxY, float MaxZ) final override
virtual void	RHISetStereoViewport (float LeftMinX, float RightMinX, float LeftMinY, float RightMinY, float MinZ, float LeftMaxX, float RightMaxX, float LeftMaxY, float RightMaxY, float MaxZ) override
virtual void	RHISetScissorRect (bool bEnable, uint32 MinX, uint32 MinY, uint32 MaxX, uint32 MaxY) final override
virtual void	RHISetGraphicsPipelineState (FRHIGraphicsPipelineState *GraphicsPipelineState, uint32 StencilRef, bool bApplyAdditionalState) final override
virtual void	RHISetShaderParameters (FRHIGraphicsShader *Shader, TConstArrayView< uint8 > InParametersData, TConstArrayView< FRHIShaderParameter > InParameters, TConstArrayView< FRHIShaderParameterResource > InResourceParameters, TConstArrayView< FRHIShaderParameterResource > InBindlessParameters) final override
virtual void	RHISetStencilRef (uint32 StencilRef) final override
virtual void	RHISetBlendFactor (const FLinearColor &BlendFactor) final override
void	SetRenderTargets (uint32 NumSimultaneousRenderTargets, const FRHIRenderTargetView *NewRenderTargets, const FRHIDepthRenderTargetView *NewDepthStencilTarget)
void	SetRenderTargetsAndClear (const FRHISetRenderTargetsInfo &RenderTargetsInfo)
virtual void	RHISetShaderRootConstants (const FUint32Vector4 &Constants) override
virtual void	RHIDispatchComputeShaderBundle (FRHIShaderBundle *ShaderBundle, FRHIBuffer *RecordArgBuffer, TConstArrayView< FRHIShaderParameterResource > SharedBindlessParameters, TConstArrayView< FRHIShaderBundleComputeDispatch > Dispatches, bool bEmulated) override
virtual void	RHIDispatchGraphicsShaderBundle (FRHIShaderBundle *ShaderBundle, FRHIBuffer *RecordArgBuffer, const FRHIShaderBundleGraphicsState &BundleState, TConstArrayView< FRHIShaderParameterResource > SharedBindlessParameters, TConstArrayView< FRHIShaderBundleGraphicsDispatch > Dispatches, bool bEmulated) override
virtual void	RHIDrawPrimitive (uint32 BaseVertexIndex, uint32 NumPrimitives, uint32 NumInstances) final override
virtual void	RHIDrawPrimitiveIndirect (FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset) final override
virtual void	RHIDrawIndexedIndirect (FRHIBuffer *IndexBufferRHI, FRHIBuffer *ArgumentsBufferRHI, int32 DrawArgumentsIndex, uint32 NumInstances) final override
virtual void	RHIDrawIndexedPrimitive (FRHIBuffer *IndexBuffer, int32 BaseVertexIndex, uint32 FirstInstance, uint32 NumVertices, uint32 StartIndex, uint32 NumPrimitives, uint32 NumInstances) final override
virtual void	RHIDrawIndexedPrimitiveIndirect (FRHIBuffer *IndexBuffer, FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset) final override
virtual void	RHIMultiDrawIndexedPrimitiveIndirect (FRHIBuffer *IndexBuffer, FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset, FRHIBuffer *CountBuffer, uint32 CountBufferOffset, uint32 MaxDrawArguments) final override
virtual void	RHISetDepthBounds (float MinDepth, float MaxDepth) final override
virtual void	RHISetShadingRate (EVRSShadingRate ShadingRate, EVRSRateCombiner Combiner) final override
virtual void	RHIClearMRTImpl (bool *bClearColorArray, int32 NumClearColors, const FLinearColor *ColorArray, bool bClearDepth, float Depth, bool bClearStencil, uint32 Stencil)
virtual void	RHIBeginRenderPass (const FRHIRenderPassInfo &InInfo, const TCHAR *InName)
virtual void	RHIEndRenderPass ()
void	ResolveTexture (UE::RHICore::FResolveTextureInfo Info)
template<typename ObjectType , typename RHIType >
FORCEINLINE_DEBUGGABLE ObjectType *	RetrieveObject (RHIType *RHIObject)
FORCEINLINE_DEBUGGABLE FD3D12Texture *	RetrieveTexture (FRHITexture *Texture)
FORCEINLINE_DEBUGGABLE const FD3D12Texture *	RetrieveTexture (const FRHITexture *Texture)
uint32	GetFrameFenceCounter () const
uint32	GetGPUIndex () const
virtual void	RHISetGPUMask (FRHIGPUMask InGPUMask) final override
const TArray< FRHIUniformBuffer * > &	GetStaticUniformBuffers () const
void	FlushPendingDescriptorUpdates ()
void	SetExplicitDescriptorCache (FD3D12ExplicitDescriptorCache &ExplicitDescriptorCache)
void	UnsetExplicitDescriptorCache ()
virtual void	Finalize (TArray< FD3D12Payload * > &OutPayloads) override
const FRHIShaderBindingLayout &	GetShaderBindingLayout () const
FORCENOINLINE void	CopyBufferRegionChecked (ID3D12Resource *DestResource, const FName &DestName, uint64 DestOffset, ID3D12Resource *SourceResource, const FName &SourceName, uint64 SourceOffset, uint32 ByteCount)
FORCENOINLINE void	CopyTextureRegionChecked (const D3D12_TEXTURE_COPY_LOCATION *DestCopyLocation, int DestX, int DestY, int DestZ, EPixelFormat DestPixelFormat, const D3D12_TEXTURE_COPY_LOCATION *SourceCopyLocation, const D3D12_BOX *SourceBox, EPixelFormat SourcePixelFormat, const FName &DebugName)
template<class ShaderType >
void	SetResourcesFromTables (const ShaderType *RESTRICT Shader)
Public Member Functions inherited from FD3D12ContextCommon
virtual	~FD3D12ContextCommon ()=default
void	SignalSyncPoint (FD3D12SyncPoint *SyncPoint)
void	WaitSyncPoint (FD3D12SyncPoint *SyncPoint)
void	SignalManualFence (ID3D12Fence *Fence, uint64 Value)
void	WaitManualFence (ID3D12Fence *Fence, uint64 Value)
FD3D12QueryLocation	InsertTimestamp (ED3D12Units Units, uint64 *Target)
FD3D12QueryLocation	AllocateQuery (ED3D12QueryType Type, void *Target)
void	SetReservedBufferCommitSize (FD3D12Buffer *Buffer, uint64 CommitSizeInBytes)
bool	IsAsyncComputeContext () const
ERHIPipeline	GetRHIPipeline () const
bool	IsDefaultContext () const
bool	IsOpen () const
bool	IsPendingCommands () const
FD3D12SyncPoint *	GetContextSyncPoint ()
void	BindDiagnosticBuffer (FD3D12RootSignature const *RootSignature, ED3D12PipelineType PipelineType)
FD3D12QueryAllocator &	GetTimestampQueries ()
void	BeginRecursiveCommand ()
FD3D12CommandList &	GetCommandList ()
void	OpenIfNotAlready ()
void	FlushCommands (ED3D12FlushFlags FlushFlags=ED3D12FlushFlags::None)
void	ConditionalSplitCommandList ()
auto	BaseCommandList ()
auto	CopyCommandList ()
auto	GraphicsCommandList ()
void	BeginQuery (FD3D12QueryLocation const &Location)
void	EndQuery (FD3D12QueryLocation const &Location)
void	UpdateResidency (const FD3D12Resource *Resource)
void	AddGlobalBarrier (ED3D12Access InD3D12AccessBefore, ED3D12Access InD3D12AccessAfter)
void	AddBarrier (const FD3D12Resource *pResource, ED3D12Access InD3D12AccessBefore, ED3D12Access InD3D12AccessAfter, uint32 Subresource)
void	FlushResourceBarriers ()
Public Member Functions inherited from FD3D12CommandContextBase
	FD3D12CommandContextBase (FD3D12Adapter *InParent, FRHIGPUMask InGPUMask)
void	RHIEndDrawingViewport (FRHIViewport *Viewport, bool bPresent, bool bLockToVsync) final override
FRHIGPUMask	GetGPUMask () const
FRHIGPUMask	GetPhysicalGPUMask () const
virtual void	RHISetAsyncComputeBudget (EAsyncComputeBudget Budget)
virtual class FD3D12CommandContextRedirector *	AsRedirector ()
Public Member Functions inherited from IRHICommandContext
virtual	~IRHICommandContext ()
virtual void	RHIResummarizeHTile (FRHITexture *DepthTexture)
void	RHISetBatchedShaderParameters (FRHIGraphicsShader *InShader, FRHIBatchedShaderParameters &InBatchedParameters)
virtual void	RHIDispatchMeshShader (uint32 ThreadGroupCountX, uint32 ThreadGroupCountY, uint32 ThreadGroupCountZ)
virtual void	RHIDispatchIndirectMeshShader (FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset)
virtual void	RHIGpuHangCommandListCorruption ()
virtual void	RHIBeginParallelRenderPass (TSharedPtr< FRHIParallelRenderPassInfo > InInfo, const TCHAR *InName)
virtual void	RHIEndParallelRenderPass ()
virtual void	RHINextSubpass ()
virtual void	RHIClearShaderBindingTable (FRHIShaderBindingTable *SBT)
virtual void	RHISetBindingsOnShaderBindingTable (FRHIShaderBindingTable *SBT, FRHIRayTracingPipelineState *Pipeline, uint32 NumBindings, const FRayTracingLocalShaderBindings *Bindings, ERayTracingBindingType BindingType)
virtual void	RHICommitShaderBindingTable (FRHIShaderBindingTable *SBT, FRHIBuffer *InlineBindingDataBuffer)
virtual void	RHISetShaderParameters (FRHIComputeShader *ComputeShader, TConstArrayView< uint8 > InParametersData, TConstArrayView< FRHIShaderParameter > InParameters, TConstArrayView< FRHIShaderParameterResource > InResourceParameters, TConstArrayView< FRHIShaderParameterResource > InBindlessParameters)=0
void	RHISetBatchedShaderParameters (FRHIComputeShader *InShader, FRHIBatchedShaderParameters &InBatchedParameters)
virtual void	RHISetShaderUnbinds (FRHIComputeShader *ComputeShader, TConstArrayView< FRHIShaderParameterUnbind > InUnbinds)
Public Member Functions inherited from IRHIComputeContext
virtual	~IRHIComputeContext ()
virtual void	RHIRayTraceDispatch (FRHIRayTracingPipelineState *RayTracingPipelineState, FRHIRayTracingShader *RayGenShader, FRHIShaderBindingTable *SBT, const FRayTracingShaderBindings &GlobalResourceBindings, uint32 Width, uint32 Height)
virtual void	RHIRayTraceDispatchIndirect (FRHIRayTracingPipelineState *RayTracingPipelineState, FRHIRayTracingShader *RayGenShader, FRHIShaderBindingTable *SBT, const FRayTracingShaderBindings &GlobalResourceBindings, FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset)
virtual void	RHISetComputeBudget (ESyncComputeBudget Budget)
virtual void	RHIBeginUAVOverlap ()
virtual void	RHIEndUAVOverlap ()
virtual void	RHIBeginUAVOverlap (TConstArrayView< FRHIUnorderedAccessView * > UAVs)
virtual void	RHIEndUAVOverlap (TConstArrayView< FRHIUnorderedAccessView * > UAVs)
void	RHISetBatchedShaderParameters (FRHIComputeShader *InShader, FRHIBatchedShaderParameters &InBatchedParameters)
virtual void	RHISetUniformBufferDynamicOffset (FUniformBufferStaticSlot Slot, uint32 Offset)
virtual void	RHIWriteGPUFence (FRHIGPUFence *FenceRHI)
virtual FRHIGPUMask	RHIGetGPUMask () const
virtual void	RHIExecuteMultiIndirectClusterOperation (const FRayTracingClusterOperationParams &Params)
virtual void	RHIBuildAccelerationStructures (TConstArrayView< FRayTracingGeometryBuildParams > Params, const FRHIBufferRange &ScratchBufferRange)
virtual void	RHIBuildAccelerationStructures (TConstArrayView< FRayTracingSceneBuildParams > Params)
virtual void	RHIBindAccelerationStructureMemory (FRHIRayTracingScene *Scene, FRHIBuffer *Buffer, uint32 BufferOffset)
IRHIComputeContext &	GetLowestLevelContext ()
IRHIComputeContext const &	GetHighestLevelContext () const
IRHIComputeContext &	GetHighestLevelContext ()
void	SetTrackedAccess (const FRHITrackedAccessInfo &Info)
ERHIAccess	GetTrackedAccess (const FRHIViewableResource *Resource) const
ERHIPipeline	GetTrackedPipelines (const FRHIViewableResource *Resource) const
virtual void *	RHIGetNativeCommandBuffer ()
virtual void	RHIPostExternalCommandsReset ()
FRHICommandListBase &	GetExecutingCommandList () const
virtual void	SetExecutingCommandList (FRHICommandListBase *InCmdList)
Public Member Functions inherited from FD3D12AdapterChild
	FD3D12AdapterChild (FD3D12Adapter *InParent=nullptr)
FORCEINLINE FD3D12Adapter *	GetParentAdapter () const
void	SetParentAdapter (FD3D12Adapter *InParent)
Public Member Functions inherited from FD3D12DeviceChild
	FD3D12DeviceChild (FD3D12Device *InParent=nullptr)
FORCEINLINE FD3D12Device *	GetParentDevice () const
FD3D12Device *	GetParentDevice_Unsafe () const

Static Public Member Functions
static FD3D12CommandContext &	Get (FRHICommandListBase &RHICmdList, uint32 GPUIndex)
template<typename TRHIType , typename TReturnType = typename TD3D12ResourceTraits<TRHIType>::TConcreteType>
static FORCEINLINE TReturnType *	ResourceCast (TRHIType *Resource)
template<typename TRHIType , typename TReturnType = typename TD3D12ResourceTraits<TRHIType>::TConcreteType>
static FORCEINLINE_DEBUGGABLE TReturnType *	ResourceCast (TRHIType *Resource, uint32 GPUIndex)
template<typename ObjectType , typename RHIType >
static FORCEINLINE_DEBUGGABLE ObjectType *	RetrieveObject (RHIType *RHIObject, uint32 GPUIndex)
static FD3D12Texture *	RetrieveTexture (FRHITexture *Texture, uint32 GPUIndex)
Static Public Member Functions inherited from FD3D12CommandContextBase
static FD3D12CommandContextBase &	Get (FRHICommandListBase &RHICmdList)
static FD3D12CommandContextBase *	Get (IRHIComputeContext *RHIContext)

Public Attributes
FD3D12FastConstantAllocator	ConstantsAllocator
TArray< uint32 >	GPUEventStack
FD3D12StateCache	StateCache
FD3D12UniformBuffer *	BoundUniformBuffers [SF_NumStandardFrequencies][MAX_CBS] = {}
uint16	DirtyUniformBuffers [SF_NumStandardFrequencies] = {}
FRenderQueryRHIRef	OuterOcclusionQuery
bool	bOuterOcclusionQuerySubmitted = false
bool	bDiscardSharedGraphicsConstants = false
bool	bDiscardSharedComputeConstants = false
FD3D12ConstantBuffer	StageConstantBuffers [SF_NumStandardFrequencies]
Public Attributes inherited from FD3D12ContextCommon
FD3D12Device *const	Device
ED3D12QueueType const	QueueType
bool const	bIsDefaultContext
struct {
TArray< FD3D12SyncPointRef >   ToWait
TArray< FD3D12SyncPointRef >   ToSignal
}	BatchedSyncPoints

Protected Member Functions
FD3D12CommandContext *	GetSingleDeviceContext (uint32 InGPUIndex) final override
Protected Member Functions inherited from FD3D12ContextCommon
	FD3D12ContextCommon (FD3D12Device *Device, ED3D12QueueType QueueType, bool bIsDefaultContext)
void	WriteMarker (D3D12_GPU_VIRTUAL_ADDRESS Address, uint32 Value, EMarkerType Type)
FD3D12Payload *	GetPayload (EPhase Phase)
void	NewPayload ()

Additional Inherited Members
Public Types inherited from FD3D12ContextCommon
enum class	EClearStateMode { TransientOnly , All }
Protected Types inherited from FD3D12ContextCommon
enum class	EMarkerType { In , Out }
enum class	EPhase { Wait , UpdateReservedResources , Execute , Signal }
Protected Attributes inherited from FD3D12ContextCommon
enum FD3D12ContextCommon::EPhase	CurrentPhase = EPhase::Wait
uint32	ActiveQueries = 0
const TUniquePtr< FD3D12BarriersFactory::BarriersForContextType >	Barriers
Protected Attributes inherited from FD3D12CommandContextBase
FRHIGPUMask	GPUMask
FRHIGPUMask	PhysicalGPUMask
Protected Attributes inherited from IRHICommandContext
FRHIRenderPassInfo	RenderPassInfo
Protected Attributes inherited from IRHIComputeContext
UE::RHI::GPUProfiler::FEvent::FStats	StatEvent {}
Protected Attributes inherited from FD3D12AdapterChild
FD3D12Adapter *	ParentAdapter
Protected Attributes inherited from FD3D12DeviceChild
FD3D12Device *	Parent

Constructor & Destructor Documentation

FD3D12CommandContext()

FD3D12CommandContext::FD3D12CommandContext	(	class FD3D12Device *	InParent,
		ED3D12QueueType	QueueType,
		bool	InIsDefaultContext
	)

~FD3D12CommandContext()

FD3D12CommandContext::~FD3D12CommandContext ( )

virtual

Member Function Documentation

ClearAllShaderResources()

void FD3D12CommandContext::ClearAllShaderResources

(

)

ClearShaderResources() [1/2]

void FD3D12CommandContext::ClearShaderResources	(	FD3D12BaseShaderResource *	Resource,
		EShaderParameterTypeMask	ShaderParameterTypeMask
	)

ClearShaderResources() [2/2]

void FD3D12CommandContext::ClearShaderResources	(	FD3D12UnorderedAccessView *	UAV,
		EShaderParameterTypeMask	ShaderParameterTypeMask
	)

ClearState()

void FD3D12CommandContext::ClearState ( EClearStateMode  ClearStateMode = EClearStateMode::All )

finaloverridevirtual

Reimplemented from FD3D12ContextCommon.

CloseCommandList()

void FD3D12CommandContext::CloseCommandList ( )

finaloverridevirtual

Reimplemented from FD3D12ContextCommon.

CommitComputeResourceTables()

void FD3D12CommandContext::CommitComputeResourceTables

(

)

CommitComputeShaderConstants()

void FD3D12CommandContext::CommitComputeShaderConstants

(

)

needs to be called before each dispatch call

CommitGraphicsResourceTables()

void FD3D12CommandContext::CommitGraphicsResourceTables

(

)

CommitNonComputeShaderConstants()

void FD3D12CommandContext::CommitNonComputeShaderConstants

(

)

needs to be called before each draw call

ConditionalClearShaderResource()

void FD3D12CommandContext::ConditionalClearShaderResource ( FD3D12ResourceLocation *  Resource, EShaderParameterTypeMask  ShaderParameterTypeMask  )

finaloverridevirtual

Reimplemented from FD3D12ContextCommon.

CopyBufferRegionChecked()

void FD3D12CommandContext::CopyBufferRegionChecked	(	ID3D12Resource *	DestResource,
		const FName &	DestName,
		uint64	DestOffset,
		ID3D12Resource *	SourceResource,
		const FName &	SourceName,
		uint64	SourceOffset,
		uint32	ByteCount
	)

CopyTextureRegionChecked()

FORCENOINLINE void FD3D12CommandContext::CopyTextureRegionChecked	(	const D3D12_TEXTURE_COPY_LOCATION *	DestCopyLocation,
		int	DestX,
		int	DestY,
		int	DestZ,
		EPixelFormat	DestPixelFormat,
		const D3D12_TEXTURE_COPY_LOCATION *	SourceCopyLocation,
		const D3D12_BOX *	SourceBox,
		EPixelFormat	SourcePixelFormat,
		const FName &	DebugName
	)

Finalize()

void FD3D12CommandContext::Finalize ( TArray< FD3D12Payload * > &  OutPayloads )

overridevirtual

Reimplemented from FD3D12ContextCommon.

FlushPendingDescriptorUpdates()

void FD3D12CommandContext::FlushPendingDescriptorUpdates

(

)

Get()

static FD3D12CommandContext & FD3D12CommandContext::Get ( FRHICommandListBase &  RHICmdList, uint32  GPUIndex  )

inlinestatic

GetFrameFenceCounter()

uint32 FD3D12CommandContext::GetFrameFenceCounter

(

)

const

GetGPUIndex()

uint32 FD3D12CommandContext::GetGPUIndex ( ) const

inline

GetPipeline()

virtual ERHIPipeline FD3D12CommandContext::GetPipeline ( ) const

inlineoverridevirtual

Reimplemented from IRHICommandContext.

GetShaderBindingLayout()

const FRHIShaderBindingLayout & FD3D12CommandContext::GetShaderBindingLayout ( ) const

inline

GetSingleDeviceContext()

FD3D12CommandContext * FD3D12CommandContext::GetSingleDeviceContext ( uint32  InGPUIndex )

inlinefinaloverrideprotectedvirtual

Implements FD3D12CommandContextBase.

GetStaticUniformBuffers()

const TArray< FRHIUniformBuffer * > & FD3D12CommandContext::GetStaticUniformBuffers ( ) const

inline

OpenCommandList()

void FD3D12CommandContext::OpenCommandList ( )

overridevirtual

Reimplemented from FD3D12ContextCommon.

ResolveTexture()

void FD3D12CommandContext::ResolveTexture

(

UE::RHICore::FResolveTextureInfo

Info

)

ResolveTextureUsingShader()

template<typename TPixelShader >

void FD3D12CommandContext::ResolveTextureUsingShader	(	FD3D12Texture *	SourceTexture,
		FD3D12Texture *	DestTexture,
		FD3D12RenderTargetView *	DestSurfaceRTV,
		FD3D12DepthStencilView *	DestSurfaceDSV,
		const D3D12_RESOURCE_DESC &	ResolveTargetDesc,
		const FResolveRect &	SourceRect,
		const FResolveRect &	DestRect,
		typename TPixelShader::FParameter	PixelShaderParameter
	)

ResourceCast() [1/2]

template<typename TRHIType , typename TReturnType = typename TD3D12ResourceTraits<TRHIType>::TConcreteType>

static FORCEINLINE TReturnType * FD3D12CommandContext::ResourceCast ( TRHIType *  Resource )

inlinestatic

ResourceCast() [2/2]

template<typename TRHIType , typename TReturnType = typename TD3D12ResourceTraits<TRHIType>::TConcreteType>

static FORCEINLINE_DEBUGGABLE TReturnType * FD3D12CommandContext::ResourceCast ( TRHIType *  Resource, uint32  GPUIndex  )

inlinestatic

RetrieveObject() [1/2]

template<typename ObjectType , typename RHIType >

FORCEINLINE_DEBUGGABLE ObjectType * FD3D12CommandContext::RetrieveObject ( RHIType *  RHIObject )

inline

RetrieveObject() [2/2]

template<typename ObjectType , typename RHIType >

static FORCEINLINE_DEBUGGABLE ObjectType * FD3D12CommandContext::RetrieveObject ( RHIType *  RHIObject, uint32  GPUIndex  )

inlinestatic

RetrieveTexture() [1/3]

FORCEINLINE_DEBUGGABLE const FD3D12Texture * FD3D12CommandContext::RetrieveTexture ( const FRHITexture *  Texture )

inline

RetrieveTexture() [2/3]

FORCEINLINE_DEBUGGABLE FD3D12Texture * FD3D12CommandContext::RetrieveTexture ( FRHITexture *  Texture )

inline

RetrieveTexture() [3/3]

static FD3D12Texture * FD3D12CommandContext::RetrieveTexture ( FRHITexture *  Texture, uint32  GPUIndex  )

inlinestatic

RHIBeginRenderPass()

virtual void FD3D12CommandContext::RHIBeginRenderPass ( const FRHIRenderPassInfo &  InInfo, const TCHAR *  InName  )

inlinevirtual

Implements IRHICommandContext.

RHIBeginRenderQuery()

void FD3D12CommandContext::RHIBeginRenderQuery ( FRHIRenderQuery *  RenderQuery )

finaloverridevirtual

Implements IRHICommandContext.

RHIBeginTransitions()

void FD3D12CommandContext::RHIBeginTransitions ( TArrayView< const FRHITransition * >  Transitions )

finaloverridevirtual

Implements IRHIComputeContext.

RHICalibrateTimers()

void FD3D12CommandContext::RHICalibrateTimers ( FRHITimestampCalibrationQuery *  CalibrationQuery )

finaloverridevirtual

RHIClearMRTImpl()

void FD3D12CommandContext::RHIClearMRTImpl ( bool *  bClearColorArray, int32  NumClearColors, const FLinearColor *  ColorArray, bool  bClearDepth, float  Depth, bool  bClearStencil, uint32  Stencil  )

virtual

RHIClearUAVFloat()

void FD3D12CommandContext::RHIClearUAVFloat ( FRHIUnorderedAccessView *  UnorderedAccessViewRHI, const FVector4f &  Values  )

finaloverridevirtual

Clears a UAV to the multi-channel floating point value provided. Should only be called on UAVs with a floating point format, or on structured buffers. Structured buffers are treated as a regular R32_UINT buffer during the clear operation, and the Values.X component is copied directly into the buffer without any format conversion. (Y,Z,W) of Values is ignored. Typed floating point buffers undergo standard format conversion during the write operation. The conversion is determined by the format of the UAV.

Parameters

UnorderedAccessViewRHI	The UAV to clear.
Values	The values to clear the UAV to, one component per channel (XYZW = RGBA). Channels not supported by the UAV are ignored.

Implements IRHIComputeContext.

RHIClearUAVUint()

void FD3D12CommandContext::RHIClearUAVUint ( FRHIUnorderedAccessView *  UnorderedAccessViewRHI, const FUintVector4 &  Values  )

finaloverridevirtual

Clears a UAV to the multi-component unsigned integer value provided. Should only be called on UAVs with an integer format, or on structured buffers. Structured buffers are treated as a regular R32_UINT buffer during the clear operation, and the Values.X component is copied directly into the buffer without any format conversion. (Y,Z,W) of Values is ignored. Typed integer buffers undergo standard format conversion during the write operation. The conversion is determined by the format of the UAV.

Parameters

UnorderedAccessViewRHI	The UAV to clear.
Values	The values to clear the UAV to, one component per channel (XYZW = RGBA). Channels not supported by the UAV are ignored.

Implements IRHIComputeContext.

RHICopyBufferRegion()

void FD3D12CommandContext::RHICopyBufferRegion ( FRHIBuffer *  DestBuffer, uint64  DstOffset, FRHIBuffer *  SourceBuffer, uint64  SrcOffset, uint64  NumBytes  )

finaloverridevirtual

Implements IRHICommandContext.

RHICopyTexture()

void FD3D12CommandContext::RHICopyTexture ( FRHITexture *  SourceTexture, FRHITexture *  DestTexture, const FRHICopyTextureInfo &  CopyInfo  )

finaloverridevirtual

Implements IRHICommandContext.

RHICopyToStagingBuffer()

void FD3D12CommandContext::RHICopyToStagingBuffer ( FRHIBuffer *  SourceBufferRHI, FRHIStagingBuffer *  DestinationStagingBufferRHI, uint32  InOffset, uint32  InNumBytes  )

finaloverridevirtual

Performs a copy of the data in 'SourceBuffer' to 'DestinationStagingBuffer.' This will occur inline on the GPU timeline. This is a mechanism to perform nonblocking readback of a buffer at a point in time.

Parameters

SourceBuffer	The source vertex buffer that will be inlined copied.
DestinationStagingBuffer	The the host-visible destination buffer
Offset	The start of the data in 'SourceBuffer'
NumBytes	The number of bytes to copy out of 'SourceBuffer'

Reimplemented from IRHIComputeContext.

RHIDispatchComputeShader()

void FD3D12CommandContext::RHIDispatchComputeShader ( uint32  ThreadGroupCountX, uint32  ThreadGroupCountY, uint32  ThreadGroupCountZ  )

finaloverridevirtual

Implements IRHICommandContext.

RHIDispatchComputeShaderBundle()

void FD3D12CommandContext::RHIDispatchComputeShaderBundle ( FRHIShaderBundle *  ShaderBundle, FRHIBuffer *  RecordArgBuffer, TConstArrayView< FRHIShaderParameterResource >  SharedBindlessParameters, TConstArrayView< FRHIShaderBundleComputeDispatch >  Dispatches, bool  bEmulated  )

overridevirtual

Reimplemented from IRHIComputeContext.

RHIDispatchGraphicsShaderBundle()

void FD3D12CommandContext::RHIDispatchGraphicsShaderBundle ( FRHIShaderBundle *  ShaderBundle, FRHIBuffer *  RecordArgBuffer, const FRHIShaderBundleGraphicsState &  BundleState, TConstArrayView< FRHIShaderParameterResource >  SharedBindlessParameters, TConstArrayView< FRHIShaderBundleGraphicsDispatch >  Dispatches, bool  bEmulated  )

overridevirtual

Reimplemented from IRHIComputeContext.

RHIDispatchIndirectComputeShader()

void FD3D12CommandContext::RHIDispatchIndirectComputeShader ( FRHIBuffer *  ArgumentBuffer, uint32  ArgumentOffset  )

finaloverridevirtual

Implements IRHICommandContext.

RHIDrawIndexedIndirect()

void FD3D12CommandContext::RHIDrawIndexedIndirect ( FRHIBuffer *  IndexBufferRHI, FRHIBuffer *  ArgumentsBufferRHI, int32  DrawArgumentsIndex, uint32  NumInstances  )

finaloverridevirtual

Implements IRHICommandContext.

RHIDrawIndexedPrimitive()

void FD3D12CommandContext::RHIDrawIndexedPrimitive ( FRHIBuffer *  IndexBuffer, int32  BaseVertexIndex, uint32  FirstInstance, uint32  NumVertices, uint32  StartIndex, uint32  NumPrimitives, uint32  NumInstances  )

finaloverridevirtual

Implements IRHICommandContext.

RHIDrawIndexedPrimitiveIndirect()

void FD3D12CommandContext::RHIDrawIndexedPrimitiveIndirect ( FRHIBuffer *  IndexBuffer, FRHIBuffer *  ArgumentBuffer, uint32  ArgumentOffset  )

finaloverridevirtual

Implements IRHICommandContext.

RHIDrawPrimitive()

void FD3D12CommandContext::RHIDrawPrimitive ( uint32  BaseVertexIndex, uint32  NumPrimitives, uint32  NumInstances  )

finaloverridevirtual

Implements IRHICommandContext.

RHIDrawPrimitiveIndirect()

void FD3D12CommandContext::RHIDrawPrimitiveIndirect ( FRHIBuffer *  ArgumentBuffer, uint32  ArgumentOffset  )

finaloverridevirtual

Implements IRHICommandContext.

RHIEndRenderPass()

virtual void FD3D12CommandContext::RHIEndRenderPass ( )

inlinevirtual

Implements IRHICommandContext.

RHIEndRenderQuery()

void FD3D12CommandContext::RHIEndRenderQuery ( FRHIRenderQuery *  RenderQuery )

finaloverridevirtual

Implements IRHICommandContext.

RHIEndTransitions()

void FD3D12CommandContext::RHIEndTransitions ( TArrayView< const FRHITransition * >  Transitions )

finaloverridevirtual

Implements IRHIComputeContext.

RHIMultiDrawIndexedPrimitiveIndirect()

void FD3D12CommandContext::RHIMultiDrawIndexedPrimitiveIndirect ( FRHIBuffer *  IndexBuffer, FRHIBuffer *  ArgumentBuffer, uint32  ArgumentOffset, FRHIBuffer *  CountBuffer, uint32  CountBuffeOffset, uint32  MaxDrawArguments  )

finaloverridevirtual

Similar to RHIDrawIndexedPrimitiveIndirect, but allows many draw arguments to be provided at once. GRHIGlobals.SupportsDrawIndirect must be checked to detect support on the current machine. @ param IndexBuffer Buffer containing primitive indices @ param ArgumentsBuffer Buffer containing FRHIDrawIndexedIndirectParameters structures @ param ArgumentOffset Offset in bytes of the first element in ArgumentsBuffer that will be used for drawing @ param CountBuffer Buffer containing uint32 count of valid draw arguments that should be consumed (may be nullptr, indicating that only MaxDrawArguments value should be used) @ param CountBuffeOffset Offset in bytes for the CountBuffer element that will be used to source the draw argument count @ param MaxDrawArguments How many draw arguments should be processed at most, i.e. NumDrawArguments = min(MaxDrawArguments, ValueFromCountBuffer)

Reimplemented from IRHICommandContext.

RHISetBlendFactor()

void FD3D12CommandContext::RHISetBlendFactor ( const FLinearColor &  BlendFactor )

finaloverridevirtual

Reimplemented from IRHICommandContext.

RHISetComputePipelineState()

void FD3D12CommandContext::RHISetComputePipelineState ( FRHIComputePipelineState *  ComputePipelineState )

finaloverridevirtual

Implements IRHIComputeContext.

RHISetDepthBounds()

void FD3D12CommandContext::RHISetDepthBounds ( float  MinDepth, float  MaxDepth  )

finaloverridevirtual

Sets Depth Bounds range with the given min/max depth.

Parameters

MinDepth	The minimum depth for depth bounds test
MaxDepth	The maximum depth for depth bounds test. The valid values for fMinDepth and fMaxDepth are such that 0 <= fMinDepth <= fMaxDepth <= 1

Implements IRHICommandContext.

RHISetGPUMask()

virtual void FD3D12CommandContext::RHISetGPUMask ( FRHIGPUMask  InGPUMask )

inlinefinaloverridevirtual

Reimplemented from IRHIComputeContext.

RHISetGraphicsPipelineState()

void FD3D12CommandContext::RHISetGraphicsPipelineState ( FRHIGraphicsPipelineState *  GraphicsPipelineState, uint32  StencilRef, bool  bApplyAdditionalState  )

finaloverridevirtual

Implements IRHICommandContext.

RHISetMultipleViewports()

void FD3D12CommandContext::RHISetMultipleViewports ( uint32  Count, const FViewportBounds *  Data  )

finaloverridevirtual

Implements IRHICommandContext.

RHISetScissorRect()

void FD3D12CommandContext::RHISetScissorRect ( bool  bEnable, uint32  MinX, uint32  MinY, uint32  MaxX, uint32  MaxY  )

finaloverridevirtual

Implements IRHICommandContext.

RHISetShaderParameters() [1/2]

virtual void FD3D12CommandContext::RHISetShaderParameters ( FRHIComputeShader *  Shader, TConstArrayView< uint8 >  InParametersData, TConstArrayView< FRHIShaderParameter >  InParameters, TConstArrayView< FRHIShaderParameterResource >  InResourceParameters, TConstArrayView< FRHIShaderParameterResource >  InBindlessParameters  )

finaloverridevirtual

Implements IRHIComputeContext.

RHISetShaderParameters() [2/2]

virtual void FD3D12CommandContext::RHISetShaderParameters ( FRHIGraphicsShader *  Shader, TConstArrayView< uint8 >  InParametersData, TConstArrayView< FRHIShaderParameter >  InParameters, TConstArrayView< FRHIShaderParameterResource >  InResourceParameters, TConstArrayView< FRHIShaderParameterResource >  InBindlessParameters  )

finaloverridevirtual

Implements IRHICommandContext.

RHISetShaderRootConstants()

void FD3D12CommandContext::RHISetShaderRootConstants ( const FUint32Vector4 &  Constants )

overridevirtual

Reimplemented from IRHIComputeContext.

RHISetShaderUnbinds() [1/2]

void FD3D12CommandContext::RHISetShaderUnbinds ( FRHIComputeShader *  Shader, TConstArrayView< FRHIShaderParameterUnbind >  InUnbinds  )

finaloverridevirtual

Reimplemented from IRHIComputeContext.

RHISetShaderUnbinds() [2/2]

void FD3D12CommandContext::RHISetShaderUnbinds ( FRHIGraphicsShader *  Shader, TConstArrayView< FRHIShaderParameterUnbind >  InUnbinds  )

finaloverridevirtual

Reimplemented from IRHICommandContext.

RHISetShadingRate()

void FD3D12CommandContext::RHISetShadingRate ( EVRSShadingRate  ShadingRate, EVRSRateCombiner  Combiner  )

finaloverridevirtual

Reimplemented from IRHICommandContext.

RHISetStaticUniformBuffer()

void FD3D12CommandContext::RHISetStaticUniformBuffer ( FUniformBufferStaticSlot  Slot, FRHIUniformBuffer *  Buffer  )

finaloverridevirtual

Implements IRHIComputeContext.

RHISetStaticUniformBuffers()

void FD3D12CommandContext::RHISetStaticUniformBuffers ( const FUniformBufferStaticBindings &  InUniformBuffers )

finaloverridevirtual

Implements IRHIComputeContext.

RHISetStencilRef()

void FD3D12CommandContext::RHISetStencilRef ( uint32  StencilRef )

finaloverridevirtual

Reimplemented from IRHICommandContext.

RHISetStereoViewport()

void FD3D12CommandContext::RHISetStereoViewport ( float  LeftMinX, float  RightMinX, float  LeftMinY, float  RightMinY, float  MinZ, float  LeftMaxX, float  RightMaxX, float  LeftMaxY, float  RightMaxY, float  MaxZ  )

overridevirtual

Reimplemented from IRHICommandContext.

RHISetStreamSource()

void FD3D12CommandContext::RHISetStreamSource ( uint32  StreamIndex, FRHIBuffer *  VertexBuffer, uint32  Offset  )

finaloverridevirtual

Implements IRHICommandContext.

RHISetViewport()

void FD3D12CommandContext::RHISetViewport ( float  MinX, float  MinY, float  MinZ, float  MaxX, float  MaxY, float  MaxZ  )

finaloverridevirtual

Implements IRHICommandContext.

SetAsyncComputeBudgetInternal()

virtual void FD3D12CommandContext::SetAsyncComputeBudgetInternal ( EAsyncComputeBudget  Budget )

inlinevirtual

SetDepthBounds()

void FD3D12CommandContext::SetDepthBounds ( float  MinDepth, float  MaxDepth  )

virtual

SetExplicitDescriptorCache()

void FD3D12CommandContext::SetExplicitDescriptorCache

(

FD3D12ExplicitDescriptorCache &

ExplicitDescriptorCache

)

SetRenderTargets()

void FD3D12CommandContext::SetRenderTargets	(	uint32	NumSimultaneousRenderTargets,
		const FRHIRenderTargetView *	NewRenderTargets,
		const FRHIDepthRenderTargetView *	NewDepthStencilTarget
	)

SetRenderTargetsAndClear()

void FD3D12CommandContext::SetRenderTargetsAndClear

(

const FRHISetRenderTargetsInfo &

RenderTargetsInfo

)

SetResourcesFromTables() [1/2]

template<class ShaderType >

void FD3D12CommandContext::SetResourcesFromTables

(

const ShaderType *RESTRICT

Shader

)

SetResourcesFromTables() [2/2]

template<class ShaderType >

void FD3D12CommandContext::SetResourcesFromTables

(

const ShaderType *

RESTRICT

)

SetShadingRate()

void FD3D12CommandContext::SetShadingRate ( EVRSShadingRate  ShadingRate, FD3D12Resource *  ShadingRateImage, const TStaticArray< EVRSRateCombiner, ED3D12VRSCombinerStages::Num > &  Combiners  )

virtual

SetSRVParameter()

void FD3D12CommandContext::SetSRVParameter	(	EShaderFrequency	Frequency,
		uint32	SRVIndex,
		FD3D12ShaderResourceView *	SRV
	)

SetUAVParameter() [1/2]

void FD3D12CommandContext::SetUAVParameter	(	EShaderFrequency	Frequency,
		uint32	UAVIndex,
		FD3D12UnorderedAccessView *	UAV
	)

SetUAVParameter() [2/2]

void FD3D12CommandContext::SetUAVParameter	(	EShaderFrequency	Frequency,
		uint32	UAVIndex,
		FD3D12UnorderedAccessView *	UAV,
		uint32	InitialCount
	)

UnsetExplicitDescriptorCache()

void FD3D12CommandContext::UnsetExplicitDescriptorCache

(

)

Member Data Documentation

bDiscardSharedComputeConstants

bool FD3D12CommandContext::bDiscardSharedComputeConstants = false

When a new compute PSO is set, we discard all old constants set for the previous shader.

bDiscardSharedGraphicsConstants

bool FD3D12CommandContext::bDiscardSharedGraphicsConstants = false

When a new graphics PSO is set, we discard all old constants set for the previous shader.

BoundUniformBuffers

FD3D12UniformBuffer* FD3D12CommandContext::BoundUniformBuffers[SF_NumStandardFrequencies][MAX_CBS] = {}

Track the currently bound uniform buffers.

bOuterOcclusionQuerySubmitted

bool FD3D12CommandContext::bOuterOcclusionQuerySubmitted = false

ConstantsAllocator

FD3D12FastConstantAllocator FD3D12CommandContext::ConstantsAllocator

DirtyUniformBuffers

uint16 FD3D12CommandContext::DirtyUniformBuffers[SF_NumStandardFrequencies] = {}

Bit array to track which uniform buffers have changed since the last draw call.

GPUEventStack

TArray<uint32> FD3D12CommandContext::GPUEventStack

OuterOcclusionQuery

FRenderQueryRHIRef FD3D12CommandContext::OuterOcclusionQuery

Handle for the dummy outer occlusion query we optionally insert for performance reasons

StageConstantBuffers

FD3D12ConstantBuffer FD3D12CommandContext::StageConstantBuffers[SF_NumStandardFrequencies]

Used by variable rate shading to cache the current state of the combiners and the constant shading rate Constant buffers for Set*ShaderParameter calls.

StateCache

FD3D12StateCache FD3D12CommandContext::StateCache

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/D3D12RHI/Private/D3D12CommandContext.h
• Engine/Source/Runtime/D3D12RHI/Private/D3D12Buffer.cpp
• Engine/Source/Runtime/D3D12RHI/Private/D3D12CommandContext.cpp
• Engine/Source/Runtime/D3D12RHI/Private/D3D12Commands.cpp
• Engine/Source/Runtime/D3D12RHI/Private/D3D12Query.cpp
• Engine/Source/Runtime/D3D12RHI/Private/D3D12RenderTarget.cpp
• Engine/Source/Runtime/D3D12RHI/Private/D3D12Shaders.cpp
• Engine/Source/Runtime/D3D12RHI/Private/D3D12Texture.cpp
• Engine/Source/Runtime/D3D12RHI/Private/D3D12UAV.cpp
• Engine/Source/Runtime/D3D12RHI/Private/D3D12WorkGraph.cpp
