#include <RHIContext.h>

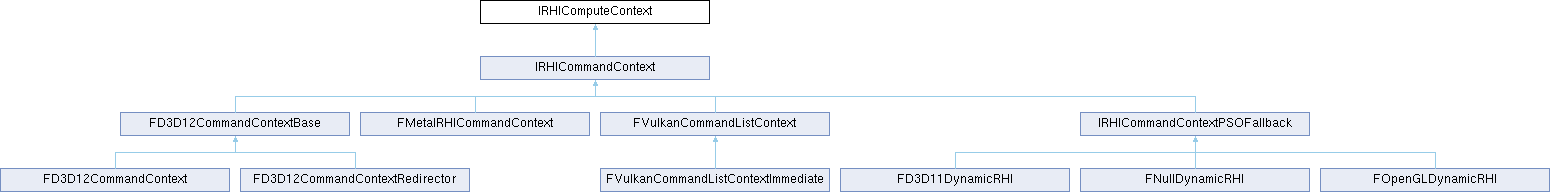

Inheritance diagram for IRHIComputeContext:

Public Member Functions
virtual	~IRHIComputeContext ()

virtual ERHIPipeline	GetPipeline () const

virtual void	RHISetComputePipelineState (FRHIComputePipelineState *ComputePipelineState)=0

virtual void	RHIDispatchComputeShader (uint32 ThreadGroupCountX, uint32 ThreadGroupCountY, uint32 ThreadGroupCountZ)=0

virtual void	RHIRayTraceDispatch (FRHIRayTracingPipelineState RayTracingPipelineState, FRHIRayTracingShader RayGenShader, FRHIShaderBindingTable *SBT, const FRayTracingShaderBindings &GlobalResourceBindings, uint32 Width, uint32 Height)

virtual void	RHIRayTraceDispatchIndirect (FRHIRayTracingPipelineState RayTracingPipelineState, FRHIRayTracingShader RayGenShader, FRHIShaderBindingTable SBT, const FRayTracingShaderBindings &GlobalResourceBindings, FRHIBuffer ArgumentBuffer, uint32 ArgumentOffset)

virtual void	RHIDispatchIndirectComputeShader (FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset)=0

virtual void	RHISetAsyncComputeBudget (EAsyncComputeBudget Budget)

virtual void	RHISetComputeBudget (ESyncComputeBudget Budget)

virtual void	RHIBeginTransitions (TArrayView< const FRHITransition * > Transitions)=0

virtual void	RHIEndTransitions (TArrayView< const FRHITransition * > Transitions)=0

virtual void	RHIClearUAVFloat (FRHIUnorderedAccessView *UnorderedAccessViewRHI, const FVector4f &Values)=0

virtual void	RHIClearUAVUint (FRHIUnorderedAccessView *UnorderedAccessViewRHI, const FUintVector4 &Values)=0

virtual void	RHISetShaderRootConstants (const FUint32Vector4 &Constants)

virtual void	RHIDispatchComputeShaderBundle (FRHIShaderBundle ShaderBundle, FRHIBuffer RecordArgBuffer, TConstArrayView< FRHIShaderParameterResource > SharedBindlessParameters, TConstArrayView< FRHIShaderBundleComputeDispatch > Dispatches, bool bEmulated)

virtual void	RHIDispatchGraphicsShaderBundle (FRHIShaderBundle ShaderBundle, FRHIBuffer RecordArgBuffer, const FRHIShaderBundleGraphicsState &BundleState, TConstArrayView< FRHIShaderParameterResource > SharedBindlessParameters, TConstArrayView< FRHIShaderBundleGraphicsDispatch > Dispatches, bool bEmulated)

virtual void	RHIBeginUAVOverlap ()

virtual void	RHIEndUAVOverlap ()

virtual void	RHIBeginUAVOverlap (TConstArrayView< FRHIUnorderedAccessView * > UAVs)

virtual void	RHIEndUAVOverlap (TConstArrayView< FRHIUnorderedAccessView * > UAVs)

virtual void	RHISetShaderParameters (FRHIComputeShader *ComputeShader, TConstArrayView< uint8 > InParametersData, TConstArrayView< FRHIShaderParameter > InParameters, TConstArrayView< FRHIShaderParameterResource > InResourceParameters, TConstArrayView< FRHIShaderParameterResource > InBindlessParameters)=0

void	RHISetBatchedShaderParameters (FRHIComputeShader *InShader, FRHIBatchedShaderParameters &InBatchedParameters)

virtual void	RHISetShaderUnbinds (FRHIComputeShader *ComputeShader, TConstArrayView< FRHIShaderParameterUnbind > InUnbinds)

virtual void	RHISetStaticUniformBuffers (const FUniformBufferStaticBindings &InUniformBuffers)=0

virtual void	RHISetStaticUniformBuffer (FUniformBufferStaticSlot Slot, FRHIUniformBuffer *UniformBuffer)=0

virtual void	RHISetUniformBufferDynamicOffset (FUniformBufferStaticSlot Slot, uint32 Offset)

virtual void	RHICopyToStagingBuffer (FRHIBuffer SourceBufferRHI, FRHIStagingBuffer DestinationStagingBufferRHI, uint32 InOffset, uint32 InNumBytes)

virtual void	RHIWriteGPUFence (FRHIGPUFence *FenceRHI)

virtual void	RHISetGPUMask (FRHIGPUMask GPUMask)

virtual FRHIGPUMask	RHIGetGPUMask () const

virtual void	RHIExecuteMultiIndirectClusterOperation (const FRayTracingClusterOperationParams &Params)

virtual void	RHIBuildAccelerationStructures (TConstArrayView< FRayTracingGeometryBuildParams > Params, const FRHIBufferRange &ScratchBufferRange)

virtual void	RHIBuildAccelerationStructures (TConstArrayView< FRayTracingSceneBuildParams > Params)

virtual void	RHIBindAccelerationStructureMemory (FRHIRayTracingScene Scene, FRHIBuffer Buffer, uint32 BufferOffset)

IRHIComputeContext &	GetLowestLevelContext ()

IRHIComputeContext const &	GetHighestLevelContext () const

IRHIComputeContext &	GetHighestLevelContext ()

void	SetTrackedAccess (const FRHITrackedAccessInfo &Info)

ERHIAccess	GetTrackedAccess (const FRHIViewableResource *Resource) const

ERHIPipeline	GetTrackedPipelines (const FRHIViewableResource *Resource) const

virtual void *	RHIGetNativeCommandBuffer ()

virtual void	RHIPostExternalCommandsReset ()

FRHICommandListBase &	GetExecutingCommandList () const

virtual void	SetExecutingCommandList (FRHICommandListBase *InCmdList)

Protected Attributes
UE::RHI::GPUProfiler::FEvent::FStats	StatEvent {}

Detailed Description

Context that is capable of doing Compute work. Can be async or compute on the gfx pipe.

Constructor & Destructor Documentation

◆ ~IRHIComputeContext()

virtual IRHIComputeContext::~IRHIComputeContext ( )

inlinevirtual

Member Function Documentation

◆ GetExecutingCommandList()

FRHICommandListBase & IRHIComputeContext::GetExecutingCommandList ( ) const

inline

◆ GetHighestLevelContext() [1/2]

IRHIComputeContext & IRHIComputeContext::GetHighestLevelContext ( )

inline

◆ GetHighestLevelContext() [2/2]

IRHIComputeContext const & IRHIComputeContext::GetHighestLevelContext ( ) const

inline

◆ GetLowestLevelContext()

IRHIComputeContext & IRHIComputeContext::GetLowestLevelContext ( )

inline

◆ GetPipeline()

virtual ERHIPipeline IRHIComputeContext::GetPipeline ( ) const

inlinevirtual

Reimplemented in FD3D12CommandContext, IRHICommandContext, and FVulkanCommandListContext.

◆ GetTrackedAccess()

ERHIAccess IRHIComputeContext::GetTrackedAccess ( const FRHIViewableResource * Resource ) const

inline

◆ GetTrackedPipelines()

ERHIPipeline IRHIComputeContext::GetTrackedPipelines ( const FRHIViewableResource * Resource ) const

inline

◆ RHIBeginTransitions()

virtual void IRHIComputeContext::RHIBeginTransitions ( TArrayView< const FRHITransition * > Transitions )

pure virtual

Implemented in FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanCommandListContext, and FD3D11DynamicRHI.

◆ RHIBeginUAVOverlap() [1/2]

virtual void IRHIComputeContext::RHIBeginUAVOverlap ( )

inlinevirtual

Reimplemented in FD3D11DynamicRHI.

◆ RHIBeginUAVOverlap() [2/2]

virtual void IRHIComputeContext::RHIBeginUAVOverlap ( TConstArrayView< FRHIUnorderedAccessView * > UAVs )

inlinevirtual

◆ RHIBindAccelerationStructureMemory()

virtual void IRHIComputeContext::RHIBindAccelerationStructureMemory	(	FRHIRayTracingScene *	Scene,
		FRHIBuffer *	Buffer,
		uint32	BufferOffset
	)

inlinevirtual

Reimplemented in FVulkanCommandListContext.

◆ RHIBuildAccelerationStructures() [1/2]

virtual void IRHIComputeContext::RHIBuildAccelerationStructures	(	TConstArrayView< FRayTracingGeometryBuildParams >	Params,
		const FRHIBufferRange &	ScratchBufferRange
	)

inlinevirtual

Reimplemented in FVulkanCommandListContext.

◆ RHIBuildAccelerationStructures() [2/2]

virtual void IRHIComputeContext::RHIBuildAccelerationStructures ( TConstArrayView< FRayTracingSceneBuildParams > Params )

inlinevirtual

Reimplemented in FVulkanCommandListContext.

◆ RHIClearUAVFloat()

virtual void IRHIComputeContext::RHIClearUAVFloat	(	FRHIUnorderedAccessView *	UnorderedAccessViewRHI,
		const FVector4f &	Values
	)

pure virtual

Clears a UAV to the multi-channel floating point value provided. Should only be called on UAVs with a floating point format, or on structured buffers. Structured buffers are treated as a regular R32_UINT buffer during the clear operation, and the Values.X component is copied directly into the buffer without any format conversion. (Y,Z,W) of Values is ignored. Typed floating point buffers undergo standard format conversion during the write operation. The conversion is determined by the format of the UAV.

Parameters

UnorderedAccessViewRHI	The UAV to clear.
Values	The values to clear the UAV to, one component per channel (XYZW = RGBA). Channels not supported by the UAV are ignored.

Implemented in FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanCommandListContext, and FD3D11DynamicRHI.

◆ RHIClearUAVUint()

virtual void IRHIComputeContext::RHIClearUAVUint	(	FRHIUnorderedAccessView *	UnorderedAccessViewRHI,
		const FUintVector4 &	Values
	)

pure virtual

Clears a UAV to the multi-component unsigned integer value provided. Should only be called on UAVs with an integer format, or on structured buffers. Structured buffers are treated as a regular R32_UINT buffer during the clear operation, and the Values.X component is copied directly into the buffer without any format conversion. (Y,Z,W) of Values is ignored. Typed integer buffers undergo standard format conversion during the write operation. The conversion is determined by the format of the UAV.

Parameters

UnorderedAccessViewRHI	The UAV to clear.
Values	The values to clear the UAV to, one component per channel (XYZW = RGBA). Channels not supported by the UAV are ignored.

Implemented in FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanCommandListContext, and FD3D11DynamicRHI.

◆ RHICopyToStagingBuffer()

virtual void IRHIComputeContext::RHICopyToStagingBuffer	(	FRHIBuffer *	SourceBufferRHI,
		FRHIStagingBuffer *	DestinationStagingBufferRHI,
		uint32	InOffset,
		uint32	InNumBytes
	)

inlinevirtual

Performs a copy of the data in 'SourceBuffer' to 'DestinationStagingBuffer.' This will occur inline on the GPU timeline. This is a mechanism to perform nonblocking readback of a buffer at a point in time.

Parameters

SourceBuffer	The source vertex buffer that will be inlined copied.
DestinationStagingBuffer	The the host-visible destination buffer
Offset	The start of the data in 'SourceBuffer'
NumBytes	The number of bytes to copy out of 'SourceBuffer'

Reimplemented in FD3D12CommandContext, FD3D12CommandContextRedirector, FVulkanCommandListContext, FD3D11DynamicRHI, FOpenGLDynamicRHI, and FMetalRHICommandContext.

◆ RHIDispatchComputeShader()

virtual void IRHIComputeContext::RHIDispatchComputeShader	(	uint32	ThreadGroupCountX,
		uint32	ThreadGroupCountY,
		uint32	ThreadGroupCountZ
	)

pure virtual

Implemented in FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanCommandListContext, FD3D11DynamicRHI, and IRHICommandContext.

◆ RHIDispatchComputeShaderBundle()

virtual void IRHIComputeContext::RHIDispatchComputeShaderBundle	(	FRHIShaderBundle *	ShaderBundle,
		FRHIBuffer *	RecordArgBuffer,
		TConstArrayView< FRHIShaderParameterResource >	SharedBindlessParameters,
		TConstArrayView< FRHIShaderBundleComputeDispatch >	Dispatches,
		bool	bEmulated
	)

inlinevirtual

Reimplemented in FD3D12CommandContext.

◆ RHIDispatchGraphicsShaderBundle()

virtual void IRHIComputeContext::RHIDispatchGraphicsShaderBundle	(	FRHIShaderBundle *	ShaderBundle,
		FRHIBuffer *	RecordArgBuffer,
		const FRHIShaderBundleGraphicsState &	BundleState,
		TConstArrayView< FRHIShaderParameterResource >	SharedBindlessParameters,
		TConstArrayView< FRHIShaderBundleGraphicsDispatch >	Dispatches,
		bool	bEmulated
	)

inlinevirtual

Reimplemented in FD3D12CommandContext.

◆ RHIDispatchIndirectComputeShader()

virtual void IRHIComputeContext::RHIDispatchIndirectComputeShader	(	FRHIBuffer *	ArgumentBuffer,
		uint32	ArgumentOffset
	)

pure virtual

Implemented in FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanCommandListContext, FD3D11DynamicRHI, and IRHICommandContext.

◆ RHIEndTransitions()

virtual void IRHIComputeContext::RHIEndTransitions ( TArrayView< const FRHITransition * > Transitions )

pure virtual

Implemented in FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanCommandListContext, and FD3D11DynamicRHI.

◆ RHIEndUAVOverlap() [1/2]

virtual void IRHIComputeContext::RHIEndUAVOverlap ( )

inlinevirtual

Reimplemented in FD3D11DynamicRHI.

◆ RHIEndUAVOverlap() [2/2]

virtual void IRHIComputeContext::RHIEndUAVOverlap ( TConstArrayView< FRHIUnorderedAccessView * > UAVs )

inlinevirtual

◆ RHIExecuteMultiIndirectClusterOperation()

virtual void IRHIComputeContext::RHIExecuteMultiIndirectClusterOperation ( const FRayTracingClusterOperationParams & Params )

inlinevirtual

◆ RHIGetGPUMask()

virtual FRHIGPUMask IRHIComputeContext::RHIGetGPUMask ( ) const

inlinevirtual

Reimplemented in FD3D12CommandContextRedirector.

◆ RHIGetNativeCommandBuffer()

virtual void * IRHIComputeContext::RHIGetNativeCommandBuffer ( )

inlinevirtual

Reimplemented in FD3D11DynamicRHI.

◆ RHIPostExternalCommandsReset()

virtual void IRHIComputeContext::RHIPostExternalCommandsReset ( )

inlinevirtual

Reimplemented in FOpenGLDynamicRHI.

◆ RHIRayTraceDispatch()

virtual void IRHIComputeContext::RHIRayTraceDispatch	(	FRHIRayTracingPipelineState *	RayTracingPipelineState,
		FRHIRayTracingShader *	RayGenShader,
		FRHIShaderBindingTable *	SBT,
		const FRayTracingShaderBindings &	GlobalResourceBindings,
		uint32	Width,
		uint32	Height
	)

inlinevirtual

Reimplemented in FVulkanCommandListContext.

◆ RHIRayTraceDispatchIndirect()

virtual void IRHIComputeContext::RHIRayTraceDispatchIndirect	(	FRHIRayTracingPipelineState *	RayTracingPipelineState,
		FRHIRayTracingShader *	RayGenShader,
		FRHIShaderBindingTable *	SBT,
		const FRayTracingShaderBindings &	GlobalResourceBindings,
		FRHIBuffer *	ArgumentBuffer,
		uint32	ArgumentOffset
	)

inlinevirtual

Reimplemented in FVulkanCommandListContext.

◆ RHISetAsyncComputeBudget()

virtual void IRHIComputeContext::RHISetAsyncComputeBudget ( EAsyncComputeBudget Budget )

inlinevirtual

Reimplemented in FD3D12CommandContextBase.

◆ RHISetBatchedShaderParameters()

void IRHIComputeContext::RHISetBatchedShaderParameters	(	FRHIComputeShader *	InShader,
		FRHIBatchedShaderParameters &	InBatchedParameters
	)

inline

◆ RHISetComputeBudget()

virtual void IRHIComputeContext::RHISetComputeBudget ( ESyncComputeBudget Budget )

inlinevirtual

◆ RHISetComputePipelineState()

virtual void IRHIComputeContext::RHISetComputePipelineState ( FRHIComputePipelineState * ComputePipelineState )

pure virtual

Implemented in IRHICommandContextPSOFallback, FD3D12CommandContext, FD3D12CommandContextRedirector, FVulkanCommandListContext, and FMetalRHICommandContext.

◆ RHISetGPUMask()

virtual void IRHIComputeContext::RHISetGPUMask ( FRHIGPUMask GPUMask )

inlinevirtual

Reimplemented in FD3D12CommandContext, and FD3D12CommandContextRedirector.

◆ RHISetShaderParameters()

virtual void IRHIComputeContext::RHISetShaderParameters	(	FRHIComputeShader *	ComputeShader,
		TConstArrayView< uint8 >	InParametersData,
		TConstArrayView< FRHIShaderParameter >	InParameters,
		TConstArrayView< FRHIShaderParameterResource >	InResourceParameters,
		TConstArrayView< FRHIShaderParameterResource >	InBindlessParameters
	)

pure virtual

Implemented in IRHICommandContext, FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanCommandListContext, and FD3D11DynamicRHI.

◆ RHISetShaderRootConstants()

virtual void IRHIComputeContext::RHISetShaderRootConstants ( const FUint32Vector4 & Constants )

inlinevirtual

Reimplemented in FD3D12CommandContextRedirector, and FD3D12CommandContext.

◆ RHISetShaderUnbinds()

virtual void IRHIComputeContext::RHISetShaderUnbinds	(	FRHIComputeShader *	ComputeShader,
		TConstArrayView< FRHIShaderParameterUnbind >	InUnbinds
	)

inlinevirtual

Reimplemented in IRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FOpenGLDynamicRHI, and FD3D11DynamicRHI.

◆ RHISetStaticUniformBuffer()

virtual void IRHIComputeContext::RHISetStaticUniformBuffer	(	FUniformBufferStaticSlot	Slot,
		FRHIUniformBuffer *	UniformBuffer
	)

pure virtual

Implemented in FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FOpenGLDynamicRHI, FVulkanCommandListContext, FD3D11DynamicRHI, and FNullDynamicRHI.

◆ RHISetStaticUniformBuffers()

virtual void IRHIComputeContext::RHISetStaticUniformBuffers ( const FUniformBufferStaticBindings & InUniformBuffers )

pure virtual

Implemented in FMetalRHICommandContext, FD3D12CommandContext, FD3D12CommandContextRedirector, FNullDynamicRHI, FOpenGLDynamicRHI, FVulkanCommandListContext, and FD3D11DynamicRHI.

◆ RHISetUniformBufferDynamicOffset()

virtual void IRHIComputeContext::RHISetUniformBufferDynamicOffset	(	FUniformBufferStaticSlot	Slot,
		uint32	Offset
	)

inlinevirtual

Reimplemented in FVulkanCommandListContext, and FOpenGLDynamicRHI.

◆ RHIWriteGPUFence()

virtual void IRHIComputeContext::RHIWriteGPUFence ( FRHIGPUFence * FenceRHI )

inlinevirtual

Write the fence in the GPU timeline. The fence can then be tested on the CPU to know if the previous GPU commands are completed.

Parameters

Fence

Reimplemented in FVulkanCommandListContext, FD3D11DynamicRHI, FMetalRHICommandContext, and FOpenGLDynamicRHI.

◆ SetExecutingCommandList()

virtual void IRHIComputeContext::SetExecutingCommandList ( FRHICommandListBase * InCmdList )

inlinevirtual

Reimplemented in FD3D12CommandContextRedirector.

◆ SetTrackedAccess()

void IRHIComputeContext::SetTrackedAccess ( const FRHITrackedAccessInfo & Info )

inline

Member Data Documentation

◆ StatEvent

UE::RHI::GPUProfiler::FEvent::FStats IRHIComputeContext::StatEvent {}

protected

The documentation for this class was generated from the following file:

Engine/Source/Runtime/RHI/Public/RHIContext.h

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~IRHIComputeContext()

Member Function Documentation

◆ GetExecutingCommandList()

◆ GetHighestLevelContext() [1/2]

◆ GetHighestLevelContext() [2/2]

◆ GetLowestLevelContext()

◆ GetPipeline()

◆ GetTrackedAccess()

◆ GetTrackedPipelines()

◆ RHIBeginTransitions()

◆ RHIBeginUAVOverlap() [1/2]

◆ RHIBeginUAVOverlap() [2/2]

◆ RHIBindAccelerationStructureMemory()

◆ RHIBuildAccelerationStructures() [1/2]

◆ RHIBuildAccelerationStructures() [2/2]

◆ RHIClearUAVFloat()

◆ RHIClearUAVUint()

◆ RHICopyToStagingBuffer()

◆ RHIDispatchComputeShader()

◆ RHIDispatchComputeShaderBundle()

◆ RHIDispatchGraphicsShaderBundle()

◆ RHIDispatchIndirectComputeShader()

◆ RHIEndTransitions()

◆ RHIEndUAVOverlap() [1/2]

◆ RHIEndUAVOverlap() [2/2]

◆ RHIExecuteMultiIndirectClusterOperation()

◆ RHIGetGPUMask()

◆ RHIGetNativeCommandBuffer()

◆ RHIPostExternalCommandsReset()

◆ RHIRayTraceDispatch()

◆ RHIRayTraceDispatchIndirect()

◆ RHISetAsyncComputeBudget()

◆ RHISetBatchedShaderParameters()

◆ RHISetComputeBudget()

◆ RHISetComputePipelineState()

◆ RHISetGPUMask()

◆ RHISetShaderParameters()

◆ RHISetShaderRootConstants()

◆ RHISetShaderUnbinds()

◆ RHISetStaticUniformBuffer()

◆ RHISetStaticUniformBuffers()

◆ RHISetUniformBufferDynamicOffset()

◆ RHIWriteGPUFence()

◆ SetExecutingCommandList()

◆ SetTrackedAccess()

Member Data Documentation

◆ StatEvent
