#include <D3D12CommandContext.h>

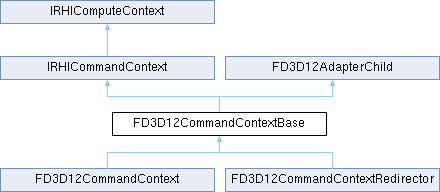

Inheritance diagram for FD3D12CommandContextBase:

Public Member Functions
	FD3D12CommandContextBase (FD3D12Adapter *InParent, FRHIGPUMask InGPUMask)

void	RHIEndDrawingViewport (FRHIViewport *Viewport, bool bPresent, bool bLockToVsync) final override

FRHIGPUMask	GetGPUMask () const

FRHIGPUMask	GetPhysicalGPUMask () const

virtual void	RHISetAsyncComputeBudget (EAsyncComputeBudget Budget)

virtual class FD3D12CommandContextRedirector *	AsRedirector ()

virtual FD3D12CommandContext *	GetSingleDeviceContext (uint32 InGPUIndex)=0

Public Member Functions inherited from IRHICommandContext
virtual	~IRHICommandContext ()

virtual ERHIPipeline	GetPipeline () const override

virtual void	RHIDispatchComputeShader (uint32 ThreadGroupCountX, uint32 ThreadGroupCountY, uint32 ThreadGroupCountZ)=0

virtual void	RHIDispatchIndirectComputeShader (FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset)=0

virtual void	RHISetMultipleViewports (uint32 Count, const FViewportBounds *Data)=0

virtual void	RHIResummarizeHTile (FRHITexture *DepthTexture)

virtual void	RHIBeginRenderQuery (FRHIRenderQuery *RenderQuery)=0

virtual void	RHIEndRenderQuery (FRHIRenderQuery *RenderQuery)=0

virtual void	RHISetStreamSource (uint32 StreamIndex, FRHIBuffer *VertexBuffer, uint32 Offset)=0

virtual void	RHISetViewport (float MinX, float MinY, float MinZ, float MaxX, float MaxY, float MaxZ)=0

virtual void	RHISetStereoViewport (float LeftMinX, float RightMinX, float LeftMinY, float RightMinY, float MinZ, float LeftMaxX, float RightMaxX, float LeftMaxY, float RightMaxY, float MaxZ)

virtual void	RHISetScissorRect (bool bEnable, uint32 MinX, uint32 MinY, uint32 MaxX, uint32 MaxY)=0

virtual void	RHISetGraphicsPipelineState (FRHIGraphicsPipelineState *GraphicsState, uint32 StencilRef, bool bApplyAdditionalState)=0

virtual void	RHISetShaderParameters (FRHIGraphicsShader *Shader, TConstArrayView< uint8 > InParametersData, TConstArrayView< FRHIShaderParameter > InParameters, TConstArrayView< FRHIShaderParameterResource > InResourceParameters, TConstArrayView< FRHIShaderParameterResource > InBindlessParameters)=0

void	RHISetBatchedShaderParameters (FRHIGraphicsShader *InShader, FRHIBatchedShaderParameters &InBatchedParameters)

virtual void	RHISetShaderUnbinds (FRHIGraphicsShader *Shader, TConstArrayView< FRHIShaderParameterUnbind > InUnbinds)

virtual void	RHISetStencilRef (uint32 StencilRef)

virtual void	RHISetBlendFactor (const FLinearColor &BlendFactor)

virtual void	RHIDrawPrimitive (uint32 BaseVertexIndex, uint32 NumPrimitives, uint32 NumInstances)=0

virtual void	RHIDrawPrimitiveIndirect (FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset)=0

virtual void	RHIDrawIndexedIndirect (FRHIBuffer IndexBufferRHI, FRHIBuffer ArgumentsBufferRHI, int32 DrawArgumentsIndex, uint32 NumInstances)=0

virtual void	RHIDrawIndexedPrimitive (FRHIBuffer *IndexBuffer, int32 BaseVertexIndex, uint32 FirstInstance, uint32 NumVertices, uint32 StartIndex, uint32 NumPrimitives, uint32 NumInstances)=0

virtual void	RHIDrawIndexedPrimitiveIndirect (FRHIBuffer IndexBuffer, FRHIBuffer ArgumentBuffer, uint32 ArgumentOffset)=0

virtual void	RHIMultiDrawIndexedPrimitiveIndirect (FRHIBuffer IndexBuffer, FRHIBuffer ArgumentBuffer, uint32 ArgumentOffset, FRHIBuffer *CountBuffer, uint32 CountBuffeOffset, uint32 MaxDrawArguments)

virtual void	RHIDispatchMeshShader (uint32 ThreadGroupCountX, uint32 ThreadGroupCountY, uint32 ThreadGroupCountZ)

virtual void	RHIDispatchIndirectMeshShader (FRHIBuffer *ArgumentBuffer, uint32 ArgumentOffset)

virtual void	RHISetDepthBounds (float MinDepth, float MaxDepth)=0

virtual void	RHIGpuHangCommandListCorruption ()

virtual void	RHISetShadingRate (EVRSShadingRate ShadingRate, EVRSRateCombiner Combiner)

virtual void	RHIBeginParallelRenderPass (TSharedPtr< FRHIParallelRenderPassInfo > InInfo, const TCHAR *InName)

virtual void	RHIEndParallelRenderPass ()

virtual void	RHIBeginRenderPass (const FRHIRenderPassInfo &InInfo, const TCHAR *InName)=0

virtual void	RHIEndRenderPass ()=0

virtual void	RHINextSubpass ()

virtual void	RHICopyTexture (FRHITexture SourceTexture, FRHITexture DestTexture, const FRHICopyTextureInfo &CopyInfo)=0

virtual void	RHICopyBufferRegion (FRHIBuffer DestBuffer, uint64 DstOffset, FRHIBuffer SourceBuffer, uint64 SrcOffset, uint64 NumBytes)=0

virtual void	RHIClearShaderBindingTable (FRHIShaderBindingTable *SBT)

virtual void	RHISetBindingsOnShaderBindingTable (FRHIShaderBindingTable SBT, FRHIRayTracingPipelineState Pipeline, uint32 NumBindings, const FRayTracingLocalShaderBindings *Bindings, ERayTracingBindingType BindingType)

virtual void	RHICommitShaderBindingTable (FRHIShaderBindingTable SBT, FRHIBuffer InlineBindingDataBuffer)

virtual void	RHISetShaderParameters (FRHIComputeShader *ComputeShader, TConstArrayView< uint8 > InParametersData, TConstArrayView< FRHIShaderParameter > InParameters, TConstArrayView< FRHIShaderParameterResource > InResourceParameters, TConstArrayView< FRHIShaderParameterResource > InBindlessParameters)=0

void	RHISetBatchedShaderParameters (FRHIComputeShader *InShader, FRHIBatchedShaderParameters &InBatchedParameters)

virtual void	RHISetShaderUnbinds (FRHIComputeShader *ComputeShader, TConstArrayView< FRHIShaderParameterUnbind > InUnbinds)

Public Member Functions inherited from IRHIComputeContext
virtual	~IRHIComputeContext ()

virtual void	RHISetComputePipelineState (FRHIComputePipelineState *ComputePipelineState)=0

virtual void	RHIRayTraceDispatch (FRHIRayTracingPipelineState RayTracingPipelineState, FRHIRayTracingShader RayGenShader, FRHIShaderBindingTable *SBT, const FRayTracingShaderBindings &GlobalResourceBindings, uint32 Width, uint32 Height)

virtual void	RHIRayTraceDispatchIndirect (FRHIRayTracingPipelineState RayTracingPipelineState, FRHIRayTracingShader RayGenShader, FRHIShaderBindingTable SBT, const FRayTracingShaderBindings &GlobalResourceBindings, FRHIBuffer ArgumentBuffer, uint32 ArgumentOffset)

virtual void	RHISetComputeBudget (ESyncComputeBudget Budget)

virtual void	RHIBeginTransitions (TArrayView< const FRHITransition * > Transitions)=0

virtual void	RHIEndTransitions (TArrayView< const FRHITransition * > Transitions)=0

virtual void	RHIClearUAVFloat (FRHIUnorderedAccessView *UnorderedAccessViewRHI, const FVector4f &Values)=0

virtual void	RHIClearUAVUint (FRHIUnorderedAccessView *UnorderedAccessViewRHI, const FUintVector4 &Values)=0

virtual void	RHISetShaderRootConstants (const FUint32Vector4 &Constants)

virtual void	RHIDispatchComputeShaderBundle (FRHIShaderBundle ShaderBundle, FRHIBuffer RecordArgBuffer, TConstArrayView< FRHIShaderParameterResource > SharedBindlessParameters, TConstArrayView< FRHIShaderBundleComputeDispatch > Dispatches, bool bEmulated)

virtual void	RHIDispatchGraphicsShaderBundle (FRHIShaderBundle ShaderBundle, FRHIBuffer RecordArgBuffer, const FRHIShaderBundleGraphicsState &BundleState, TConstArrayView< FRHIShaderParameterResource > SharedBindlessParameters, TConstArrayView< FRHIShaderBundleGraphicsDispatch > Dispatches, bool bEmulated)

virtual void	RHIBeginUAVOverlap ()

virtual void	RHIEndUAVOverlap ()

virtual void	RHIBeginUAVOverlap (TConstArrayView< FRHIUnorderedAccessView * > UAVs)

virtual void	RHIEndUAVOverlap (TConstArrayView< FRHIUnorderedAccessView * > UAVs)

void	RHISetBatchedShaderParameters (FRHIComputeShader *InShader, FRHIBatchedShaderParameters &InBatchedParameters)

virtual void	RHISetStaticUniformBuffers (const FUniformBufferStaticBindings &InUniformBuffers)=0

virtual void	RHISetStaticUniformBuffer (FUniformBufferStaticSlot Slot, FRHIUniformBuffer *UniformBuffer)=0

virtual void	RHISetUniformBufferDynamicOffset (FUniformBufferStaticSlot Slot, uint32 Offset)

virtual void	RHICopyToStagingBuffer (FRHIBuffer SourceBufferRHI, FRHIStagingBuffer DestinationStagingBufferRHI, uint32 InOffset, uint32 InNumBytes)

virtual void	RHIWriteGPUFence (FRHIGPUFence *FenceRHI)

virtual void	RHISetGPUMask (FRHIGPUMask GPUMask)

virtual FRHIGPUMask	RHIGetGPUMask () const

virtual void	RHIExecuteMultiIndirectClusterOperation (const FRayTracingClusterOperationParams &Params)

virtual void	RHIBuildAccelerationStructures (TConstArrayView< FRayTracingGeometryBuildParams > Params, const FRHIBufferRange &ScratchBufferRange)

virtual void	RHIBuildAccelerationStructures (TConstArrayView< FRayTracingSceneBuildParams > Params)

virtual void	RHIBindAccelerationStructureMemory (FRHIRayTracingScene Scene, FRHIBuffer Buffer, uint32 BufferOffset)

IRHIComputeContext &	GetLowestLevelContext ()

IRHIComputeContext const &	GetHighestLevelContext () const

IRHIComputeContext &	GetHighestLevelContext ()

void	SetTrackedAccess (const FRHITrackedAccessInfo &Info)

ERHIAccess	GetTrackedAccess (const FRHIViewableResource *Resource) const

ERHIPipeline	GetTrackedPipelines (const FRHIViewableResource *Resource) const

virtual void *	RHIGetNativeCommandBuffer ()

virtual void	RHIPostExternalCommandsReset ()

FRHICommandListBase &	GetExecutingCommandList () const

virtual void	SetExecutingCommandList (FRHICommandListBase *InCmdList)

Public Member Functions inherited from FD3D12AdapterChild
	FD3D12AdapterChild (FD3D12Adapter *InParent=nullptr)

FORCEINLINE FD3D12Adapter *	GetParentAdapter () const

void	SetParentAdapter (FD3D12Adapter *InParent)

Static Public Member Functions
static FD3D12CommandContextBase &	Get (FRHICommandListBase &RHICmdList)

static FD3D12CommandContextBase *	Get (IRHIComputeContext *RHIContext)

Protected Attributes
FRHIGPUMask	GPUMask

FRHIGPUMask	PhysicalGPUMask

Protected Attributes inherited from IRHICommandContext
FRHIRenderPassInfo	RenderPassInfo

Protected Attributes inherited from IRHIComputeContext
UE::RHI::GPUProfiler::FEvent::FStats	StatEvent {}

Protected Attributes inherited from FD3D12AdapterChild
FD3D12Adapter *	ParentAdapter

Friends
class	FD3D12CommandContext

Constructor & Destructor Documentation

◆ FD3D12CommandContextBase()

FD3D12CommandContextBase::FD3D12CommandContextBase	(	FD3D12Adapter *	InParent,
		FRHIGPUMask	InGPUMask
	)

Member Function Documentation

◆ AsRedirector()

virtual class FD3D12CommandContextRedirector * FD3D12CommandContextBase::AsRedirector ( )

inlinevirtual

Reimplemented in FD3D12CommandContextRedirector.

◆ Get() [1/2]

static FD3D12CommandContextBase & FD3D12CommandContextBase::Get ( FRHICommandListBase & RHICmdList )

inlinestatic

◆ Get() [2/2]

static FD3D12CommandContextBase * FD3D12CommandContextBase::Get ( IRHIComputeContext * RHIContext )

inlinestatic

◆ GetGPUMask()

FRHIGPUMask FD3D12CommandContextBase::GetGPUMask ( ) const

inline

◆ GetPhysicalGPUMask()

FRHIGPUMask FD3D12CommandContextBase::GetPhysicalGPUMask ( ) const

inline

◆ GetSingleDeviceContext()

virtual FD3D12CommandContext * FD3D12CommandContextBase::GetSingleDeviceContext ( uint32 InGPUIndex )

pure virtual

Implemented in FD3D12CommandContextRedirector, and FD3D12CommandContext.

◆ RHIEndDrawingViewport()

void FD3D12CommandContextBase::RHIEndDrawingViewport	(	FRHIViewport *	Viewport,
		bool	bPresent,
		bool	bLockToVsync
	)

finaloverridevirtual

Implements IRHICommandContext.

◆ RHISetAsyncComputeBudget()

virtual void FD3D12CommandContextBase::RHISetAsyncComputeBudget ( EAsyncComputeBudget Budget )

inlinevirtual

Reimplemented from IRHIComputeContext.

Friends And Related Symbol Documentation

◆ FD3D12CommandContext

friend class FD3D12CommandContext

friend

Member Data Documentation

◆ GPUMask

FRHIGPUMask FD3D12CommandContextBase::GPUMask

protected

◆ PhysicalGPUMask

FRHIGPUMask FD3D12CommandContextBase::PhysicalGPUMask
