FEventLoopHttpThread Class Reference

#include <EventLoopHttpThread.h>

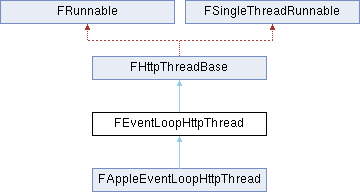

Inheritance diagram for FEventLoopHttpThread:

Public Member Functions
	FEventLoopHttpThread ()
virtual	~FEventLoopHttpThread ()
virtual void	StartThread () override final
virtual void	StopThread () override final
virtual void	UpdateConfigs () override final
virtual void	AddRequest (FHttpRequestCommon *Request) override final
virtual void	CancelRequest (FHttpRequestCommon *Request) override final
virtual void	GetCompletedRequests (TArray< FHttpRequestCommon * > &OutCompletedRequests) override final
virtual void	Tick () override final
Public Member Functions inherited from FHttpThreadBase
	FHttpThreadBase ()
virtual	~FHttpThreadBase ()
bool	IsStopped () const
bool	NeedsSingleThreadTick () const

Protected Member Functions
virtual void	CreateEventLoop ()=0
virtual void	DestroyEventLoop ()=0
virtual void	UpdateEventLoopConfigs ()=0
virtual UE::EventLoop::IEventLoop *	GetEventLoop ()=0
virtual UE::EventLoop::IEventLoop &	GetEventLoopChecked ()=0
virtual bool	Init () override
virtual uint32	Run () override final
void	ResetTickTimer ()
virtual TSharedPtr< IHttpTaskTimerHandle >	AddHttpThreadTask (TFunction< void()> &&Task, float InDelay) override
virtual void	RemoveTimerHandle (FTSTicker::FDelegateHandle DelegateHandle) override
virtual void	RemoveTimerHandle (UE::EventLoop::FTimerHandle EventLoopTimerHandle) override
Protected Member Functions inherited from FHttpThreadBase
virtual void	HttpThreadTick (float DeltaSeconds)
virtual bool	StartThreadedRequest (FHttpRequestCommon *Request)
virtual void	CompleteThreadedRequest (FHttpRequestCommon *Request)
virtual void	Stop () override
virtual void	Exit () override
void	Process (TArray< FHttpRequestCommon * > &RequestsToCancel, TArray< FHttpRequestCommon * > &RequestsToComplete)
virtual class FSingleThreadRunnable *	GetSingleThreadInterface () override

Protected Attributes
UE::EventLoop::FTimerHandle	RequestTickTimer
Protected Attributes inherited from FHttpThreadBase
FRunnableThread *	Thread
TMpscQueue< FHttpRequestCommon * >	NewThreadedRequests
TMpscQueue< FHttpRequestCommon * >	CancelledThreadedRequests
TArray< FHttpRequestCommon * >	RateLimitedThreadedRequests
TArray< FHttpRequestCommon * >	RunningThreadedRequests
TSpscQueue< FHttpRequestCommon * >	CompletedThreadedRequests

Constructor & Destructor Documentation

FEventLoopHttpThread()

FEventLoopHttpThread::FEventLoopHttpThread

(

)

~FEventLoopHttpThread()

FEventLoopHttpThread::~FEventLoopHttpThread ( )

virtual

Member Function Documentation

AddHttpThreadTask()

TSharedPtr< IHttpTaskTimerHandle > FEventLoopHttpThread::AddHttpThreadTask ( TFunction< void()> &&  Task, float  InDelay  )

overrideprotectedvirtual

Add task to be ran on the http thread next tick

Parameters

Task	The task to be ran
InDelay	The delay to wait before running the task

Returns

The handle of the timer, which could be used to remove the task before it get triggered

Implements FHttpThreadBase.

AddRequest()

void FEventLoopHttpThread::AddRequest ( FHttpRequestCommon *  Request )

finaloverridevirtual

Add a request to begin processing on HTTP thread.

Parameters

Request

the request to be processed on the HTTP thread

Reimplemented from FHttpThreadBase.

CancelRequest()

void FEventLoopHttpThread::CancelRequest ( FHttpRequestCommon *  Request )

finaloverridevirtual

Mark a request as cancelled. Called on non-HTTP thread.

Parameters

Request

the request to be processed on the HTTP thread

Reimplemented from FHttpThreadBase.

CreateEventLoop()

virtual void FEventLoopHttpThread::CreateEventLoop ( )

protectedpure virtual

Implemented in FAppleEventLoopHttpThread.

DestroyEventLoop()

virtual void FEventLoopHttpThread::DestroyEventLoop ( )

protectedpure virtual

Implemented in FAppleEventLoopHttpThread.

GetCompletedRequests()

void FEventLoopHttpThread::GetCompletedRequests ( TArray< FHttpRequestCommon * > &  OutCompletedRequests )

finaloverridevirtual

Get completed requests. Clears internal arrays. Called on non-HTTP thread.

Parameters

OutCompletedRequests

array of requests that have been completed

Reimplemented from FHttpThreadBase.

GetEventLoop()

virtual UE::EventLoop::IEventLoop * FEventLoopHttpThread::GetEventLoop ( )

protectedpure virtual

Implemented in FAppleEventLoopHttpThread.

GetEventLoopChecked()

virtual UE::EventLoop::IEventLoop & FEventLoopHttpThread::GetEventLoopChecked ( )

protectedpure virtual

Implemented in FAppleEventLoopHttpThread.

Init()

bool FEventLoopHttpThread::Init ( void  )

overrideprotectedvirtual

Initializes the runnable object.

This method is called in the context of the thread object that aggregates this, not the thread that passes this runnable to a new thread.

Returns

True if initialization was successful, false otherwise

See also

Run, Stop, Exit

Reimplemented from FHttpThreadBase.

RemoveTimerHandle() [1/2]

void FEventLoopHttpThread::RemoveTimerHandle ( FTSTicker::FDelegateHandle  DelegateHandle )

overrideprotectedvirtual

Implements FHttpThreadBase.

RemoveTimerHandle() [2/2]

void FEventLoopHttpThread::RemoveTimerHandle ( UE::EventLoop::FTimerHandle  EventLoopTimerHandle )

overrideprotectedvirtual

Implements FHttpThreadBase.

ResetTickTimer()

void FEventLoopHttpThread::ResetTickTimer ( )

protected

Run()

uint32 FEventLoopHttpThread::Run ( )

finaloverrideprotectedvirtual

Runs the runnable object.

This is where all per object thread work is done. This is only called if the initialization was successful.

Returns

The exit code of the runnable object

See also

Init, Stop, Exit

Reimplemented from FHttpThreadBase.

StartThread()

void FEventLoopHttpThread::StartThread ( )

finaloverridevirtual

Start the HTTP thread.

Reimplemented from FHttpThreadBase.

StopThread()

void FEventLoopHttpThread::StopThread ( )

finaloverridevirtual

Stop the HTTP thread. Blocks until thread has stopped.

Reimplemented from FHttpThreadBase.

Tick()

void FEventLoopHttpThread::Tick ( )

finaloverridevirtual

Reimplemented from FHttpThreadBase.

UpdateConfigs()

void FEventLoopHttpThread::UpdateConfigs ( )

finaloverridevirtual

Update configuration. Called when config has been updated and we need to apply any changes.

Reimplemented from FHttpThreadBase.

UpdateEventLoopConfigs()

virtual void FEventLoopHttpThread::UpdateEventLoopConfigs ( )

protectedpure virtual

Implemented in FAppleEventLoopHttpThread.

Member Data Documentation

RequestTickTimer

UE::EventLoop::FTimerHandle FEventLoopHttpThread::RequestTickTimer

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Online/HTTP/Private/EventLoopHttpThread.h
• Engine/Source/Runtime/Online/HTTP/Private/EventLoopHttpThread.cpp
