#include <HttpThread.h>

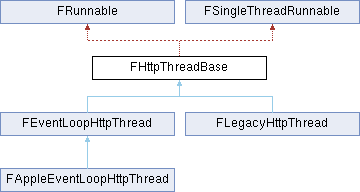

Inheritance diagram for FHttpThreadBase:

Public Member Functions
	FHttpThreadBase ()

virtual	~FHttpThreadBase ()

virtual void	StartThread ()

virtual void	StopThread ()

bool	IsStopped () const

virtual void	AddRequest (FHttpRequestCommon *Request)

virtual void	CancelRequest (FHttpRequestCommon *Request)

virtual void	GetCompletedRequests (TArray< FHttpRequestCommon * > &OutCompletedRequests)

virtual void	Tick () override

bool	NeedsSingleThreadTick () const

virtual void	UpdateConfigs ()

virtual TSharedPtr< IHttpTaskTimerHandle >	AddHttpThreadTask (TFunction< void()> &&Task, float InDelay)=0

virtual void	RemoveTimerHandle (FTSTicker::FDelegateHandle DelegateHandle)=0

virtual void	RemoveTimerHandle (UE::EventLoop::FTimerHandle EventLoopTimerHandle)=0

Protected Member Functions
virtual void	HttpThreadTick (float DeltaSeconds)

virtual bool	StartThreadedRequest (FHttpRequestCommon *Request)

virtual void	CompleteThreadedRequest (FHttpRequestCommon *Request)

virtual bool	Init () override

virtual uint32	Run () override

virtual void	Stop () override

virtual void	Exit () override

void	Process (TArray< FHttpRequestCommon * > &RequestsToCancel, TArray< FHttpRequestCommon * > &RequestsToComplete)

virtual class FSingleThreadRunnable *	GetSingleThreadInterface () override

Protected Attributes
FRunnableThread *	Thread

TMpscQueue< FHttpRequestCommon * >	NewThreadedRequests

TMpscQueue< FHttpRequestCommon * >	CancelledThreadedRequests

TArray< FHttpRequestCommon * >	RateLimitedThreadedRequests

TArray< FHttpRequestCommon * >	RunningThreadedRequests

TSpscQueue< FHttpRequestCommon * >	CompletedThreadedRequests

Detailed Description

Manages Http thread Assumes any requests entering the system will remain valid (not deleted) until they exit the system

Constructor & Destructor Documentation

◆ FHttpThreadBase()

FHttpThreadBase::FHttpThreadBase ( )

◆ ~FHttpThreadBase()

FHttpThreadBase::~FHttpThreadBase ( )

virtual

Member Function Documentation

◆ AddHttpThreadTask()

virtual TSharedPtr< IHttpTaskTimerHandle > FHttpThreadBase::AddHttpThreadTask	(	TFunction< void()> &&	Task,
		float	InDelay
	)

pure virtual

Add task to be ran on the http thread next tick

Parameters

Task	The task to be ran
InDelay	The delay to wait before running the task

Returns: The handle of the timer, which could be used to remove the task before it get triggered

Implemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ AddRequest()

void FHttpThreadBase::AddRequest ( FHttpRequestCommon * Request )

virtual

Add a request to begin processing on HTTP thread.

Parameters

Request the request to be processed on the HTTP thread

Reimplemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ CancelRequest()

void FHttpThreadBase::CancelRequest ( FHttpRequestCommon * Request )

virtual

Mark a request as cancelled. Called on non-HTTP thread.

Parameters

Request the request to be processed on the HTTP thread

Reimplemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ CompleteThreadedRequest()

void FHttpThreadBase::CompleteThreadedRequest ( FHttpRequestCommon * Request )

protectedvirtual

Complete a request on the http thread

Reimplemented in FAppleEventLoopHttpThread.

◆ Exit()

void FHttpThreadBase::Exit ( void )

overrideprotectedvirtual

Exits the runnable object.

Called in the context of the aggregating thread to perform any cleanup.

See also: Init, Run, Stop

Reimplemented from FRunnable.

◆ GetCompletedRequests()

void FHttpThreadBase::GetCompletedRequests ( TArray< FHttpRequestCommon * > & OutCompletedRequests )

virtual

Get completed requests. Clears internal arrays. Called on non-HTTP thread.

Parameters

OutCompletedRequests array of requests that have been completed

Reimplemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ GetSingleThreadInterface()

virtual class FSingleThreadRunnable * FHttpThreadBase::GetSingleThreadInterface ( )

inlineoverrideprotectedvirtual

FSingleThreadRunnable accessor for ticking this FRunnable when multi-threading is disabled.

Returns: FSingleThreadRunnable Interface for this FRunnable object.

Reimplemented from FRunnable.

◆ HttpThreadTick()

void FHttpThreadBase::HttpThreadTick ( float DeltaSeconds )

protectedvirtual

Tick on http thread

Reimplemented in FLegacyHttpThread.

◆ Init()

bool FHttpThreadBase::Init ( void )

overrideprotectedvirtual

Initializes the runnable object.

This method is called in the context of the thread object that aggregates this, not the thread that passes this runnable to a new thread.

Returns: True if initialization was successful, false otherwise

See also: Run, Stop, Exit

Reimplemented from FRunnable.

Reimplemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ IsStopped()

bool FHttpThreadBase::IsStopped ( ) const

inline

Is the HTTP thread started or stopped.

◆ NeedsSingleThreadTick()

bool FHttpThreadBase::NeedsSingleThreadTick ( ) const

When true the owner of the HTTPThread needs to manually call Tick() since no automomous threads are executing the runnable object

◆ Process()

void FHttpThreadBase::Process	(	TArray< FHttpRequestCommon * > &	RequestsToCancel,
		TArray< FHttpRequestCommon * > &	RequestsToComplete
	)

protected

◆ RemoveTimerHandle() [1/2]

virtual void FHttpThreadBase::RemoveTimerHandle ( FTSTicker::FDelegateHandle DelegateHandle )

pure virtual

Implemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ RemoveTimerHandle() [2/2]

virtual void FHttpThreadBase::RemoveTimerHandle ( UE::EventLoop::FTimerHandle EventLoopTimerHandle )

pure virtual

Implemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ Run()

uint32 FHttpThreadBase::Run ( )

overrideprotectedvirtual

Runs the runnable object.

This is where all per object thread work is done. This is only called if the initialization was successful.

Returns: The exit code of the runnable object

See also: Init, Stop, Exit

Implements FRunnable.

Reimplemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ StartThread()

void FHttpThreadBase::StartThread ( )

virtual

Start the HTTP thread.

Reimplemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ StartThreadedRequest()

bool FHttpThreadBase::StartThreadedRequest ( FHttpRequestCommon * Request )

protectedvirtual

Start processing a request on the http thread

Reimplemented in FAppleEventLoopHttpThread.

◆ Stop()

void FHttpThreadBase::Stop ( void )

overrideprotectedvirtual

Stops the runnable object.

This is called if a thread is requested to terminate early.

See also: Init, Run, Exit

Reimplemented from FRunnable.

Reimplemented in FLegacyHttpThread.

◆ StopThread()

void FHttpThreadBase::StopThread ( )

virtual

Stop the HTTP thread. Blocks until thread has stopped.

Reimplemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ Tick()

void FHttpThreadBase::Tick ( )

overridevirtual

Implements FSingleThreadRunnable.

Reimplemented in FEventLoopHttpThread, and FLegacyHttpThread.

◆ UpdateConfigs()

void FHttpThreadBase::UpdateConfigs ( )

virtual

Update configuration. Called when config has been updated and we need to apply any changes.

Reimplemented in FEventLoopHttpThread.

Member Data Documentation

◆ CancelledThreadedRequests

TMpscQueue<FHttpRequestCommon*> FHttpThreadBase::CancelledThreadedRequests

protected

Threaded requests that are waiting to be cancelled on the http thread. Added to on (any) non-HTTP thread, processed then cleared on HTTP thread.

◆ CompletedThreadedRequests

TSpscQueue<FHttpRequestCommon*> FHttpThreadBase::CompletedThreadedRequests

protected

Threaded requests that have completed and are waiting for the game thread to process. Added to on HTTP thread, processed then cleared on game thread (Single producer, single consumer)

◆ NewThreadedRequests

TMpscQueue<FHttpRequestCommon*> FHttpThreadBase::NewThreadedRequests

protected

Threaded requests that are waiting to be processed on the http thread. Added to on (any) non-HTTP thread, processed then cleared on HTTP thread.

◆ RateLimitedThreadedRequests

TArray<FHttpRequestCommon*> FHttpThreadBase::RateLimitedThreadedRequests

protected

Threaded requests that are ready to run, but waiting due to the running request limit (not in any of the other lists, except potentially CancelledThreadedRequests). Only accessed on the HTTP thread.

◆ RunningThreadedRequests

TArray<FHttpRequestCommon*> FHttpThreadBase::RunningThreadedRequests

protected

Currently running threaded requests (not in any of the other lists, except potentially CancelledThreadedRequests). Only accessed on the HTTP thread.

◆ Thread

FRunnableThread* FHttpThreadBase::Thread

protected

Pointer to Runnable Thread

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Online/HTTP/Private/HttpThread.h
Engine/Source/Runtime/Online/HTTP/Private/HttpThread.cpp
