FRunnable Class Reference

#include <Runnable.h>

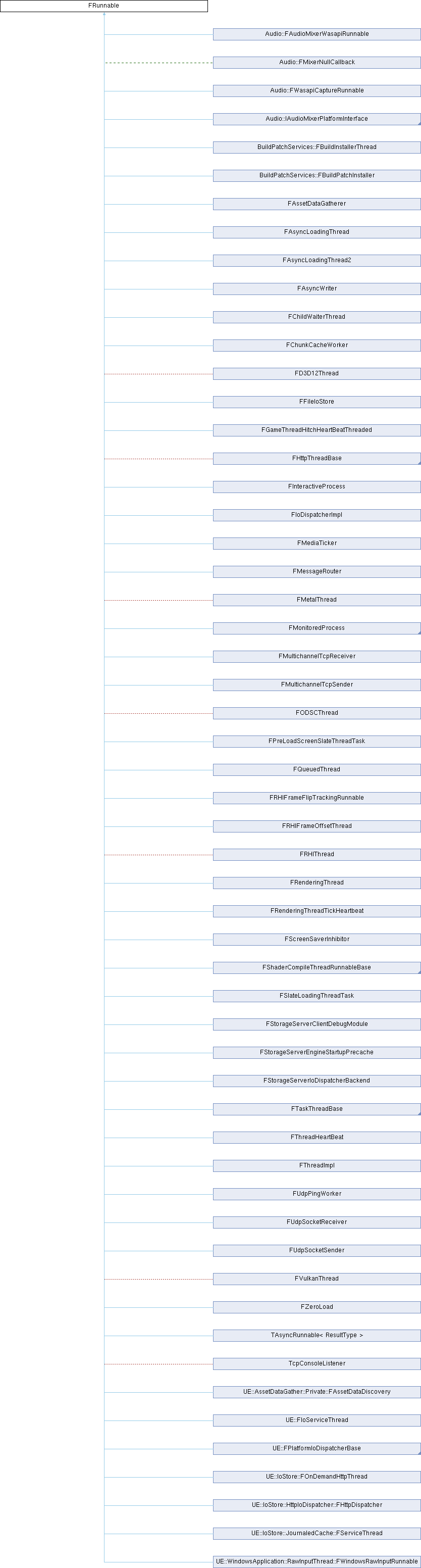

Inheritance diagram for FRunnable:

Public Member Functions
virtual bool	Init ()
virtual uint32	Run ()=0
virtual void	Stop ()
virtual void	Exit ()
virtual class FSingleThreadRunnable *	GetSingleThreadInterface ()
virtual	~FRunnable ()

Detailed Description

Interface for "runnable" objects.

A runnable object is an object that is "run" on an arbitrary thread. The call usage pattern is Init(), Run(), Exit(). The thread that is going to "run" this object always uses those calling semantics. It does this on the thread that is created so that any thread specific uses (TLS, etc.) are available in the contexts of those calls. A "runnable" does all initialization in Init().

If initialization fails, the thread stops execution and returns an error code. If it succeeds, Run() is called where the real threaded work is done. Upon completion, Exit() is called to allow correct clean up.

Constructor & Destructor Documentation

~FRunnable()

virtual FRunnable::~FRunnable ( )

inlinevirtual

Virtual destructor

Member Function Documentation

Exit()

virtual void FRunnable::Exit ( void  )

inlinevirtual

Exits the runnable object.

Called in the context of the aggregating thread to perform any cleanup.

See also

Init, Run, Stop

Reimplemented in FChildWaiterThread, FMultichannelTcpReceiver, FMultichannelTcpSender, FAssetDataGatherer, UE::AssetDataGather::Private::FAssetDataDiscovery, FTaskThreadBase, FInteractiveProcess, FMonitoredProcess, FODSCThread, TcpConsoleListener, FMediaTicker, FMessageRouter, FSlateLoadingThreadTask, FUdpSocketReceiver, FUdpSocketSender, FHttpThreadBase, FUdpPingWorker, FZeroLoad, FPreLoadScreenSlateThreadTask, FRenderingThreadTickHeartbeat, and FRenderingThread.

GetSingleThreadInterface()

virtual class FSingleThreadRunnable * FRunnable::GetSingleThreadInterface ( )

inlinevirtual

Gets single thread interface pointer used for ticking this runnable when multi-threading is disabled. If the interface is not implemented, this runnable will not be ticked when FPlatformProcess::SupportsMultithreading() is false.

Returns

Pointer to the single thread interface or nullptr if not implemented.

Reimplemented in Audio::IAudioMixerPlatformInterface, FTaskThreadBase, FMonitoredProcess, FAsyncWriter, UE::IoStore::FOnDemandHttpThread, FMessageRouter, FUdpSocketReceiver, FUdpSocketSender, and FHttpThreadBase.

Init()

virtual bool FRunnable::Init ( void  )

inlinevirtual

Initializes the runnable object.

This method is called in the context of the thread object that aggregates this, not the thread that passes this runnable to a new thread.

Returns

True if initialization was successful, false otherwise

See also

Run, Stop, Exit

Reimplemented in FThreadHeartBeat, FGameThreadHitchHeartBeatThreaded, FAsyncWriter, FAsyncLoadingThread, FChunkCacheWorker, FMultichannelTcpReceiver, FMultichannelTcpSender, FAssetDataGatherer, UE::AssetDataGather::Private::FAssetDataDiscovery, FTaskThreadBase, FInteractiveProcess, FMonitoredProcess, FAsyncLoadingThread2, FODSCThread, FScreenSaverInhibitor, TcpConsoleListener, FMediaTicker, FMessageRouter, FSlateLoadingThreadTask, FUdpSocketReceiver, FUdpSocketSender, FEventLoopHttpThread, FHttpThreadBase, FLegacyHttpThread, FUdpPingWorker, FFileIoStore, FZeroLoad, FPreLoadScreenSlateThreadTask, FStorageServerIoDispatcherBackend, UE::FPlatformIoDispatcherBase, FRenderingThreadTickHeartbeat, and FRenderingThread.

Run()

virtual uint32 FRunnable::Run ( )

pure virtual

Runs the runnable object.

This is where all per object thread work is done. This is only called if the initialization was successful.

Returns

The exit code of the runnable object

See also

Init, Stop, Exit

Implemented in FChildWaiterThread, FThreadHeartBeat, FGameThreadHitchHeartBeatThreaded, FAsyncWriter, FAsyncLoadingThread, FShaderCompileThreadRunnableBase, FChunkCacheWorker, FMultichannelTcpReceiver, FMultichannelTcpSender, FAssetDataGatherer, UE::AssetDataGather::Private::FAssetDataDiscovery, Audio::FWasapiCaptureRunnable, Audio::IAudioMixerPlatformInterface, Audio::FMixerNullCallback, FTaskThreadBase, FQueuedThread, TAsyncRunnable< ResultType >, FInteractiveProcess, FMonitoredProcess, FAsyncLoadingThread2, FScreenSaverInhibitor, TcpConsoleListener, FMediaTicker, FMessageRouter, FSlateLoadingThreadTask, FUdpSocketReceiver, FUdpSocketSender, BuildPatchServices::FBuildPatchInstaller, BuildPatchServices::FBuildInstallerThread, FHttpThreadBase, FUdpPingWorker, FFileIoStore, FZeroLoad, FPreLoadScreenSlateThreadTask, FRHIThread, FRHIFrameOffsetThread, FStorageServerIoDispatcherBackend, FStorageServerClientDebugModule, FVulkanThread, Audio::FAudioMixerWasapiRunnable, UE::FPlatformIoDispatcherBase, FODSCThread, FEventLoopHttpThread, FLegacyHttpThread, FRenderingThreadTickHeartbeat, and FRenderingThread.

Stop()

virtual void FRunnable::Stop ( void  )

inlinevirtual

Stops the runnable object.

This is called if a thread is requested to terminate early.

See also

Init, Run, Exit

Reimplemented in FThreadHeartBeat, FGameThreadHitchHeartBeatThreaded, FAsyncWriter, FAsyncLoadingThread, FShaderCompileThreadRunnableBase, FChunkCacheWorker, FMultichannelTcpReceiver, FMultichannelTcpSender, FAssetDataGatherer, UE::AssetDataGather::Private::FAssetDataDiscovery, Audio::FWasapiCaptureRunnable, Audio::FMixerNullCallback, UE::FIoServiceThread, FTaskThreadBase, FInteractiveProcess, FMonitoredProcess, FAsyncLoadingThread2, FODSCThread, FScreenSaverInhibitor, TcpConsoleListener, FMediaTicker, FMessageRouter, FSlateLoadingThreadTask, FUdpSocketReceiver, FUdpSocketSender, BuildPatchServices::FBuildInstallerThread, FHttpThreadBase, FLegacyHttpThread, FUdpPingWorker, FFileIoStore, FZeroLoad, FRHIFrameOffsetThread, FStorageServerIoDispatcherBackend, FStorageServerClientDebugModule, Audio::FAudioMixerWasapiRunnable, UE::FPlatformIoDispatcherBase, and FRenderingThreadTickHeartbeat.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Core/Public/HAL/Runnable.h
