FLegacyHttpThread Class Reference

#include <HttpThread.h>

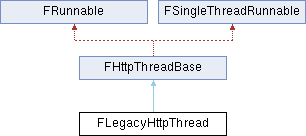

Inheritance diagram for FLegacyHttpThread:

Public Member Functions
	FLegacyHttpThread ()
virtual	~FLegacyHttpThread ()
virtual void	StartThread () override final
virtual void	StopThread () override final
virtual void	AddRequest (FHttpRequestCommon *Request) override final
virtual void	CancelRequest (FHttpRequestCommon *Request) override final
virtual void	GetCompletedRequests (TArray< FHttpRequestCommon * > &OutCompletedRequests) override final
virtual void	Tick () override final
Public Member Functions inherited from FHttpThreadBase
	FHttpThreadBase ()
virtual	~FHttpThreadBase ()
bool	IsStopped () const
bool	NeedsSingleThreadTick () const
virtual void	UpdateConfigs ()

Protected Member Functions
virtual bool	Init () override
virtual uint32	Run () override final
virtual void	Stop () override
virtual TSharedPtr< IHttpTaskTimerHandle >	AddHttpThreadTask (TFunction< void()> &&Task, float InDelay) override
virtual void	HttpThreadTick (float DeltaSeconds) override
virtual void	RemoveTimerHandle (FTSTicker::FDelegateHandle DelegateHandle) override
virtual void	RemoveTimerHandle (UE::EventLoop::FTimerHandle EventLoopTimerHandle) override
Protected Member Functions inherited from FHttpThreadBase
virtual bool	StartThreadedRequest (FHttpRequestCommon *Request)
virtual void	CompleteThreadedRequest (FHttpRequestCommon *Request)
virtual void	Exit () override
void	Process (TArray< FHttpRequestCommon * > &RequestsToCancel, TArray< FHttpRequestCommon * > &RequestsToComplete)
virtual class FSingleThreadRunnable *	GetSingleThreadInterface () override

Protected Attributes
FThreadSafeCounter	ExitRequest
double	HttpThreadActiveFrameTimeInSeconds
double	HttpThreadActiveMinimumSleepTimeInSeconds
double	HttpThreadIdleFrameTimeInSeconds
double	HttpThreadIdleMinimumSleepTimeInSeconds
FTSTicker	Ticker
Protected Attributes inherited from FHttpThreadBase
FRunnableThread *	Thread
TMpscQueue< FHttpRequestCommon * >	NewThreadedRequests
TMpscQueue< FHttpRequestCommon * >	CancelledThreadedRequests
TArray< FHttpRequestCommon * >	RateLimitedThreadedRequests
TArray< FHttpRequestCommon * >	RunningThreadedRequests
TSpscQueue< FHttpRequestCommon * >	CompletedThreadedRequests

Constructor & Destructor Documentation

FLegacyHttpThread()

FLegacyHttpThread::FLegacyHttpThread

(

)

~FLegacyHttpThread()

FLegacyHttpThread::~FLegacyHttpThread ( )

virtual

Member Function Documentation

AddHttpThreadTask()

TSharedPtr< IHttpTaskTimerHandle > FLegacyHttpThread::AddHttpThreadTask ( TFunction< void()> &&  Task, float  InDelay  )

overrideprotectedvirtual

Add task to be ran on the http thread next tick

Parameters

Task	The task to be ran
InDelay	The delay to wait before running the task

Returns

The handle of the timer, which could be used to remove the task before it get triggered

Implements FHttpThreadBase.

AddRequest()

void FLegacyHttpThread::AddRequest ( FHttpRequestCommon *  Request )

finaloverridevirtual

Add a request to begin processing on HTTP thread.

Parameters

Request

the request to be processed on the HTTP thread

Reimplemented from FHttpThreadBase.

CancelRequest()

void FLegacyHttpThread::CancelRequest ( FHttpRequestCommon *  Request )

finaloverridevirtual

Mark a request as cancelled. Called on non-HTTP thread.

Parameters

Request

the request to be processed on the HTTP thread

Reimplemented from FHttpThreadBase.

GetCompletedRequests()

void FLegacyHttpThread::GetCompletedRequests ( TArray< FHttpRequestCommon * > &  OutCompletedRequests )

finaloverridevirtual

Get completed requests. Clears internal arrays. Called on non-HTTP thread.

Parameters

OutCompletedRequests

array of requests that have been completed

Reimplemented from FHttpThreadBase.

HttpThreadTick()

void FLegacyHttpThread::HttpThreadTick ( float  DeltaSeconds )

overrideprotectedvirtual

Tick on http thread

Reimplemented from FHttpThreadBase.

Init()

bool FLegacyHttpThread::Init ( void  )

overrideprotectedvirtual

Initializes the runnable object.

This method is called in the context of the thread object that aggregates this, not the thread that passes this runnable to a new thread.

Returns

True if initialization was successful, false otherwise

See also

Run, Stop, Exit

Reimplemented from FHttpThreadBase.

RemoveTimerHandle() [1/2]

void FLegacyHttpThread::RemoveTimerHandle ( FTSTicker::FDelegateHandle  DelegateHandle )

overrideprotectedvirtual

Implements FHttpThreadBase.

RemoveTimerHandle() [2/2]

void FLegacyHttpThread::RemoveTimerHandle ( UE::EventLoop::FTimerHandle  EventLoopTimerHandle )

overrideprotectedvirtual

Implements FHttpThreadBase.

Run()

UE_DISABLE_OPTIMIZATION_SHIP uint32 FLegacyHttpThread::Run ( )

finaloverrideprotectedvirtual

Runs the runnable object.

This is where all per object thread work is done. This is only called if the initialization was successful.

Returns

The exit code of the runnable object

See also

Init, Stop, Exit

Reimplemented from FHttpThreadBase.

StartThread()

void FLegacyHttpThread::StartThread ( )

finaloverridevirtual

Start the HTTP thread.

Reimplemented from FHttpThreadBase.

Stop()

UE_ENABLE_OPTIMIZATION_SHIP void FLegacyHttpThread::Stop ( void  )

overrideprotectedvirtual

Stops the runnable object.

This is called if a thread is requested to terminate early.

See also

Init, Run, Exit

Reimplemented from FHttpThreadBase.

StopThread()

void FLegacyHttpThread::StopThread ( )

finaloverridevirtual

Stop the HTTP thread. Blocks until thread has stopped.

Reimplemented from FHttpThreadBase.

Tick()

void FLegacyHttpThread::Tick ( )

finaloverridevirtual

Reimplemented from FHttpThreadBase.

Member Data Documentation

ExitRequest

FThreadSafeCounter FLegacyHttpThread::ExitRequest

protected

signal request to stop and exit thread

HttpThreadActiveFrameTimeInSeconds

double FLegacyHttpThread::HttpThreadActiveFrameTimeInSeconds

protected

Time in seconds to use as frame time when actively processing requests. 0 means no frame time.

HttpThreadActiveMinimumSleepTimeInSeconds

double FLegacyHttpThread::HttpThreadActiveMinimumSleepTimeInSeconds

protected

Time in seconds to sleep minimally when actively processing requests.

HttpThreadIdleFrameTimeInSeconds

double FLegacyHttpThread::HttpThreadIdleFrameTimeInSeconds

protected

Time in seconds to use as frame time when idle, waiting for requests. 0 means no frame time.

HttpThreadIdleMinimumSleepTimeInSeconds

double FLegacyHttpThread::HttpThreadIdleMinimumSleepTimeInSeconds

protected

Time in seconds to sleep minimally when idle, waiting for requests.

Ticker

FTSTicker FLegacyHttpThread::Ticker

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Online/HTTP/Private/HttpThread.h
• Engine/Source/Runtime/Online/HTTP/Private/HttpThread.cpp
