FShaderCompileThreadRunnableBase Class Reference

#include <ShaderCompiler.h>

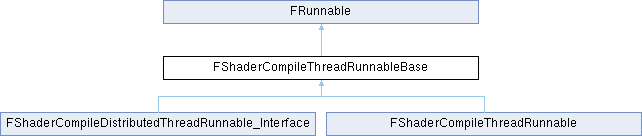

Inheritance diagram for FShaderCompileThreadRunnableBase:

Public Member Functions
	FShaderCompileThreadRunnableBase (class FShaderCompilingManager *InManager)
virtual	~FShaderCompileThreadRunnableBase ()
void	SetPriorityRange (EShaderCompileJobPriority MinPriority, EShaderCompileJobPriority MaxPriority)
void	StartThread ()
virtual void	Stop ()
virtual uint32	Run ()
void	WaitForCompletion () const
virtual int32	CompilingLoop ()=0
virtual EShaderCompilerWorkerType	GetWorkerType () const =0
virtual void	OnMachineResourcesChanged ()
virtual void	ForEachPendingJob (const FShaderCompileJobCallback &PendingJobCallback) const
Public Member Functions inherited from FRunnable
virtual bool	Init ()
virtual void	Exit ()
virtual class FSingleThreadRunnable *	GetSingleThreadInterface ()
virtual	~FRunnable ()

Protected Member Functions
virtual bool	PrintWorkerMemoryUsage (bool bAllowToWaitForLock=true)
virtual FShaderCompileMemoryUsage	GetExternalWorkerMemoryUsage ()
virtual const TCHAR *	GetThreadName () const
bool	WorkerStateHeartbeat (uint64 InWorkerStateHash)

Protected Attributes
class FShaderCompilingManager *	Manager
FRunnableThread *	Thread
int32	MinPriorityIndex
int32	MaxPriorityIndex
TAtomic< bool >	bForceFinish

Friends
class	FShaderCompilingManager

Constructor & Destructor Documentation

FShaderCompileThreadRunnableBase()

FShaderCompileThreadRunnableBase::FShaderCompileThreadRunnableBase

(

class FShaderCompilingManager *

InManager

)

~FShaderCompileThreadRunnableBase()

virtual FShaderCompileThreadRunnableBase::~FShaderCompileThreadRunnableBase ( )

inlinevirtual

Member Function Documentation

CompilingLoop()

virtual int32 FShaderCompileThreadRunnableBase::CompilingLoop ( )

pure virtual

Main work loop.

Implemented in FShaderCompileDistributedThreadRunnable_Interface.

ForEachPendingJob()

virtual void FShaderCompileThreadRunnableBase::ForEachPendingJob ( const FShaderCompileJobCallback &  PendingJobCallback ) const

inlinevirtual

Invokes the specified callback on each pending job this shader compile thread is processing. Use this to find compile jobs that are already sent to a worker, since once a worker processes them, they are no longer in the "pending list" of the shader compile manager (i.e. FShaderCompileJobCollection specifically).

Parameters

PendingJobCallback

Function callback that is invoked on each pending job. Returns false to exit the iteration early.

Reimplemented in FShaderCompileDistributedThreadRunnable_Interface.

GetExternalWorkerMemoryUsage()

virtual FShaderCompileMemoryUsage FShaderCompileThreadRunnableBase::GetExternalWorkerMemoryUsage ( )

inlineprotectedvirtual

Returns the amount of memory (in bytes) used by external processes related to this, if any.

Reimplemented in FShaderCompileThreadRunnable.

GetThreadName()

virtual const TCHAR * FShaderCompileThreadRunnableBase::GetThreadName ( ) const

inlineprotectedvirtual

GetWorkerType()

virtual EShaderCompilerWorkerType FShaderCompileThreadRunnableBase::GetWorkerType ( ) const

pure virtual

Returns the type of shader workers this thread represents.

Implemented in FShaderCompileThreadRunnable, and FShaderCompileDistributedThreadRunnable_Interface.

OnMachineResourcesChanged()

virtual void FShaderCompileThreadRunnableBase::OnMachineResourcesChanged ( )

inlinevirtual

Events from the manager

PrintWorkerMemoryUsage()

virtual bool FShaderCompileThreadRunnableBase::PrintWorkerMemoryUsage ( bool  bAllowToWaitForLock = true )

inlineprotectedvirtual

Tries to print out the memory usage of all shader compile workers. When called during an out-of-memory event, it is useful to allow this process to wait for any locks, so we can rule out deadlocks while reporting out-of-memory errors. Returns whether the memory usage was successfully printed.

Reimplemented in FShaderCompileThreadRunnable.

Run()

uint32 FShaderCompileThreadRunnableBase::Run ( void  )

virtual

Entry point for the shader compiling thread.

Implements FRunnable.

SetPriorityRange()

void FShaderCompileThreadRunnableBase::SetPriorityRange	(	EShaderCompileJobPriority	MinPriority,
		EShaderCompileJobPriority	MaxPriority
	)

StartThread()

void FShaderCompileThreadRunnableBase::StartThread

(

)

Stop()

virtual void FShaderCompileThreadRunnableBase::Stop ( void  )

inlinevirtual

Stops the runnable object.

This is called if a thread is requested to terminate early.

See also

Init, Run, Exit

Reimplemented from FRunnable.

WaitForCompletion()

void FShaderCompileThreadRunnableBase::WaitForCompletion ( ) const

inline

WorkerStateHeartbeat()

bool FShaderCompileThreadRunnableBase::WorkerStateHeartbeat ( uint64  InWorkerStateHash )

protected

Returns false if the new worker state hash hasn't changed in a certain period of time. If false, a warning is printed. An input hash of 0 will always succeed and effectively reset the timer. A value of 0 should be used when no jobs are pending.

Friends And Related Symbol Documentation

FShaderCompilingManager

friend class FShaderCompilingManager

friend

Member Data Documentation

bForceFinish

TAtomic<bool> FShaderCompileThreadRunnableBase::bForceFinish

protected

Manager

class FShaderCompilingManager* FShaderCompileThreadRunnableBase::Manager

protected

The manager for this thread

MaxPriorityIndex

int32 FShaderCompileThreadRunnableBase::MaxPriorityIndex

protected

MinPriorityIndex

int32 FShaderCompileThreadRunnableBase::MinPriorityIndex

protected

Thread

FRunnableThread* FShaderCompileThreadRunnableBase::Thread

protected

The runnable thread

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Engine/Public/ShaderCompiler.h
• Engine/Source/Runtime/Engine/Private/ShaderCompiler/ShaderCompilerThreadRunnable.cpp
