FMonitoredProcess Class Reference

#include <MonitoredProcess.h>

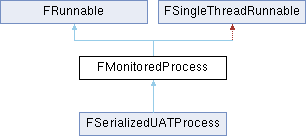

Inheritance diagram for FMonitoredProcess:

Public Member Functions
CORE_API	FMonitoredProcess (const FString &InURL, const FString &InParams, bool InHidden, bool InCreatePipes=true)
CORE_API	FMonitoredProcess (const FString &InURL, const FString &InParams, const FString &InWorkingDir, bool InHidden, bool InCreatePipes=true)
virtual CORE_API	~FMonitoredProcess ()
void	Cancel (bool InKillTree=false)
CORE_API FTimespan	GetDuration () const
FProcHandle	GetProcessHandle () const
FString	GetCommandline () const
CORE_API bool	Update ()
virtual CORE_API bool	Launch ()
void	SetSleepInterval (float InSleepInterval)
FSimpleDelegate &	OnCanceled ()
FOnMonitoredProcessCompleted &	OnCompleted ()
FOnMonitoredProcessOutput &	OnOutput ()
CORE_API int	GetReturnCode () const
CORE_API const FString &	GetFullOutputWithoutDelegate () const
virtual bool	Init () override
virtual CORE_API uint32	Run () override
virtual void	Stop () override
virtual void	Exit () override
virtual FSingleThreadRunnable *	GetSingleThreadInterface () override
Public Member Functions inherited from FRunnable
virtual	~FRunnable ()

Protected Member Functions
CORE_API void	Tick () override
CORE_API void	ProcessOutput (const FString &Output)
CORE_API void	TickInternal ()

Protected Attributes
TAtomic< bool >	Canceling = false
TAtomic< FDateTime >	EndTime
bool	Hidden = false
TAtomic< bool >	KillTree = false
FString	Params
FProcHandle	ProcessHandle
void *	ReadPipe = nullptr
TAtomic< int >	ReturnCode = 0
TAtomic< FDateTime >	StartTime { 0 }
FRunnableThread *	Thread = nullptr
TAtomic< bool >	bIsRunning
FString	URL
FString	WorkingDir
void *	WritePipe = nullptr
bool	bCreatePipes = false
float	SleepInterval = 0.01f
FString	OutputBuffer
FSimpleDelegate	CanceledDelegate
FOnMonitoredProcessCompleted	CompletedDelegate
FOnMonitoredProcessOutput	OutputDelegate

Detailed Description

Implements an external process that can be monitored.

Constructor & Destructor Documentation

FMonitoredProcess() [1/2]

FMonitoredProcess::FMonitoredProcess	(	const FString &	InURL,
		const FString &	InParams,
		bool	InHidden,
		bool	InCreatePipes = true
	)

Creates a new monitored process.

Parameters

InURL	The URL of the executable to launch.
InParams	The command line parameters.
InHidden	Whether the window of the process should be hidden.
InCreatePipes	Whether the output should be redirected to the caller.

FMonitoredProcess() [2/2]

FMonitoredProcess::FMonitoredProcess	(	const FString &	InURL,
		const FString &	InParams,
		const FString &	InWorkingDir,
		bool	InHidden,
		bool	InCreatePipes = true
	)

Creates a new monitored process.

Parameters

InURL	The URL of the executable to launch.
InParams	The command line parameters.
InHidden	Whether the window of the process should be hidden.
InWorkingDir	The URL of the working dir where the executable should launch.
InCreatePipes	Whether the output should be redirected to the caller.

~FMonitoredProcess()

FMonitoredProcess::~FMonitoredProcess ( )

virtual

Destructor.

Member Function Documentation

Cancel()

void FMonitoredProcess::Cancel ( bool  InKillTree = false )

inline

Cancels the process.

Parameters

InKillTree

Whether to kill the entire process tree when canceling this process.

Exit()

virtual void FMonitoredProcess::Exit ( void  )

inlineoverridevirtual

Exits the runnable object.

Called in the context of the aggregating thread to perform any cleanup.

See also

Init, Run, Stop

Reimplemented from FRunnable.

GetCommandline()

FString FMonitoredProcess::GetCommandline ( ) const

inline

Returns the commandline of the process which will be executed if Launch is called

GetDuration()

FTimespan FMonitoredProcess::GetDuration

(

)

const

Gets the duration of time that the task has been running.

Returns

Time duration.

GetFullOutputWithoutDelegate()

const FString & FMonitoredProcess::GetFullOutputWithoutDelegate

(

)

const

Returns the full output, wihtout needing to hookup a delegate and buffer it externally. Note that if OutputDelegate is bound, this will not have the entire output

GetProcessHandle()

FProcHandle FMonitoredProcess::GetProcessHandle ( ) const

inline

Gets the Process Handle. The instance can be invalid if the process was not created.

Returns

The Process Handle

GetReturnCode()

int FMonitoredProcess::GetReturnCode

(

)

const

Returns the return code from the exited process

Returns

Process return code

GetSingleThreadInterface()

virtual FSingleThreadRunnable * FMonitoredProcess::GetSingleThreadInterface ( )

inlineoverridevirtual

Gets single thread interface pointer used for ticking this runnable when multi-threading is disabled. If the interface is not implemented, this runnable will not be ticked when FPlatformProcess::SupportsMultithreading() is false.

Returns

Pointer to the single thread interface or nullptr if not implemented.

Reimplemented from FRunnable.

Init()

virtual bool FMonitoredProcess::Init ( void  )

inlineoverridevirtual

Initializes the runnable object.

This method is called in the context of the thread object that aggregates this, not the thread that passes this runnable to a new thread.

Returns

True if initialization was successful, false otherwise

See also

Run, Stop, Exit

Reimplemented from FRunnable.

Launch()

bool FMonitoredProcess::Launch ( )

virtual

Launches the process.

Reimplemented in FSerializedUATProcess.

OnCanceled()

FSimpleDelegate & FMonitoredProcess::OnCanceled ( )

inline

Returns a delegate that is executed when the process has been canceled.

Returns

The delegate.

OnCompleted()

FOnMonitoredProcessCompleted & FMonitoredProcess::OnCompleted ( )

inline

Returns a delegate that is executed when a monitored process completed.

Returns

The delegate.

OnOutput()

FOnMonitoredProcessOutput & FMonitoredProcess::OnOutput ( )

inline

Returns a delegate that is executed when a monitored process produces output.

Returns

The delegate.

ProcessOutput()

void FMonitoredProcess::ProcessOutput ( const FString &  Output )

protected

Processes the given output string.

Parameters

Output

The output string to process.

Run()

uint32 FMonitoredProcess::Run ( )

overridevirtual

Runs the runnable object.

This is where all per object thread work is done. This is only called if the initialization was successful.

Returns

The exit code of the runnable object

See also

Init, Stop, Exit

Implements FRunnable.

SetSleepInterval()

void FMonitoredProcess::SetSleepInterval ( float  InSleepInterval )

inline

Sets the sleep interval to be used in the main thread loop.

Parameters

InSleepInterval

The Sleep interval to use.

Stop()

virtual void FMonitoredProcess::Stop ( void  )

inlineoverridevirtual

Stops the runnable object.

This is called if a thread is requested to terminate early.

See also

Init, Run, Exit

Reimplemented from FRunnable.

Tick()

void FMonitoredProcess::Tick ( )

overrideprotectedvirtual

FSingleThreadRunnable interface

Implements FSingleThreadRunnable.

TickInternal()

void FMonitoredProcess::TickInternal ( )

protected

Update()

bool FMonitoredProcess::Update

(

)

Checks whether the process is still running. In single threaded mode, this will tick the thread processing

Returns

true if the process is running, false otherwise.

Member Data Documentation

bCreatePipes

bool FMonitoredProcess::bCreatePipes = false

protected

bIsRunning

TAtomic<bool> FMonitoredProcess::bIsRunning

protected

CanceledDelegate

FSimpleDelegate FMonitoredProcess::CanceledDelegate

protected

Canceling

TAtomic<bool> FMonitoredProcess::Canceling = false

protected

CompletedDelegate

FOnMonitoredProcessCompleted FMonitoredProcess::CompletedDelegate

protected

EndTime

TAtomic<FDateTime> FMonitoredProcess::EndTime

protected

Hidden

bool FMonitoredProcess::Hidden = false

protected

KillTree

TAtomic<bool> FMonitoredProcess::KillTree = false

protected

OutputBuffer

FString FMonitoredProcess::OutputBuffer

protected

OutputDelegate

FOnMonitoredProcessOutput FMonitoredProcess::OutputDelegate

protected

Params

FString FMonitoredProcess::Params

protected

ProcessHandle

FProcHandle FMonitoredProcess::ProcessHandle

protected

ReadPipe

void* FMonitoredProcess::ReadPipe = nullptr

protected

ReturnCode

TAtomic<int> FMonitoredProcess::ReturnCode = 0

protected

SleepInterval

float FMonitoredProcess::SleepInterval = 0.01f

protected

StartTime

TAtomic<FDateTime> FMonitoredProcess::StartTime { 0 }

protected

Thread

FRunnableThread* FMonitoredProcess::Thread = nullptr

protected

URL

FString FMonitoredProcess::URL

protected

WorkingDir

FString FMonitoredProcess::WorkingDir

protected

WritePipe

void* FMonitoredProcess::WritePipe = nullptr

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Core/Public/Misc/MonitoredProcess.h
• Engine/Source/Runtime/Core/Private/Misc/MonitoredProcess.cpp
