#include <HttpRetrySystem.h>

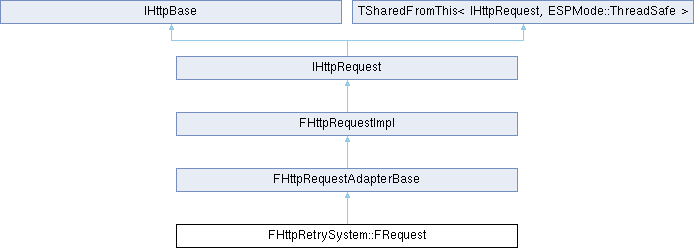

Inheritance diagram for FHttpRetrySystem::FRequest:

Classes
struct	EStatus

Public Member Functions
virtual HTTP_API bool	ProcessRequest () override

virtual HTTP_API void	CancelRequest () override

EStatus::Type	GetRetryStatus () const

Public Member Functions inherited from FHttpRequestAdapterBase
HTTP_API	FHttpRequestAdapterBase (const TSharedRef< IHttpRequest > &InHttpRequest)

HTTP_API	~FHttpRequestAdapterBase ()

virtual HTTP_API const FString &	GetURL () const override

virtual HTTP_API FString	GetURLParameter (const FString &ParameterName) const override

virtual HTTP_API FString	GetHeader (const FString &HeaderName) const override

virtual HTTP_API TArray< FString >	GetAllHeaders () const override

virtual HTTP_API FString	GetContentType () const override

virtual HTTP_API uint64	GetContentLength () const override

virtual HTTP_API const TArray< uint8 > &	GetContent () const override

virtual HTTP_API FString	GetVerb () const override

virtual HTTP_API FString	GetOption (const FName Option) const override

virtual HTTP_API void	SetVerb (const FString &Verb) override

virtual HTTP_API void	SetURL (const FString &URL) override

virtual HTTP_API void	SetOption (const FName Option, const FString &OptionValue) override

virtual HTTP_API void	SetContent (const TArray< uint8 > &ContentPayload) override

virtual HTTP_API void	SetContent (TArray< uint8 > &&ContentPayload) override

virtual HTTP_API void	SetContentAsString (const FString &ContentString) override

virtual HTTP_API bool	SetContentAsStreamedFile (const FString &Filename) override

virtual HTTP_API bool	SetContentFromStream (TSharedRef< FArchive, ESPMode::ThreadSafe > Stream) override

virtual HTTP_API bool	SetResponseBodyReceiveStream (TSharedRef< FArchive > Stream) override

virtual HTTP_API void	SetHeader (const FString &HeaderName, const FString &HeaderValue) override

virtual HTTP_API void	AppendToHeader (const FString &HeaderName, const FString &AdditionalHeaderValue) override

virtual HTTP_API void	SetTimeout (float InTimeoutSecs) override

virtual HTTP_API void	ClearTimeout () override

virtual HTTP_API void	ResetTimeoutStatus () override

virtual HTTP_API TOptional< float >	GetTimeout () const override

virtual HTTP_API void	SetActivityTimeout (float InTimeoutSecs) override

virtual HTTP_API void	ProcessRequestUntilComplete () override

virtual HTTP_API const FHttpResponsePtr	GetResponse () const override

virtual HTTP_API float	GetElapsedTime () const override

virtual HTTP_API EHttpRequestStatus::Type	GetStatus () const override

virtual HTTP_API EHttpFailureReason	GetFailureReason () const override

virtual HTTP_API const FString &	GetEffectiveURL () const override

virtual HTTP_API void	Tick (float DeltaSeconds) override

virtual HTTP_API void	SetDelegateThreadPolicy (EHttpRequestDelegateThreadPolicy InThreadPolicy) override

virtual HTTP_API EHttpRequestDelegateThreadPolicy	GetDelegateThreadPolicy () const override

virtual HTTP_API void	SetPriority (EHttpRequestPriority InPriority) override

virtual HTTP_API EHttpRequestPriority	GetPriority () const override

Public Member Functions inherited from FHttpRequestImpl
virtual HTTP_API FHttpRequestCompleteDelegate &	OnProcessRequestComplete () override

virtual HTTP_API FHttpRequestProgressDelegate64 &	OnRequestProgress64 () override

virtual HTTP_API FHttpRequestStatusCodeReceivedDelegate &	OnStatusCodeReceived () override

virtual HTTP_API FHttpRequestHeaderReceivedDelegate &	OnHeaderReceived () override

virtual HTTP_API FHttpRequestWillRetryDelegate &	OnRequestWillRetry () override

virtual HTTP_API void	Shutdown ()

Public Member Functions inherited from IHttpRequest
HTTP_API bool	SetResponseBodyReceiveStreamDelegateV2 (FHttpRequestStreamDelegateV2 StreamDelegate)

virtual	~IHttpRequest ()=default

Public Member Functions inherited from IHttpBase
virtual	~IHttpBase ()=default

Public Member Functions inherited from TSharedFromThis< IHttpRequest, ESPMode::ThreadSafe >
TSharedRef< IHttpRequest, Mode >	AsShared ()

TSharedRef< IHttpRequest const, Mode >	AsShared () const

TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< IHttpRequest, Mode >	AsWeak ()

TWeakPtr< IHttpRequest const, Mode >	AsWeak () const

TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const

void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const InSharedPtr, OtherType InObject) const

void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const InSharedRef, OtherType InObject) const

UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Protected Member Functions
HTTP_API	FRequest (TSharedRef< FManager > InManager, const TSharedRef< IHttpRequest > &HttpRequest, const FRetryLimitCountSetting &InRetryLimitCountOverride=FRetryLimitCountSetting(), const FRetryTimeoutRelativeSecondsSetting &InRetryTimeoutRelativeSecondsOverride=FRetryTimeoutRelativeSecondsSetting(), const FRetryResponseCodes &InRetryResponseCodes=FRetryResponseCodes(), const FRetryVerbs &InRetryVerbs=FRetryVerbs(), const FRetryDomainsPtr &InRetryDomains=FRetryDomainsPtr(), const FRetryLimitCountSetting &InRetryLimitCountForConnectionErrorOverride=FRetryLimitCountSetting(), const FExponentialBackoffCurve &InExponentialBackoffCurve=FExponentialBackoffCurve())

void	HttpOnRequestProgress (FHttpRequestPtr InHttpRequest, uint64 BytesSent, uint64 BytesRcv)

void	HttpOnProcessRequestComplete (FHttpRequestPtr HttpRequest, FHttpResponsePtr HttpResponse, bool bSucceeded)

void	HttpOnStatusCodeReceived (FHttpRequestPtr Request, int32 StatusCode)

void	HttpOnHeaderReceived (FHttpRequestPtr Request, const FString &HeaderName, const FString &NewHeaderValue)

void	SetUrlFromRetryDomains ()

void	MoveToNextRetryDomain ()

void	BindAdaptorDelegates ()

Protected Member Functions inherited from FHttpRequestImpl
HTTP_API void	BroadcastResponseHeadersReceived ()

Protected Member Functions inherited from TSharedFromThis< IHttpRequest, ESPMode::ThreadSafe >
	TSharedFromThis ()

	TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)

	~TSharedFromThis ()

Protected Attributes
EStatus::Type	RetryStatus

FRetryLimitCountSetting	RetryLimitCountOverride

FRetryLimitCountSetting	RetryLimitCountForConnectionErrorOverride

FRetryTimeoutRelativeSecondsSetting	RetryTimeoutRelativeSecondsOverride

FRetryResponseCodes	RetryResponseCodes

FRetryVerbs	RetryVerbs

FRetryDomainsPtr	RetryDomains

int32	RetryDomainsIndex = 0

FString	OriginalUrl

TWeakPtr< FManager >	RetryManager

FHttpResponsePtr	LastResponse

bool	bLastSucceeded = false

FExponentialBackoffCurve	RetryExponentialBackoffCurve

bool	bBoundAdaptorDelegates = false

Protected Attributes inherited from FHttpRequestAdapterBase
TSharedRef< IHttpRequest >	HttpRequest

Protected Attributes inherited from FHttpRequestImpl
FHttpRequestCompleteDelegate	RequestCompleteDelegate

FHttpRequestProgressDelegate64	RequestProgressDelegate64

FHttpRequestStatusCodeReceivedDelegate	StatusCodeReceivedDelegate

FHttpRequestHeaderReceivedDelegate	HeaderReceivedDelegate

FHttpRequestWillRetryDelegate	OnRequestWillRetryDelegate

Friends
class	FManager

Additional Inherited Members
Static Protected Member Functions inherited from TSharedFromThis< IHttpRequest, ESPMode::ThreadSafe >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Detailed Description

class FRequest is what the retry system accepts as inputs

Constructor & Destructor Documentation

◆ FRequest()

HTTP_API FHttpRetrySystem::FRequest::FRequest	(	TSharedRef< FManager >	InManager,
		const TSharedRef< IHttpRequest > &	HttpRequest,
		const FRetryLimitCountSetting &	InRetryLimitCountOverride = `FRetryLimitCountSetting()`,
		const FRetryTimeoutRelativeSecondsSetting &	InRetryTimeoutRelativeSecondsOverride = `FRetryTimeoutRelativeSecondsSetting()`,
		const FRetryResponseCodes &	InRetryResponseCodes = `FRetryResponseCodes()`,
		const FRetryVerbs &	InRetryVerbs = `FRetryVerbs()`,
		const FRetryDomainsPtr &	InRetryDomains = `FRetryDomainsPtr()`,
		const FRetryLimitCountSetting &	InRetryLimitCountForConnectionErrorOverride = `FRetryLimitCountSetting()`,
		const FExponentialBackoffCurve &	InExponentialBackoffCurve = `FExponentialBackoffCurve()`
	)

protected

Member Function Documentation

◆ BindAdaptorDelegates()

void FHttpRetrySystem::FRequest::BindAdaptorDelegates ( )

protected

◆ CancelRequest()

void FHttpRetrySystem::FRequest::CancelRequest ( )

overridevirtual

Called to cancel a request that is still being processed

Implements IHttpRequest.

◆ GetRetryStatus()

EStatus::Type FHttpRetrySystem::FRequest::GetRetryStatus ( ) const

inline

◆ HttpOnHeaderReceived()

void FHttpRetrySystem::FRequest::HttpOnHeaderReceived	(	FHttpRequestPtr	Request,
		const FString &	HeaderName,
		const FString &	NewHeaderValue
	)

protected

◆ HttpOnProcessRequestComplete()

void FHttpRetrySystem::FRequest::HttpOnProcessRequestComplete	(	FHttpRequestPtr	HttpRequest,
		FHttpResponsePtr	HttpResponse,
		bool	bSucceeded
	)

protected

◆ HttpOnRequestProgress()

void FHttpRetrySystem::FRequest::HttpOnRequestProgress	(	FHttpRequestPtr	InHttpRequest,
		uint64	BytesSent,
		uint64	BytesRcv
	)

protected

◆ HttpOnStatusCodeReceived()

void FHttpRetrySystem::FRequest::HttpOnStatusCodeReceived	(	FHttpRequestPtr	Request,
		int32	StatusCode
	)

protected

◆ MoveToNextRetryDomain()

void FHttpRetrySystem::FRequest::MoveToNextRetryDomain ( )

protected

Move to the next retry domain from our RetryDomains

◆ ProcessRequest()

bool FHttpRetrySystem::FRequest::ProcessRequest ( )

overridevirtual

Called to begin processing the request. OnProcessRequestComplete delegate is always called when the request completes or on error if it is bound. A request can be re-used but not while still being processed.

Returns: if the request was successfully started.

Implements IHttpRequest.

◆ SetUrlFromRetryDomains()

void FHttpRetrySystem::FRequest::SetUrlFromRetryDomains ( )

protected

Update our HTTP request's URL's domain from our RetryDomains

Friends And Related Symbol Documentation

◆ FManager

friend class FManager

friend

Member Data Documentation

◆ bBoundAdaptorDelegates

bool FHttpRetrySystem::FRequest::bBoundAdaptorDelegates = false

protected

◆ bLastSucceeded

bool FHttpRetrySystem::FRequest::bLastSucceeded = false

protected

◆ LastResponse

FHttpResponsePtr FHttpRetrySystem::FRequest::LastResponse

protected

Save the last response before the retry

◆ OriginalUrl

FString FHttpRetrySystem::FRequest::OriginalUrl

protected

The original URL before replacing anything from RetryDomains

◆ RetryDomains

FRetryDomainsPtr FHttpRetrySystem::FRequest::RetryDomains

protected

◆ RetryDomainsIndex

int32 FHttpRetrySystem::FRequest::RetryDomainsIndex = 0

protected

The current index in RetryDomains we are attempting

◆ RetryExponentialBackoffCurve

FExponentialBackoffCurve FHttpRetrySystem::FRequest::RetryExponentialBackoffCurve

protected

Exponential backoff curve

◆ RetryLimitCountForConnectionErrorOverride

FRetryLimitCountSetting FHttpRetrySystem::FRequest::RetryLimitCountForConnectionErrorOverride

protected

◆ RetryLimitCountOverride

FRetryLimitCountSetting FHttpRetrySystem::FRequest::RetryLimitCountOverride

protected

◆ RetryManager

TWeakPtr<FManager> FHttpRetrySystem::FRequest::RetryManager

protected

◆ RetryResponseCodes

FRetryResponseCodes FHttpRetrySystem::FRequest::RetryResponseCodes

protected

◆ RetryStatus

EStatus::Type FHttpRetrySystem::FRequest::RetryStatus

protected

◆ RetryTimeoutRelativeSecondsOverride

FRetryTimeoutRelativeSecondsSetting FHttpRetrySystem::FRequest::RetryTimeoutRelativeSecondsOverride

protected

◆ RetryVerbs

FRetryVerbs FHttpRetrySystem::FRequest::RetryVerbs

protected

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Online/HTTP/Public/HttpRetrySystem.h
Engine/Source/Runtime/Online/HTTP/Private/HttpRetrySystem.cpp
