#include <IHttpRequest.h>

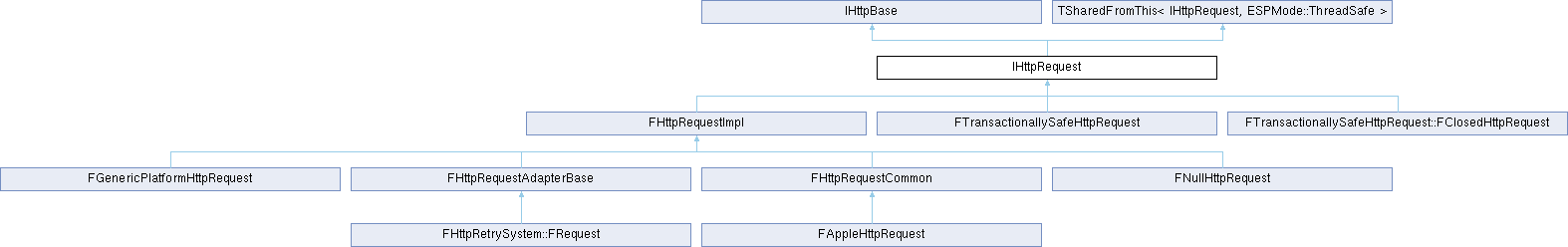

Inheritance diagram for IHttpRequest:

Public Member Functions
virtual FString	GetVerb () const =0

virtual void	SetVerb (const FString &Verb)=0

virtual void	SetURL (const FString &URL)=0

virtual FString	GetOption (const FName Option) const =0

virtual void	SetOption (const FName Option, const FString &OptionValue)=0

virtual void	SetContent (const TArray< uint8 > &ContentPayload)=0

virtual void	SetContent (TArray< uint8 > &&ContentPayload)=0

virtual void	SetContentAsString (const FString &ContentString)=0

virtual bool	SetContentAsStreamedFile (const FString &Filename)=0

virtual bool	SetContentFromStream (TSharedRef< FArchive, ESPMode::ThreadSafe > Stream)=0

virtual bool	SetResponseBodyReceiveStream (TSharedRef< FArchive > Stream)=0

HTTP_API bool	SetResponseBodyReceiveStreamDelegateV2 (FHttpRequestStreamDelegateV2 StreamDelegate)

virtual void	SetHeader (const FString &HeaderName, const FString &HeaderValue)=0

virtual void	AppendToHeader (const FString &HeaderName, const FString &AdditionalHeaderValue)=0

virtual void	SetTimeout (float InTimeoutSecs)=0

virtual void	SetActivityTimeout (float InTimeoutSecs)=0

virtual void	ClearTimeout ()=0

virtual void	ResetTimeoutStatus ()=0

virtual TOptional< float >	GetTimeout () const =0

virtual bool	ProcessRequest ()=0

virtual FHttpRequestCompleteDelegate &	OnProcessRequestComplete ()=0

virtual FHttpRequestProgressDelegate64 &	OnRequestProgress64 ()=0

virtual FHttpRequestWillRetryDelegate &	OnRequestWillRetry ()=0

virtual FHttpRequestHeaderReceivedDelegate &	OnHeaderReceived ()=0

virtual FHttpRequestStatusCodeReceivedDelegate &	OnStatusCodeReceived ()=0

virtual void	CancelRequest ()=0

virtual const FHttpResponsePtr	GetResponse () const =0

virtual void	Tick (float DeltaSeconds)=0

virtual float	GetElapsedTime () const =0

virtual void	SetDelegateThreadPolicy (EHttpRequestDelegateThreadPolicy InThreadPolicy)=0

virtual EHttpRequestDelegateThreadPolicy	GetDelegateThreadPolicy () const =0

virtual void	ProcessRequestUntilComplete ()=0

virtual void	SetPriority (EHttpRequestPriority InPriority)=0

virtual EHttpRequestPriority	GetPriority () const =0

virtual	~IHttpRequest ()=default

Public Member Functions inherited from IHttpBase
virtual const FString &	GetURL () const =0

virtual const FString &	GetEffectiveURL () const =0

virtual EHttpRequestStatus::Type	GetStatus () const =0

virtual EHttpFailureReason	GetFailureReason () const =0

virtual FString	GetURLParameter (const FString &ParameterName) const =0

virtual FString	GetHeader (const FString &HeaderName) const =0

virtual TArray< FString >	GetAllHeaders () const =0

virtual FString	GetContentType () const =0

virtual uint64	GetContentLength () const =0

virtual const TArray< uint8 > &	GetContent () const =0

virtual	~IHttpBase ()=default

Public Member Functions inherited from TSharedFromThis< IHttpRequest, ESPMode::ThreadSafe >
TSharedRef< IHttpRequest, Mode >	AsShared ()

TSharedRef< IHttpRequest const, Mode >	AsShared () const

TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< IHttpRequest, Mode >	AsWeak ()

TWeakPtr< IHttpRequest const, Mode >	AsWeak () const

TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const

void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const InSharedPtr, OtherType InObject) const

void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const InSharedRef, OtherType InObject) const

UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Additional Inherited Members
Protected Member Functions inherited from TSharedFromThis< IHttpRequest, ESPMode::ThreadSafe >
	TSharedFromThis ()

	TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)

	~TSharedFromThis ()

Static Protected Member Functions inherited from TSharedFromThis< IHttpRequest, ESPMode::ThreadSafe >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Detailed Description

Interface for Http requests (created using FHttpFactory)

Constructor & Destructor Documentation

◆ ~IHttpRequest()

virtual IHttpRequest::~IHttpRequest ( )

virtualdefault

Destructor for overrides

Member Function Documentation

◆ AppendToHeader()

virtual void IHttpRequest::AppendToHeader	(	const FString &	HeaderName,
		const FString &	AdditionalHeaderValue
	)

pure virtual

Appends to the value already set in the header. If there is already content in that header, a comma delimiter is used. If the header is as of yet unset, the result is the same as calling SetHeader Content-Length is the only header set for you. Also see: SetHeader()

Parameters

HeaderName	- Name of the header (ie, Content-Type)
AdditionalHeaderValue	- Value to add to the existing contents of the specified header. comma is inserted between old value and new value, per HTTP specifications

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ CancelRequest()

virtual void IHttpRequest::CancelRequest ( )

pure virtual

Called to cancel a request that is still being processed

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRetrySystem::FRequest.

◆ ClearTimeout()

virtual void IHttpRequest::ClearTimeout ( )

pure virtual

Clears the optional timeout in seconds for this HTTP request, causing the default value from FHttpModule::GetTimeout() to be used.

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ GetDelegateThreadPolicy()

virtual EHttpRequestDelegateThreadPolicy IHttpRequest::GetDelegateThreadPolicy ( ) const

pure virtual

Get thread policy about which thread to complete this request

Returns: The thread policy

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ GetElapsedTime()

virtual float IHttpRequest::GetElapsedTime ( ) const

pure virtual

Gets the time that it took for the server to fully respond to the request.

Returns: elapsed time in seconds.

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ GetOption()

virtual FString IHttpRequest::GetOption ( const FName Option ) const

pure virtual

Get the current value for the given option

Returns: the current value set for this option or an empty string if no value has been specified

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ GetPriority()

virtual EHttpRequestPriority IHttpRequest::GetPriority ( ) const

pure virtual

Get request priority, which is used to decide the position in the queue when max concurrent limit reached

Returns: The request priority

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ GetResponse()

virtual const FHttpResponsePtr IHttpRequest::GetResponse ( ) const

pure virtual

Get the associated Response

Returns: the response

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ GetTimeout()

virtual TOptional< float > IHttpRequest::GetTimeout ( ) const

pure virtual

Gets the optional timeout in seconds for this entire HTTP request to complete. If valid, this value overrides the default HTTP timeout set via FHttpModule::SetTimeout().

Returns: the timeout for this HTTP request instance, in seconds

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ GetVerb()

virtual FString IHttpRequest::GetVerb ( ) const

pure virtual

Gets the verb (GET, PUT, POST) used by the request.

Returns: the verb string

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ OnHeaderReceived()

virtual FHttpRequestHeaderReceivedDelegate & IHttpRequest::OnHeaderReceived ( )

pure virtual

Delegate called to signal the receipt of a header. See FHttpRequestHeaderReceivedDelegate

Implemented in FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestImpl.

◆ OnProcessRequestComplete()

virtual FHttpRequestCompleteDelegate & IHttpRequest::OnProcessRequestComplete ( )

pure virtual

Delegate called when the request is complete. See FHttpRequestCompleteDelegate

Implemented in FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestImpl.

◆ OnRequestProgress64()

virtual FHttpRequestProgressDelegate64 & IHttpRequest::OnRequestProgress64 ( )

pure virtual

Delegate called to update the request/response progress. See FHttpRequestProgressDelegate64

Implemented in FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestImpl.

◆ OnRequestWillRetry()

virtual FHttpRequestWillRetryDelegate & IHttpRequest::OnRequestWillRetry ( )

pure virtual

Delegate called when the request will be retried

Implemented in FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestImpl.

◆ OnStatusCodeReceived()

virtual FHttpRequestStatusCodeReceivedDelegate & IHttpRequest::OnStatusCodeReceived ( )

pure virtual

Delegate called to signal the receipt of a header. See FHttpRequestStatusCodeReceivedDelegate

Implemented in FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestImpl.

◆ ProcessRequest()

virtual bool IHttpRequest::ProcessRequest ( )

pure virtual

Called to begin processing the request. OnProcessRequestComplete delegate is always called when the request completes or on error if it is bound. A request can be re-used but not while still being processed.

Returns: if the request was successfully started.

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRetrySystem::FRequest.

◆ ProcessRequestUntilComplete()

virtual void IHttpRequest::ProcessRequestUntilComplete ( )

pure virtual

Blocking call to wait the request until it's completed

WARNINGS:

This is a blocking call, DON'T use this in a time-sensitive context
Complete delegate will be used in this function so customized complete delegate is not supported
This will force the usage of EHttpRequestDelegateThreadPolicy::CompleteOnHttpThread to make sure the request can complete, when this function get called from main thread. So if any other delegate is bound, make sure the bound delegate can handle the custom logic in a thread-safe way

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ ResetTimeoutStatus()

virtual void IHttpRequest::ResetTimeoutStatus ( )

pure virtual

Reset the elapsed timeout duration and flag, after the request completed and need to be reused

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetActivityTimeout()

virtual void IHttpRequest::SetActivityTimeout ( float InTimeoutSecs )

pure virtual

Sets an optional activity timeout in seconds for this HTTP request. After connecting to web server, if there is no activity(send or receive) happen for this time period, it will trigger activity timeout If set, this value overrides the default HTTP activity timeout

Parameters

InTimeoutSecs - Timeout for this HTTP request instance, in seconds

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetContent() [1/2]

virtual void IHttpRequest::SetContent ( const TArray< uint8 > & ContentPayload )

pure virtual

Sets the content of the request (optional data). Usually only set for POST requests.

Parameters

ContentPayload - payload to set.

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest, FHttpRequestAdapterBase, and FTransactionallySafeHttpRequest::FClosedHttpRequest.

◆ SetContent() [2/2]

virtual void IHttpRequest::SetContent ( TArray< uint8 > && ContentPayload )

pure virtual

Sets the content of the request (optional data). Usually only set for POST requests.

This version lets the API take ownership of the payload directly, helpful for larger payloads.

Parameters

ContentPayload - payload to set.

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest, FHttpRequestAdapterBase, and FTransactionallySafeHttpRequest::FClosedHttpRequest.

◆ SetContentAsStreamedFile()

virtual bool IHttpRequest::SetContentAsStreamedFile ( const FString & Filename )

pure virtual

Sets the content of the request to stream from a file.

Parameters

FileName - filename from which to stream the body.

Returns: True if the file is valid and will be used to stream the request. False otherwise.

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetContentAsString()

virtual void IHttpRequest::SetContentAsString ( const FString & ContentString )

pure virtual

Sets the content of the request as a string encoded as UTF8.

Parameters

ContentString - payload to set.

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetContentFromStream()

virtual bool IHttpRequest::SetContentFromStream ( TSharedRef< FArchive, ESPMode::ThreadSafe > Stream )

pure virtual

Sets the content of the request to stream directly from an archive. NOTE: The Stream->Serialize will be called from another thread other than the game thread

Parameters

Stream - archive from which the payload should be streamed.

Returns: True if the archive can be used to stream the request. False otherwise.

Implemented in FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetDelegateThreadPolicy()

virtual void IHttpRequest::SetDelegateThreadPolicy ( EHttpRequestDelegateThreadPolicy InThreadPolicy )

pure virtual

Set thread policy about which thread to trigger the delegates, set by FHttpManager::SetRequestCompletedDelegate, IHttpRequest::OnStatusCodeReceived, IHttpRequest::OnHeaderReceived, IHttpRequest::OnRequestProgress64 and IHttpRequest::OnProcessRequestComplete.

Note that when set it as CompleteOnHttpThread, the thread to trigger delegates could be any thread depends on the implementation. User code should make the delegate thread-safe and shouldn't assume it's triggered by the thread where this request get created.

Parameters

InThreadPolicy - The thread policy to indicate which thread to trigger the delegates

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetHeader()

virtual void IHttpRequest::SetHeader	(	const FString &	HeaderName,
		const FString &	HeaderValue
	)

pure virtual

Sets optional header info. SetHeader for a given HeaderName will overwrite any previous values Use AppendToHeader to append more values for the same header Content-Length is the only header set for you. Required headers depends on the request itself. Eg. "multipart/form-data" needed for a form post

Parameters

HeaderName	- Name of the header (ie, Content-Type)
HeaderValue	- Value of the header

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetOption()

virtual void IHttpRequest::SetOption	(	const FName	Option,
		const FString &	OptionValue
	)

pure virtual

Sets the given option for this Request Must be set before calling ProcessRequest.

Parameters

Option	- The option to set, see 'HttpRequestOptions' for supported options
OptionValue	- The value of the option to set

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetPriority()

virtual void IHttpRequest::SetPriority ( EHttpRequestPriority InPriority )

pure virtual

Set priority of the request, which will be used to decide the position in the queue when max concurrent limit reached

Parameters

InHttpRequestPriority - The priority to set

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetResponseBodyReceiveStream()

virtual bool IHttpRequest::SetResponseBodyReceiveStream ( TSharedRef< FArchive > Stream )

pure virtual

Sets the stream to receive the response body. Make sure to handle the cleanup of stream when Serialize generated error(Stream->GetError returns true after Stream->Serialize call), this http request will fail and quit.

NOTE: Once set, the data will no longer be cached in response, IHttpResponse::GetContent() and IHttpResponse::GetContentAsString() will return empty result. The Stream->Serialize will be called from another thread other than the game thread

Parameters

Stream - will be used to receive the response body

Returns: True if the stream can be used. False otherwise.

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetResponseBodyReceiveStreamDelegateV2()

bool IHttpRequest::SetResponseBodyReceiveStreamDelegateV2 ( FHttpRequestStreamDelegateV2 StreamDelegate )

Sets the delegate to receive the response body. Make sure to handle the cleanup of received data when failed to process the data(StreamDelegate return false), this http request will fail and quit.

NOTE: Once set, the data will no longer be cached in response, IHttpResponse::GetContent() and IHttpResponse::GetContentAsString() will return empty result. The delegate will be called from another thread other than the game thread

Parameters

StreamDelegate - will be used to receive the response body

Returns: True if the delegate can be used. False otherwise.

◆ SetTimeout()

virtual void IHttpRequest::SetTimeout ( float InTimeoutSecs )

pure virtual

Sets an optional timeout in seconds for this entire HTTP request to complete. If set, this value overrides the default HTTP timeout set via FHttpModule::SetTimeout().

Parameters

InTimeoutSecs - Timeout for this HTTP request instance, in seconds

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetURL()

virtual void IHttpRequest::SetURL ( const FString & URL )

pure virtual

Sets the URL for the request Eg. (http://my.domain.com/something.ext?key=value&key2=value). Must be set before calling ProcessRequest.

Parameters

URL	- URL to use.

Implemented in FGenericPlatformHttpRequest, FHttpRequestCommon, FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, and FHttpRequestAdapterBase.

◆ SetVerb()

virtual void IHttpRequest::SetVerb ( const FString & Verb )

pure virtual

Sets the verb used by the request. Eg. (GET, PUT, POST) Should be set before calling ProcessRequest. If not specified then a GET is assumed.

Parameters

Verb	- verb to use.

Implemented in FNullHttpRequest, FTransactionallySafeHttpRequest::FClosedHttpRequest, FTransactionallySafeHttpRequest, FAppleHttpRequest, FGenericPlatformHttpRequest, and FHttpRequestAdapterBase.

◆ Tick()

virtual void IHttpRequest::Tick ( float DeltaSeconds )

pure virtual

Used to tick the request

Parameters

DeltaSeconds - seconds since last ticked

Implemented in FAppleHttpRequest, FGenericPlatformHttpRequest, FNullHttpRequest, FTransactionallySafeHttpRequest, FHttpRequestAdapterBase, and FTransactionallySafeHttpRequest::FClosedHttpRequest.

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Online/HTTP/Public/Interfaces/IHttpRequest.h
Engine/Source/Runtime/Online/HTTP/Private/Interfaces/IHttpRequest.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~IHttpRequest()

Member Function Documentation

◆ AppendToHeader()

◆ CancelRequest()

◆ ClearTimeout()

◆ GetDelegateThreadPolicy()

◆ GetElapsedTime()

◆ GetOption()

◆ GetPriority()

◆ GetResponse()

◆ GetTimeout()

◆ GetVerb()

◆ OnHeaderReceived()

◆ OnProcessRequestComplete()

◆ OnRequestProgress64()

◆ OnRequestWillRetry()

◆ OnStatusCodeReceived()

◆ ProcessRequest()

◆ ProcessRequestUntilComplete()

◆ ResetTimeoutStatus()

◆ SetActivityTimeout()

◆ SetContent() [1/2]

◆ SetContent() [2/2]

◆ SetContentAsStreamedFile()

◆ SetContentAsString()

◆ SetContentFromStream()

◆ SetDelegateThreadPolicy()

◆ SetHeader()

◆ SetOption()

◆ SetPriority()

◆ SetResponseBodyReceiveStream()

◆ SetResponseBodyReceiveStreamDelegateV2()

◆ SetTimeout()

◆ SetURL()

◆ SetVerb()

◆ Tick()
