#include <ImageWrapperBase.h>

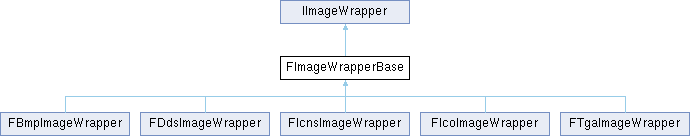

Inheritance diagram for FImageWrapperBase:

Public Member Functions
	FImageWrapperBase ()

const TArray64< uint8 > &	GetRawData () const

void	MoveRawData (TArray64< uint8 > &OutRawData)

virtual void	Compress (int32 Quality)=0

virtual void	Reset ()

void	SetError (const TCHAR *ErrorMessage)

const FString &	GetLastError () const

virtual void	Uncompress (const ERGBFormat InFormat, int32 InBitDepth)=0

virtual void	Uncompress (const ERGBFormat InFormat, int32 InBitDepth, FDecompressedImageOutput &OutDecompressedImage)

virtual TArray64< uint8 >	GetCompressed (int32 Quality=0) override

virtual int32	GetBitDepth () const override

virtual ERGBFormat	GetFormat () const override

virtual int64	GetHeight () const override

virtual bool	GetRaw (const ERGBFormat InFormat, int32 InBitDepth, TArray64< uint8 > &OutRawData) override

virtual bool	GetRaw (const ERGBFormat InFormat, int32 InBitDepth, FDecompressedImageOutput &OutDecompressedImage) override

virtual int64	GetWidth () const override

virtual bool	SetCompressed (const void *InCompressedData, int64 InCompressedSize) override

virtual bool	SetRaw (const void *InRawData, int64 InRawSize, const int32 InWidth, const int32 InHeight, const ERGBFormat InFormat, const int32 InBitDepth, const int32 InBytesPerRow=0) override

virtual bool	SupportsMetadata () const override

virtual void	AddMetadata (const FString &InKey, const FString &InValue) override

virtual void	GetMetadata (TStringMap &OutMetadata) const override

Public Member Functions inherited from IImageWrapper
virtual bool	CanSetRawFormat (const ERGBFormat InFormat, const int32 InBitDepth) const =0

virtual ERawImageFormat::Type	GetSupportedRawFormat (const ERawImageFormat::Type InFormat) const =0

virtual TArray64< uint8 >	GetExportData (int32 Quality=0)

bool	GetRaw (TArray64< uint8 > &OutRawData)

bool	GetRaw (FDecompressedImageOutput &OutDecompressedImage)

bool	GetRawImage (FImage &OutImage)

bool	GetRawImage (FDecompressedImageOutput &OutDecompressedImage)

bool	GetRaw (const ERGBFormat InFormat, int32 InBitDepth, TArray< uint8 > &OutRawData)

bool	GetRaw (const ERGBFormat InFormat, int32 InBitDepth, TArrayView64< uint8 > OutRawData)

bool	GetSRGB () const

ERawImageFormat::Type	GetClosestRawImageFormat (bool *bIsExactMatch=nullptr) const

void	SetDebugImageName (const TCHAR *InDebugImageName)

virtual	~IImageWrapper ()

Protected Member Functions
int64	GetBytesPerPel () const

int64	GetBytesPerRow () const

bool	GetImageViewOfSetRawForCompress (FImageView &OutImage) const

Protected Attributes
TArray64< uint8 >	RawData

TArray64< uint8 >	CompressedData

ERGBFormat	Format

int	BitDepth

int64	Width

int64	Height

FString	LastError

Protected Attributes inherited from IImageWrapper
const TCHAR *	DebugImageName = nullptr

Additional Inherited Members
Public Types inherited from IImageWrapper
using	TStringMap = TMap< FString, FString >

Static Public Member Functions inherited from IImageWrapper
static IMAGEWRAPPER_API void	ConvertRawImageFormat (ERawImageFormat::Type RawFormat, ERGBFormat &OutFormat, int &OutBitDepth)

static IMAGEWRAPPER_API ERawImageFormat::Type	ConvertRGBFormat (ERGBFormat RGBFormat, int BitDepth, bool *bIsExactMatch=nullptr)

static IMAGEWRAPPER_API int64	GetRGBFormatBytesPerPel (ERGBFormat RGBFormat, int BitDepth)

Detailed Description

The abstract helper class for handling the different image formats

Constructor & Destructor Documentation

◆ FImageWrapperBase()

FImageWrapperBase::FImageWrapperBase ( )

Default Constructor.

Member Function Documentation

◆ AddMetadata()

void FImageWrapperBase::AddMetadata	(	const FString &	InKey,
		const FString &	InValue
	)

overridevirtual

Adds a key and value to this image's metadata. Will be saved in the image's header and restored when the image is loaded.

Parameters

InKey	Metadata consists of key value pairs.
InValue	Metadata consists of key value pairs.

Implements IImageWrapper.

◆ Compress()

virtual void FImageWrapperBase::Compress ( int32 Quality )

pure virtual

Compresses the data.

Parameters

Quality The compression quality.

returns void. call SetError() in your implementation if you fail.

Implemented in FBmpImageWrapper, FDdsImageWrapper, FIcnsImageWrapper, FIcoImageWrapper, and FTgaImageWrapper.

◆ GetBitDepth()

virtual int32 FImageWrapperBase::GetBitDepth ( ) const

inlineoverridevirtual

Gets the bit depth of the image.

Returns: The bit depth per-channel of the image.

Beware several of the old wrappers (BMP,TGA) incorrectly used to return bits per color not per channel they now correctly return per-channel.

Implements IImageWrapper.

◆ GetBytesPerPel()

int64 FImageWrapperBase::GetBytesPerPel ( ) const

inlineprotected

◆ GetBytesPerRow()

int64 FImageWrapperBase::GetBytesPerRow ( ) const

inlineprotected

◆ GetCompressed()

TArray64< uint8 > FImageWrapperBase::GetCompressed ( int32 Quality = 0 )

overridevirtual

Gets the compressed data. (call SetRaw first) (Note: It may consume the data set in the SetCompressed function if it was set before)

Returns: Array of the compressed data. returns empty array on failure

Implements IImageWrapper.

◆ GetFormat()

virtual ERGBFormat FImageWrapperBase::GetFormat ( ) const

inlineoverridevirtual

Gets the format of the image. Theoretically, this is the format it would be best to call GetRaw() with, if you support it.

Returns: The format the image data is in

Implements IImageWrapper.

◆ GetHeight()

virtual int64 FImageWrapperBase::GetHeight ( ) const

inlineoverridevirtual

Gets the height of the image.

Returns: Image height.

See also: GetWidth

Implements IImageWrapper.

◆ GetImageViewOfSetRawForCompress()

bool FImageWrapperBase::GetImageViewOfSetRawForCompress ( FImageView & OutImage ) const

protected

◆ GetLastError()

const FString & FImageWrapperBase::GetLastError ( ) const

inline

Gets last error message.

◆ GetMetadata()

void FImageWrapperBase::GetMetadata ( TStringMap & OutMetadata ) const

overridevirtual

Copies this image's metadata to the caller's map.

Parameters

OutMetadata A copy of this image's metadata.

Implements IImageWrapper.

◆ GetRaw() [1/2]

bool FImageWrapperBase::GetRaw	(	const ERGBFormat	InFormat,
		int32	InBitDepth,
		FDecompressedImageOutput &	OutDecompressedImage
	)

overridevirtual

Gets the raw data and meta info (Note: It may consume the data set in the SetRaw function if it was set before)

Parameters

InFormat	How we want to manipulate the RGB data.
InBitDepth	The output bit-depth per channel, normally 8.
OutRawData	Will contain the uncompressed raw data.
OutDecompressedImage	Will contain the mip images if available and other metadata.

Returns: true on success, false otherwise.

this is often broken, should only be used with InFormat == GetFormat() DEPRECATED , use GetRaw() with 2 argument or GetRawImage() meta info overload

Implements IImageWrapper.

◆ GetRaw() [2/2]

bool FImageWrapperBase::GetRaw	(	const ERGBFormat	InFormat,
		int32	InBitDepth,
		TArray64< uint8 > &	OutRawData
	)

overridevirtual

Gets the raw data. (Note: It may consume the data set in the SetRaw function if it was set before)

Parameters

InFormat	How we want to manipulate the RGB data.
InBitDepth	The output bit-depth per channel, normally 8.
OutRawData	Will contain the uncompressed raw data.

Returns: true on success, false otherwise.

this is often broken, should only be used with InFormat == GetFormat() DEPRECATED , use GetRaw() with 1 argument or GetRawImage()

Implements IImageWrapper.

Reimplemented in FIcoImageWrapper.

◆ GetRawData()

const TArray64< uint8 > & FImageWrapperBase::GetRawData ( ) const

inline

Gets the image's raw data.

Returns: A read-only byte array containing the data.

◆ GetWidth()

virtual int64 FImageWrapperBase::GetWidth ( ) const

inlineoverridevirtual

Gets the width of the image.

Returns: Image width.

See also: GetHeight

Implements IImageWrapper.

◆ MoveRawData()

void FImageWrapperBase::MoveRawData ( TArray64< uint8 > & OutRawData )

inline

Moves the image's raw data into the provided array.

Parameters

OutRawData The destination array.

◆ Reset()

void FImageWrapperBase::Reset ( )

virtual

Resets the local variables.

Reimplemented in FDdsImageWrapper.

◆ SetCompressed()

bool FImageWrapperBase::SetCompressed	(	const void *	InCompressedData,
		int64	InCompressedSize
	)

overridevirtual

Sets the compressed data. Can then call GetRaw().

Parameters

InCompressedData	The memory address of the start of the compressed data.
InCompressedSize	The size of the compressed data parsed.

Returns: true if data was the expected format.

after SetCompressed, image info queries like GetWidth and GetBitDepth are allowed call GetRaw to get the decoded bits decompression is not done until GetRaw

Implements IImageWrapper.

Reimplemented in FBmpImageWrapper, FDdsImageWrapper, FIcnsImageWrapper, FIcoImageWrapper, and FTgaImageWrapper.

◆ SetError()

void FImageWrapperBase::SetError ( const TCHAR * ErrorMessage )

Sets last error message.

Parameters

ErrorMessage The error message to set.

◆ SetRaw()

bool FImageWrapperBase::SetRaw	(	const void *	InRawData,
		int64	InRawSize,
		const int32	InWidth,
		const int32	InHeight,
		const ERGBFormat	InFormat,
		const int32	InBitDepth,
		const int32	InBytesPerRow = `0`
	)

overridevirtual

Sets the raw image data. Prepares to call GetCompressed() next.

Parameters

InRawData	The memory address of the start of the raw data.
InRawSize	The size of the compressed data parsed.
InWidth	The width of the image data.
InHeight	the height of the image data.
InFormat	the format the raw data is in, normally RGBA.
InBitDepth	the bit-depth per channel, normally 8.
InBytesPerRow	the number of bytes between rows, 0 = tightly packed rows with no padding.

Returns: true if data was the expected format.

you must not SetRaw() with a format unless it passes CanSetRawFormat() deprecated : avoid direct calls to SetRaw(), use ImageWrapperModule CompressImage instead do not use InBytesPerRow, it is ignored SetRaw does not take gamma information assumes U8 = SRGB and all else = Linear

Implements IImageWrapper.

Reimplemented in FIcnsImageWrapper.

◆ SupportsMetadata()

bool FImageWrapperBase::SupportsMetadata ( ) const

overridevirtual

Does this image type support embedded metadata in its header?

PNG is an example of an image type which supports adding user-defined metadata to its header.

Implements IImageWrapper.

◆ Uncompress() [1/2]

virtual void FImageWrapperBase::Uncompress	(	const ERGBFormat	InFormat,
		int32	InBitDepth
	)

pure virtual

Function to uncompress our data

Parameters

InFormat	How we want to manipulate the RGB data
InBitDepth	The bit depth per-channel of the image.

returns void. call SetError() in your implementation if you fail.

Implemented in FBmpImageWrapper, FDdsImageWrapper, FIcnsImageWrapper, FIcoImageWrapper, and FTgaImageWrapper.

◆ Uncompress() [2/2]

void FImageWrapperBase::Uncompress	(	const ERGBFormat	InFormat,
		int32	InBitDepth,
		FDecompressedImageOutput &	OutDecompressedImage
	)

virtual

Function to uncompress our data and retrive meta info along with it.

Parameters

InFormat	How we want to manipulate the RGB data
InBitDepth	The bit depth per-channel of the image.
OutDecompressedImage	Holds decompressed image, its mip-maps if available along with meta data that can be retrived during the decompression of the image.

returns void. call SetError() in your implementation if you fail.

Member Data Documentation

◆ BitDepth

int FImageWrapperBase::BitDepth

protected

◆ CompressedData

TArray64<uint8> FImageWrapperBase::CompressedData

protected

◆ Format

ERGBFormat FImageWrapperBase::Format

protected

Format of the raw data

◆ Height

int64 FImageWrapperBase::Height

protected

◆ LastError

FString FImageWrapperBase::LastError

protected

Last Error Message.

◆ RawData

TArray64<uint8> FImageWrapperBase::RawData

protected

Arrays of compressed/raw data

◆ Width

int64 FImageWrapperBase::Width

protected

Width/Height of the image data

The documentation for this class was generated from the following files:

Engine/Source/Runtime/ImageWrapper/Private/ImageWrapperBase.h
Engine/Source/Runtime/ImageWrapper/Private/ImageWrapperBase.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FImageWrapperBase()

Member Function Documentation

◆ AddMetadata()

◆ Compress()

◆ GetBitDepth()

◆ GetBytesPerPel()

◆ GetBytesPerRow()

◆ GetCompressed()

◆ GetFormat()

◆ GetHeight()

◆ GetImageViewOfSetRawForCompress()

◆ GetLastError()

◆ GetMetadata()

◆ GetRaw() [1/2]

◆ GetRaw() [2/2]

◆ GetRawData()

◆ GetWidth()

◆ MoveRawData()

◆ Reset()

◆ SetCompressed()

◆ SetError()

◆ SetRaw()

◆ SupportsMetadata()

◆ Uncompress() [1/2]

◆ Uncompress() [2/2]

Member Data Documentation

◆ BitDepth

◆ CompressedData

◆ Format

◆ Height

◆ LastError

◆ RawData

◆ Width
