#include <IImageWrapper.h>

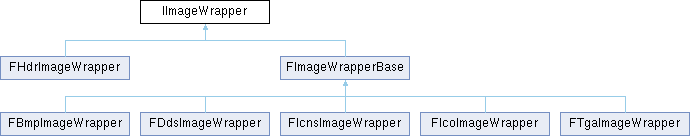

Inheritance diagram for IImageWrapper:

Public Types
using	TStringMap = TMap< FString, FString >

Public Member Functions
virtual bool	SetCompressed (const void *InCompressedData, int64 InCompressedSize)=0

virtual bool	SetRaw (const void *InRawData, int64 InRawSize, const int32 InWidth, const int32 InHeight, const ERGBFormat InFormat, const int32 InBitDepth, const int32 InBytesPerRow=0)=0

virtual bool	CanSetRawFormat (const ERGBFormat InFormat, const int32 InBitDepth) const =0

virtual ERawImageFormat::Type	GetSupportedRawFormat (const ERawImageFormat::Type InFormat) const =0

virtual TArray64< uint8 >	GetCompressed (int32 Quality=0)=0

virtual TArray64< uint8 >	GetExportData (int32 Quality=0)

bool	GetRaw (TArray64< uint8 > &OutRawData)

bool	GetRaw (FDecompressedImageOutput &OutDecompressedImage)

bool	GetRawImage (FImage &OutImage)

bool	GetRawImage (FDecompressedImageOutput &OutDecompressedImage)

virtual bool	GetRaw (const ERGBFormat InFormat, int32 InBitDepth, TArray64< uint8 > &OutRawData)=0

virtual bool	GetRaw (const ERGBFormat InFormat, int32 InBitDepth, FDecompressedImageOutput &OutDecompressedImage)=0

bool	GetRaw (const ERGBFormat InFormat, int32 InBitDepth, TArray< uint8 > &OutRawData)

bool	GetRaw (const ERGBFormat InFormat, int32 InBitDepth, TArrayView64< uint8 > OutRawData)

virtual int64	GetWidth () const =0

virtual int64	GetHeight () const =0

virtual int32	GetBitDepth () const =0

virtual ERGBFormat	GetFormat () const =0

bool	GetSRGB () const

ERawImageFormat::Type	GetClosestRawImageFormat (bool *bIsExactMatch=nullptr) const

void	SetDebugImageName (const TCHAR *InDebugImageName)

virtual bool	SupportsMetadata () const =0

virtual void	AddMetadata (const FString &InKey, const FString &InValue)=0

virtual void	GetMetadata (TStringMap &OutMetadata) const =0

virtual	~IImageWrapper ()

Static Public Member Functions
static IMAGEWRAPPER_API void	ConvertRawImageFormat (ERawImageFormat::Type RawFormat, ERGBFormat &OutFormat, int &OutBitDepth)

static IMAGEWRAPPER_API ERawImageFormat::Type	ConvertRGBFormat (ERGBFormat RGBFormat, int BitDepth, bool *bIsExactMatch=nullptr)

static IMAGEWRAPPER_API int64	GetRGBFormatBytesPerPel (ERGBFormat RGBFormat, int BitDepth)

Protected Attributes
const TCHAR *	DebugImageName = nullptr

Detailed Description

Interface for image wrappers.

to Encode: SetRaw() then GetCompressed() to Decode : SetCompressed() then GetRaw()

in general, direct use of the IImageWrapper interface is now discouraged use ImageWrapperModule CompressImage/DecompressImage instead.

Member Typedef Documentation

◆ TStringMap

using IImageWrapper::TStringMap = TMap<FString, FString>

Constructor & Destructor Documentation

◆ ~IImageWrapper()

virtual IImageWrapper::~IImageWrapper ( )

inlinevirtual

Virtual destructor.

Member Function Documentation

◆ AddMetadata()

virtual void IImageWrapper::AddMetadata	(	const FString &	InKey,
		const FString &	InValue
	)

pure virtual

Adds a key and value to this image's metadata. Will be saved in the image's header and restored when the image is loaded.

Parameters

InKey	Metadata consists of key value pairs.
InValue	Metadata consists of key value pairs.

Implemented in FImageWrapperBase, and FHdrImageWrapper.

◆ CanSetRawFormat()

virtual bool IImageWrapper::CanSetRawFormat	(	const ERGBFormat	InFormat,
		const int32	InBitDepth
	)		const

pure virtual

CanSetRawFormat returns true if SetRaw will accept this format

Implemented in FBmpImageWrapper, FDdsImageWrapper, FIcnsImageWrapper, FIcoImageWrapper, FTgaImageWrapper, and FHdrImageWrapper.

◆ ConvertRawImageFormat()

void IImageWrapper::ConvertRawImageFormat	(	ERawImageFormat::Type	RawFormat,
		ERGBFormat &	OutFormat,
		int &	OutBitDepth
	)

static

◆ ConvertRGBFormat()

ERawImageFormat::Type IImageWrapper::ConvertRGBFormat	(	ERGBFormat	RGBFormat,
		int	BitDepth,
		bool *	bIsExactMatch = `nullptr`
	)

static

◆ GetBitDepth()

virtual int32 IImageWrapper::GetBitDepth ( ) const

pure virtual

Gets the bit depth of the image.

Returns: The bit depth per-channel of the image.

Beware several of the old wrappers (BMP,TGA) incorrectly used to return bits per color not per channel they now correctly return per-channel.

Implemented in FImageWrapperBase, and FHdrImageWrapper.

◆ GetClosestRawImageFormat()

ERawImageFormat::Type IImageWrapper::GetClosestRawImageFormat ( bool * bIsExactMatch = nullptr ) const

inline

◆ GetCompressed()

virtual TArray64< uint8 > IImageWrapper::GetCompressed ( int32 Quality = 0 )

pure virtual

Gets the compressed data. (call SetRaw first) (Note: It may consume the data set in the SetCompressed function if it was set before)

Returns: Array of the compressed data. returns empty array on failure

Implemented in FImageWrapperBase, and FHdrImageWrapper.

◆ GetExportData()

virtual TArray64< uint8 > IImageWrapper::GetExportData ( int32 Quality = 0 )

inlinevirtual

Gets the data for export. Usually the same thing as GetCompressed.

Returns: Array of the data to export. returns empty array on failure

◆ GetFormat()

virtual ERGBFormat IImageWrapper::GetFormat ( ) const

pure virtual

Gets the format of the image. Theoretically, this is the format it would be best to call GetRaw() with, if you support it.

Returns: The format the image data is in

Implemented in FImageWrapperBase, and FHdrImageWrapper.

◆ GetHeight()

virtual int64 IImageWrapper::GetHeight ( ) const

pure virtual

Gets the height of the image.

Returns: Image height.

See also: GetWidth

Implemented in FImageWrapperBase, and FHdrImageWrapper.

◆ GetMetadata()

virtual void IImageWrapper::GetMetadata ( TStringMap & OutMetadata ) const

pure virtual

Copies this image's metadata to the caller's map.

Parameters

OutMetadata A copy of this image's metadata.

Implemented in FImageWrapperBase, and FHdrImageWrapper.

◆ GetRaw() [1/6]

virtual bool IImageWrapper::GetRaw	(	const ERGBFormat	InFormat,
		int32	InBitDepth,
		FDecompressedImageOutput &	OutDecompressedImage
	)

pure virtual

Gets the raw data and meta info (Note: It may consume the data set in the SetRaw function if it was set before)

Parameters

InFormat	How we want to manipulate the RGB data.
InBitDepth	The output bit-depth per channel, normally 8.
OutRawData	Will contain the uncompressed raw data.
OutDecompressedImage	Will contain the mip images if available and other metadata.

Returns: true on success, false otherwise.

this is often broken, should only be used with InFormat == GetFormat() DEPRECATED , use GetRaw() with 2 argument or GetRawImage() meta info overload

Implemented in FImageWrapperBase, FHdrImageWrapper, and FHdrImageWrapper.

◆ GetRaw() [2/6]

virtual bool IImageWrapper::GetRaw	(	const ERGBFormat	InFormat,
		int32	InBitDepth,
		TArray64< uint8 > &	OutRawData
	)

pure virtual

Gets the raw data. (Note: It may consume the data set in the SetRaw function if it was set before)

Parameters

InFormat	How we want to manipulate the RGB data.
InBitDepth	The output bit-depth per channel, normally 8.
OutRawData	Will contain the uncompressed raw data.

Returns: true on success, false otherwise.

this is often broken, should only be used with InFormat == GetFormat() DEPRECATED , use GetRaw() with 1 argument or GetRawImage()

Implemented in FIcoImageWrapper, FImageWrapperBase, FHdrImageWrapper, and FHdrImageWrapper.

◆ GetRaw() [3/6]

bool IImageWrapper::GetRaw	(	const ERGBFormat	InFormat,
		int32	InBitDepth,
		TArray< uint8 > &	OutRawData
	)

inline

Gets the raw data in a TArray. Only use this if you're certain that the image is less than 2 GB in size. Prefer using the overload which takes a TArray64 in general. (Note: It may consume the data set in the SetRaw function if it was set before)

Parameters

InFormat	How we want to manipulate the RGB data.
InBitDepth	The output bit-depth per channel, normally 8.
OutRawData	Will contain the uncompressed raw data.

Returns: true on success, false otherwise.

this is often broken, should only be used with InFormat == GetFormat() DEPRECATED , use GetRaw() with 1 argument or GetRawImage()

◆ GetRaw() [4/6]

bool IImageWrapper::GetRaw	(	const ERGBFormat	InFormat,
		int32	InBitDepth,
		TArrayView64< uint8 >	OutRawData
	)

inline

Get the raw version of the image and write to the array view (Note: It may consume the data set in the SetRaw function if it was set before)

Parameters

InFormat	How we want to manipulate the RGB data.
InBitDepth	The output bit-depth per channel, normally 8.
OutRawData	Will contain the uncompressed raw data.

Returns: true on success, false otherwise.

this is often broken, should only be used with InFormat == GetFormat() DEPRECATED , use GetRaw() with 1 argument or GetRawImage()

◆ GetRaw() [5/6]

bool IImageWrapper::GetRaw ( FDecompressedImageOutput & OutDecompressedImage )

inline

GetRaw after SetCompressed fills the raw data in the native format/depth contained in the file along with meta info Do not use the GetRaw() variants that take format/depth arguments.

Parameters

OutRawData	Filled with raw image data.
OutDecompressedImage	Filled with mip images and other metadata.

This GetRaw call replaces the variants with format/depth arguments, but prefer GetRawImage instead.

◆ GetRaw() [6/6]

bool IImageWrapper::GetRaw ( TArray64< uint8 > & OutRawData )

inline

GetRaw after SetCompressed fills the raw data in the native format/depth contained in the file Do not use the GetRaw() variants that take format/depth arguments.

Parameters

OutRawData Filled with raw image data.

This GetRaw call replaces the variants with format/depth arguments, but prefer GetRawImage instead.

◆ GetRawImage() [1/2]

bool IImageWrapper::GetRawImage ( FDecompressedImageOutput & OutDecompressedImage )

Decode the image file data from SetCompressed() into an FImage OutImage is allocated and attributes are filled. Any previous passed-in contents of OutImage are destroyed. OutImage.Format is ignored, a new format is set from the loaded image MetaInfo is filled if applicable

Parameters

OutDecompressedImage Image and meta data along with Mip Map Images

This is the recommended API to get the raw image data from the imagewrapper. Prefer this instead of any of the GetRaw() calls.

◆ GetRawImage() [2/2]

bool IImageWrapper::GetRawImage ( FImage & OutImage )

Decode the image file data from SetCompressed() into an FImage OutImage is allocated and attributes are filled Any previous passed-in contents of OutImage are destroyed OutImage.Format is ignored, a new format is set from the loaded image

Parameters

OutImage Filled with the image

This is the recommended API to get the raw image data from the imagewrapper. Prefer this instead of any of the GetRaw() calls.

◆ GetRGBFormatBytesPerPel()

int64 IImageWrapper::GetRGBFormatBytesPerPel	(	ERGBFormat	RGBFormat,
		int	BitDepth
	)

static

◆ GetSRGB()

bool IImageWrapper::GetSRGB ( ) const

inline

◆ GetSupportedRawFormat()

virtual ERawImageFormat::Type IImageWrapper::GetSupportedRawFormat ( const ERawImageFormat::Type InFormat ) const

pure virtual

returns InFormat if supported, else maps to something supported the returned format will pass CanSetRawFormat()

Implemented in FBmpImageWrapper, FDdsImageWrapper, FIcnsImageWrapper, FIcoImageWrapper, FTgaImageWrapper, and FHdrImageWrapper.

◆ GetWidth()

virtual int64 IImageWrapper::GetWidth ( ) const

pure virtual

Gets the width of the image.

Returns: Image width.

See also: GetHeight

Implemented in FImageWrapperBase, and FHdrImageWrapper.

◆ SetCompressed()

virtual bool IImageWrapper::SetCompressed	(	const void *	InCompressedData,
		int64	InCompressedSize
	)

pure virtual

Sets the compressed data. Can then call GetRaw().

Parameters

InCompressedData	The memory address of the start of the compressed data.
InCompressedSize	The size of the compressed data parsed.

Returns: true if data was the expected format.

after SetCompressed, image info queries like GetWidth and GetBitDepth are allowed call GetRaw to get the decoded bits decompression is not done until GetRaw

Implemented in FBmpImageWrapper, FDdsImageWrapper, FIcnsImageWrapper, FIcoImageWrapper, FTgaImageWrapper, FImageWrapperBase, and FHdrImageWrapper.

◆ SetDebugImageName()

void IImageWrapper::SetDebugImageName ( const TCHAR * InDebugImageName )

inline

◆ SetRaw()

virtual bool IImageWrapper::SetRaw	(	const void *	InRawData,
		int64	InRawSize,
		const int32	InWidth,
		const int32	InHeight,
		const ERGBFormat	InFormat,
		const int32	InBitDepth,
		const int32	InBytesPerRow = `0`
	)

pure virtual

Sets the raw image data. Prepares to call GetCompressed() next.

Parameters

InRawData	The memory address of the start of the raw data.
InRawSize	The size of the compressed data parsed.
InWidth	The width of the image data.
InHeight	the height of the image data.
InFormat	the format the raw data is in, normally RGBA.
InBitDepth	the bit-depth per channel, normally 8.
InBytesPerRow	the number of bytes between rows, 0 = tightly packed rows with no padding.

Returns: true if data was the expected format.

you must not SetRaw() with a format unless it passes CanSetRawFormat() deprecated : avoid direct calls to SetRaw(), use ImageWrapperModule CompressImage instead do not use InBytesPerRow, it is ignored SetRaw does not take gamma information assumes U8 = SRGB and all else = Linear

Implemented in FHdrImageWrapper, FIcnsImageWrapper, and FImageWrapperBase.

◆ SupportsMetadata()

virtual bool IImageWrapper::SupportsMetadata ( ) const

pure virtual

Does this image type support embedded metadata in its header?

PNG is an example of an image type which supports adding user-defined metadata to its header.

Implemented in FImageWrapperBase, and FHdrImageWrapper.

Member Data Documentation

◆ DebugImageName

const TCHAR* IImageWrapper::DebugImageName = nullptr

protected

The documentation for this class was generated from the following files:

Engine/Source/Runtime/ImageWrapper/Public/IImageWrapper.h
Engine/Source/Runtime/ImageWrapper/Private/ImageWrapperBase.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ TStringMap

Constructor & Destructor Documentation

◆ ~IImageWrapper()

Member Function Documentation

◆ AddMetadata()

◆ CanSetRawFormat()

◆ ConvertRawImageFormat()

◆ ConvertRGBFormat()

◆ GetBitDepth()

◆ GetClosestRawImageFormat()

◆ GetCompressed()

◆ GetExportData()

◆ GetFormat()

◆ GetHeight()

◆ GetMetadata()

◆ GetRaw() [1/6]

◆ GetRaw() [2/6]

◆ GetRaw() [3/6]

◆ GetRaw() [4/6]

◆ GetRaw() [5/6]

◆ GetRaw() [6/6]

◆ GetRawImage() [1/2]

◆ GetRawImage() [2/2]

◆ GetRGBFormatBytesPerPel()

◆ GetSRGB()

◆ GetSupportedRawFormat()

◆ GetWidth()

◆ SetCompressed()

◆ SetDebugImageName()

◆ SetRaw()

◆ SupportsMetadata()

Member Data Documentation

◆ DebugImageName
