FMallocBinned Class Reference

#include <MallocBinned.h>

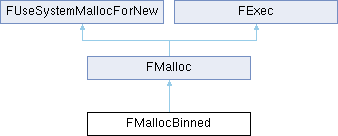

Inheritance diagram for FMallocBinned:

Classes
struct	FFreeMem
struct	FPoolInfo
struct	PoolHashBucket
struct	Private

Public Member Functions
	FMallocBinned (uint32 InPageSize, uint64 AddressLimit)
virtual void	InitializeStatsMetadata () override
virtual	~FMallocBinned ()
virtual bool	IsInternallyThreadSafe () const override
virtual void *	Malloc (SIZE_T Size, uint32 Alignment) override
virtual void *	Realloc (void *Ptr, SIZE_T NewSize, uint32 Alignment) override
virtual void	Free (void *Ptr) override
virtual bool	GetAllocationSize (void *Original, SIZE_T &SizeOut) override
virtual SIZE_T	QuantizeSize (SIZE_T Count, uint32 Alignment) override
virtual bool	ValidateHeap () override
virtual void	UpdateStats () override
virtual void	GetAllocatorStats (FGenericMemoryStats &out_Stats) override
virtual void	DumpAllocatorStats (class FOutputDevice &Ar) override
virtual const TCHAR *	GetDescriptiveName () override
Public Member Functions inherited from FMalloc
virtual CORE_API void *	TryMalloc (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)
virtual CORE_API void *	TryRealloc (void *Original, SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)
virtual CORE_API void *	MallocZeroed (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)
virtual CORE_API void *	TryMallocZeroed (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)
virtual void	Trim (bool bTrimThreadCaches)
virtual void	SetupTLSCachesOnCurrentThread ()
virtual void	MarkTLSCachesAsUsedOnCurrentThread ()
virtual void	MarkTLSCachesAsUnusedOnCurrentThread ()
virtual void	ClearAndDisableTLSCachesOnCurrentThread ()
virtual void	OnMallocInitialized ()
virtual void	OnPreFork ()
virtual void	OnPostFork ()
virtual uint64	GetImmediatelyFreeableCachedMemorySize () const
virtual uint64	GetTotalFreeCachedMemorySize () const
Public Member Functions inherited from FUseSystemMallocForNew
CORE_API void *	operator new (size_t Size)
CORE_API void	operator delete (void *Ptr)
void *	operator new[] (size_t Size)
void	operator delete[] (void *Ptr)
Public Member Functions inherited from FExec
virtual CORE_API	~FExec ()
virtual CORE_API bool	Exec (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)

Additional Inherited Members
Static Public Attributes inherited from FMalloc
static CORE_API TAtomic< uint64 >	MaxSingleAlloc
Protected Member Functions inherited from FExec
virtual bool	Exec_Runtime (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)
virtual bool	Exec_Dev (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)
virtual bool	Exec_Editor (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)

Constructor & Destructor Documentation

FMallocBinned()

FMallocBinned::FMallocBinned	(	uint32	InPageSize,
		uint64	AddressLimit
	)

Shift to get the reference from the indirect tables

Shift required to get required hash table key.

Used to mask off the bits that have been used to lookup the indirect table

The following options are not valid for page sizes less than 64k. They are here to reduce waste

~FMallocBinned()

FMallocBinned::~FMallocBinned ( )

virtual

Member Function Documentation

DumpAllocatorStats()

void FMallocBinned::DumpAllocatorStats ( class FOutputDevice &  Ar )

overridevirtual

Dumps allocator stats to an output device. Subclasses should override to add additional info

Parameters

Ar	[in] Output device

Reimplemented from FMalloc.

Free()

void FMallocBinned::Free ( void *  Ptr )

overridevirtual

Free

Implements FMalloc.

GetAllocationSize()

bool FMallocBinned::GetAllocationSize ( void *  Original, SIZE_T &  SizeOut  )

overridevirtual

If possible determine the size of the memory allocated at the given address

Parameters

Original	- Pointer to memory we are checking the size of
SizeOut	- If possible, this value is set to the size of the passed in pointer

Returns

true if succeeded

Reimplemented from FMalloc.

GetAllocatorStats()

void FMallocBinned::GetAllocatorStats ( FGenericMemoryStats &  out_Stats )

overridevirtual

Writes allocator stats from the last update into the specified destination.

Reimplemented from FMalloc.

GetDescriptiveName()

const TCHAR * FMallocBinned::GetDescriptiveName ( )

overridevirtual

Gets descriptive name for logging purposes.

Returns

pointer to human-readable malloc name

Reimplemented from FMalloc.

InitializeStatsMetadata()

void FMallocBinned::InitializeStatsMetadata ( )

overridevirtual

Initializes stats metadata. We need to do this as soon as possible, but cannot be done in the constructor due to the FName::StaticInit

Reimplemented from FMalloc.

IsInternallyThreadSafe()

bool FMallocBinned::IsInternallyThreadSafe ( ) const

overridevirtual

Returns if the allocator is guaranteed to be thread-safe and therefore doesn't need a unnecessary thread-safety wrapper around it.

Reimplemented from FMalloc.

Malloc()

void * FMallocBinned::Malloc ( SIZE_T  Size, uint32  Alignment  )

overridevirtual

Malloc

Implements FMalloc.

QuantizeSize()

SIZE_T FMallocBinned::QuantizeSize ( SIZE_T  Count, uint32  Alignment  )

overridevirtual

For some allocators this will return the actual size that should be requested to eliminate internal fragmentation. The return value will always be >= Count. This can be used to grow and shrink containers to optimal sizes. This call is always fast and threadsafe with no locking.

Reimplemented from FMalloc.

Realloc()

void * FMallocBinned::Realloc ( void *  Ptr, SIZE_T  NewSize, uint32  Alignment  )

overridevirtual

Realloc

Implements FMalloc.

UpdateStats()

void FMallocBinned::UpdateStats ( )

overridevirtual

Called once per frame, gathers and sets all memory allocator statistics into the corresponding stats. MUST BE THREAD SAFE.

Reimplemented from FMalloc.

ValidateHeap()

bool FMallocBinned::ValidateHeap ( )

overridevirtual

Validates the allocator's heap

Reimplemented from FMalloc.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Core/Public/HAL/MallocBinned.h
• Engine/Source/Runtime/Core/Private/HAL/MallocBinned.cpp
