Public Member Functions | Protected Attributes | List of all members
FMaterialUniformExpressionSparseVolumeTextureUniform Class Reference

#include <MaterialUniformExpressions.h>

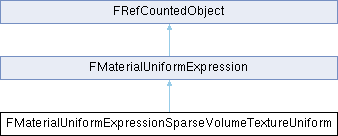

+ Inheritance diagram for FMaterialUniformExpressionSparseVolumeTextureUniform:

Public Member Functions

 FMaterialUniformExpressionSparseVolumeTextureUniform ()

 FMaterialUniformExpressionSparseVolumeTextureUniform (int32 InTextureIndex, int32 InVectorIndex)

 FMaterialUniformExpressionSparseVolumeTextureUniform (const FMaterialParameterInfo &InParameterInfo, int32 InTextureIndex, int32 InVectorIndex)

virtual bool IsConstant () const override

virtual bool IsIdentical (const FMaterialUniformExpression *OtherExpression) const override

virtual void WriteNumberOpcodes (UE::Shader::FPreshaderData &OutData) const override

- Public Member Functions inherited from FMaterialUniformExpression
virtual ~FMaterialUniformExpression ()

virtual FMaterialUniformExpressionType * GetType () const =0

virtual class FMaterialUniformExpressionTexture * GetTextureUniformExpression ()

virtual class FMaterialUniformExpressionExternalTexture * GetExternalTextureUniformExpression ()

virtual class FMaterialUniformExpressionTextureCollection * GetTextureCollectionUniformExpression ()

virtual void GetNumberValue (const struct FMaterialRenderContext &Context, FLinearColor &OutValue) const

virtual TArrayView< const FMaterialUniformExpression * > GetChildren () const

- Public Member Functions inherited from FRefCountedObject
 FRefCountedObject ()

virtual ~FRefCountedObject ()

 FRefCountedObject (const FRefCountedObject &Rhs)=delete

FRefCountedObject & operator= (const FRefCountedObject &Rhs)=delete

FReturnedRefCountValue AddRef () const

uint32 Release () const

uint32 GetRefCount () const


Protected Attributes

bool bParameter

FHashedMaterialParameterInfo ParameterInfo

int32 TextureIndex

int32 VectorIndex


Additional Inherited Members

- Public Attributes inherited from FMaterialUniformExpression
int32 UniformOffset = INDEX_NONE

int32 UniformIndex = INDEX_NONE


Detailed Description

A uniform expression to retrieve one of the vector uniform parameters stored in a USparseVolumeTexture

Constructor & Destructor Documentation

◆ FMaterialUniformExpressionSparseVolumeTextureUniform() [1/3]

FMaterialUniformExpressionSparseVolumeTextureUniform::FMaterialUniformExpressionSparseVolumeTextureUniform ( )

◆ FMaterialUniformExpressionSparseVolumeTextureUniform() [2/3]

FMaterialUniformExpressionSparseVolumeTextureUniform::FMaterialUniformExpressionSparseVolumeTextureUniform ( int32  InTextureIndex,
int32  InVectorIndex
)

Construct with the index of the texture reference and the vector index that we want to retrieve.

◆ FMaterialUniformExpressionSparseVolumeTextureUniform() [3/3]

FMaterialUniformExpressionSparseVolumeTextureUniform::FMaterialUniformExpressionSparseVolumeTextureUniform ( const FMaterialParameterInfo &  InParameterInfo,
int32  InTextureIndex,
int32  InVectorIndex
)

Construct with a URuntimeVirtualTexture parameter and the vector index that we want to retrieve.

Member Function Documentation

◆ IsConstant()

virtual bool FMaterialUniformExpressionSparseVolumeTextureUniform::IsConstant ( ) const
inlineoverridevirtual

Reimplemented from FMaterialUniformExpression.

◆ IsIdentical()

bool FMaterialUniformExpressionSparseVolumeTextureUniform::IsIdentical ( const FMaterialUniformExpression *  OtherExpression) const
overridevirtual

Reimplemented from FMaterialUniformExpression.

◆ WriteNumberOpcodes()

void FMaterialUniformExpressionSparseVolumeTextureUniform::WriteNumberOpcodes ( UE::Shader::FPreshaderData &  OutData) const
overridevirtual

Reimplemented from FMaterialUniformExpression.

Member Data Documentation

◆ bParameter

bool FMaterialUniformExpressionSparseVolumeTextureUniform::bParameter
protected

Is this expression using a material instance parameter.

◆ ParameterInfo

FHashedMaterialParameterInfo FMaterialUniformExpressionSparseVolumeTextureUniform::ParameterInfo
protected

Contains the parameter info used if bParameter is true.

◆ TextureIndex

int32 FMaterialUniformExpressionSparseVolumeTextureUniform::TextureIndex
protected

Index of the associated URuntimeVirtualTexture in the material texture references used if bParameter is false.

◆ VectorIndex

int32 FMaterialUniformExpressionSparseVolumeTextureUniform::VectorIndex
protected

Index of the uniform vector to fetch from the URuntimeVirtualTexture.

The documentation for this class was generated from the following files:
