FMotionVectorSimulation Class Reference

#include <MotionVectorSimulation.h>

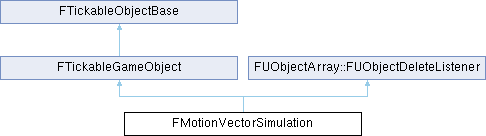

Inheritance diagram for FMotionVectorSimulation:

Public Member Functions
ENGINE_API bool	GetPreviousTransform (UObject *Object, FTransform *OutTransform) const
ENGINE_API TOptional< FTransform >	GetPreviousTransform (UObject *Object) const
ENGINE_API void	SetPreviousTransform (UObject *Object, const FTransform &SimulatedPreviousTransform)
ENGINE_API void	ClearPreviousTransform (UObject *Component)
virtual SIZE_T	GetAllocatedSize () const override
Public Member Functions inherited from FTickableGameObject
	UE_NONCOPYABLE (FTickableGameObject)
ENGINE_API	FTickableGameObject (ETickableTickType StartingTickType=ETickableTickType::NewObject)
virtual ENGINE_API	~FTickableGameObject ()
virtual bool	IsTickableWhenPaused () const
virtual UWorld *	GetTickableGameObjectWorld () const
ENGINE_API void	SetTickableTickType (ETickableTickType NewTickType)
Public Member Functions inherited from FTickableObjectBase
virtual ETickableTickType	GetTickableTickType () const
virtual bool	IsAllowedToTick () const
Public Member Functions inherited from FUObjectArray::FUObjectDeleteListener
virtual	~FUObjectDeleteListener ()
virtual void	NotifyUObjectDeleted (const class UObjectBase *Object, int32 Index)=0

Static Public Member Functions
static ENGINE_API FMotionVectorSimulation &	Get ()
static ENGINE_API bool	IsEnabled ()
Static Public Member Functions inherited from FTickableGameObject
static ENGINE_API void	TickObjects (UWorld *World, ELevelTick LevelTickType, bool bIsPaused, float DeltaSeconds)

Additional Inherited Members
Static Protected Member Functions inherited from FTickableObjectBase
static ENGINE_API void	SimpleTickObjects (FTickableStatics &Statics, TFunctionRef< void(FTickableObjectBase *)> TickFunc)

Detailed Description

Singleton class used for optionally overriding previous transforms for motion vector computation. This predominantly used by Sequencer on camera cut frames to forcibly inform the renderer of simulated trajectories for primitive components and cameras. Transforms are stored in an unintrusive sparse map per-component to avoid paying a memory cost for all components. Simulated transforms are only valid for the frame that they were added, and are removed on a subsequent tick.

Member Function Documentation

ClearPreviousTransform()

void FMotionVectorSimulation::ClearPreviousTransform

(

UObject *

Component

)

Clear the simulated previous transform for the specified component

Parameters

Object

The Object to clear the previous transform for

Get()

FMotionVectorSimulation & FMotionVectorSimulation::Get ( )

static

Access the singleton instance for motion vector simulation

Returns

the singleton instance

GetAllocatedSize()

virtual SIZE_T FMotionVectorSimulation::GetAllocatedSize ( ) const

inlineoverridevirtual

Returns the size of heap memory allocated internally by this listener

Reimplemented from FUObjectArray::FUObjectDeleteListener.

GetPreviousTransform() [1/2]

TOptional< FTransform > FMotionVectorSimulation::GetPreviousTransform

(

UObject *

Object

)

const

Check if the specified uboject has a simulated transform and return the result as an optional transform.

Note

: Previous simulated transforms are only valid for the frame on which they were added, and are removed on the next frame

Parameters

Object

The object to retrieve a previous transform for

Returns

An optional transform that is set if the specified component has a previous simulated transform, otherwise an empty optional.

GetPreviousTransform() [2/2]

bool FMotionVectorSimulation::GetPreviousTransform	(	UObject *	Object,
		FTransform *	OutTransform
	)		const

Check if the specified scene component has a simulated transform, setting the specified transform if so.

Note

: Previous simulated transforms are only valid for the frame on which they were added, and are removed on the next frame

Parameters

Object	The Object to retrieve a previous transform for
OutTransform	A valid (non-null) pointer to a transform to receive the simulated transform if possible.

Returns

True if OutTransform was overwritten with a valid transform, false otherwise.

IsEnabled()

bool FMotionVectorSimulation::IsEnabled ( )

static

Check whether motion vector simulation is enabled. When disabled, no transforms will be returned.

Returns

Whether motion vector simulation is currently enabled or not.

SetPreviousTransform()

void FMotionVectorSimulation::SetPreviousTransform	(	UObject *	Object,
		const FTransform &	SimulatedPreviousTransform
	)

Assign a simulated previous frame transform for the specified object. Overwrites any existing simulated transform.

Note

: Previous simulated transforms are only valid for the frame on which they were added, and are removed on the next frame

Parameters

Object	The Object to assign the previous transform to
SimulatedPreviousTransform	The simulated transform that this component had on the last frame

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Engine/Public/Rendering/MotionVectorSimulation.h
• Engine/Source/Runtime/Engine/Private/Rendering/MotionVectorSimulation.cpp
