FQueuedThreadPool Class Reference

#include <QueuedThreadPool.h>

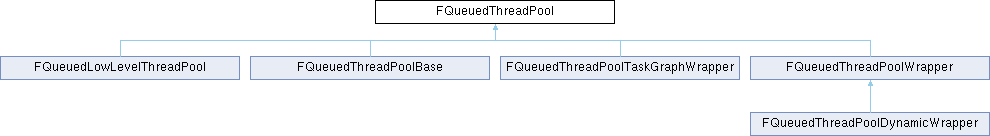

Inheritance diagram for FQueuedThreadPool:

Public Member Functions
virtual bool	Create (uint32 InNumQueuedThreads, uint32 StackSize=(32 *1024), EThreadPriority ThreadPriority=TPri_Normal, const TCHAR *Name=TEXT("UnknownThreadPool"))=0
virtual bool	CreateForkable (uint32 InNumQueuedThreads, uint32 StackSize=(32 *1024), EThreadPriority ThreadPriority=TPri_Normal, const TCHAR *Name=TEXT("UnknownThreadPool"))
virtual void	Destroy ()=0
virtual void	AddQueuedWork (IQueuedWork *InQueuedWork, EQueuedWorkPriority InQueuedWorkPriority=EQueuedWorkPriority::Normal)=0
virtual bool	RetractQueuedWork (IQueuedWork *InQueuedWork)=0
virtual int32	GetNumThreads () const =0
CORE_API	FQueuedThreadPool ()
virtual CORE_API	~FQueuedThreadPool ()

Static Public Member Functions
static CORE_API FQueuedThreadPool *	Allocate ()

Static Public Attributes
static CORE_API uint32	OverrideStackSize = 0

Detailed Description

Interface for queued thread pools.

This interface is used by all queued thread pools. It used as a callback by FQueuedThreads and is used to queue asynchronous work for callers.

Constructor & Destructor Documentation

FQueuedThreadPool()

FQueuedThreadPool::FQueuedThreadPool ( )

default

~FQueuedThreadPool()

FQueuedThreadPool::~FQueuedThreadPool ( )

virtualdefault

Member Function Documentation

AddQueuedWork()

virtual void FQueuedThreadPool::AddQueuedWork ( IQueuedWork *  InQueuedWork, EQueuedWorkPriority  InQueuedWorkPriority = EQueuedWorkPriority::Normal  )

pure virtual

Checks to see if there is a thread available to perform the task. If not, it queues the work for later. Otherwise it is immediately dispatched.

Parameters

InQueuedWork	The work that needs to be done asynchronously
InQueuedWorkPriority	The priority at which to process this task

See also

RetractQueuedWork

Implemented in FQueuedThreadPoolWrapper, FQueuedThreadPoolDynamicWrapper, and FQueuedThreadPoolBase.

Allocate()

FQueuedThreadPool * FQueuedThreadPool::Allocate ( )

static

Allocates a thread pool

Returns

A new thread pool.

Create()

virtual bool FQueuedThreadPool::Create ( uint32  InNumQueuedThreads, uint32  StackSize = (32 *1024), EThreadPriority  ThreadPriority = TPri_Normal, const TCHAR *  Name = TEXT("UnknownThreadPool")  )

pure virtual

Creates the thread pool with the specified number of threads

Parameters

InNumQueuedThreads	Specifies the number of threads to use in the pool
StackSize	The size of stack the threads in the pool need (32K default)
ThreadPriority	priority of new pool thread
Name	optional name for the pool to be used for instrumentation

Returns

Whether the pool creation was successful or not

Implemented in FQueuedLowLevelThreadPool, FQueuedThreadPoolBase, and FQueuedThreadPoolTaskGraphWrapper.

CreateForkable()

virtual bool FQueuedThreadPool::CreateForkable ( uint32  InNumQueuedThreads, uint32  StackSize = (32 * 1024), EThreadPriority  ThreadPriority = TPri_Normal, const TCHAR *  Name = TEXT("UnknownThreadPool")  )

inlinevirtual

Creates the thread pool with the specified number of forkable threads (see FForkProcessHelper)

Currently only works after the process has been forked because GetSingleThreadInterface() isn't implemented for pooled threads

Parameters

InNumQueuedThreads	Specifies the number of threads to use in the pool
StackSize	The size of stack the threads in the pool need (32K default)
ThreadPriority	priority of new pool thread
Name	optional name for the pool to be used for instrumentation

Returns

Whether the pool creation was successful or not

Reimplemented in FQueuedThreadPoolBase.

Destroy()

virtual void FQueuedThreadPool::Destroy ( )

pure virtual

Tells the pool to clean up all background threads

Implemented in FQueuedThreadPoolTaskGraphWrapper, FQueuedLowLevelThreadPool, and FQueuedThreadPoolBase.

GetNumThreads()

virtual int32 FQueuedThreadPool::GetNumThreads ( ) const

pure virtual

Get the number of queued threads

Implemented in FQueuedThreadPoolBase, and FQueuedThreadPoolWrapper.

RetractQueuedWork()

virtual bool FQueuedThreadPool::RetractQueuedWork ( IQueuedWork *  InQueuedWork )

pure virtual

Attempts to retract a previously queued task.

Parameters

InQueuedWork

The work to try to retract

Returns

true if the work was retracted

See also

AddQueuedWork

Implemented in FQueuedThreadPoolBase, and FQueuedThreadPoolWrapper.

Member Data Documentation

OverrideStackSize

uint32 FQueuedThreadPool::OverrideStackSize = 0

static

Stack size for threads created for the thread pool. Can be overridden by other projects. If 0 means to use the value passed in the Create method.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Core/Public/Misc/QueuedThreadPool.h
• Engine/Source/Runtime/Core/Private/HAL/ThreadingBase.cpp
