#include <SlateTextures.h>

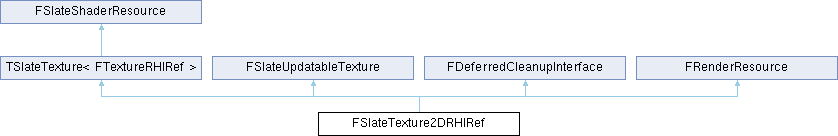

Inheritance diagram for FSlateTexture2DRHIRef:

Public Member Functions
ENGINE_API	FSlateTexture2DRHIRef (FTextureRHIRef InRef, uint32 InWidth, uint32 InHeight)

ENGINE_API	FSlateTexture2DRHIRef (uint32 InWidth, uint32 InHeight, EPixelFormat InPixelFormat, TSharedPtr< FSlateTextureData, ESPMode::ThreadSafe > InTextureData, ETextureCreateFlags InTexCreateFlags=TexCreate_None, bool bCreateEmptyTexture=false)

virtual ENGINE_API	~FSlateTexture2DRHIRef ()

virtual ENGINE_API void	Cleanup () override

virtual uint32	GetWidth () const override

virtual uint32	GetHeight () const override

virtual ENGINE_API void	InitRHI (FRHICommandListBase &RHICmdList) override

virtual ENGINE_API void	ReleaseRHI () override

ENGINE_API void	Resize (uint32 Width, uint32 Height)

bool	IsValid () const

ENGINE_API void	SetRHIRef (FTextureRHIRef InRenderTargetTexture, uint32 InWidth, uint32 InHeight)

FTextureRHIRef	GetRHIRef () const

ENGINE_API void	SetTextureData (FSlateTextureDataPtr NewTextureData)

ENGINE_API void	SetTextureData (FSlateTextureDataPtr NewTextureData, EPixelFormat InPixelFormat, ETextureCreateFlags InTexCreateFlags)

ENGINE_API void	ClearTextureData ()

EPixelFormat	GetPixelFormat () const

virtual FSlateShaderResource *	GetSlateResource () override

virtual FRenderResource *	GetRenderResource () override

virtual ENGINE_API void	ResizeTexture (uint32 Width, uint32 Height) override

virtual ENGINE_API void	UpdateTexture (const TArray< uint8 > &Bytes) override

virtual ENGINE_API void	UpdateTextureThreadSafe (const TArray< uint8 > &Bytes) override

virtual ENGINE_API void	UpdateTextureThreadSafeRaw (uint32 Width, uint32 Height, const void *Buffer, const FIntRect &Dirty) override

virtual ENGINE_API void	UpdateTextureThreadSafeWithTextureData (FSlateTextureData *BulkData) override

virtual void	UpdateTextureThreadSafeWithKeyedTextureHandle (void *TextureHandle, int KeyLockVal, int KeyUnlockVal, const FIntRect &Dirty=FIntRect()) override

Public Member Functions inherited from TSlateTexture< FTextureRHIRef >
	TSlateTexture ()

	TSlateTexture (FTextureRHIRef &InShaderResource)

virtual	~TSlateTexture ()

FTextureRHIRef &	GetTypedResource ()

virtual ESlateShaderResource::Type	GetType () const override

Public Member Functions inherited from FSlateShaderResource
virtual bool	IsResourceValid () const

virtual ESlatePostRT	GetUsedSlatePostBuffers () const

virtual bool	RequiresVirtualTextureFeedback () const

void	CheckForStaleResources () const

bool	Debug_IsDestroyed () const

virtual	~FSlateShaderResource ()=default

Public Member Functions inherited from FSlateUpdatableTexture
virtual	~FSlateUpdatableTexture ()

Public Member Functions inherited from FDeferredCleanupInterface
virtual	~FDeferredCleanupInterface ()

Public Member Functions inherited from FRenderResource
RENDERCORE_API	FRenderResource ()

RENDERCORE_API	FRenderResource (ERHIFeatureLevel::Type InFeatureLevel)

RENDERCORE_API	FRenderResource (const FRenderResource &)

RENDERCORE_API	FRenderResource (FRenderResource &&)

RENDERCORE_API FRenderResource &	operator= (const FRenderResource &Other)

RENDERCORE_API FRenderResource &	operator= (FRenderResource &&Other)

virtual RENDERCORE_API	~FRenderResource ()

virtual RENDERCORE_API void	InitResource (FRHICommandListBase &RHICmdList)

virtual RENDERCORE_API void	ReleaseResource ()

RENDERCORE_API void	UpdateRHI (FRHICommandListBase &RHICmdList)

virtual FString	GetFriendlyName () const

bool	IsInitialized () const

int32	GetListIndex () const

EInitPhase	GetInitPhase () const

void	SetOwnerName (FName InOwnerName)

FName	GetOwnerName () const

void	SetResourceName (FName InResourceName)

FName	GetResourceName () const

Protected Attributes
uint32	Width

uint32	Height

Protected Attributes inherited from TSlateTexture< FTextureRHIRef >
FTextureRHIRef	ShaderResource

Additional Inherited Members
Public Types inherited from FRenderResource
enum class	EInitPhase : uint8 { Pre , Default , MAX }

Static Public Member Functions inherited from FRenderResource
static RENDERCORE_API void	ReleaseRHIForAllResources ()

static RENDERCORE_API void	InitPreRHIResources ()

static RENDERCORE_API void	ChangeFeatureLevel (ERHIFeatureLevel::Type NewFeatureLevel)

static RENDERCORE_API FName	SetScopeName (FName Name)

Public Attributes inherited from FRenderResource
ERenderResourceState	ResourceState = ERenderResourceState::Default

Protected Member Functions inherited from FRenderResource
void	SetFeatureLevel (const FStaticFeatureLevel InFeatureLevel)

const FStaticFeatureLevel	GetFeatureLevel () const

bool	HasValidFeatureLevel () const

template<typename T >
FBufferRHIRef	CreateRHIBuffer (FRHICommandListBase &RHICmdList, T &InOutResourceObject, uint32 ResourceCount, EBufferUsageFlags InBufferUsageFlags, const TCHAR *InDebugName)

void	SetInitPhase (EInitPhase InInitPhase)

Static Protected Member Functions inherited from FRenderResource
static RENDERCORE_API FRHICommandListBase &	GetImmediateCommandList ()

Detailed Description

Encapsulates a Texture2DRHIRef for use by a Slate rendering implementation

Constructor & Destructor Documentation

◆ FSlateTexture2DRHIRef() [1/2]

FSlateTexture2DRHIRef::FSlateTexture2DRHIRef	(	FTextureRHIRef	InRef,
		uint32	InWidth,
		uint32	InHeight
	)

◆ FSlateTexture2DRHIRef() [2/2]

FSlateTexture2DRHIRef::FSlateTexture2DRHIRef	(	uint32	InWidth,
		uint32	InHeight,
		EPixelFormat	InPixelFormat,
		TSharedPtr< FSlateTextureData, ESPMode::ThreadSafe >	InTextureData,
		ETextureCreateFlags	InTexCreateFlags = `TexCreate_None`,
		bool	bCreateEmptyTexture = `false`
	)

◆ ~FSlateTexture2DRHIRef()

FSlateTexture2DRHIRef::~FSlateTexture2DRHIRef ( )

virtual

Member Function Documentation

◆ Cleanup()

void FSlateTexture2DRHIRef::Cleanup ( )

overridevirtual

Deferred or Immediate cleanup of this data depending on what is required.

Implements FSlateUpdatableTexture.

◆ ClearTextureData()

void FSlateTexture2DRHIRef::ClearTextureData ( )

Clears texture data being used. Can only be accessed on the render thread

◆ GetHeight()

virtual uint32 FSlateTexture2DRHIRef::GetHeight ( ) const

inlineoverridevirtual

Gets the height of the resource.

Returns: Resource height(in pixels).

Implements FSlateShaderResource.

◆ GetPixelFormat()

EPixelFormat FSlateTexture2DRHIRef::GetPixelFormat ( ) const

inline

Returns the pixel format of this texture

◆ GetRenderResource()

virtual FRenderResource * FSlateTexture2DRHIRef::GetRenderResource ( )

inlineoverridevirtual

Gets the interface to the underlying render resource (may not always be used)

Returns: FRenderResource* pointer to the render resource

Reimplemented from FSlateUpdatableTexture.

◆ GetRHIRef()

FTextureRHIRef FSlateTexture2DRHIRef::GetRHIRef ( ) const

inline

◆ GetSlateResource()

virtual FSlateShaderResource * FSlateTexture2DRHIRef::GetSlateResource ( )

inlineoverridevirtual

Gets the interface to the underlying platform independent texture

Returns: FSlateShaderResource* pointer to the shader resource

Implements FSlateUpdatableTexture.

◆ GetWidth()

virtual uint32 FSlateTexture2DRHIRef::GetWidth ( ) const

inlineoverridevirtual

Gets the width of the resource.

Returns: Resource width (in pixels).

Implements FSlateShaderResource.

◆ InitRHI()

void FSlateTexture2DRHIRef::InitRHI ( FRHICommandListBase & RHICmdList )

overridevirtual

FRenderResource Interface. Called when render resources need to be initialized

Reimplemented from FRenderResource.

◆ IsValid()

bool FSlateTexture2DRHIRef::IsValid ( ) const

inline

Returns: true if the texture is valid

◆ ReleaseRHI()

void FSlateTexture2DRHIRef::ReleaseRHI ( )

overridevirtual

FRenderResource Interface. Called when render resources need to be released

Reimplemented from FRenderResource.

◆ Resize()

void FSlateTexture2DRHIRef::Resize	(	uint32	Width,
		uint32	Height
	)

Resize the texture. Can only be called on the render thread

◆ ResizeTexture()

void FSlateTexture2DRHIRef::ResizeTexture	(	uint32	Width,
		uint32	Height
	)

overridevirtual

Resize the texture.

Parameters

Width	New texture width
Height	New texture height

Implements FSlateUpdatableTexture.

◆ SetRHIRef()

void FSlateTexture2DRHIRef::SetRHIRef	(	FTextureRHIRef	InRenderTargetTexture,
		uint32	InWidth,
		uint32	InHeight
	)

Sets the RHI Ref to use.

◆ SetTextureData() [1/2]

void FSlateTexture2DRHIRef::SetTextureData ( FSlateTextureDataPtr NewTextureData )

Sets the bulk data for this texture. Note: Does not reinitialize the resource, Can only be used on the render thread

Parameters

NewTextureData The new bulk data

◆ SetTextureData() [2/2]

void FSlateTexture2DRHIRef::SetTextureData	(	FSlateTextureDataPtr	NewTextureData,
		EPixelFormat	InPixelFormat,
		ETextureCreateFlags	InTexCreateFlags
	)

Sets the bulk data for this texture and the format of the rendering resource Note: Does not reinitialize the resource. Can only be used on the render thread

Parameters

NewTextureData	The new texture data
InPixelFormat	The format of the texture data
InTexCreateFlags	Flags for creating the rendering resource

◆ UpdateTexture()

void FSlateTexture2DRHIRef::UpdateTexture ( const TArray< uint8 > & Bytes )

overridevirtual

Updates the texture contents via a byte array. Note: This method is not thread safe so make sure you do not use the Bytes data on another after it is passed in

Parameters

Bytes Array of texture data

Implements FSlateUpdatableTexture.

◆ UpdateTextureThreadSafe()

void FSlateTexture2DRHIRef::UpdateTextureThreadSafe ( const TArray< uint8 > & Bytes )

overridevirtual

Updates the texture contents via a byte array making a copy first for thread safety

Parameters

Bytes Array of texture data

Implements FSlateUpdatableTexture.

◆ UpdateTextureThreadSafeRaw()

void FSlateTexture2DRHIRef::UpdateTextureThreadSafeRaw	(	uint32	Width,
		uint32	Height,
		const void *	Buffer,
		const FIntRect &	Dirty
	)

overridevirtual

Update the texture from a raw byte buffer. Should only be used when integrating with third party APIs that provide a raw pointer to texture data. This method does a copy of the buffer for thread safety. Will resize the texture if the passed in width and height is different from the current size. The passed in size must correspond to the size of the buffer and the data must be valid for the entire texture, even when passing in a Dirty rectangle, as the implementation may chose to copy a larger area than specified. The RHI renderer currently ignores the Dirty argument completely.

Parameters

Width	New texture width
Height	New texture height
Buffer	A void pointer to a byte buffer.
Dirty	An optional hint of the area to update. An empty rectangle means that the entire texture should be updated.

Implements FSlateUpdatableTexture.

◆ UpdateTextureThreadSafeWithKeyedTextureHandle()

virtual void FSlateTexture2DRHIRef::UpdateTextureThreadSafeWithKeyedTextureHandle	(	void *	TextureHandle,
		int	KeyLockVal,
		int	KeyUnlockVal,
		const FIntRect &	Dirty = `FIntRect()`
	)

inlineoverridevirtual

Update the texture from a shared texture handle. The handle type/usage is render system dependent, D3D uses the D3D11 OpenSharedResource call On macOS we use an IOSurface.

Parameters

TextureHandle	A pointer to the opque texture handle provided by the OS.
Dirty	An optional hint of the area to update. An empty rectangle means that the entire texture should be updated.

Implements FSlateUpdatableTexture.

◆ UpdateTextureThreadSafeWithTextureData()

void FSlateTexture2DRHIRef::UpdateTextureThreadSafeWithTextureData ( FSlateTextureData * TextureData )

overridevirtual

Update the texture from a provided FSlateTextureData buffer, also transferring ownership of the texture

Parameters

TextureData A pointer to the provided FSlateTextureData.

NOTE: This function transfers ownership of the FSlateTextureData object. It will be deleted once the texture is used

Implements FSlateUpdatableTexture.

Member Data Documentation

◆ Height

uint32 FSlateTexture2DRHIRef::Height

protected

Height of this texture

◆ Width

uint32 FSlateTexture2DRHIRef::Width

protected

Width of this texture

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Engine/Public/Slate/SlateTextures.h
Engine/Source/Runtime/Engine/Private/Slate/SlateTextures.cpp
