FSlotBase Class Reference

#include <SlotBase.h>

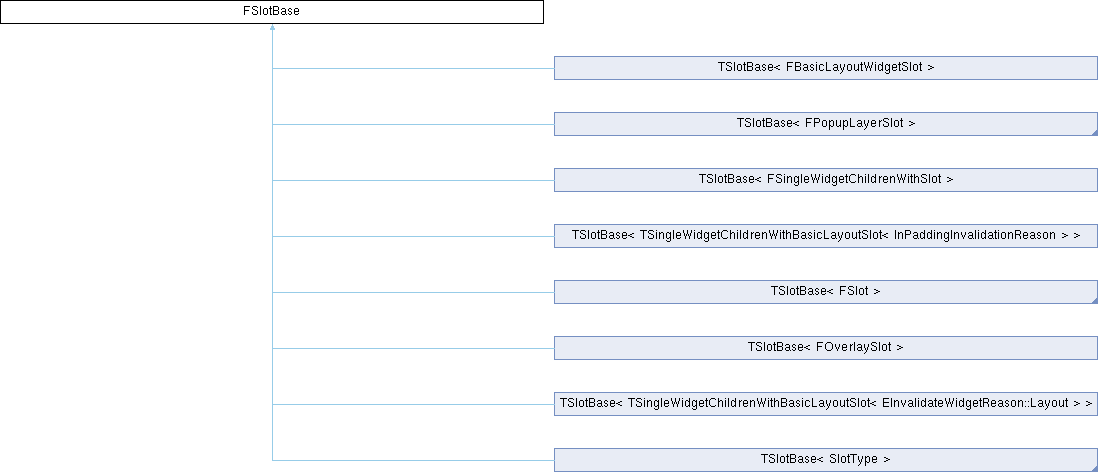

Inheritance diagram for FSlotBase:

Classes
struct	FSlotArguments

Public Member Functions
SLATECORE_API	FSlotBase ()
SLATECORE_API	FSlotBase (const FChildren &InParent)
SLATECORE_API	FSlotBase (const TSharedRef< SWidget > &InWidget)
FSlotBase &	operator= (const FSlotBase &)=delete
	FSlotBase (const FSlotBase &)=delete
virtual SLATECORE_API	~FSlotBase ()
const FChildren *	GetOwner () const
SLATECORE_API SWidget *	GetOwnerWidget () const
SLATECORE_API void	SetOwner (const FChildren &Children)
void	AttachWidget (TSharedRef< SWidget > &&InWidget)
void	AttachWidget (const TSharedRef< SWidget > &InWidget)
const TSharedRef< SWidget > &	GetWidget () const
SLATECORE_API const TSharedPtr< SWidget >	DetachWidget ()
SLATECORE_API void	Invalidate (EInvalidateWidgetReason InvalidateReason)

Protected Member Functions
template<typename TargetValueType , typename SourceValueType >
bool	SetAttribute (TAttribute< TargetValueType > &TargetValue, const TAttribute< SourceValueType > &SourceValue, EInvalidateWidgetReason BaseInvalidationReason)

Detailed Description

Slot are a container of a SWidget used by the FChildren.

Constructor & Destructor Documentation

FSlotBase() [1/4]

FSlotBase::FSlotBase

(

)

FSlotBase() [2/4]

FSlotBase::FSlotBase

(

const FChildren &

InParent

)

FSlotBase() [3/4]

FSlotBase::FSlotBase

(

const TSharedRef< SWidget > &

InWidget

)

FSlotBase() [4/4]

FSlotBase::FSlotBase ( const FSlotBase &  )

delete

~FSlotBase()

FSlotBase::~FSlotBase ( )

virtual

Member Function Documentation

AttachWidget() [1/2]

void FSlotBase::AttachWidget ( const TSharedRef< SWidget > &  InWidget )

inline

AttachWidget() [2/2]

void FSlotBase::AttachWidget ( TSharedRef< SWidget > &&  InWidget )

inline

Attach the child widget the slot now owns.

DetachWidget()

const TSharedPtr< SWidget > FSlotBase::DetachWidget

(

)

Remove the widget from its current slot. The removed widget is returned so that operations could be performed on it. If the null widget was being stored, an invalid shared ptr is returned instead.

GetOwner()

const FChildren * FSlotBase::GetOwner ( ) const

inline

Access the FChildren that own the slot. The owner can be invalid when the slot is not attached.

GetOwnerWidget()

SWidget * FSlotBase::GetOwnerWidget

(

)

const

Access the widget that own the slot. The owner can be invalid when the slot is not attached.

GetWidget()

const TSharedRef< SWidget > & FSlotBase::GetWidget ( ) const

inline

Access the widget in the current slot. There will always be a widget in the slot; sometimes it is the SNullWidget instance.

Invalidate()

void FSlotBase::Invalidate

(

EInvalidateWidgetReason

InvalidateReason

)

Invalidate the widget's owner.

operator=()

FSlotBase & FSlotBase::operator= ( const FSlotBase &  )

delete

SetAttribute()

template<typename TargetValueType , typename SourceValueType >

bool FSlotBase::SetAttribute ( TAttribute< TargetValueType > &  TargetValue, const TAttribute< SourceValueType > &  SourceValue, EInvalidateWidgetReason  BaseInvalidationReason  )

inlineprotected

Performs the attribute assignment and invalidates the widget minimally based on what actually changed. So if the boundness of the attribute didn't change volatility won't need to be recalculated. Returns true if the value changed.

SetOwner()

void FSlotBase::SetOwner

(

const FChildren &

Children

)

Set the owner of the slot. Slots cannot be reassigned to different parents.

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/SlateCore/Public/SlotBase.h
• Engine/Source/Runtime/SlateCore/Private/SlotBase.cpp
