FSubsystemCollectionBase Class Reference

#include <SubsystemCollection.h>

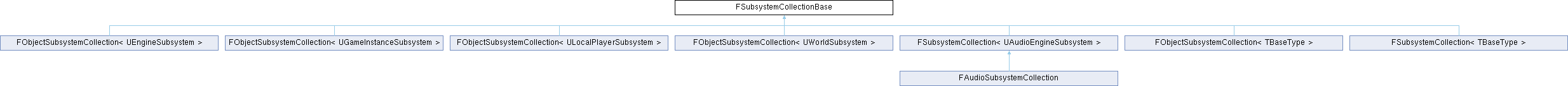

Inheritance diagram for FSubsystemCollectionBase:

Classes
struct	FSubsystemArray

Public Member Functions
ENGINE_API void	Initialize (UObject *NewOuter)
ENGINE_API void	Deinitialize ()
bool	IsInitialized () const
const UClass *	GetBaseType () const
ENGINE_API USubsystem *	InitializeDependency (TSubclassOf< USubsystem > SubsystemClass)
template<typename TSubsystemClass >
TSubsystemClass *	InitializeDependency ()
ENGINE_API void	AddReferencedObjects (UObject *Referencer, FReferenceCollector &Collector)

Static Public Member Functions
static ENGINE_API void	ActivateExternalSubsystem (UClass *SubsystemClass)
static ENGINE_API void	DeactivateExternalSubsystem (UClass *SubsystemClass)

Protected Member Functions
ENGINE_API	FSubsystemCollectionBase (UClass *InBaseType)
ENGINE_API	FSubsystemCollectionBase ()
virtual ENGINE_API	~FSubsystemCollectionBase ()
ENGINE_API USubsystem *	GetSubsystemInternal (UClass *SubsystemClass) const
ENGINE_API FSubsystemArray &	FindAndPopulateSubsystemArrayInternal (UClass *SubsystemClass) const
ENGINE_API TArray< USubsystem * >	GetSubsystemArrayCopy (UClass *SubsystemClass) const
ENGINE_API void	ForEachSubsystem (TFunctionRef< void(USubsystem *)> Operation) const
ENGINE_API void	ForEachSubsystemOfClass (UClass *SubsystemClass, TFunctionRef< void(USubsystem *)> Operation) const
ENGINE_API void	RemoveSubsystemsInPackages (TConstArrayView< UPackage * > Packages)

Friends
class	FSubsystemModuleWatcher

Constructor & Destructor Documentation

FSubsystemCollectionBase() [1/2]

FSubsystemCollectionBase::FSubsystemCollectionBase ( UClass *  InBaseType )

protected

protected constructor - for use by the template only(FSubsystemCollection<TBaseType>)

FSubsystemCollectionBase() [2/2]

FSubsystemCollectionBase::FSubsystemCollectionBase ( )

protected

protected constructor - Use the FSubsystemCollection<TBaseType> class

~FSubsystemCollectionBase()

FSubsystemCollectionBase::~FSubsystemCollectionBase ( )

protectedvirtual

destructor will be called from virtual ~FGCObject in GC cleanup

Member Function Documentation

ActivateExternalSubsystem()

void FSubsystemCollectionBase::ActivateExternalSubsystem ( UClass *  SubsystemClass )

static

Registers and adds instances of the specified Subsystem class to all existing SubsystemCollections of the correct type. Should be used by specific subsystems in plug ins when plugin is activated.

AddReferencedObjects()

void FSubsystemCollectionBase::AddReferencedObjects	(	UObject *	Referencer,
		FReferenceCollector &	Collector
	)

Collect references held by this collection

DeactivateExternalSubsystem()

void FSubsystemCollectionBase::DeactivateExternalSubsystem ( UClass *  SubsystemClass )

static

Unregisters and removed instances of the specified Subsystem class from all existing SubsystemCollections of the correct type. Should be used by specific subsystems in plug ins when plugin is deactivated.

Deinitialize()

void FSubsystemCollectionBase::Deinitialize

(

)

FindAndPopulateSubsystemArrayInternal()

FSubsystemCollectionBase::FSubsystemArray & FSubsystemCollectionBase::FindAndPopulateSubsystemArrayInternal ( UClass *  SubsystemClass ) const

protected

ForEachSubsystem()

void FSubsystemCollectionBase::ForEachSubsystem ( TFunctionRef< void(USubsystem *)>  Operation ) const

protected

Run the given operation on each registered subsystem. Any new subsystems registered during this operation will also be visited. It is not permitted to remove subsystems (e.g. by calling DeactivateExternalSubsystem) during this operation.

ForEachSubsystemOfClass()

void FSubsystemCollectionBase::ForEachSubsystemOfClass ( UClass *  SubsystemClass, TFunctionRef< void(USubsystem *)>  Operation  ) const

protected

Perform an operation on all subsystems that derive from the given class

GetBaseType()

const UClass * FSubsystemCollectionBase::GetBaseType ( ) const

inline

Get the collection BaseType

GetSubsystemArrayCopy()

TArray< USubsystem * > FSubsystemCollectionBase::GetSubsystemArrayCopy ( UClass *  SubsystemClass ) const

protected

Get a list of Subsystems by type

GetSubsystemInternal()

USubsystem * FSubsystemCollectionBase::GetSubsystemInternal ( UClass *  SubsystemClass ) const

protected

Get a Subsystem by type

Initialize()

void FSubsystemCollectionBase::Initialize

(

UObject *

NewOuter

)

Initialize the collection of systems, systems will be created and initialized

InitializeDependency() [1/2]

template<typename TSubsystemClass >

TSubsystemClass * FSubsystemCollectionBase::InitializeDependency ( )

inline

Only call from Initialize() of Systems to ensure initialization order Note: Dependencies only work within a collection

InitializeDependency() [2/2]

USubsystem * FSubsystemCollectionBase::InitializeDependency

(

TSubclassOf< USubsystem >

SubsystemClass

)

Only call from Initialize() of Systems to ensure initialization order Note: Dependencies only work within a collection

IsInitialized()

bool FSubsystemCollectionBase::IsInitialized ( ) const

inline

Returns true if collection was already initialized

RemoveSubsystemsInPackages()

void FSubsystemCollectionBase::RemoveSubsystemsInPackages ( TConstArrayView< UPackage * >  Packages )

protected

Remove all subsystems in this list of packages

Friends And Related Symbol Documentation

FSubsystemModuleWatcher

friend class FSubsystemModuleWatcher

friend

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Engine/Public/Subsystems/SubsystemCollection.h
• Engine/Source/Runtime/Engine/Private/Subsystems/SubsystemCollection.cpp
