#include <UObjectAnnotation.h>

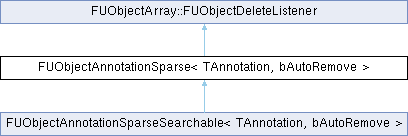

Inheritance diagram for FUObjectAnnotationSparse< TAnnotation, bAutoRemove >:

Public Member Functions
virtual void	NotifyUObjectDeleted (const UObjectBase *Object, int32 Index) override

virtual void	OnUObjectArrayShutdown () override

	FUObjectAnnotationSparse ()

virtual	~FUObjectAnnotationSparse ()

void	AddAnnotation (const UObjectBase *Object, TAnnotation &&Annotation)

void	AddAnnotation (const UObjectBase *Object, const TAnnotation &Annotation)

TAnnotation	GetAndRemoveAnnotation (const UObjectBase *Object)

void	RemoveAnnotation (const UObjectBase *Object)

void	RemoveAllAnnotations ()

TAnnotation	GetAnnotation (const UObjectBase *Object)

const TMap< const UObjectBase *, TAnnotation > &	GetAnnotationMap () const

void	Reserve (int32 ExpectedNumElements)

virtual SIZE_T	GetAllocatedSize () const override

Public Member Functions inherited from FUObjectArray::FUObjectDeleteListener
virtual	~FUObjectDeleteListener ()

virtual void	NotifyUObjectDeleted (const class UObjectBase *Object, int32 Index)=0

Protected Attributes
FTransactionallySafeRWLock	AnnotationMapCritical

FTransactionallySafeRWLock	AnnotationCacheCritical

TMap< const UObjectBase *, TAnnotation >	AnnotationMap

const UObjectBase *	AnnotationCacheKey = nullptr

TAnnotation	AnnotationCacheValue

bool	bRegistered = false

Detailed Description

template<typename TAnnotation, bool bAutoRemove>
class FUObjectAnnotationSparse< TAnnotation, bAutoRemove >

FUObjectAnnotationSparse is a helper class that is used to store sparse, slow, temporary, editor only, external or other low priority information about UObjects.

There is a notion of a default annotation and UObjects default to this annotation and this takes no storage.

Annotations are automatically cleaned up when UObjects are destroyed. Annotation are not "garbage collection aware", so it isn't safe to store pointers to other UObjects in an annotation unless external guarantees are made such that destruction of the other object removes the annotation.

Parameters

TAnnotation	type of the annotation
bAutoRemove	if true, annotation will automatically be removed, otherwise in non-final builds it will verify that the annotation was removed by other means prior to destruction.

Constructor & Destructor Documentation

◆ FUObjectAnnotationSparse()

template<typename TAnnotation , bool bAutoRemove>

FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::FUObjectAnnotationSparse ( )

inline

Constructor, initializes to nothing

◆ ~FUObjectAnnotationSparse()

template<typename TAnnotation , bool bAutoRemove>

virtual FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::~FUObjectAnnotationSparse ( )

inlinevirtual

Destructor, removes all annotations, which removes the annotation as a uobject destruction listener

Member Function Documentation

◆ AddAnnotation() [1/2]

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::AddAnnotation	(	const UObjectBase *	Object,
		const TAnnotation &	Annotation
	)

inline

◆ AddAnnotation() [2/2]

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::AddAnnotation	(	const UObjectBase *	Object,
		TAnnotation &&	Annotation
	)

inline

Add an annotation to the annotation list. If the Annotation is the default, then the annotation is removed.

Parameters

Object	Object to annotate.
Annotation	Annotation to associate with Object.

◆ GetAllocatedSize()

template<typename TAnnotation , bool bAutoRemove>

virtual SIZE_T FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::GetAllocatedSize ( ) const

inlineoverridevirtual

Returns the size of heap memory allocated internally by this listener

Reimplemented from FUObjectArray::FUObjectDeleteListener.

Reimplemented in FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >.

◆ GetAndRemoveAnnotation()

template<typename TAnnotation , bool bAutoRemove>

TAnnotation FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::GetAndRemoveAnnotation ( const UObjectBase * Object )

inline

Removes an annotation from the annotation list and returns the annotation if it had one

Parameters

Object Object to de-annotate.

Returns: Old annotation

◆ GetAnnotation()

template<typename TAnnotation , bool bAutoRemove>

TAnnotation FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::GetAnnotation ( const UObjectBase * Object )

inline

Return the annotation associated with a uobject

Parameters

Object Object to return the annotation for

◆ GetAnnotationMap()

template<typename TAnnotation , bool bAutoRemove>

const TMap< const UObjectBase *, TAnnotation > & FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::GetAnnotationMap ( ) const

inline

Return the annotation map. Caution, this is for low level use

Returns: A mapping from UObjectBase to annotation for non-default annotations

◆ NotifyUObjectDeleted()

template<typename TAnnotation , bool bAutoRemove>

virtual void FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::NotifyUObjectDeleted	(	const UObjectBase *	Object,
		int32	Index
	)

inlineoverridevirtual

Interface for FUObjectAllocator::FUObjectDeleteListener

Parameters

Object	object that has been destroyed
Index	index of object that is being deleted

Reimplemented in FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >.

◆ OnUObjectArrayShutdown()

template<typename TAnnotation , bool bAutoRemove>

virtual void FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::OnUObjectArrayShutdown ( )

inlineoverridevirtual

Called when UObject Array is being shut down, this is where all listeners should be removed from it

Implements FUObjectArray::FUObjectDeleteListener.

Reimplemented in FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >.

◆ RemoveAllAnnotations()

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::RemoveAllAnnotations ( )

inline

Removes all annotation from the annotation list.

◆ RemoveAnnotation()

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::RemoveAnnotation ( const UObjectBase * Object )

inline

Removes an annotation from the annotation list.

Parameters

Object Object to de-annotate.

◆ Reserve()

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::Reserve ( int32 ExpectedNumElements )

inline

Reserves memory for the annotation map for the specified number of elements, used to avoid reallocations.

Member Data Documentation

◆ AnnotationCacheCritical

template<typename TAnnotation , bool bAutoRemove>

FTransactionallySafeRWLock FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::AnnotationCacheCritical

mutableprotected

◆ AnnotationCacheKey

template<typename TAnnotation , bool bAutoRemove>

const UObjectBase* FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::AnnotationCacheKey = nullptr

protected

Key for a one-item cache of the last lookup into AnnotationMap. Guarded by AnnotationCacheCritical. Annotation are often called back-to-back so this is a performance optimization for that.

◆ AnnotationCacheValue

template<typename TAnnotation , bool bAutoRemove>

TAnnotation FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::AnnotationCacheValue

protected

Value for a one-item cache of the last lookup into AnnotationMap. Guarded by AnnotationCacheCritical.

◆ AnnotationMap

template<typename TAnnotation , bool bAutoRemove>

TMap<const UObjectBase *, TAnnotation> FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::AnnotationMap

protected

Map from live objects to an annotation. Guarded by AnnotationMapCritical.

◆ AnnotationMapCritical

template<typename TAnnotation , bool bAutoRemove>

FTransactionallySafeRWLock FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::AnnotationMapCritical

mutableprotected

Guards the annotation map, cache key and cache value.

◆ bRegistered

template<typename TAnnotation , bool bAutoRemove>

bool FUObjectAnnotationSparse< TAnnotation, bAutoRemove >::bRegistered = false

protected

Monitor registration to GUObjectArray/UObjectDeleteListener.

The documentation for this class was generated from the following file:

Engine/Source/Runtime/CoreUObject/Public/UObject/UObjectAnnotation.h
