FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove > Class Template Reference

#include <UObjectAnnotation.h>

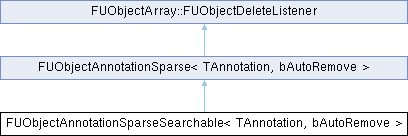

Inheritance diagram for FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >:

Public Member Functions
virtual void	NotifyUObjectDeleted (const UObjectBase *Object, int32 Index) override
virtual void	OnUObjectArrayShutdown () override
virtual	~FUObjectAnnotationSparseSearchable ()
UObject *	Find (const TAnnotation &Annotation)
void	AddAnnotation (const UObjectBase *Object, const TAnnotation &Annotation)
void	AddAnnotation (const UObjectBase *Object, TAnnotation &&Annotation)
void	RemoveAnnotation (const UObjectBase *Object)
void	RemoveAllAnnotations ()
virtual SIZE_T	GetAllocatedSize () const override
Public Member Functions inherited from FUObjectAnnotationSparse< TAnnotation, bAutoRemove >
	FUObjectAnnotationSparse ()
virtual	~FUObjectAnnotationSparse ()
void	AddAnnotation (const UObjectBase *Object, TAnnotation &&Annotation)
void	AddAnnotation (const UObjectBase *Object, const TAnnotation &Annotation)
TAnnotation	GetAndRemoveAnnotation (const UObjectBase *Object)
void	RemoveAnnotation (const UObjectBase *Object)
void	RemoveAllAnnotations ()
TAnnotation	GetAnnotation (const UObjectBase *Object)
const TMap< const UObjectBase *, TAnnotation > &	GetAnnotationMap () const
void	Reserve (int32 ExpectedNumElements)
Public Member Functions inherited from FUObjectArray::FUObjectDeleteListener
virtual	~FUObjectDeleteListener ()
virtual void	NotifyUObjectDeleted (const class UObjectBase *Object, int32 Index)=0

Additional Inherited Members
Protected Attributes inherited from FUObjectAnnotationSparse< TAnnotation, bAutoRemove >
FTransactionallySafeRWLock	AnnotationMapCritical
FTransactionallySafeRWLock	AnnotationCacheCritical
TMap< const UObjectBase *, TAnnotation >	AnnotationMap
const UObjectBase *	AnnotationCacheKey = nullptr
TAnnotation	AnnotationCacheValue
bool	bRegistered = false

Detailed Description

template<typename TAnnotation, bool bAutoRemove>
class FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >

FUObjectAnnotationSparseSearchable is a helper class that is used to store sparse, slow, temporary, editor only, external or other low priority information about UObjects...and also provides the ability to find a object based on the unique annotation.

All of the restrictions mentioned for FUObjectAnnotationSparse apply

Parameters

TAnnotation	type of the annotation
bAutoRemove	if true, annotation will automatically be removed, otherwise in non-final builds it will verify that the annotation was removed by other means prior to destruction.

Constructor & Destructor Documentation

~FUObjectAnnotationSparseSearchable()

template<typename TAnnotation , bool bAutoRemove>

virtual FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::~FUObjectAnnotationSparseSearchable ( )

inlinevirtual

Destructor, removes all annotations, which removes the annotation as a uobject destruction listener

Member Function Documentation

AddAnnotation() [1/2]

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::AddAnnotation ( const UObjectBase *  Object, const TAnnotation &  Annotation  )

inline

Add an annotation to the annotation list. If the Annotation is the default, then the annotation is removed.

Parameters

Object	Object to annotate.
Annotation	Annotation to associate with Object.

AddAnnotation() [2/2]

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::AddAnnotation ( const UObjectBase *  Object, TAnnotation &&  Annotation  )

inline

Find()

template<typename TAnnotation , bool bAutoRemove>

UObject * FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::Find ( const TAnnotation &  Annotation )

inline

Find the UObject associated with a given annotation

Parameters

Annotation

Annotation to find

Returns

Object associated with this annotation or NULL if none found

GetAllocatedSize()

template<typename TAnnotation , bool bAutoRemove>

virtual SIZE_T FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::GetAllocatedSize ( ) const

inlineoverridevirtual

Returns the size of heap memory allocated internally by this listener

Reimplemented from FUObjectAnnotationSparse< TAnnotation, bAutoRemove >.

NotifyUObjectDeleted()

template<typename TAnnotation , bool bAutoRemove>

virtual void FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::NotifyUObjectDeleted ( const UObjectBase *  Object, int32  Index  )

inlineoverridevirtual

Interface for FUObjectAllocator::FUObjectDeleteListener

Parameters

Object	object that has been destroyed
Index	index of object that is being deleted

Reimplemented from FUObjectAnnotationSparse< TAnnotation, bAutoRemove >.

OnUObjectArrayShutdown()

template<typename TAnnotation , bool bAutoRemove>

virtual void FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::OnUObjectArrayShutdown ( )

inlineoverridevirtual

Called when UObject Array is being shut down, this is where all listeners should be removed from it

Reimplemented from FUObjectAnnotationSparse< TAnnotation, bAutoRemove >.

RemoveAllAnnotations()

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::RemoveAllAnnotations ( )

inline

Removes all annotation from the annotation list.

RemoveAnnotation()

template<typename TAnnotation , bool bAutoRemove>

void FUObjectAnnotationSparseSearchable< TAnnotation, bAutoRemove >::RemoveAnnotation ( const UObjectBase *  Object )

inline

Removes an annotation from the annotation list.

Parameters

Object

Object to de-annotate.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/CoreUObject/Public/UObject/UObjectAnnotation.h
