FVoiceCaptureWindows Class Reference

#include <VoiceCaptureWindows.h>

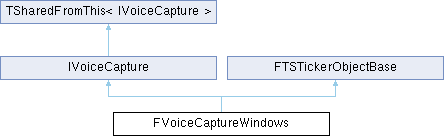

Inheritance diagram for FVoiceCaptureWindows:

Public Member Functions
	FVoiceCaptureWindows ()
	~FVoiceCaptureWindows ()
virtual bool	Init (const FString &DeviceName, int32 SampleRate, int32 NumChannels) override
virtual void	Shutdown () override
virtual bool	Start () override
virtual void	Stop () override
virtual bool	ChangeDevice (const FString &DeviceName, int32 SampleRate, int32 NumChannels) override
virtual bool	IsCapturing () override
virtual EVoiceCaptureState::Type	GetCaptureState (uint32 &OutAvailableVoiceData) const override
virtual EVoiceCaptureState::Type	GetVoiceData (uint8 *OutVoiceBuffer, uint32 InVoiceBufferSize, uint32 &OutAvailableVoiceData) override
virtual EVoiceCaptureState::Type	GetVoiceData (uint8 *OutVoiceBuffer, uint32 InVoiceBufferSize, uint32 &OutAvailableVoiceData, uint64 &OutSampleCounter) override
virtual int32	GetBufferSize () const override
virtual void	DumpState () const override
virtual float	GetCurrentAmplitude () const override
virtual bool	Tick (float DeltaTime) override
Public Member Functions inherited from IVoiceCapture
virtual	~IVoiceCapture ()
Audio::FPatchOutputStrongPtr	GetMicrophoneAudio (int32 MaxExpectedLatencyInSamples, float Gain)
Public Member Functions inherited from TSharedFromThis< IVoiceCapture >
TSharedRef< IVoiceCapture, Mode >	AsShared ()
TSharedRef< IVoiceCapture const, Mode >	AsShared () const
TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const
TWeakPtr< IVoiceCapture, Mode >	AsWeak ()
TWeakPtr< IVoiceCapture const, Mode >	AsWeak () const
TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const
void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const
void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const
UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const
Public Member Functions inherited from FTSTickerObjectBase
	UE_NONCOPYABLE (FTSTickerObjectBase)
CORE_API	FTSTickerObjectBase (float InDelay=0.0f, FTSTicker &Ticker=FTSTicker::GetCoreTicker())
virtual CORE_API	~FTSTickerObjectBase ()

Additional Inherited Members
Protected Member Functions inherited from IVoiceCapture
	IVoiceCapture ()
Protected Member Functions inherited from TSharedFromThis< IVoiceCapture >
	TSharedFromThis ()
	TSharedFromThis (TSharedFromThis const &)
UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)
	~TSharedFromThis ()
Static Protected Member Functions inherited from TSharedFromThis< IVoiceCapture >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)
static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)
Protected Attributes inherited from IVoiceCapture
Audio::FPatchSplitter	MicrophoneOutput

Detailed Description

Windows implementation of voice capture using DirectSound

Constructor & Destructor Documentation

FVoiceCaptureWindows()

FVoiceCaptureWindows::FVoiceCaptureWindows

(

)

~FVoiceCaptureWindows()

FVoiceCaptureWindows::~FVoiceCaptureWindows

(

)

Member Function Documentation

ChangeDevice()

virtual bool FVoiceCaptureWindows::ChangeDevice ( const FString &  DeviceName, int32  SampleRate, int32  NumChannels  )

overridevirtual

Change the associated capture device

Parameters

DeviceName	name of device to capture audio data with, empty for default device
SampleRate	sampling rate of voice capture
NumChannels	number of channels to capture

Returns

true if change was successful, false otherwise

Implements IVoiceCapture.

DumpState()

virtual void FVoiceCaptureWindows::DumpState ( ) const

overridevirtual

Dump the state of the voice capture device

Implements IVoiceCapture.

GetBufferSize()

virtual int32 FVoiceCaptureWindows::GetBufferSize ( ) const

overridevirtual

Returns

number of bytes currently allocated in the capture buffer

Implements IVoiceCapture.

GetCaptureState()

virtual EVoiceCaptureState::Type FVoiceCaptureWindows::GetCaptureState ( uint32 &  OutAvailableVoiceData ) const

overridevirtual

Return the state of the voice data and its availability

Parameters

OutAvailableVoiceData

size, in bytes, of available voice data

Returns

state of the voice capture buffer

Implements IVoiceCapture.

GetCurrentAmplitude()

virtual float FVoiceCaptureWindows::GetCurrentAmplitude ( ) const

overridevirtual

Returns

the current loudness of the microphone. Returns -1.0 if this function is not supported by the current platform.

Reimplemented from IVoiceCapture.

GetVoiceData() [1/2]

virtual EVoiceCaptureState::Type FVoiceCaptureWindows::GetVoiceData ( uint8 *  OutVoiceBuffer, uint32  InVoiceBufferSize, uint32 &  OutAvailableVoiceData  )

overridevirtual

Fill a buffer with all available voice data

Parameters

OutVoiceBuffer	allocated buffer to fill with voice data
InVoiceBufferSize	size, in bytes, of allocated buffer
OutAvailableVoiceData	size, in bytes, of data placed in the OutVoiceBuffer
OutSampleCounter	optional parameter for beginning sample of this buffer.

Returns

state of the voice capture buffer

Reimplemented from IVoiceCapture.

GetVoiceData() [2/2]

virtual EVoiceCaptureState::Type FVoiceCaptureWindows::GetVoiceData ( uint8 *  OutVoiceBuffer, uint32  InVoiceBufferSize, uint32 &  OutAvailableVoiceData, uint64 &  OutSampleCounter  )

overridevirtual

Reimplemented from IVoiceCapture.

Init()

virtual bool FVoiceCaptureWindows::Init ( const FString &  DeviceName, int32  SampleRate, int32  NumChannels  )

overridevirtual

Initialize the voice capture object

Parameters

DeviceName	name of device to capture audio data with, empty for default device
SampleRate	sampling rate of voice capture
NumChannels	number of channels to capture

Returns

true if successful, false otherwise

Implements IVoiceCapture.

IsCapturing()

virtual bool FVoiceCaptureWindows::IsCapturing ( )

overridevirtual

Is the voice capture object actively capturing

Returns

true if voice is being captured, false otherwise

Implements IVoiceCapture.

Shutdown()

virtual void FVoiceCaptureWindows::Shutdown ( )

overridevirtual

Shutdown the voice capture object

Implements IVoiceCapture.

Start()

virtual bool FVoiceCaptureWindows::Start ( )

overridevirtual

Start capturing voice

Returns

true if successfully started, false otherwise

Implements IVoiceCapture.

Stop()

virtual void FVoiceCaptureWindows::Stop ( )

overridevirtual

Stop capturing voice

Implements IVoiceCapture.

Tick()

virtual bool FVoiceCaptureWindows::Tick ( float  DeltaTime )

overridevirtual

Pure virtual that must be overloaded by the inheriting class.

Parameters

DeltaTime

time passed since the last call.

Returns

true if should continue ticking

Implements FTSTickerObjectBase.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Online/Voice/Private/Windows/VoiceCaptureWindows.h
