#include <VoiceCapture.h>

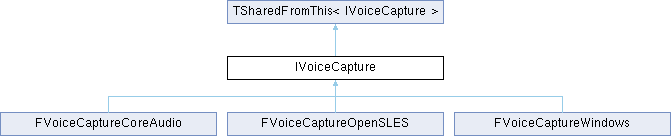

Inheritance diagram for IVoiceCapture:

Public Member Functions
virtual	~IVoiceCapture ()

virtual bool	Init (const FString &DeviceName, int32 SampleRate, int32 NumChannels)=0

virtual void	Shutdown ()=0

virtual bool	Start ()=0

virtual void	Stop ()=0

virtual bool	ChangeDevice (const FString &DeviceName, int32 SampleRate, int32 NumChannels)=0

virtual bool	IsCapturing ()=0

virtual EVoiceCaptureState::Type	GetCaptureState (uint32 &OutAvailableVoiceData) const =0

virtual EVoiceCaptureState::Type	GetVoiceData (uint8 *OutVoiceBuffer, uint32 InVoiceBufferSize, uint32 &OutAvailableVoiceData)

virtual EVoiceCaptureState::Type	GetVoiceData (uint8 *OutVoiceBuffer, uint32 InVoiceBufferSize, uint32 &OutAvailableVoiceData, uint64 &OutSampleCounter)

virtual int32	GetBufferSize () const =0

virtual void	DumpState () const =0

Audio::FPatchOutputStrongPtr	GetMicrophoneAudio (int32 MaxExpectedLatencyInSamples, float Gain)

virtual float	GetCurrentAmplitude () const

Public Member Functions inherited from TSharedFromThis< IVoiceCapture >
TSharedRef< IVoiceCapture, Mode >	AsShared ()

TSharedRef< IVoiceCapture const, Mode >	AsShared () const

TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< IVoiceCapture, Mode >	AsWeak ()

TWeakPtr< IVoiceCapture const, Mode >	AsWeak () const

TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const

void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const InSharedPtr, OtherType InObject) const

void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const InSharedRef, OtherType InObject) const

UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Protected Member Functions
	IVoiceCapture ()

Protected Member Functions inherited from TSharedFromThis< IVoiceCapture >
	TSharedFromThis ()

	TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)

	~TSharedFromThis ()

Protected Attributes
Audio::FPatchSplitter	MicrophoneOutput

Additional Inherited Members
Static Protected Member Functions inherited from TSharedFromThis< IVoiceCapture >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Detailed Description

Interface for capturing voice data on any platform

Constructor & Destructor Documentation

◆ IVoiceCapture()

IVoiceCapture::IVoiceCapture ( )

inlineprotected

◆ ~IVoiceCapture()

virtual IVoiceCapture::~IVoiceCapture ( )

inlinevirtual

Member Function Documentation

◆ ChangeDevice()

virtual bool IVoiceCapture::ChangeDevice	(	const FString &	DeviceName,
		int32	SampleRate,
		int32	NumChannels
	)

pure virtual

Change the associated capture device

Parameters

DeviceName	name of device to capture audio data with, empty for default device
SampleRate	sampling rate of voice capture
NumChannels	number of channels to capture

Returns: true if change was successful, false otherwise

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ DumpState()

virtual void IVoiceCapture::DumpState ( ) const

pure virtual

Dump the state of the voice capture device

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ GetBufferSize()

virtual int32 IVoiceCapture::GetBufferSize ( ) const

pure virtual

Returns: number of bytes currently allocated in the capture buffer

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ GetCaptureState()

virtual EVoiceCaptureState::Type IVoiceCapture::GetCaptureState ( uint32 & OutAvailableVoiceData ) const

pure virtual

Return the state of the voice data and its availability

Parameters

OutAvailableVoiceData size, in bytes, of available voice data

Returns: state of the voice capture buffer

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ GetCurrentAmplitude()

virtual float IVoiceCapture::GetCurrentAmplitude ( ) const

inlinevirtual

Returns: the current loudness of the microphone. Returns -1.0 if this function is not supported by the current platform.

Reimplemented in FVoiceCaptureWindows.

◆ GetMicrophoneAudio()

Audio::FPatchOutputStrongPtr IVoiceCapture::GetMicrophoneAudio	(	int32	MaxExpectedLatencyInSamples,
		float	Gain
	)

inline

Returns: a new output for this mic's audio.

◆ GetVoiceData() [1/2]

virtual EVoiceCaptureState::Type IVoiceCapture::GetVoiceData	(	uint8 *	OutVoiceBuffer,
		uint32	InVoiceBufferSize,
		uint32 &	OutAvailableVoiceData
	)

inlinevirtual

Fill a buffer with all available voice data

Parameters

OutVoiceBuffer	allocated buffer to fill with voice data
InVoiceBufferSize	size, in bytes, of allocated buffer
OutAvailableVoiceData	size, in bytes, of data placed in the OutVoiceBuffer
OutSampleCounter	optional parameter for beginning sample of this buffer.

Returns: state of the voice capture buffer

Reimplemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ GetVoiceData() [2/2]

virtual EVoiceCaptureState::Type IVoiceCapture::GetVoiceData	(	uint8 *	OutVoiceBuffer,
		uint32	InVoiceBufferSize,
		uint32 &	OutAvailableVoiceData,
		uint64 &	OutSampleCounter
	)

inlinevirtual

Reimplemented in FVoiceCaptureWindows.

◆ Init()

virtual bool IVoiceCapture::Init	(	const FString &	DeviceName,
		int32	SampleRate,
		int32	NumChannels
	)

pure virtual

Initialize the voice capture object

Parameters

DeviceName	name of device to capture audio data with, empty for default device
SampleRate	sampling rate of voice capture
NumChannels	number of channels to capture

Returns: true if successful, false otherwise

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ IsCapturing()

virtual bool IVoiceCapture::IsCapturing ( )

pure virtual

Is the voice capture object actively capturing

Returns: true if voice is being captured, false otherwise

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ Shutdown()

virtual void IVoiceCapture::Shutdown ( )

pure virtual

Shutdown the voice capture object

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ Start()

virtual bool IVoiceCapture::Start ( )

pure virtual

Start capturing voice

Returns: true if successfully started, false otherwise

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

◆ Stop()

virtual void IVoiceCapture::Stop ( )

pure virtual

Stop capturing voice

Implemented in FVoiceCaptureOpenSLES, FVoiceCaptureCoreAudio, and FVoiceCaptureWindows.

Member Data Documentation

◆ MicrophoneOutput

Audio::FPatchSplitter IVoiceCapture::MicrophoneOutput

protected

Optional patch point for MicrophoneOutput.

The documentation for this class was generated from the following file:

Engine/Source/Runtime/Online/Voice/Public/Interfaces/VoiceCapture.h
