#include <AudioDecompress.h>

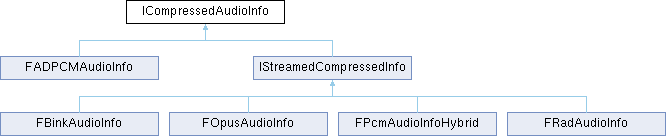

Inheritance diagram for ICompressedAudioInfo:

Public Member Functions
ENGINE_API	ICompressedAudioInfo ()

virtual ENGINE_API	~ICompressedAudioInfo ()

virtual bool	ReadCompressedInfo (const uint8 InSrcBufferData, uint32 InSrcBufferDataSize, struct FSoundQualityInfo QualityInfo)=0

virtual bool	ReadCompressedData (uint8 *Destination, bool bLooping, uint32 BufferSize)=0

virtual void	SeekToTime (const float SeekTime)=0

virtual void	SeekToFrame (const uint32 Frame)=0

virtual void	ExpandFile (uint8 DstBuffer, struct FSoundQualityInfo QualityInfo)=0

virtual void	EnableHalfRate (bool HalfRate)=0

virtual uint32	GetSourceBufferSize () const =0

virtual bool	UsesVorbisChannelOrdering () const =0

virtual int	GetStreamBufferSize () const =0

virtual bool	IsStreamedCompressedInfo () const

virtual bool	SupportsStreaming () const

virtual bool	ReleaseStreamChunk (bool bBlockUntilReleased)

ENGINE_API bool	StreamCompressedInfo (USoundWave Wave, struct FSoundQualityInfo QualityInfo)

ENGINE_API bool	StreamCompressedInfo (const FSoundWaveProxyPtr &Wave, struct FSoundQualityInfo *QualityInfo)

virtual ENGINE_API bool	HasError () const

virtual bool	StreamCompressedData (uint8 *Destination, bool bLooping, uint32 BufferSize, int32 &OutNumBytesStreamed)

virtual int32	GetCurrentChunkIndex () const

virtual int32	GetCurrentChunkOffset () const

virtual const FSoundWaveProxyPtr &	GetStreamingSoundWave () const

Protected Member Functions
virtual bool	StreamCompressedInfoInternal (const FSoundWaveProxyPtr &InWaveProxy, struct FSoundQualityInfo *QualityInfo)=0

bool	WantsFilteredLogging () const

Protected Attributes
bool	bHasError = false

bool	bWantsFilteredLogging = false

FSoundWaveProxyPtr	StreamingSoundWave

Detailed Description

Interface class to decompress various types of audio data

Constructor & Destructor Documentation

◆ ICompressedAudioInfo()

ICompressedAudioInfo::ICompressedAudioInfo ( )

◆ ~ICompressedAudioInfo()

ICompressedAudioInfo::~ICompressedAudioInfo ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ EnableHalfRate()

virtual void ICompressedAudioInfo::EnableHalfRate ( bool HalfRate )

pure virtual

Sets decode to half-rate

Parameters

HalfRate Whether Half rate is enabled

Implemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ ExpandFile()

virtual void ICompressedAudioInfo::ExpandFile	(	uint8 *	DstBuffer,
		struct FSoundQualityInfo *	QualityInfo
	)

pure virtual

Decompress an entire data file to a TArray

Implemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ GetCurrentChunkIndex()

virtual int32 ICompressedAudioInfo::GetCurrentChunkIndex ( ) const

inlinevirtual

Gets the chunk index that was last read from (for Streaming Manager requests)

Reimplemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ GetCurrentChunkOffset()

virtual int32 ICompressedAudioInfo::GetCurrentChunkOffset ( ) const

inlinevirtual

Gets the offset into the chunk that was last read to (for Streaming Manager priority)

Reimplemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ GetSourceBufferSize()

virtual uint32 ICompressedAudioInfo::GetSourceBufferSize ( ) const

pure virtual

Gets the size of the source buffer originally passed to the info class (bytes)

Implemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ GetStreamBufferSize()

virtual int ICompressedAudioInfo::GetStreamBufferSize ( ) const

pure virtual

Gets the preferred size for a streaming buffer for this decompression scheme

Implemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ GetStreamingSoundWave()

virtual const FSoundWaveProxyPtr & ICompressedAudioInfo::GetStreamingSoundWave ( ) const

inlinevirtual

Return the streaming sound wave used by this decoder. Returns nullptr if there is not a streaming sound wave.

◆ HasError()

bool ICompressedAudioInfo::HasError ( ) const

virtual

Returns true if a non-recoverable error has occurred.

Reimplemented in FBinkAudioInfo, and FRadAudioInfo.

◆ IsStreamedCompressedInfo()

virtual bool ICompressedAudioInfo::IsStreamedCompressedInfo ( ) const

inlinevirtual

Returns whether this instance can be cast to a IStreamedCompressedInfo. Surprisingly SupportsStreaming doesn't work for this.

Reimplemented in IStreamedCompressedInfo.

◆ ReadCompressedData()

virtual bool ICompressedAudioInfo::ReadCompressedData	(	uint8 *	Destination,
		bool	bLooping,
		uint32	BufferSize
	)

pure virtual

Decompresses data to raw PCM data.

Parameters

Destination	where to place the decompressed sound
bLooping	whether to loop the sound by seeking to the start, or pad the buffer with zeroes
BufferSize	number of bytes of PCM data to create

Returns: bool true if the end of the data was reached (for both single shot and looping sounds)

Implemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ ReadCompressedInfo()

virtual bool ICompressedAudioInfo::ReadCompressedInfo	(	const uint8 *	InSrcBufferData,
		uint32	InSrcBufferDataSize,
		struct FSoundQualityInfo *	QualityInfo
	)

pure virtual

Reads the header information of a compressed format

Parameters

InSrcBufferData	Source compressed data
InSrcBufferDataSize	Size of compressed data
QualityInfo	Quality Info (to be filled out). This can be null in the case of most implementations of FSoundBuffer::ReadCompressedInfo

Implemented in IStreamedCompressedInfo, and FADPCMAudioInfo.

◆ ReleaseStreamChunk()

virtual bool ICompressedAudioInfo::ReleaseStreamChunk ( bool bBlockUntilReleased )

inlinevirtual

This can be called to explicitly release this decoder's reference to a chunk of compressed audio without destroying the decoder itself.

Parameters

bBlockUntilReleased when set to true will cause this call to block if the decoder is currently using the chunk.

Returns: true if the chunk was released, false otherwise.

Reimplemented in FADPCMAudioInfo.

◆ SeekToFrame()

virtual void ICompressedAudioInfo::SeekToFrame ( const uint32 Frame )

pure virtual

Seeks to specific frame in the audio (Some formats might not be seekable)

Implemented in FPcmAudioInfoHybrid, FADPCMAudioInfo, IStreamedCompressedInfo, FOpusAudioInfo, FBinkAudioInfo, and FRadAudioInfo.

◆ SeekToTime()

virtual void ICompressedAudioInfo::SeekToTime ( const float SeekTime )

pure virtual

Seeks to time (Some formats might not be seekable)

Implemented in FPcmAudioInfoHybrid, FADPCMAudioInfo, IStreamedCompressedInfo, FOpusAudioInfo, FBinkAudioInfo, and FRadAudioInfo.

◆ StreamCompressedData()

virtual bool ICompressedAudioInfo::StreamCompressedData	(	uint8 *	Destination,
		bool	bLooping,
		uint32	BufferSize,
		int32 &	OutNumBytesStreamed
	)

inlinevirtual

Decompresses streamed data to raw PCM data.

Parameters

Destination	where to place the decompressed sound
bLooping	whether to loop the sound by seeking to the start, or pad the buffer with zeros
BufferSize	number of bytes of PCM data to create

Returns: bool true if the end of the data was reached (for both single shot and looping sounds)

Reimplemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ StreamCompressedInfo() [1/2]

bool ICompressedAudioInfo::StreamCompressedInfo	(	const FSoundWaveProxyPtr &	Wave,
		struct FSoundQualityInfo *	QualityInfo
	)

◆ StreamCompressedInfo() [2/2]

bool ICompressedAudioInfo::StreamCompressedInfo	(	USoundWave *	Wave,
		struct FSoundQualityInfo *	QualityInfo
	)

Streams the header information of a compressed format

Parameters

Wave	Wave that will be read from to retrieve necessary chunk
QualityInfo	Quality Info (to be filled out)

◆ StreamCompressedInfoInternal()

virtual bool ICompressedAudioInfo::StreamCompressedInfoInternal	(	const FSoundWaveProxyPtr &	InWaveProxy,
		struct FSoundQualityInfo *	QualityInfo
	)

protectedpure virtual

Internal override implemented by subclasses.

Implemented in IStreamedCompressedInfo, and FADPCMAudioInfo.

◆ SupportsStreaming()

virtual bool ICompressedAudioInfo::SupportsStreaming ( ) const

inlinevirtual

Whether this decompression class supports streaming decompression

Reimplemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ UsesVorbisChannelOrdering()

virtual bool ICompressedAudioInfo::UsesVorbisChannelOrdering ( ) const

pure virtual

Whether the decompressed audio will be arranged using Vorbis' channel ordering See http://www.xiph.org/vorbis/doc/Vorbis_I_spec.html#x1-800004.3.9 for details

Implemented in FADPCMAudioInfo, and IStreamedCompressedInfo.

◆ WantsFilteredLogging()

bool ICompressedAudioInfo::WantsFilteredLogging ( ) const

inlineprotected

Member Data Documentation

◆ bHasError

bool ICompressedAudioInfo::bHasError = false

mutableprotected

◆ bWantsFilteredLogging

bool ICompressedAudioInfo::bWantsFilteredLogging = false

protected

◆ StreamingSoundWave

FSoundWaveProxyPtr ICompressedAudioInfo::StreamingSoundWave

protected

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Engine/Public/AudioDecompress.h
Engine/Source/Runtime/Engine/Private/AudioDecompress.cpp
