IDatasmithMaterialExpressionGeneric Class Reference

#include <DatasmithMaterialElements.h>

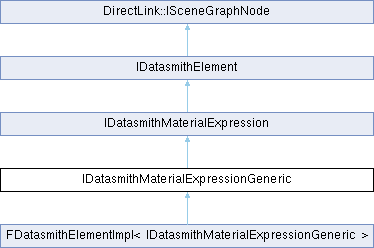

Inheritance diagram for IDatasmithMaterialExpressionGeneric:

Public Member Functions
virtual void	SetExpressionName (const TCHAR *InExpressionName)=0
virtual const TCHAR *	GetExpressionName () const =0
virtual int32	GetPropertiesCount () const =0
virtual const TSharedPtr< IDatasmithKeyValueProperty > &	GetProperty (int32 i) const =0
virtual TSharedPtr< IDatasmithKeyValueProperty > &	GetProperty (int32 i)=0
virtual const TSharedPtr< IDatasmithKeyValueProperty > &	GetPropertyByName (const TCHAR *Name) const =0
virtual TSharedPtr< IDatasmithKeyValueProperty > &	GetPropertyByName (const TCHAR *Name)=0
virtual void	AddProperty (const TSharedPtr< IDatasmithKeyValueProperty > &Property)=0
Public Member Functions inherited from IDatasmithMaterialExpression
virtual	~IDatasmithMaterialExpression ()=default
EDatasmithMaterialExpressionType	GetType () const
virtual EDatasmithMaterialExpressionType	GetExpressionType () const =0
	UE_DEPRECATED (4.27, "IDatasmithMaterialExpression now derive from IDatasmithElement, please use IsSubType() or GetExpressionType() instead") bool IsA(const EDatasmithMaterialExpressionType ExpressionType) const
virtual bool	IsSubType (const EDatasmithMaterialExpressionType ExpressionType) const =0
virtual void	ConnectExpression (IDatasmithExpressionInput &ExpressionInput)=0
virtual void	ConnectExpression (IDatasmithExpressionInput &ExpressionInput, int32 OutputIndex)=0
virtual int32	GetInputCount () const =0
virtual IDatasmithExpressionInput *	GetInput (int32 Index)=0
virtual const IDatasmithExpressionInput *	GetInput (int32 Index) const =0
virtual int32	GetDefaultOutputIndex () const =0
virtual void	SetDefaultOutputIndex (int32 OutputIndex)=0
virtual void	ResetExpression ()=0
virtual bool	IsA (EDatasmithElementType Type) const=0
Public Member Functions inherited from IDatasmithElement
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Member Function Documentation

AddProperty()

virtual void IDatasmithMaterialExpressionGeneric::AddProperty ( const TSharedPtr< IDatasmithKeyValueProperty > &  Property )

pure virtual

Add a property to this expression

GetExpressionName()

virtual const TCHAR * IDatasmithMaterialExpressionGeneric::GetExpressionName ( ) const

pure virtual

GetPropertiesCount()

virtual int32 IDatasmithMaterialExpressionGeneric::GetPropertiesCount ( ) const

pure virtual

Get the total amount of properties in this expression

GetProperty() [1/2]

virtual const TSharedPtr< IDatasmithKeyValueProperty > & IDatasmithMaterialExpressionGeneric::GetProperty ( int32  i ) const

pure virtual

Get the property i-th of this expression

GetProperty() [2/2]

virtual TSharedPtr< IDatasmithKeyValueProperty > & IDatasmithMaterialExpressionGeneric::GetProperty ( int32  i )

pure virtual

GetPropertyByName() [1/2]

virtual const TSharedPtr< IDatasmithKeyValueProperty > & IDatasmithMaterialExpressionGeneric::GetPropertyByName ( const TCHAR *  Name ) const

pure virtual

Get a property by its name if it exists

GetPropertyByName() [2/2]

virtual TSharedPtr< IDatasmithKeyValueProperty > & IDatasmithMaterialExpressionGeneric::GetPropertyByName ( const TCHAR *  Name )

pure virtual

SetExpressionName()

virtual void IDatasmithMaterialExpressionGeneric::SetExpressionName ( const TCHAR *  InExpressionName )

pure virtual

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/DatasmithMaterialElements.h
