IDatasmithMaterialInstanceElement Class Reference

#include <IDatasmithSceneElements.h>

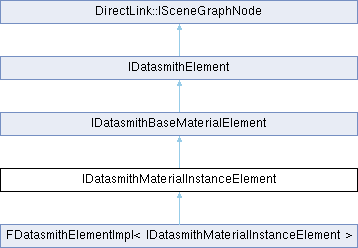

Inheritance diagram for IDatasmithMaterialInstanceElement:

Public Member Functions
virtual	~IDatasmithMaterialInstanceElement ()
virtual EDatasmithReferenceMaterialType	GetMaterialType () const =0
virtual void	SetMaterialType (EDatasmithReferenceMaterialType InType)=0
virtual EDatasmithReferenceMaterialQuality	GetQuality () const =0
virtual void	SetQuality (EDatasmithReferenceMaterialQuality InQuality)=0
virtual const TCHAR *	GetCustomMaterialPathName () const =0
virtual void	SetCustomMaterialPathName (const TCHAR *InPathName)=0
virtual int32	GetPropertiesCount () const =0
virtual const TSharedPtr< IDatasmithKeyValueProperty > &	GetProperty (int32 i) const =0
virtual const TSharedPtr< IDatasmithKeyValueProperty > &	GetPropertyByName (const TCHAR *Name) const =0
virtual void	AddProperty (const TSharedPtr< IDatasmithKeyValueProperty > &Property)=0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Constructor & Destructor Documentation

~IDatasmithMaterialInstanceElement()

virtual IDatasmithMaterialInstanceElement::~IDatasmithMaterialInstanceElement ( )

inlinevirtual

Member Function Documentation

AddProperty()

virtual void IDatasmithMaterialInstanceElement::AddProperty ( const TSharedPtr< IDatasmithKeyValueProperty > &  Property )

pure virtual

Add a property to this material

GetCustomMaterialPathName()

virtual const TCHAR * IDatasmithMaterialInstanceElement::GetCustomMaterialPathName ( ) const

pure virtual

Only used when the material type is set to Custom. The path name to an existing material to instantiate.

GetMaterialType()

virtual EDatasmithReferenceMaterialType IDatasmithMaterialInstanceElement::GetMaterialType ( ) const

pure virtual

GetPropertiesCount()

virtual int32 IDatasmithMaterialInstanceElement::GetPropertiesCount ( ) const

pure virtual

Get the total amount of properties in this material

GetProperty()

virtual const TSharedPtr< IDatasmithKeyValueProperty > & IDatasmithMaterialInstanceElement::GetProperty ( int32  i ) const

pure virtual

Get the property i-th of this material

GetPropertyByName()

virtual const TSharedPtr< IDatasmithKeyValueProperty > & IDatasmithMaterialInstanceElement::GetPropertyByName ( const TCHAR *  Name ) const

pure virtual

Get a property by its name if it exists

GetQuality()

virtual EDatasmithReferenceMaterialQuality IDatasmithMaterialInstanceElement::GetQuality ( ) const

pure virtual

SetCustomMaterialPathName()

virtual void IDatasmithMaterialInstanceElement::SetCustomMaterialPathName ( const TCHAR *  InPathName )

pure virtual

SetMaterialType()

virtual void IDatasmithMaterialInstanceElement::SetMaterialType ( EDatasmithReferenceMaterialType  InType )

pure virtual

SetQuality()

virtual void IDatasmithMaterialInstanceElement::SetQuality ( EDatasmithReferenceMaterialQuality  InQuality )

pure virtual

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
