IDatasmithTextureElement Class Reference

#include <IDatasmithSceneElements.h>

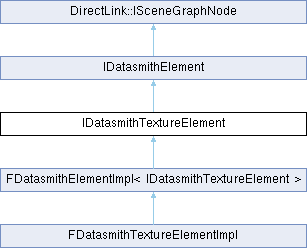

Inheritance diagram for IDatasmithTextureElement:

Public Member Functions
virtual	~IDatasmithTextureElement ()
virtual const TCHAR *	GetFile () const =0
virtual void	SetFile (const TCHAR *File)=0
virtual void	SetData (const uint8 *InData, uint32 InDataSize, EDatasmithTextureFormat InFormat)=0
virtual const uint8 *	GetData (uint32 &OutDataSize, EDatasmithTextureFormat &OutFormat) const =0
virtual FMD5Hash	GetFileHash () const =0
virtual void	SetFileHash (FMD5Hash Hash)=0
virtual EDatasmithTextureMode	GetTextureMode () const =0
virtual void	SetTextureMode (EDatasmithTextureMode Mode)=0
virtual EDatasmithTextureFilter	GetTextureFilter () const =0
virtual void	SetTextureFilter (EDatasmithTextureFilter Filter)=0
virtual EDatasmithTextureAddress	GetTextureAddressX () const =0
virtual void	SetTextureAddressX (EDatasmithTextureAddress Mode)=0
virtual EDatasmithTextureAddress	GetTextureAddressY () const =0
virtual void	SetTextureAddressY (EDatasmithTextureAddress Mode)=0
virtual bool	GetAllowResize () const =0
virtual void	SetAllowResize (bool bAllowResize)=0
virtual float	GetRGBCurve () const =0
virtual void	SetRGBCurve (const float InRGBCurve)=0
virtual EDatasmithColorSpace	GetSRGB () const =0
virtual void	SetSRGB (EDatasmithColorSpace Option)=0
Public Member Functions inherited from IDatasmithElement
virtual bool	IsA (EDatasmithElementType Type) const =0
virtual const TCHAR *	GetName () const =0
virtual void	SetName (const TCHAR *InName)=0
virtual const TCHAR *	GetLabel () const =0
virtual void	SetLabel (const TCHAR *InLabel)=0
virtual FMD5Hash	CalculateElementHash (bool bForce)=0
Public Member Functions inherited from DirectLink::ISceneGraphNode
virtual	~ISceneGraphNode ()=default
virtual TSharedPtr< FSceneGraphSharedState >	MakeSharedState () const
	Related nodes share a common object.
virtual TSharedPtr< FSceneGraphSharedState >	GetSharedState () const
UE_API void	SetSharedState (TSharedPtr< FSceneGraphSharedState > NewSharedState)
virtual const FParameterStore &	GetStore () const =0
	data
virtual FParameterStore &	GetStore ()=0
virtual void	CustomSerialize (class FSnapshotProxy &Ar)
void	CustomSerialize (class FSnapshotProxy &Ar) const
FSceneGraphId	GetNodeId () const
	References.
void	SetNodeId (FSceneGraphId Id)
UE_API void	RegisterReferenceProxy (class IReferenceProxy &View, FName Name)
UE_API int32	GetReferenceProxyCount () const
UE_API class IReferenceProxy *	GetReferenceProxy (int32 Index) const
UE_API FName	GetReferenceProxyName (int32 Index) const
UE_API FSceneGraphId	RegisterReference (ISceneGraphNode *Referenced)
UE_API void	UpdateRefs (class IReferenceResolutionProvider &Resolver, const FReferenceSnapshot &NewRefs)

Constructor & Destructor Documentation

~IDatasmithTextureElement()

virtual IDatasmithTextureElement::~IDatasmithTextureElement ( )

inlinevirtual

Member Function Documentation

GetAllowResize()

virtual bool IDatasmithTextureElement::GetAllowResize ( ) const

pure virtual

Get allow texture resizing

Implemented in FDatasmithTextureElementImpl.

GetData()

virtual const uint8 * IDatasmithTextureElement::GetData ( uint32 &  OutDataSize, EDatasmithTextureFormat &  OutFormat  ) const

pure virtual

Return the optional data, if loading from memory. Must be callable from any thread.

Implemented in FDatasmithTextureElementImpl.

GetFile()

virtual const TCHAR * IDatasmithTextureElement::GetFile ( ) const

pure virtual

Get texture filename

Implemented in FDatasmithTextureElementImpl.

GetFileHash()

virtual FMD5Hash IDatasmithTextureElement::GetFileHash ( ) const

pure virtual

Return a MD5 hash of the content of the Texture Element. Used in CalculateElementHash to quickly identify Element with identical content

Implemented in FDatasmithTextureElementImpl.

GetRGBCurve()

virtual float IDatasmithTextureElement::GetRGBCurve ( ) const

pure virtual

Get texture gamma <= 0 for auto

Implemented in FDatasmithTextureElementImpl.

GetSRGB()

virtual EDatasmithColorSpace IDatasmithTextureElement::GetSRGB ( ) const

pure virtual

Gets the color space of the texture

Implemented in FDatasmithTextureElementImpl.

GetTextureAddressX()

virtual EDatasmithTextureAddress IDatasmithTextureElement::GetTextureAddressX ( ) const

pure virtual

Get texture X axis address mode

Implemented in FDatasmithTextureElementImpl.

GetTextureAddressY()

virtual EDatasmithTextureAddress IDatasmithTextureElement::GetTextureAddressY ( ) const

pure virtual

Get texture Y axis address mode

Implemented in FDatasmithTextureElementImpl.

GetTextureFilter()

virtual EDatasmithTextureFilter IDatasmithTextureElement::GetTextureFilter ( ) const

pure virtual

Get texture filter

Implemented in FDatasmithTextureElementImpl.

GetTextureMode()

virtual EDatasmithTextureMode IDatasmithTextureElement::GetTextureMode ( ) const

pure virtual

Get texture usage

Implemented in FDatasmithTextureElementImpl.

SetAllowResize()

virtual void IDatasmithTextureElement::SetAllowResize ( bool  bAllowResize )

pure virtual

Set allow texture resizing

Implemented in FDatasmithTextureElementImpl.

SetData()

virtual void IDatasmithTextureElement::SetData ( const uint8 *  InData, uint32  InDataSize, EDatasmithTextureFormat  InFormat  )

pure virtual

Set the output data buffer, used only when no output filename is set

Parameters

InData	data to load the texture from
InDataSize	size in bytes of the buffer
InFormat	texture format(e.g. png or jpeg)

Note

The given data is not freed by the DatasmithImporter.

Implemented in FDatasmithTextureElementImpl.

SetFile()

virtual void IDatasmithTextureElement::SetFile ( const TCHAR *  File )

pure virtual

Set texture filename

Implemented in FDatasmithTextureElementImpl.

SetFileHash()

virtual void IDatasmithTextureElement::SetFileHash ( FMD5Hash  Hash )

pure virtual

Set the MD5 hash of the current texture file. This should be a hash of its content.

Implemented in FDatasmithTextureElementImpl.

SetRGBCurve()

virtual void IDatasmithTextureElement::SetRGBCurve ( const float  InRGBCurve )

pure virtual

Set texture gamma <= 0 for auto

Implemented in FDatasmithTextureElementImpl.

SetSRGB()

virtual void IDatasmithTextureElement::SetSRGB ( EDatasmithColorSpace  Option )

pure virtual

Sets the color space of the texture

Implemented in FDatasmithTextureElementImpl.

SetTextureAddressX()

virtual void IDatasmithTextureElement::SetTextureAddressX ( EDatasmithTextureAddress  Mode )

pure virtual

Set texture X axis address mode

Implemented in FDatasmithTextureElementImpl.

SetTextureAddressY()

virtual void IDatasmithTextureElement::SetTextureAddressY ( EDatasmithTextureAddress  Mode )

pure virtual

Set texture Y axis address mode

Implemented in FDatasmithTextureElementImpl.

SetTextureFilter()

virtual void IDatasmithTextureElement::SetTextureFilter ( EDatasmithTextureFilter  Filter )

pure virtual

Set texture filter

Implemented in FDatasmithTextureElementImpl.

SetTextureMode()

virtual void IDatasmithTextureElement::SetTextureMode ( EDatasmithTextureMode  Mode )

pure virtual

Set texture usage

Implemented in FDatasmithTextureElementImpl.

---

The documentation for this class was generated from the following file:

• Engine/Source/Runtime/Datasmith/DatasmithCore/Public/IDatasmithSceneElements.h
