SComboButton Class Reference

#include <SComboButton.h>

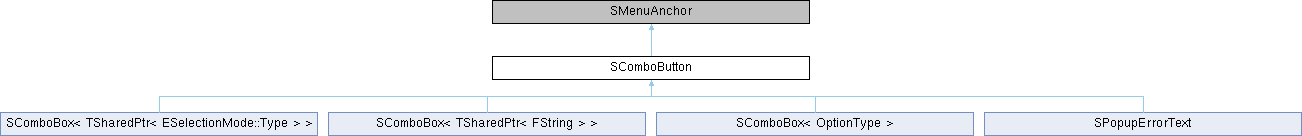

Inheritance diagram for SComboButton:

Public Member Functions
	SLATE_BEGIN_ARGS (SComboButton)
virtual SLATE_API void	SetMenuContent (TSharedRef< SWidget > InContent) override
SLATE_API void	SetOnGetMenuContent (FOnGetContent InOnGetMenuContent)
SLATE_API void	Construct (const FArguments &InArgs)
void	SetMenuContentWidgetToFocus (TWeakPtr< SWidget > InWidgetToFocusPtr)
SLATE_API void	SetButtonContentPadding (FMargin InPadding)
SLATE_API void	SetHasDownArrow (bool InHasArrowDown)

Protected Member Functions
virtual SLATE_API FReply	OnButtonClicked ()
virtual SLATE_API FReply	OnKeyDown (const FGeometry &MyGeometry, const FKeyEvent &InKeyEvent) override
SLATE_API FText	GetFilteredToolTipText (TAttribute< FText > ToolTipText) const

Protected Attributes
SHorizontalBox::FSlot *	ButtonContentSlot
FOnComboBoxOpened	OnComboBoxOpened
TWeakPtr< SWidget >	WidgetToFocusPtr
const FSlateBrush *	MenuBorderBrush
FMargin	MenuBorderPadding
TWeakPtr< SWidget >	ContentWidgetPtr
bool	bIsFocusable

Detailed Description

A button that, when clicked, brings up a popup.

Member Function Documentation

Construct()

void SComboButton::Construct

(

const FArguments &

InArgs

)

Construct the widget from a declaration

Parameters

InArgs

The declaration from which to construct

GetFilteredToolTipText()

FText SComboButton::GetFilteredToolTipText ( TAttribute< FText >  ToolTipText ) const

protected

Called to query the tool tip text for this widget, but will return an empty text when the menu is already open

Parameters

ToolTipText

Tool tip text to display, if possible

Returns

Tool tip text, or an empty text if filtered out

OnButtonClicked()

FReply SComboButton::OnButtonClicked ( )

protectedvirtual

Handle the button being clicked by summoning the ComboButton.

OnKeyDown()

FReply SComboButton::OnKeyDown ( const FGeometry &  MyGeometry, const FKeyEvent &  InKeyEvent  )

overrideprotectedvirtual

Reimplemented in SComboBox< OptionType >, SComboBox< TSharedPtr< ESelectionMode::Type > >, and SComboBox< TSharedPtr< FString > >.

SetButtonContentPadding()

void SComboButton::SetButtonContentPadding

(

FMargin

InPadding

)

See the padding for button content.

SetHasDownArrow()

void SComboButton::SetHasDownArrow

(

bool

InHasArrowDown

)

add/remove the expanding arrow.

SetMenuContent()

void SComboButton::SetMenuContent ( TSharedRef< SWidget >  InContent )

overridevirtual

The visual style of the button (overrides ComboButtonStyle) Optional static menu content. If the menu content needs to be dynamically built, use the OnGetMenuContent event Sets an event handler to generate a widget dynamically when the menu is needed. Spawn a new window or reuse current window for this combo True if this combo's menu should be collapsed when our parent receives focus, false (default) otherwise

SetMenuContentWidgetToFocus()

void SComboButton::SetMenuContentWidgetToFocus ( TWeakPtr< SWidget >  InWidgetToFocusPtr )

inline

SetOnGetMenuContent()

void SComboButton::SetOnGetMenuContent

(

FOnGetContent

InOnGetMenuContent

)

See the OnGetMenuContent event

SLATE_BEGIN_ARGS()

SComboButton::SLATE_BEGIN_ARGS ( SComboButton  )

inline

Member Data Documentation

bIsFocusable

bool SComboButton::bIsFocusable

protected

Can this button be focused?

ButtonContentSlot

SHorizontalBox::FSlot* SComboButton::ButtonContentSlot

protected

Area where the button's content resides

ContentWidgetPtr

TWeakPtr<SWidget> SComboButton::ContentWidgetPtr

protected

The content widget, if any, set by the user on creation

MenuBorderBrush

const FSlateBrush* SComboButton::MenuBorderBrush

protected

Brush to use to add a "menu border" around the drop-down content

MenuBorderPadding

FMargin SComboButton::MenuBorderPadding

protected

Padding to use to add a "menu border" around the drop-down content

OnComboBoxOpened

FOnComboBoxOpened SComboButton::OnComboBoxOpened

protected

Delegate to execute when the combo list is opened

WidgetToFocusPtr

TWeakPtr<SWidget> SComboButton::WidgetToFocusPtr

protected

---

The documentation for this class was generated from the following files:

• Engine/Source/Runtime/Slate/Public/Widgets/Input/SComboButton.h
• Engine/Source/Runtime/Slate/Private/Widgets/Input/SComboButton.cpp
