#include <SlateBrush.h>

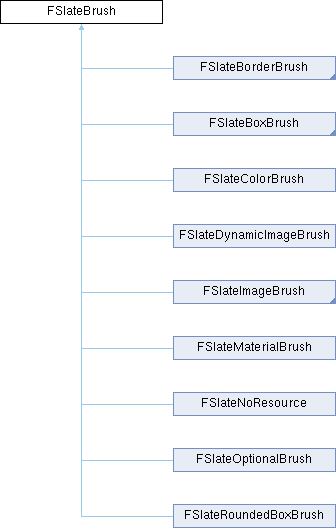

Inheritance diagram for FSlateBrush:

Public Member Functions
SLATECORE_API	FSlateBrush ()

virtual	~FSlateBrush ()

UE::Slate::FDeprecateVector2DResult	GetImageSize () const

void	SetImageSize (UE::Slate::FDeprecateVector2DParameter InImageSize)

const FMargin &	GetMargin () const

ESlateBrushTileType::Type	GetTiling () const

ESlateBrushMirrorType::Type	GetMirroring () const

ESlateBrushImageType::Type	GetImageType () const

ESlateBrushDrawType::Type	GetDrawType () const

const FName	GetResourceName () const

class UObject *	GetResourceObject () const

SLATECORE_API void	SetResourceObject (class UObject *InResourceObject)

FLinearColor	GetTint (const FWidgetStyle &InWidgetStyle) const

void	UnlinkColors ()

bool	HasUObject () const

bool	IsDynamicallyLoaded () const

UE::Slate::FDeprecateBox2D	GetUVRegion () const

void	SetUVRegion (const FBox2d &InUVRegion)

void	SetUVRegion (const FBox2f &InUVRegion)

bool	operator== (const FSlateBrush &Other) const

bool	operator!= (const FSlateBrush &Other) const

void	AddReferencedObjects (FReferenceCollector &Collector, UObject *ReferencingObject=nullptr)

const FSlateResourceHandle &	GetRenderingResource (UE::Slate::FDeprecateVector2DParameter LocalSize, float DrawScale) const

SLATECORE_API const FSlateResourceHandle &	GetRenderingResource () const

bool	IsSet () const

Static Public Member Functions
static SLATECORE_API const FString	UTextureIdentifier ()

Protected Member Functions
SLATECORE_API FORCENOINLINE	FSlateBrush (ESlateBrushDrawType::Type InDrawType, const FName InResourceName, const FMargin &InMargin, ESlateBrushTileType::Type InTiling, ESlateBrushImageType::Type InImageType, const UE::Slate::FDeprecateVector2DParameter &InImageSize, const FLinearColor &InTint=FLinearColor::White, UObject *InObjectResource=nullptr, bool bInDynamicallyLoaded=false)

SLATECORE_API FORCENOINLINE	FSlateBrush (ESlateBrushDrawType::Type InDrawType, const FName InResourceName, const FMargin &InMargin, ESlateBrushTileType::Type InTiling, ESlateBrushImageType::Type InImageType, const UE::Slate::FDeprecateVector2DParameter &InImageSize, const TSharedRef< FLinearColor > &InTint, UObject *InObjectResource=nullptr, bool bInDynamicallyLoaded=false)

SLATECORE_API FORCENOINLINE	FSlateBrush (ESlateBrushDrawType::Type InDrawType, const FName InResourceName, const FMargin &InMargin, ESlateBrushTileType::Type InTiling, ESlateBrushImageType::Type InImageType, const UE::Slate::FDeprecateVector2DParameter &InImageSize, const FSlateColor &InTint, UObject *InObjectResource=nullptr, bool bInDynamicallyLoaded=false)

Protected Attributes
FBox2f	UVRegion

uint8	bIsDynamicallyLoaded:1

uint8	bHasUObject_DEPRECATED:1

uint8	bIsSet: 1

FName	ResourceName

Friends
class	FSlateShaderResourceManager

Detailed Description

A brush which contains information about how to draw a Slate element

Examples: /work/Engine/Source/Runtime/UMG/Public/Components/Widget.h.

Constructor & Destructor Documentation

◆ FSlateBrush() [1/4]

FSlateBrush::FSlateBrush ( )

Default constructor.

◆ ~FSlateBrush()

virtual FSlateBrush::~FSlateBrush ( )

inlinevirtual

◆ FSlateBrush() [2/4]

FSlateBrush::FSlateBrush	(	ESlateBrushDrawType::Type	InDrawType,
		const FName	InResourceName,
		const FMargin &	InMargin,
		ESlateBrushTileType::Type	InTiling,
		ESlateBrushImageType::Type	InImageType,
		const UE::Slate::FDeprecateVector2DParameter &	InImageSize,
		const FLinearColor &	InTint = `FLinearColor::White`,
		UObject *	InObjectResource = `nullptr`,
		bool	bInDynamicallyLoaded = `false`
	)

protected

This constructor is protected; use one of the deriving classes instead.

Parameters

InDrawType	How to draw the texture
InResourceName	The name of the resource
InMargin	Margin to use in border and box modes
InTiling	Tile horizontally/vertically or both? (only in image mode)
InImageType	The type of image
InTint	Tint to apply to the element.
InOutlineSettings	Optional Outline Border Settings for RoundedBox mode

◆ FSlateBrush() [3/4]

FSlateBrush::FSlateBrush	(	ESlateBrushDrawType::Type	InDrawType,
		const FName	InResourceName,
		const FMargin &	InMargin,
		ESlateBrushTileType::Type	InTiling,
		ESlateBrushImageType::Type	InImageType,
		const UE::Slate::FDeprecateVector2DParameter &	InImageSize,
		const TSharedRef< FLinearColor > &	InTint,
		UObject *	InObjectResource = `nullptr`,
		bool	bInDynamicallyLoaded = `false`
	)

protected

◆ FSlateBrush() [4/4]

FSlateBrush::FSlateBrush	(	ESlateBrushDrawType::Type	InDrawType,
		const FName	InResourceName,
		const FMargin &	InMargin,
		ESlateBrushTileType::Type	InTiling,
		ESlateBrushImageType::Type	InImageType,
		const UE::Slate::FDeprecateVector2DParameter &	InImageSize,
		const FSlateColor &	InTint,
		UObject *	InObjectResource = `nullptr`,
		bool	bInDynamicallyLoaded = `false`
	)

protected

Member Function Documentation

◆ AddReferencedObjects()

void FSlateBrush::AddReferencedObjects	(	FReferenceCollector &	Collector,
		UObject *	ReferencingObject = `nullptr`
	)

inline

Report any references to UObjects to the reference collector.

◆ GetDrawType()

ESlateBrushDrawType::Type FSlateBrush::GetDrawType ( ) const

inline

◆ GetImageSize()

UE::Slate::FDeprecateVector2DResult FSlateBrush::GetImageSize ( ) const

inline

◆ GetImageType()

ESlateBrushImageType::Type FSlateBrush::GetImageType ( ) const

inline

◆ GetMargin()

const FMargin & FSlateBrush::GetMargin ( ) const

inline

◆ GetMirroring()

ESlateBrushMirrorType::Type FSlateBrush::GetMirroring ( ) const

inline

◆ GetRenderingResource() [1/2]

const FSlateResourceHandle & FSlateBrush::GetRenderingResource ( ) const

◆ GetRenderingResource() [2/2]

const FSlateResourceHandle & FSlateBrush::GetRenderingResource	(	UE::Slate::FDeprecateVector2DParameter	LocalSize,
		float	DrawScale
	)		const

inline

◆ GetResourceName()

const FName FSlateBrush::GetResourceName ( ) const

inline

Gets the name of the resource object, if any.

Returns: Resource name, or NAME_None if the resource object is not set.

◆ GetResourceObject()

class UObject * FSlateBrush::GetResourceObject ( ) const

inline

Gets the UObject that represents the brush resource, if any.

The object may be a UMaterialInterface or a UTexture.

Returns: The resource object, or nullptr if it is not set.

◆ GetTiling()

ESlateBrushTileType::Type FSlateBrush::GetTiling ( ) const

inline

◆ GetTint()

FLinearColor FSlateBrush::GetTint ( const FWidgetStyle & InWidgetStyle ) const

inline

Gets the brush's tint color.

Parameters

InWidgetStyle The widget style to get the tint for.

Returns: Tint color.

◆ GetUVRegion()

UE::Slate::FDeprecateBox2D FSlateBrush::GetUVRegion ( ) const

inline

Get brush UV region, should check if region is valid before using it

Returns: UV region

◆ HasUObject()

bool FSlateBrush::HasUObject ( ) const

inline

Checks whether this brush has a UTexture object

Returns: true if it has a UTexture object, false otherwise.

◆ IsDynamicallyLoaded()

bool FSlateBrush::IsDynamicallyLoaded ( ) const

inline

Checks whether the brush resource is loaded dynamically.

Returns: true if loaded dynamically, false otherwise.

◆ IsSet()

bool FSlateBrush::IsSet ( ) const

inline

◆ operator!=()

bool FSlateBrush::operator!= ( const FSlateBrush & Other ) const

inline

Compares this brush with another for inequality.

Parameters

Other The other brush.

Returns: false if the two brushes are equal, true otherwise.

◆ operator==()

bool FSlateBrush::operator== ( const FSlateBrush & Other ) const

inline

Compares this brush with another for equality.

Parameters

Other The other brush.

Returns: true if the two brushes are equal, false otherwise.

◆ SetImageSize()

void FSlateBrush::SetImageSize ( UE::Slate::FDeprecateVector2DParameter InImageSize )

inline

◆ SetResourceObject()

void FSlateBrush::SetResourceObject ( class UObject * InResourceObject )

Sets the UObject that represents the brush resource.

◆ SetUVRegion() [1/2]

void FSlateBrush::SetUVRegion ( const FBox2d & InUVRegion )

inline

Set brush UV region

Parameters

InUVRegion When valid - overrides UV region specified in resource proxy

◆ SetUVRegion() [2/2]

void FSlateBrush::SetUVRegion ( const FBox2f & InUVRegion )

inline

◆ UnlinkColors()

void FSlateBrush::UnlinkColors ( )

inline

Unlinks all colors in this brush.

See also: FSlateColor::Unlink

◆ UTextureIdentifier()

const FString FSlateBrush::UTextureIdentifier ( )

static

Gets the identifier for UObject based texture paths.

Returns: Texture identifier string.

Friends And Related Symbol Documentation

◆ FSlateShaderResourceManager

friend class FSlateShaderResourceManager

friend

Member Data Documentation

◆ bHasUObject_DEPRECATED

uint8 FSlateBrush::bHasUObject_DEPRECATED

protected

Whether or not the brush has a UTexture resource

◆ bIsDynamicallyLoaded

uint8 FSlateBrush::bIsDynamicallyLoaded

protected

Whether or not the brush path is a path to a UObject

◆ bIsSet

uint8 FSlateBrush::bIsSet

protected

This is true for all constructed brushes except for optional brushes

◆ DrawAs

TEnumAsByte<enum ESlateBrushDrawType::Type > FSlateBrush::DrawAs

How to draw the image

◆ ImageSize

FDeprecateSlateVector2D FSlateBrush::ImageSize

Size of the resource in Slate Units

◆ ImageType

TEnumAsByte<enum ESlateBrushImageType::Type> FSlateBrush::ImageType

The type of image

◆ Margin

FMargin FSlateBrush::Margin

The margin to use in Box and Border modes

◆ Mirroring

TEnumAsByte<enum ESlateBrushMirrorType::Type> FSlateBrush::Mirroring

How to mirror the image in Image mode. This is normally only used for dynamic image brushes where the source texture comes from a hardware device such as a web camera.

◆ OutlineSettings

FSlateBrushOutlineSettings FSlateBrush::OutlineSettings

How to draw the outline. Currently only used for RoundedBox type brushes.

◆ ResourceHandle

FSlateResourceHandle FSlateBrush::ResourceHandle

mutable

Rendering resource for this brush

◆ ResourceName

FName FSlateBrush::ResourceName

protected

The name of the rendering resource to use

◆ Tiling

TEnumAsByte<enum ESlateBrushTileType::Type> FSlateBrush::Tiling

How to tile the image in Image mode

◆ TintColor

FSlateColor FSlateBrush::TintColor

Tinting applied to the image.

◆ UVRegion

FBox2f FSlateBrush::UVRegion

protected

Optional UV region for an image When valid - overrides UV region specified in resource proxy

The documentation for this struct was generated from the following files:

Engine/Source/Runtime/SlateCore/Public/Styling/SlateBrush.h
Engine/Source/Runtime/SlateCore/Private/Styling/SlateBrush.cpp

Public Attributes
FSlateColor	TintColor

TEnumAsByte< enum ESlateBrushDrawType::Type >	DrawAs

TEnumAsByte< enum ESlateBrushTileType::Type >	Tiling

TEnumAsByte< enum ESlateBrushMirrorType::Type >	Mirroring

TEnumAsByte< enum ESlateBrushImageType::Type >	ImageType

FDeprecateSlateVector2D	ImageSize

FMargin	Margin

FSlateBrushOutlineSettings	OutlineSettings

FSlateResourceHandle	ResourceHandle
