TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize > Class Template Reference

#include <MallocBinnedCommon.h>

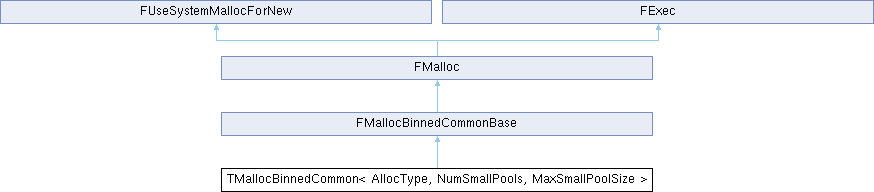

+ Inheritance diagram for TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >:

Classes

struct  FPerThreadFreeBlockLists

struct  Internal


Public Member Functions

virtual void GetAllocatorStats (FGenericMemoryStats &OutStats) override

- Public Member Functions inherited from FMallocBinnedCommonBase
virtual CORE_API void OnMallocInitialized () override

- Public Member Functions inherited from FMalloc
virtual void * Malloc (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)=0

virtual CORE_API void * TryMalloc (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)

virtual void * Realloc (void *Original, SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)=0

virtual CORE_API void * TryRealloc (void *Original, SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)

virtual void Free (void *Original)=0

virtual CORE_API void * MallocZeroed (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)

virtual CORE_API void * TryMallocZeroed (SIZE_T Count, uint32 Alignment=DEFAULT_ALIGNMENT)

virtual SIZE_T QuantizeSize (SIZE_T Count, uint32 Alignment)

virtual bool GetAllocationSize (void *Original, SIZE_T &SizeOut)

virtual void Trim (bool bTrimThreadCaches)

virtual CORE_API void InitializeStatsMetadata ()

virtual CORE_API void UpdateStats ()

virtual void DumpAllocatorStats (class FOutputDevice &Ar)

virtual bool IsInternallyThreadSafe () const

virtual bool ValidateHeap ()

virtual const TCHAR * GetDescriptiveName ()

virtual void OnPreFork ()

virtual void OnPostFork ()

virtual uint64 GetImmediatelyFreeableCachedMemorySize () const

virtual uint64 GetTotalFreeCachedMemorySize () const

- Public Member Functions inherited from FUseSystemMallocForNew
CORE_API void * operator new (size_t Size)

CORE_API void operator delete (void *Ptr)

void * operator new[] (size_t Size)

void operator delete[] (void *Ptr)

- Public Member Functions inherited from FExec
virtual CORE_API ~FExec ()

virtual CORE_API bool Exec (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)


Protected Member Functions

virtual void SetupTLSCachesOnCurrentThread () override

virtual void ClearAndDisableTLSCachesOnCurrentThread () override

virtual void MarkTLSCachesAsUsedOnCurrentThread () override

virtual void MarkTLSCachesAsUnusedOnCurrentThread () override

SIZE_T QuantizeSizeCommon (SIZE_T Count, uint32 Alignment, const AllocType &Alloc) const

uint32 BoundSizeToPoolIndex (SIZE_T Size, const uint8(&MemSizeToPoolIndex)[SIZE_TO_POOL_INDEX_NUM]) const

FORCENOINLINE bool PromoteToLargerBin (SIZE_T &Size, uint32 &Alignment, const AllocType &Alloc) const

bool GetAllocationSizeExternal (void *Ptr, SIZE_T &SizeOut)

int64 GetTotalAllocatedSmallPoolMemory () const

void UpdateStatsCommon (const AllocType &Alloc)

void AllocateHashBuckets ()

- Protected Member Functions inherited from FMallocBinnedCommonBase
void GetAllocatorStatsInternal (FGenericMemoryStats &OutStats, int64 TotalAllocatedSmallPoolMemory)

void UnrecognizedPointerFatalError (void *Ptr)

void LogLargeAllocation (SIZE_T Size) const

- Protected Member Functions inherited from FExec
virtual bool Exec_Runtime (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)

virtual bool Exec_Dev (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)

virtual bool Exec_Editor (UWorld *InWorld, const TCHAR *Cmd, FOutputDevice &Ar)


Static Protected Member Functions

static UE::FPlatformRecursiveMutex & GetFreeBlockListsRegistrationMutex ()

static TArray< FPerThreadFreeBlockLists * > & GetRegisteredFreeBlockLists ()

- Static Protected Member Functions inherited from FMallocBinnedCommonBase
static void OutOfMemory (uint64 Size, uint32 Alignment=0)


Static Protected Attributes

static constexpr int SIZE_TO_POOL_INDEX_NUM = 1 + (MAX_SMALL_POOL_SIZE >> UE_MBC_BIN_SIZE_SHIFT)

- Static Protected Attributes inherited from FMallocBinnedCommonBase
static uint32 OsAllocationGranularity = 0

static CORE_API uint32 BinnedTlsSlot = FPlatformTLS::InvalidTlsSlot

static std::atomic< int64 > TLSMemory

static std::atomic< int64 > ConsolidatedMemory

static std::atomic< int64 > AllocatedSmallPoolMemory

static std::atomic< int64 > AllocatedOSSmallPoolMemory

static std::atomic< int64 > AllocatedLargePoolMemory

static std::atomic< int64 > AllocatedLargePoolMemoryWAlignment

static int64 PoolInfoMemory

static int64 HashMemory


Friends

class FMallocBinnedCommonUtils


Additional Inherited Members

- Static Public Attributes inherited from FMalloc
static CORE_API TAtomic< uint64 > MaxSingleAlloc

- Protected Attributes inherited from FMallocBinnedCommonBase
FPtrToPoolMapping PtrToPoolMapping

uint64 NumPoolsPerPage

UE::FPlatformRecursiveMutex ExternalAllocMutex

std::atomic< uint64 > MemoryTrimEpoch { 0 }


Member Function Documentation

◆ AllocateHashBuckets()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
void TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::AllocateHashBuckets ( )
inlineprotected

◆ BoundSizeToPoolIndex()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
uint32 TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::BoundSizeToPoolIndex ( SIZE_T  Size,
const uint8(&)  MemSizeToPoolIndex[SIZE_TO_POOL_INDEX_NUM]
) const
inlineprotected

◆ ClearAndDisableTLSCachesOnCurrentThread()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
virtual void TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::ClearAndDisableTLSCachesOnCurrentThread ( )
inlineoverrideprotectedvirtual

Clears the TLS caches on the current thread and disables any future caching.

Reimplemented from FMalloc.

◆ GetAllocationSizeExternal()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
bool TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::GetAllocationSizeExternal ( void *  Ptr,
SIZE_T &  SizeOut
)
inlineprotected

◆ GetAllocatorStats()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
virtual void TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::GetAllocatorStats ( FGenericMemoryStats &  out_Stats)
inlineoverridevirtual

Writes allocator stats from the last update into the specified destination.

Reimplemented from FMalloc.

◆ GetFreeBlockListsRegistrationMutex()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
static UE::FPlatformRecursiveMutex & TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::GetFreeBlockListsRegistrationMutex ( )
inlinestaticprotected

◆ GetRegisteredFreeBlockLists()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
static TArray< FPerThreadFreeBlockLists * > & TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::GetRegisteredFreeBlockLists ( )
inlinestaticprotected

◆ GetTotalAllocatedSmallPoolMemory()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
int64 TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::GetTotalAllocatedSmallPoolMemory ( ) const
inlineprotected

◆ MarkTLSCachesAsUnusedOnCurrentThread()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
virtual void TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::MarkTLSCachesAsUnusedOnCurrentThread ( )
inlineoverrideprotectedvirtual

Mark TLS caches for current thread as unused. Typically before going to sleep. These are the threads that we can trim without waking them up.

Reimplemented from FMalloc.

◆ MarkTLSCachesAsUsedOnCurrentThread()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
virtual void TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::MarkTLSCachesAsUsedOnCurrentThread ( )
inlineoverrideprotectedvirtual

Mark TLS caches for the current thread as used. Thread has woken up to do some processing and needs its TLS caches back.

Reimplemented from FMalloc.

◆ PromoteToLargerBin()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
FORCENOINLINE bool TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::PromoteToLargerBin ( SIZE_T &  Size,
uint32 &  Alignment,
const AllocType &  Alloc
) const
inlineprotected

◆ QuantizeSizeCommon()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
SIZE_T TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::QuantizeSizeCommon ( SIZE_T  Count,
uint32  Alignment,
const AllocType &  Alloc
) const
inlineprotected

◆ SetupTLSCachesOnCurrentThread()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
virtual void TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::SetupTLSCachesOnCurrentThread ( )
inlineoverrideprotectedvirtual

Set up TLS caches on the current thread. These are the threads that we can trim.

Reimplemented from FMalloc.

◆ UpdateStatsCommon()

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
void TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::UpdateStatsCommon ( const AllocType &  Alloc)
inlineprotected

Friends And Related Symbol Documentation

◆ FMallocBinnedCommonUtils

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
friend class FMallocBinnedCommonUtils
friend

Member Data Documentation

◆ SIZE_TO_POOL_INDEX_NUM

template<class AllocType , int NumSmallPools, int MaxSmallPoolSize>
constexpr int TMallocBinnedCommon< AllocType, NumSmallPools, MaxSmallPoolSize >::SIZE_TO_POOL_INDEX_NUM = 1 + (MAX_SMALL_POOL_SIZE >> UE_MBC_BIN_SIZE_SHIFT)
staticconstexprprotected
The documentation for this class was generated from the following file:
