#include <Body.h>

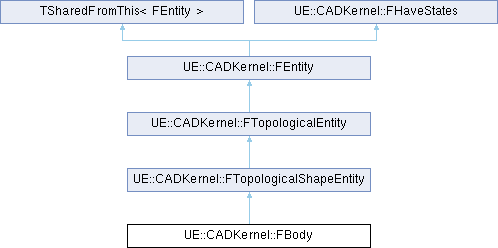

Inheritance diagram for UE::CADKernel::FBody:

Public Member Functions
virtual	~FBody () override

virtual void	Serialize (FCADKernelArchive &Ar) override

virtual void	SpawnIdent (FDatabase &Database) override

virtual void	ResetMarkersRecursively () const override

virtual EEntity	GetEntityType () const override

void	AddShell (TSharedRef< FShell > Shell)

void	RemoveEmptyShell ()

virtual void	Remove (const FTopologicalShapeEntity *ShellToRemove) override

virtual void	Empty () override

const TArray< TSharedPtr< FShell > > &	GetShells () const

int32	ShellCount () const

bool	IsEmpty () const

virtual int32	FaceCount () const override

virtual void	GetFaces (TArray< FTopologicalFace * > &Faces) override

virtual void	CompleteMetaData () override

virtual void	PropagateBodyOrientation () override

void	Orient ()

Public Member Functions inherited from UE::CADKernel::FTopologicalShapeEntity
virtual	~FTopologicalShapeEntity () override

const FMetadataDictionary &	GetMetaDataDictionary () const

void	ExtractMetaData (TMap< FString, FString > &OutMetaData) const

void	CompleteMetaDataWithHostMetaData ()

FTopologicalShapeEntity *	GetHost ()

const FTopologicalShapeEntity *	GetHost () const

void	SetHost (FTopologicalShapeEntity *Body)

void	SetHostId (const int32 InHostId)

int32	GetHostId () const

void	SetLayer (const int32 InLayerId)

void	SetName (const FString &InName)

bool	HasName () const

const TCHAR *	GetName () const

void	SetColorId (const uint32 &InColorId)

uint32	GetColorId () const

void	SetMaterialId (const uint32 &InMaterialId)

uint32	GetMaterialId () const

void	SetDisplayData (const uint32 &InColorId, const uint32 &InMaterialId)

void	SetDisplayData (const FTopologicalShapeEntity &DisplayData)

void	SetPatchId (int32 InPatchId)

int32	GetPatchId () const

Public Member Functions inherited from UE::CADKernel::FTopologicalEntity
FIdent	GetKioId () const

const bool	IsApplyCriteria () const

virtual void	SetApplyCriteriaMarker () const

virtual void	ResetApplyCriteria ()

bool	IsNotMeshable () const

bool	IsMeshable () const

bool	IsPreMeshed () const

bool	IsMeshed () const

virtual void	SetPreMeshedMarker ()

virtual void	SetMeshedMarker ()

virtual void	ResetPreMeshed ()

Public Member Functions inherited from UE::CADKernel::FEntity
virtual	~FEntity ()

virtual void	Delete ()

bool	IsTopologicalEntity () const

bool	IsTopologicalShapeEntity () const

bool	IsGeometricalEntity ()

const TCHAR *	GetTypeName () const

const FIdent &	GetId () const

Public Member Functions inherited from TSharedFromThis< FEntity >
TSharedRef< FEntity, Mode >	AsShared ()

TSharedRef< FEntity const, Mode >	AsShared () const

TSharedRef< SubobjectType, Mode >	AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< FEntity, Mode >	AsWeak ()

TWeakPtr< FEntity const, Mode >	AsWeak () const

TWeakPtr< SubobjectType, Mode >	AsWeakSubobject (SubobjectType *SubobjectPtr) const

void	UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const InSharedPtr, OtherType InObject) const

void	UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const InSharedRef, OtherType InObject) const

UE_FORCEINLINE_HINT bool	DoesSharedInstanceExist () const

Public Member Functions inherited from UE::CADKernel::FHaveStates
	FHaveStates ()

void	Serialize (FCADKernelArchive &Ar)

void	ResetElementStatus ()

bool	HasMarker1 () const

bool	HasMarker2 () const

bool	HasMarker1And2 () const

bool	HasMarker1Or2 () const

void	SetMarker1 () const

void	SetMarker2 () const

void	ResetMarker1 () const

void	ResetMarker2 () const

void	ResetMarkers () const

bool	IsDeleted () const

void	SetDeletedMarker () const

void	ResetDeleted () const

virtual bool	IsDeletedOrDegenerated () const

virtual bool	IsDegenerated () const

virtual void	SetAsDegenerated () const

virtual void	ResetDegenerated () const

void	SetWaitingMarker () const

void	ResetWaitingMarker () const

virtual bool	IsWaiting () const

void	SetProcessedMarker () const

void	ResetProcessedMarker () const

virtual bool	IsProcessed () const

virtual bool	IsProcessedDeletedOrDegenerated () const

void	SetToProcessMarker () const

void	ResetToProcessMarker () const

virtual bool	IsToProcess () const

virtual bool	IsNotToProcess () const

virtual bool	IsNotToOrAlreadyProcess () const

Additional Inherited Members
Static Public Member Functions inherited from UE::CADKernel::FEntity
template<typename OtherEntity , typename... InArgTypes>
static TSharedRef< OtherEntity >	MakeShared (InArgTypes &&... Args)

template<typename OtherEntity >
static TSharedRef< OtherEntity >	MakeShared (FCADKernelArchive &Archive)

static void	SerializeIdent (FCADKernelArchive &Ar, TSharedPtr< FEntity > &Entity, bool bSaveSelection=true)

static void	SerializeIdent (FCADKernelArchive &Ar, TWeakPtr< FEntity > &Entity, bool bSaveSelection=true)

static void	SerializeIdent (FCADKernelArchive &Ar, FEntity **Entity, bool bSaveSelection=true)

template<typename EntityType >
static void	SerializeIdent (FCADKernelArchive &Ar, EntityType **Entity, bool bSaveSelection=true)

template<typename EntityType >
static void	SerializeIdent (FCADKernelArchive &Ar, TSharedPtr< EntityType > &Entity, bool bSaveSelection=true)

template<typename EntityType >
static void	SerializeIdent (FCADKernelArchive &Ar, TWeakPtr< EntityType > &Entity, bool bSaveSelection=true)

static void	SerializeIdents (FCADKernelArchive &Ar, TArray< FEntity * > &Array, bool bSaveSelection=true)

static void	SerializeIdents (FCADKernelArchive &Ar, TArray< TWeakPtr< FEntity > > &Array, bool bSaveSelection=true)

static void	SerializeIdents (FCADKernelArchive &Ar, TArray< TSharedPtr< FEntity > > &Array, bool bSaveSelection=true)

static void	SerializeIdents (FCADKernelArchive &Ar, TArray< TOrientedEntity< FEntity > > &Array)

template<typename EntityType >
static void	SerializeIdents (FCADKernelArchive &Ar, TArray< EntityType * > &Array, bool bSaveSelection=true)

template<typename EntityType >
static void	SerializeIdents (FCADKernelArchive &Ar, TArray< TWeakPtr< EntityType > > &Array, bool bSaveSelection=true)

template<typename EntityType >
static void	SerializeIdents (FCADKernelArchive &Ar, TArray< TSharedPtr< EntityType > > &Array, bool bSaveSelection=true)

static void	SpawnIdentOnEntities (TArray< FEntity * > &Array, FDatabase &Database)

static void	SpawnIdentOnEntities (TArray< TSharedPtr< FEntity > > &Array, FDatabase &Database)

static void	SpawnIdentOnEntities (TArray< TOrientedEntity< FEntity > > &Array, FDatabase &Database)

template<typename EntityType >
static void	SpawnIdentOnEntities (TArray< TSharedPtr< EntityType > > &Array, FDatabase &Database)

static void	ResetMarkersRecursivelyOnEntities (const TArray< FEntity * > &Array)

static void	ResetMarkersRecursivelyOnEntities (const TArray< TWeakPtr< FEntity > > &Array)

static void	ResetMarkersRecursivelyOnEntities (const TArray< TSharedPtr< FEntity > > &Array)

static void	ResetMarkersRecursivelyOnEntities (const TArray< TOrientedEntity< FEntity > > &Array)

template<typename EntityType >
static void	ResetMarkersRecursivelyOnEntities (const TArray< TSharedPtr< EntityType > > &Array)

static TSharedPtr< FEntity >	Deserialize (FCADKernelArchive &Ar)

static const TCHAR *	GetTypeName (EEntity Type)

Protected Member Functions inherited from UE::CADKernel::FTopologicalShapeEntity
void	ResetHost ()

Protected Member Functions inherited from UE::CADKernel::FEntity
bool	SetId (FDatabase &Database)

Protected Member Functions inherited from TSharedFromThis< FEntity >
	TSharedFromThis ()

	TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis &	operator= (TSharedFromThis const &)

	~TSharedFromThis ()

Static Protected Member Functions inherited from TSharedFromThis< FEntity >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode >	SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode >	SharedThis (const OtherType *ThisPtr)

Protected Attributes inherited from UE::CADKernel::FTopologicalEntity
FIdent	CtKioId = 0

Protected Attributes inherited from UE::CADKernel::FEntity
FIdent	Id = 0

Protected Attributes inherited from UE::CADKernel::FHaveStates
EHaveStates	States

Static Protected Attributes inherited from UE::CADKernel::FEntity
static const TCHAR *	TypesNames []

Constructor & Destructor Documentation

◆ ~FBody()

virtual UE::CADKernel::FBody::~FBody ( )

inlineoverridevirtual

Member Function Documentation

◆ AddShell()

void UE::CADKernel::FBody::AddShell ( TSharedRef< FShell > Shell )

◆ CompleteMetaData()

virtual void UE::CADKernel::FBody::CompleteMetaData ( )

inlineoverridevirtual

Implements UE::CADKernel::FTopologicalShapeEntity.

◆ Empty()

virtual void UE::CADKernel::FBody::Empty ( )

inlineoverridevirtual

Reimplemented from UE::CADKernel::FTopologicalShapeEntity.

◆ FaceCount()

virtual int32 UE::CADKernel::FBody::FaceCount ( ) const

inlineoverridevirtual

Implements UE::CADKernel::FTopologicalShapeEntity.

◆ GetEntityType()

virtual EEntity UE::CADKernel::FBody::GetEntityType ( ) const

inlineoverridevirtual

Implements UE::CADKernel::FEntity.

◆ GetFaces()

virtual void UE::CADKernel::FBody::GetFaces ( TArray< FTopologicalFace * > & Faces )

inlineoverridevirtual

Implements UE::CADKernel::FTopologicalShapeEntity.

◆ GetShells()

const TArray< TSharedPtr< FShell > > & UE::CADKernel::FBody::GetShells ( ) const

inline

◆ IsEmpty()

bool UE::CADKernel::FBody::IsEmpty ( ) const

inline

◆ Orient()

void UE::CADKernel::FBody::Orient ( )

inline

◆ PropagateBodyOrientation()

virtual void UE::CADKernel::FBody::PropagateBodyOrientation ( )

inlineoverridevirtual

Each face of model is set by its orientation. This allow to make oriented mesh and to keep the face orientation in topological function. Marker2 of propagate face is set. It must be reset after the process

Implements UE::CADKernel::FTopologicalShapeEntity.

◆ Remove()

void UE::CADKernel::FBody::Remove ( const FTopologicalShapeEntity * ShellToRemove )

overridevirtual

Implements UE::CADKernel::FTopologicalShapeEntity.

◆ RemoveEmptyShell()

void UE::CADKernel::FBody::RemoveEmptyShell ( )

◆ ResetMarkersRecursively()

virtual void UE::CADKernel::FBody::ResetMarkersRecursively ( ) const

inlineoverridevirtual

Reimplemented from UE::CADKernel::FEntity.

◆ Serialize()

virtual void UE::CADKernel::FBody::Serialize ( FCADKernelArchive & Ar )

inlineoverridevirtual

Serialization of a FEntity. Each class derived from FEntity has to override this method (and call the direct base class override method first) E.g. class FEntityXXX : public FEntityXX { virtual void Serialize(FCADKernelArchive& Ar) override { FEntityXX::Serialize(Ar); ... } }

Reimplemented from UE::CADKernel::FTopologicalShapeEntity.

◆ ShellCount()

int32 UE::CADKernel::FBody::ShellCount ( ) const

inline

◆ SpawnIdent()

virtual void UE::CADKernel::FBody::SpawnIdent ( FDatabase & Database )

inlineoverridevirtual

Reimplemented from UE::CADKernel::FEntity.

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Datasmith/CADKernel/Base/Public/Topo/Body.h
Engine/Source/Runtime/Datasmith/CADKernel/Base/Private/Topo/Body.cpp
