#include <GridBase.h>

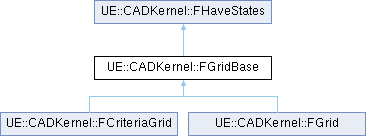

Inheritance diagram for UE::CADKernel::FGridBase:

Public Member Functions
	FGridBase (FTopologicalFace &InFace)

virtual	~FGridBase ()

void	TransformPoints (EGridSpace DestinationSpace, const TArray< FVector2d > &InPointsToScale, TArray< FVector2d > &OutScaledPoints) const

bool	ScaleGrid ()

double	GetTolerance () const

const FVector2d &	GetInner2DPoint (EGridSpace Space, int32 Index) const

const FVector2d &	GetInner2DPoint (EGridSpace Space, int32 IndexU, int32 IndexV) const

const FVector &	GetInner3DPoint (int32 Index) const

constexpr const TArray< double > &	GetUniformCuttingCoordinatesAlongIso (EIso Iso) const

const FCoordinateGrid &	GetUniformCuttingCoordinates () const

TArray< FVector > &	GetInner3DPoints ()

const TArray< FVector > &	GetInner3DPoints () const

const TArray< FVector2d > &	GetInner2DPoints (EGridSpace Space) const

const FTopologicalFace &	GetFace () const

FTopologicalFace &	GetFace ()

int32	GobalIndex (int32 IndexU, int32 IndexV) const

Public Member Functions inherited from UE::CADKernel::FHaveStates
	FHaveStates ()

void	Serialize (FCADKernelArchive &Ar)

void	ResetElementStatus ()

bool	HasMarker1 () const

bool	HasMarker2 () const

bool	HasMarker1And2 () const

bool	HasMarker1Or2 () const

void	SetMarker1 () const

void	SetMarker2 () const

void	ResetMarker1 () const

void	ResetMarker2 () const

void	ResetMarkers () const

bool	IsDeleted () const

void	SetDeletedMarker () const

void	ResetDeleted () const

virtual bool	IsDeletedOrDegenerated () const

virtual bool	IsDegenerated () const

virtual void	SetAsDegenerated () const

virtual void	ResetDegenerated () const

void	SetWaitingMarker () const

void	ResetWaitingMarker () const

virtual bool	IsWaiting () const

void	SetProcessedMarker () const

void	ResetProcessedMarker () const

virtual bool	IsProcessed () const

virtual bool	IsProcessedDeletedOrDegenerated () const

void	SetToProcessMarker () const

void	ResetToProcessMarker () const

virtual bool	IsToProcess () const

virtual bool	IsNotToProcess () const

virtual bool	IsNotToOrAlreadyProcess () const

Public Attributes
FGridChronos	Chronos

Protected Member Functions
virtual const FCoordinateGrid &	GetCoordinateGrid () const =0

void	EvaluatePointGrid (const FCoordinateGrid &CoordinateGrid, bool bWithNormals)

void	ComputeNewCoordinate (const TArray< FVector2d > &NewGrid, int32 IndexU, int32 IndexV, const FVector2d &InPoint, FVector2d &OutNewScaledPoint) const

Protected Attributes
FTopologicalFace &	Face

const double	Tolerance3D

int32	CuttingCount [2] = { 0 , 0 }

int32	CuttingSize = 0

FCoordinateGrid	UniformCuttingCoordinates

TArray< FVector2d >	Points2D [EGridSpace::EndGridSpace]

TArray< FVector >	Points3D

TArray< FVector3f >	Normals

Protected Attributes inherited from UE::CADKernel::FHaveStates
EHaveStates	States

Constructor & Destructor Documentation

◆ FGridBase()

UE::CADKernel::FGridBase::FGridBase ( FTopologicalFace & InFace )

◆ ~FGridBase()

virtual UE::CADKernel::FGridBase::~FGridBase ( )

inlinevirtual

Member Function Documentation

◆ ComputeNewCoordinate()

void UE::CADKernel::FGridBase::ComputeNewCoordinate	(	const TArray< FVector2d > &	NewGrid,
		int32	IndexU,
		int32	IndexV,
		const FVector2d &	InPoint,
		FVector2d &	OutNewScaledPoint
	)		const

inlineprotected

Convert Coordinate of "DefaultParametric" space into a scaled parametric space

See also: ScaleLoops

◆ EvaluatePointGrid()

void UE::CADKernel::FGridBase::EvaluatePointGrid	(	const FCoordinateGrid &	CoordinateGrid,
		bool	bWithNormals
	)

protected

◆ GetCoordinateGrid()

virtual const FCoordinateGrid & UE::CADKernel::FGridBase::GetCoordinateGrid ( ) const

protectedpure virtual

Implemented in UE::CADKernel::FCriteriaGrid, and UE::CADKernel::FGrid.

◆ GetFace() [1/2]

FTopologicalFace & UE::CADKernel::FGridBase::GetFace ( )

inline

◆ GetFace() [2/2]

const FTopologicalFace & UE::CADKernel::FGridBase::GetFace ( ) const

inline

◆ GetInner2DPoint() [1/2]

const FVector2d & UE::CADKernel::FGridBase::GetInner2DPoint	(	EGridSpace	Space,
		int32	Index
	)		const

inline

Returns: the FVector2d (parametric coordinates) of the point at the Index of the grid in the defined grid space

See also: EGridSpace; Points2D

◆ GetInner2DPoint() [2/2]

const FVector2d & UE::CADKernel::FGridBase::GetInner2DPoint	(	EGridSpace	Space,
		int32	IndexU,
		int32	IndexV
	)		const

inline

Returns: the FVector2d (parametric coordinates) of the point at the Index of the grid in the defined grid space

See also: EGridSpace

◆ GetInner2DPoints()

const TArray< FVector2d > & UE::CADKernel::FGridBase::GetInner2DPoints ( EGridSpace Space ) const

inline

Returns: the array of 2d points of the grid in the defined space

◆ GetInner3DPoint()

const FVector & UE::CADKernel::FGridBase::GetInner3DPoint ( int32 Index ) const

inline

Returns: the FVector (3D coordinates) of the point at the Index of the grid

◆ GetInner3DPoints() [1/2]

TArray< FVector > & UE::CADKernel::FGridBase::GetInner3DPoints ( )

inline

Returns: the array of 3d points of the grid

◆ GetInner3DPoints() [2/2]

const TArray< FVector > & UE::CADKernel::FGridBase::GetInner3DPoints ( ) const

inline

Returns: the array of 3d points of the grid

◆ GetTolerance()

double UE::CADKernel::FGridBase::GetTolerance ( ) const

inline

◆ GetUniformCuttingCoordinates()

const FCoordinateGrid & UE::CADKernel::FGridBase::GetUniformCuttingCoordinates ( ) const

inline

◆ GetUniformCuttingCoordinatesAlongIso()

constexpr const TArray< double > & UE::CADKernel::FGridBase::GetUniformCuttingCoordinatesAlongIso ( EIso Iso ) const

inlineconstexpr

◆ GobalIndex()

int32 UE::CADKernel::FGridBase::GobalIndex	(	int32	IndexU,
		int32	IndexV
	)		const

inline

Returns: the Index of the position in the arrays of a point [IndexU, IndexV] of the grid

◆ ScaleGrid()

bool UE::CADKernel::FGridBase::ScaleGrid ( )

Builds the scaled parametric spaces

See also: Points2D; GeneratePointCloud (ended GeneratePointCloud process)

Returns: false if the scaled grid is degenerated

◆ TransformPoints()

void UE::CADKernel::FGridBase::TransformPoints	(	EGridSpace	DestinationSpace,
		const TArray< FVector2d > &	InPointsToScale,
		TArray< FVector2d > &	OutScaledPoints
	)		const

Convert an array of points of "DefaultParametric" space into a scaled parametric space

See also: FThinZone2DFinder::BuildBoundarySegments()

Member Data Documentation

◆ Chronos

FGridChronos UE::CADKernel::FGridBase::Chronos

◆ CuttingCount

int32 UE::CADKernel::FGridBase::CuttingCount[2] = { 0 , 0 }

protected

grid point cloud size

◆ CuttingSize

int32 UE::CADKernel::FGridBase::CuttingSize = 0

protected

◆ Face

FTopologicalFace& UE::CADKernel::FGridBase::Face

protected

◆ Normals

TArray<FVector3f> UE::CADKernel::FGridBase::Normals

protected

Surface Normal at each inner nodes

◆ Points2D

TArray<FVector2d> UE::CADKernel::FGridBase::Points2D[EGridSpace::EndGridSpace]

protected

2D Coordinate of grid nodes in each space

◆ Points3D

TArray<FVector> UE::CADKernel::FGridBase::Points3D

protected

3D Coordinate of inner nodes

◆ Tolerance3D

const double UE::CADKernel::FGridBase::Tolerance3D

protected

◆ UniformCuttingCoordinates

FCoordinateGrid UE::CADKernel::FGridBase::UniformCuttingCoordinates

protected

The documentation for this class was generated from the following files:

Engine/Source/Runtime/Datasmith/CADKernel/Base/Private/Mesh/Structure/GridBase.h
Engine/Source/Runtime/Datasmith/CADKernel/Base/Private/Mesh/Structure/GridBase.cpp
