UE::CADKernel::FSurfacicCurveSamplerOnParam Class Reference

#include <SamplerOnParam.h>

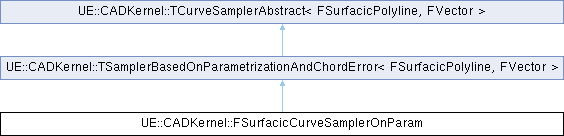

+ Inheritance diagram for UE::CADKernel::FSurfacicCurveSamplerOnParam:

Public Member Functions

 FSurfacicCurveSamplerOnParam (const FRestrictionCurve &InCurve, const FLinearBoundary &InBoundary, double InMaxSagError, double InMaxParameterizationError, FSurfacicPolyline &OutPolyline)

 FSurfacicCurveSamplerOnParam (const FSurface &InSurface, const FCurve &InCurve, const FLinearBoundary &InBoundary, double InMaxSagError, double InMaxParameterizationError, FSurfacicPolyline &OutPolyline)

- Public Member Functions inherited from UE::CADKernel::TSamplerBasedOnParametrizationAndChordError< FSurfacicPolyline, FVector >
 TSamplerBasedOnParametrizationAndChordError (const FLinearBoundary &InBoundary, double InMaxChordError, double InMaxParameterizationError, FSurfacicPolyline &OutPolyline)

- Public Member Functions inherited from UE::CADKernel::TCurveSamplerAbstract< PolylineType, PointType >
 TCurveSamplerAbstract (const FLinearBoundary &InBoundary, PolylineType &OutPolyline, double InDesiredChordError)

virtual ~TCurveSamplerAbstract ()=default

virtual void Sample ()


Protected Member Functions

virtual void EvaluatesNewCandidatePoints () override

virtual void GetNotDerivableCoordinates (TArray< double > &OutNotDerivableCoordinates) override

- Protected Member Functions inherited from UE::CADKernel::TSamplerBasedOnParametrizationAndChordError< FSurfacicPolyline, FVector >
virtual int32 CheckSamplingError (int32 FirstIndex, int32 EndIndex) override

- Protected Member Functions inherited from UE::CADKernel::TCurveSamplerAbstract< PolylineType, PointType >
virtual void SamplingInitalizing ()

void RunSampling ()

bool AddIntermediateCoordinates (double UMin, double UMax, int32 PointNum)

void CompletesPolyline (int32 NeededPointNumber, int32 IntermediateIndex)

int32 GetFirstNeighbor (int32 NeighborIndex, const double StartCoordinate, const PolylineType &Points, const int32 Increment, double &NeighborCoordinate)

int32 CountOfNeededPointsToRespectChordError (const PointType &PointA, const PointType &PointB, double ChordError)

int32 CheckTangentError (const PointType &APoint, double ACoordinate, const PointType &BPoint, double BCoordinate, int32 FirstIndex, int32 EndIndex, int32 InStartSamplingSegmentIndex)


Protected Attributes

const FSurface & Surface

const FCurve & Curve

double MaxParameterizationError

- Protected Attributes inherited from UE::CADKernel::TSamplerBasedOnParametrizationAndChordError< FSurfacicPolyline, FVector >
double DesiredParameterizationError

- Protected Attributes inherited from UE::CADKernel::TCurveSamplerAbstract< PolylineType, PointType >
FLinearBoundary Boundary

PolylineType & Sampling

PolylineType CandidatePoints

const TArray< double > & TmpPolylineCoordinates

const TArray< double > & SamplingCoordinates

TArray< char > IsOptimalSegments

int32 StartSamplingSegmentIndex

int32 EndSamplingSegmentIndex

TSamplingPoint EndStudySegment

TArray< double > NextCoordinates

double DesiredChordError


Detailed Description

Sampler of surfacic curve based on parametrization and chord error control

Constructor & Destructor Documentation

◆ FSurfacicCurveSamplerOnParam() [1/2]

UE::CADKernel::FSurfacicCurveSamplerOnParam::FSurfacicCurveSamplerOnParam ( const FRestrictionCurve &  InCurve,
const FLinearBoundary &  InBoundary,
double  InMaxSagError,
double  InMaxParameterizationError,
FSurfacicPolyline &  OutPolyline
)
inline

◆ FSurfacicCurveSamplerOnParam() [2/2]

UE::CADKernel::FSurfacicCurveSamplerOnParam::FSurfacicCurveSamplerOnParam ( const FSurface &  InSurface,
const FCurve &  InCurve,
const FLinearBoundary &  InBoundary,
double  InMaxSagError,
double  InMaxParameterizationError,
FSurfacicPolyline &  OutPolyline
)
inline

Member Function Documentation

◆ EvaluatesNewCandidatePoints()

virtual void UE::CADKernel::FSurfacicCurveSamplerOnParam::EvaluatesNewCandidatePoints ( )
inlineoverrideprotectedvirtual

Evaluate the new candidate points corresponding to the NextCoordinates

Implements UE::CADKernel::TCurveSamplerAbstract< PolylineType, PointType >.

◆ GetNotDerivableCoordinates()

virtual void UE::CADKernel::FSurfacicCurveSamplerOnParam::GetNotDerivableCoordinates ( TArray< double > &  OutNotDerivableCoordinates)
inlineoverrideprotectedvirtual

OutNotDerivableCoordinates must not include the boundaries of the curve. They are added after

Reimplemented from UE::CADKernel::TCurveSamplerAbstract< PolylineType, PointType >.

Member Data Documentation

◆ Curve

const FCurve& UE::CADKernel::FSurfacicCurveSamplerOnParam::Curve
protected

◆ MaxParameterizationError

double UE::CADKernel::FSurfacicCurveSamplerOnParam::MaxParameterizationError
protected

◆ Surface

const FSurface& UE::CADKernel::FSurfacicCurveSamplerOnParam::Surface
protected
The documentation for this class was generated from the following file:
