UE::CADKernel::FSurface Class Referenceabstract

#include <Surface.h>

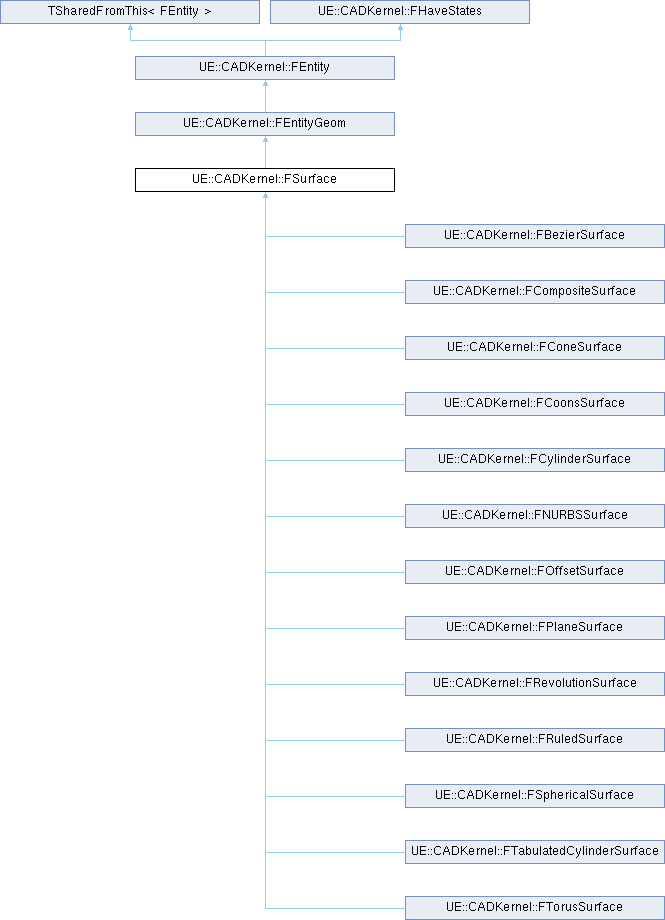

+ Inheritance diagram for UE::CADKernel::FSurface:

Public Member Functions

virtual void ValidateUVPoints (TArray< FVector2d > &UVPoints) const

virtual void Serialize (FCADKernelArchive &Ar) override

virtual ~FSurface ()=default

virtual EEntity GetEntityType () const override

virtual ESurface GetSurfaceType () const =0

const FSurfacicBoundary & GetBoundary () const

void TrimBoundaryTo (const FSurfacicBoundary NewLimit)

void ExtendBoundaryTo (const FSurfacicBoundary MaxLimit)

virtual TSharedPtr< FEntityGeom > ApplyMatrix (const FMatrixH &InMatrix) const =0

const FSurfacicTolerance & GetIsoTolerances () const

double GetIsoTolerance (EIso Iso) const

double Get3DTolerance () const

virtual void EvaluatePoint (const FVector2d &InSurfacicCoordinate, FSurfacicPoint &OutPoint3D, int32 InDerivativeOrder=0) const =0

virtual void EvaluatePoints (const TArray< FVector2d > &InSurfacicCoordinates, TArray< FSurfacicPoint > &OutPoint3D, int32 InDerivativeOrder=0) const

virtual void EvaluatePoints (const TArray< FCurvePoint2D > &InSurfacicCoordinates, TArray< FSurfacicPoint > &OutPoint3D, int32 InDerivativeOrder=0) const

virtual void EvaluatePoints (const TArray< FCurvePoint2D > &InSurfacicCoordinates, TArray< FCurvePoint > &OutPoint3D, int32 InDerivativeOrder=0) const

virtual void EvaluatePoints (FSurfacicPolyline &Polyline) const

virtual void EvaluatePoints (const TArray< FCurvePoint2D > &Points2D, FSurfacicPolyline &Polyline) const

virtual FVector2d EvaluatePointInCylindricalSpace (const FVector2d &InSurfacicCoordinate) const

virtual void EvaluatePointGridInCylindricalSpace (const FCoordinateGrid &Coordinates, TArray< FVector2d > &) const

virtual void EvaluatePointGrid (const FCoordinateGrid &Coordinates, FSurfacicSampling &OutPoints, bool bComputeNormals=false) const

void EvaluateGrid (FGrid &Grid) const

virtual void EvaluateNormals (const TArray< FVector2d > &Points2D, TArray< FVector3f > &Normals) const

virtual void EvaluatePointAndNormal (const FVector2d &InPoint2D, FVector &Point, FVector3f &Normal) const

virtual FVector EvaluateNormal (const FVector2d &InPoint2D) const

void Sample (const FSurfacicBoundary &Bounds, int32 NumberOfSubdivisions[2], FSurfacicSampling &OutPointSampling) const

void Sample (const FSurfacicBoundary &Boundary, int32 NumberOfSubdivisions[2], FCoordinateGrid &OutCoordinateSampling) const

virtual void Presample (const FSurfacicBoundary &InBoundaries, FCoordinateGrid &OutCoordinates)

virtual void LinesNotDerivables (const FSurfacicBoundary &Bounds, int32 InDerivativeOrder, FCoordinateGrid &OutNotDerivableCoordinates) const

void LinesNotDerivables (int32 InDerivativeOrder, FCoordinateGrid &OutNotDerivableCoordinates) const

virtual void IsSurfaceClosed (bool &bOutClosedAlongU, bool &bOutClosedAlongV) const

void PresampleIsoCircle (const FSurfacicBoundary &InBoundaries, FCoordinateGrid &Coordinates, EIso Iso)

- Public Member Functions inherited from UE::CADKernel::FEntityGeom
 FEntityGeom ()=default

FIdent GetKioId () const

- Public Member Functions inherited from UE::CADKernel::FEntity
virtual ~FEntity ()

virtual void Delete ()

virtual void Empty ()

bool IsTopologicalEntity () const

bool IsTopologicalShapeEntity () const

bool IsGeometricalEntity ()

const TCHAR * GetTypeName () const

const FIdent & GetId () const

virtual void SpawnIdent (FDatabase &Database)

virtual void ResetMarkersRecursively () const

- Public Member Functions inherited from TSharedFromThis< FEntity >
TSharedRef< FEntity, Mode > AsShared ()

TSharedRef< FEntity const, Mode > AsShared () const

TSharedRef< SubobjectType, Mode > AsSharedSubobject (SubobjectType *SubobjectPtr) const

TWeakPtr< FEntity, Mode > AsWeak ()

TWeakPtr< FEntity const, Mode > AsWeak () const

TWeakPtr< SubobjectType, Mode > AsWeakSubobject (SubobjectType *SubobjectPtr) const

void UpdateWeakReferenceInternal (TSharedPtr< SharedPtrType, SharedPtrMode > const *InSharedPtr, OtherType *InObject) const

void UpdateWeakReferenceInternal (TSharedRef< SharedRefType, SharedPtrMode > const *InSharedRef, OtherType *InObject) const

UE_FORCEINLINE_HINT bool DoesSharedInstanceExist () const

- Public Member Functions inherited from UE::CADKernel::FHaveStates
 FHaveStates ()

void Serialize (FCADKernelArchive &Ar)

void ResetElementStatus ()

bool HasMarker1 () const

bool HasMarker2 () const

bool HasMarker1And2 () const

bool HasMarker1Or2 () const

void SetMarker1 () const

void SetMarker2 () const

void ResetMarker1 () const

void ResetMarker2 () const

void ResetMarkers () const

bool IsDeleted () const

void SetDeletedMarker () const

void ResetDeleted () const

virtual bool IsDeletedOrDegenerated () const

virtual bool IsDegenerated () const

virtual void SetAsDegenerated () const

virtual void ResetDegenerated () const

void SetWaitingMarker () const

void ResetWaitingMarker () const

virtual bool IsWaiting () const

void SetProcessedMarker () const

void ResetProcessedMarker () const

virtual bool IsProcessed () const

virtual bool IsProcessedDeletedOrDegenerated () const

void SetToProcessMarker () const

void ResetToProcessMarker () const

virtual bool IsToProcess () const

virtual bool IsNotToProcess () const

virtual bool IsNotToOrAlreadyProcess () const


Static Public Member Functions

static TSharedPtr< FSurface > MakeBezierSurface (const double InToleranceGeometric, int32 InUDegre, int32 InVDegre, const TArray< FVector > &InPoles)

static TSharedPtr< FSurface > MakeConeSurface (const double InToleranceGeometric, const FMatrixH &InMatrix, double InStartRadius, double InConeAngle, const FSurfacicBoundary &InBoundary)

static TSharedPtr< FSurface > MakeCylinderSurface (const double InToleranceGeometric, const FMatrixH &InMatrix, const double InRadius, const FSurfacicBoundary &InBoundary)

static TSharedPtr< FSurface > MakeNurbsSurface (const double InToleranceGeometric, const FNurbsSurfaceData &NurbsData)

static TSharedPtr< FSurface > MakeNurbsSurface (const double InToleranceGeometric, const FNurbsSurfaceHomogeneousData &NurbsData)

static TSharedPtr< FSurface > MakePlaneSurface (const double InToleranceGeometric, const FMatrixH &InMatrix, const FSurfacicBoundary &InBoundary)

static TSharedPtr< FSurface > MakeSphericalSurface (const double InToleranceGeometric, const FMatrixH &InMatrix, double InRadius, const FSurfacicBoundary &InBoundary)

static TSharedPtr< FSurface > MakeTorusSurface (const double InToleranceGeometric, const FMatrixH &InMatrix, double InMajorRadius, double InMinorRadius, const FSurfacicBoundary &InBoundary)

static TSharedPtr< FSurface > Deserialize (FCADKernelArchive &Archive)

static double ComputeScaleAlongAxis (const FVector &InAxis, const FMatrixH &InMatrix, const FVector &InOrigin)

- Static Public Member Functions inherited from UE::CADKernel::FEntity
template<typename OtherEntity , typename... InArgTypes>
static TSharedRef< OtherEntity > MakeShared (InArgTypes &&... Args)

template<typename OtherEntity >
static TSharedRef< OtherEntity > MakeShared (FCADKernelArchive &Archive)

static void SerializeIdent (FCADKernelArchive &Ar, TSharedPtr< FEntity > &Entity, bool bSaveSelection=true)

static void SerializeIdent (FCADKernelArchive &Ar, TWeakPtr< FEntity > &Entity, bool bSaveSelection=true)

static void SerializeIdent (FCADKernelArchive &Ar, FEntity **Entity, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdent (FCADKernelArchive &Ar, EntityType **Entity, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdent (FCADKernelArchive &Ar, TSharedPtr< EntityType > &Entity, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdent (FCADKernelArchive &Ar, TWeakPtr< EntityType > &Entity, bool bSaveSelection=true)

static void SerializeIdents (FCADKernelArchive &Ar, TArray< FEntity * > &Array, bool bSaveSelection=true)

static void SerializeIdents (FCADKernelArchive &Ar, TArray< TWeakPtr< FEntity > > &Array, bool bSaveSelection=true)

static void SerializeIdents (FCADKernelArchive &Ar, TArray< TSharedPtr< FEntity > > &Array, bool bSaveSelection=true)

static void SerializeIdents (FCADKernelArchive &Ar, TArray< TOrientedEntity< FEntity > > &Array)

template<typename EntityType >
static void SerializeIdents (FCADKernelArchive &Ar, TArray< EntityType * > &Array, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdents (FCADKernelArchive &Ar, TArray< TWeakPtr< EntityType > > &Array, bool bSaveSelection=true)

template<typename EntityType >
static void SerializeIdents (FCADKernelArchive &Ar, TArray< TSharedPtr< EntityType > > &Array, bool bSaveSelection=true)

static void SpawnIdentOnEntities (TArray< FEntity * > &Array, FDatabase &Database)

static void SpawnIdentOnEntities (TArray< TSharedPtr< FEntity > > &Array, FDatabase &Database)

static void SpawnIdentOnEntities (TArray< TOrientedEntity< FEntity > > &Array, FDatabase &Database)

template<typename EntityType >
static void SpawnIdentOnEntities (TArray< TSharedPtr< EntityType > > &Array, FDatabase &Database)

static void ResetMarkersRecursivelyOnEntities (const TArray< FEntity * > &Array)

static void ResetMarkersRecursivelyOnEntities (const TArray< TWeakPtr< FEntity > > &Array)

static void ResetMarkersRecursivelyOnEntities (const TArray< TSharedPtr< FEntity > > &Array)

static void ResetMarkersRecursivelyOnEntities (const TArray< TOrientedEntity< FEntity > > &Array)

template<typename EntityType >
static void ResetMarkersRecursivelyOnEntities (const TArray< TSharedPtr< EntityType > > &Array)

static TSharedPtr< FEntity > Deserialize (FCADKernelArchive &Ar)

static const TCHAR * GetTypeName (EEntity Type)


Protected Member Functions

 FSurface ()=default

 FSurface (double InToleranceGeometric)

 FSurface (double InToleranceGeometric, const FSurfacicBoundary &InBoundary)

 FSurface (double InToleranceGeometric, double UMin, double UMax, double VMin, double VMax)

void ComputeDefaultMinToleranceIso ()

- Protected Member Functions inherited from UE::CADKernel::FEntity
bool SetId (FDatabase &Database)

- Protected Member Functions inherited from TSharedFromThis< FEntity >
 TSharedFromThis ()

 TSharedFromThis (TSharedFromThis const &)

UE_FORCEINLINE_HINT TSharedFromThis & operator= (TSharedFromThis const &)

 ~TSharedFromThis ()


Protected Attributes

FSurfacicBoundary Boundary

double Tolerance3D

TCache< FSurfacicTolerance > MinToleranceIso

- Protected Attributes inherited from UE::CADKernel::FEntityGeom
FIdent CtKioId = 0

- Protected Attributes inherited from UE::CADKernel::FEntity
FIdent Id = 0

- Protected Attributes inherited from UE::CADKernel::FHaveStates
EHaveStates States


Additional Inherited Members

- Static Protected Member Functions inherited from TSharedFromThis< FEntity >
static UE_FORCEINLINE_HINT TSharedRef< OtherType, Mode > SharedThis (OtherType *ThisPtr)

static UE_FORCEINLINE_HINT TSharedRef< OtherType const, Mode > SharedThis (const OtherType *ThisPtr)

- Static Protected Attributes inherited from UE::CADKernel::FEntity
static const TCHAR * TypesNames []


Constructor & Destructor Documentation

◆ FSurface() [1/4]

UE::CADKernel::FSurface::FSurface ( )
protecteddefault

◆ FSurface() [2/4]

UE::CADKernel::FSurface::FSurface ( double  InToleranceGeometric)
inlineprotected

◆ FSurface() [3/4]

UE::CADKernel::FSurface::FSurface ( double  InToleranceGeometric,
const FSurfacicBoundary &  InBoundary
)
inlineprotected

◆ FSurface() [4/4]

UE::CADKernel::FSurface::FSurface ( double  InToleranceGeometric,
double  UMin,
double  UMax,
double  VMin,
double  VMax
)
inlineprotected

◆ ~FSurface()

virtual UE::CADKernel::FSurface::~FSurface ( )
virtualdefault

Member Function Documentation

◆ ApplyMatrix()

virtual TSharedPtr< FEntityGeom > UE::CADKernel::FSurface::ApplyMatrix ( const FMatrixH &  InMatrix) const
pure virtual

Reimplemented from UE::CADKernel::FEntityGeom.

Implemented in UE::CADKernel::FBezierSurface, UE::CADKernel::FCompositeSurface, UE::CADKernel::FConeSurface, UE::CADKernel::FCoonsSurface, UE::CADKernel::FCylinderSurface, UE::CADKernel::FNURBSSurface, UE::CADKernel::FOffsetSurface, UE::CADKernel::FPlaneSurface, UE::CADKernel::FRevolutionSurface, UE::CADKernel::FRuledSurface, UE::CADKernel::FSphericalSurface, UE::CADKernel::FTabulatedCylinderSurface, and UE::CADKernel::FTorusSurface.

◆ ComputeDefaultMinToleranceIso()

void UE::CADKernel::FSurface::ComputeDefaultMinToleranceIso ( )
inlineprotected

◆ ComputeScaleAlongAxis()

static double UE::CADKernel::FSurface::ComputeScaleAlongAxis ( const FVector &  InAxis,
const FMatrixH &  InMatrix,
const FVector &  InOrigin
)
inlinestatic

This function return the scale of the input Axis. This function is useful to estimate tolerance when scales are defined in the Matrix

Parameters
InAxisa vetor of length 1
InMatrix
InOrigin= InMatrix*FVector::ZeroVector

◆ Deserialize()

TSharedPtr< FSurface > UE::CADKernel::FSurface::Deserialize ( FCADKernelArchive &  Archive)
static

Specific method for surface family to instantiate the correct derived class of FCurve

◆ EvaluateGrid()

void UE::CADKernel::FSurface::EvaluateGrid ( FGrid &  Grid) const

◆ EvaluateNormal()

virtual FVector UE::CADKernel::FSurface::EvaluateNormal ( const FVector2d &  InPoint2D) const
inlinevirtual

◆ EvaluateNormals()

void UE::CADKernel::FSurface::EvaluateNormals ( const TArray< FVector2d > &  Points2D,
TArray< FVector3f > &  Normals
) const
virtual

◆ EvaluatePoint()

virtual void UE::CADKernel::FSurface::EvaluatePoint ( const FVector2d &  InSurfacicCoordinate,
FSurfacicPoint &  OutPoint3D,
int32  InDerivativeOrder = 0
) const
pure virtual

Implemented in UE::CADKernel::FBezierSurface, UE::CADKernel::FCompositeSurface, UE::CADKernel::FConeSurface, UE::CADKernel::FCoonsSurface, UE::CADKernel::FCylinderSurface, UE::CADKernel::FNURBSSurface, UE::CADKernel::FOffsetSurface, UE::CADKernel::FPlaneSurface, UE::CADKernel::FRevolutionSurface, UE::CADKernel::FRuledSurface, UE::CADKernel::FSphericalSurface, UE::CADKernel::FTabulatedCylinderSurface, and UE::CADKernel::FTorusSurface.

◆ EvaluatePointAndNormal()

virtual void UE::CADKernel::FSurface::EvaluatePointAndNormal ( const FVector2d &  InPoint2D,
FVector &  Point,
FVector3f &  Normal
) const
inlinevirtual

◆ EvaluatePointGrid()

void UE::CADKernel::FSurface::EvaluatePointGrid ( const FCoordinateGrid &  Coordinates,
FSurfacicSampling &  OutPoints,
bool  bComputeNormals = false
) const
virtual

Reimplemented in UE::CADKernel::FConeSurface, UE::CADKernel::FOffsetSurface, UE::CADKernel::FPlaneSurface, UE::CADKernel::FRevolutionSurface, UE::CADKernel::FRuledSurface, UE::CADKernel::FSphericalSurface, UE::CADKernel::FTabulatedCylinderSurface, UE::CADKernel::FTorusSurface, and UE::CADKernel::FNURBSSurface.

◆ EvaluatePointGridInCylindricalSpace()

virtual void UE::CADKernel::FSurface::EvaluatePointGridInCylindricalSpace ( const FCoordinateGrid &  Coordinates,
TArray< FVector2d > &
) const
inlinevirtual

Reimplemented in UE::CADKernel::FSphericalSurface, and UE::CADKernel::FTorusSurface.

◆ EvaluatePointInCylindricalSpace()

virtual FVector2d UE::CADKernel::FSurface::EvaluatePointInCylindricalSpace ( const FVector2d &  InSurfacicCoordinate) const
inlinevirtual

X = Rho cos(Alpha) Y = Rho sin(Alpha) Z = Z

YZ => cylindrical projection XY => Plan projection along rotation axis

For Normal(u,v) parallel Rotation Axis -> use Plan projection For Normal(u,v) perpendicular to Rotation Axis -> use cylindrical projection

Reimplemented in UE::CADKernel::FSphericalSurface, and UE::CADKernel::FTorusSurface.

◆ EvaluatePoints() [1/5]

void UE::CADKernel::FSurface::EvaluatePoints ( const TArray< FCurvePoint2D > &  InSurfacicCoordinates,
TArray< FCurvePoint > &  OutPoint3D,
int32  InDerivativeOrder = 0
) const
virtual

◆ EvaluatePoints() [2/5]

void UE::CADKernel::FSurface::EvaluatePoints ( const TArray< FCurvePoint2D > &  InSurfacicCoordinates,
TArray< FSurfacicPoint > &  OutPoint3D,
int32  InDerivativeOrder = 0
) const
virtual

◆ EvaluatePoints() [3/5]

void UE::CADKernel::FSurface::EvaluatePoints ( const TArray< FCurvePoint2D > &  Points2D,
FSurfacicPolyline &  Polyline
) const
virtual

◆ EvaluatePoints() [4/5]

void UE::CADKernel::FSurface::EvaluatePoints ( const TArray< FVector2d > &  InSurfacicCoordinates,
TArray< FSurfacicPoint > &  OutPoint3D,
int32  InDerivativeOrder = 0
) const
virtual

Reimplemented in UE::CADKernel::FOffsetSurface, and UE::CADKernel::FPlaneSurface.

◆ EvaluatePoints() [5/5]

void UE::CADKernel::FSurface::EvaluatePoints ( FSurfacicPolyline &  Polyline) const
virtual

◆ ExtendBoundaryTo()

void UE::CADKernel::FSurface::ExtendBoundaryTo ( const FSurfacicBoundary  MaxLimit)
inline

◆ Get3DTolerance()

double UE::CADKernel::FSurface::Get3DTolerance ( ) const
inline

◆ GetBoundary()

const FSurfacicBoundary & UE::CADKernel::FSurface::GetBoundary ( ) const
inline

◆ GetEntityType()

virtual EEntity UE::CADKernel::FSurface::GetEntityType ( ) const
inlineoverridevirtual

Implements UE::CADKernel::FEntity.

◆ GetIsoTolerance()

double UE::CADKernel::FSurface::GetIsoTolerance ( EIso  Iso) const
inline

Return the minimum tolerance in the parametric space of the surface along the specified axis With Tolerance3D = FSysteme.GeometricalTolerance

See also
FBoundary::ComputeMinimalTolerance

◆ GetIsoTolerances()

const FSurfacicTolerance & UE::CADKernel::FSurface::GetIsoTolerances ( ) const
inline

Tolerance along Iso U/V is very costly to compute and not accurate. A first approximation is based on the surface parametric space length along U and along V Indeed, defining a Tolerance2D has no sense has the boundary length along an Iso could be very very huge compare to the boundary length along the other Iso like [[0, 1000] [0, 1]]

See also
FBoundary::ComputeMinimalTolerance In the used, a local tolerance has to be estimated

◆ GetSurfaceType()

virtual ESurface UE::CADKernel::FSurface::GetSurfaceType ( ) const
pure virtual

Implemented in UE::CADKernel::FBezierSurface, UE::CADKernel::FCompositeSurface, UE::CADKernel::FConeSurface, UE::CADKernel::FCylinderSurface, UE::CADKernel::FNURBSSurface, UE::CADKernel::FOffsetSurface, UE::CADKernel::FPlaneSurface, UE::CADKernel::FRevolutionSurface, UE::CADKernel::FRuledSurface, UE::CADKernel::FSphericalSurface, UE::CADKernel::FTabulatedCylinderSurface, UE::CADKernel::FTorusSurface, and UE::CADKernel::FCoonsSurface.

◆ IsSurfaceClosed()

virtual void UE::CADKernel::FSurface::IsSurfaceClosed ( bool &  bOutClosedAlongU,
bool &  bOutClosedAlongV
) const
inlinevirtual

A surface is closed along an iso axis if it's connected to itself e.g. the edge carried by the iso curve U = UMin is linked to the edge carried by the iso curve U = UMax A complete sphere, torus are example of surface closed along U and V A cylinder with circle section or a cone are example of surface closed along an iso

Reimplemented in UE::CADKernel::FPlaneSurface.

◆ LinesNotDerivables() [1/2]

virtual void UE::CADKernel::FSurface::LinesNotDerivables ( const FSurfacicBoundary &  Bounds,
int32  InDerivativeOrder,
FCoordinateGrid &  OutNotDerivableCoordinates
) const
inlinevirtual

Reimplemented in UE::CADKernel::FRevolutionSurface, UE::CADKernel::FRuledSurface, UE::CADKernel::FCompositeSurface, UE::CADKernel::FCoonsSurface, UE::CADKernel::FOffsetSurface, UE::CADKernel::FTabulatedCylinderSurface, and UE::CADKernel::FNURBSSurface.

◆ LinesNotDerivables() [2/2]

void UE::CADKernel::FSurface::LinesNotDerivables ( int32  InDerivativeOrder,
FCoordinateGrid &  OutNotDerivableCoordinates
) const
inline

◆ MakeBezierSurface()

TSharedPtr< FSurface > UE::CADKernel::FSurface::MakeBezierSurface ( const double  InToleranceGeometric,
int32  InUDegre,
int32  InVDegre,
const TArray< FVector > &  InPoles
)
static

◆ MakeConeSurface()

TSharedPtr< FSurface > UE::CADKernel::FSurface::MakeConeSurface ( const double  InToleranceGeometric,
const FMatrixH &  InMatrix,
double  InStartRadius,
double  InConeAngle,
const FSurfacicBoundary &  InBoundary
)
static

◆ MakeCylinderSurface()

TSharedPtr< FSurface > UE::CADKernel::FSurface::MakeCylinderSurface ( const double  InToleranceGeometric,
const FMatrixH &  InMatrix,
const double  InRadius,
const FSurfacicBoundary &  InBoundary
)
static

◆ MakeNurbsSurface() [1/2]

TSharedPtr< FSurface > UE::CADKernel::FSurface::MakeNurbsSurface ( const double  InToleranceGeometric,
const FNurbsSurfaceData &  NurbsData
)
static

◆ MakeNurbsSurface() [2/2]

TSharedPtr< FSurface > UE::CADKernel::FSurface::MakeNurbsSurface ( const double  InToleranceGeometric,
const FNurbsSurfaceHomogeneousData &  NurbsData
)
static

◆ MakePlaneSurface()

TSharedPtr< FSurface > UE::CADKernel::FSurface::MakePlaneSurface ( const double  InToleranceGeometric,
const FMatrixH &  InMatrix,
const FSurfacicBoundary &  InBoundary
)
static

◆ MakeSphericalSurface()

TSharedPtr< FSurface > UE::CADKernel::FSurface::MakeSphericalSurface ( const double  InToleranceGeometric,
const FMatrixH &  InMatrix,
double  InRadius,
const FSurfacicBoundary &  InBoundary
)
static

◆ MakeTorusSurface()

TSharedPtr< FSurface > UE::CADKernel::FSurface::MakeTorusSurface ( const double  InToleranceGeometric,
const FMatrixH &  InMatrix,
double  InMajorRadius,
double  InMinorRadius,
const FSurfacicBoundary &  InBoundary
)
static

◆ Presample()

void UE::CADKernel::FSurface::Presample ( const FSurfacicBoundary &  InBoundaries,
FCoordinateGrid &  OutCoordinates
)
virtual

Generate a pre-sampling of the surface saved in OutCoordinates. This sampling is light enough to allow a fast computation of the grid, precise enough to compute accurately meshing criteria

Reimplemented in UE::CADKernel::FBezierSurface, UE::CADKernel::FCompositeSurface, UE::CADKernel::FConeSurface, UE::CADKernel::FCylinderSurface, UE::CADKernel::FOffsetSurface, UE::CADKernel::FPlaneSurface, UE::CADKernel::FRevolutionSurface, UE::CADKernel::FRuledSurface, UE::CADKernel::FSphericalSurface, UE::CADKernel::FTabulatedCylinderSurface, and UE::CADKernel::FTorusSurface.

◆ PresampleIsoCircle()

void UE::CADKernel::FSurface::PresampleIsoCircle ( const FSurfacicBoundary &  InBoundaries,
FCoordinateGrid &  Coordinates,
EIso  Iso
)
inline

◆ Sample() [1/2]

void UE::CADKernel::FSurface::Sample ( const FSurfacicBoundary &  Boundary,
int32  NumberOfSubdivisions[2],
FCoordinateGrid &  OutCoordinateSampling
) const

Divide the parametric space in the desired number of regular subdivisions and compute the associated CoordinateGrid

◆ Sample() [2/2]

void UE::CADKernel::FSurface::Sample ( const FSurfacicBoundary &  Bounds,
int32  NumberOfSubdivisions[2],
FSurfacicSampling &  OutPointSampling
) const

Divide the parametric space in the desired number of regular subdivisions and compute the associated PointGrid

◆ Serialize()

virtual void UE::CADKernel::FSurface::Serialize ( FCADKernelArchive &  Ar)
inlineoverridevirtual

Serialization of a FEntity. Each class derived from FEntity has to override this method (and call the direct base class override method first) E.g. class FEntityXXX : public FEntityXX { virtual void Serialize(FCADKernelArchive& Ar) override { FEntityXX::Serialize(Ar); ... } }

Reimplemented from UE::CADKernel::FEntityGeom.

Reimplemented in UE::CADKernel::FBezierSurface, UE::CADKernel::FCompositeSurface, UE::CADKernel::FConeSurface, UE::CADKernel::FCoonsSurface, UE::CADKernel::FCylinderSurface, UE::CADKernel::FNURBSSurface, UE::CADKernel::FOffsetSurface, UE::CADKernel::FPlaneSurface, UE::CADKernel::FRevolutionSurface, UE::CADKernel::FRuledSurface, UE::CADKernel::FSphericalSurface, UE::CADKernel::FTabulatedCylinderSurface, and UE::CADKernel::FTorusSurface.

◆ TrimBoundaryTo()

void UE::CADKernel::FSurface::TrimBoundaryTo ( const FSurfacicBoundary  NewLimit)
inline

◆ ValidateUVPoints()

virtual void UE::CADKernel::FSurface::ValidateUVPoints ( TArray< FVector2d > &  UVPoints) const
inlinevirtual

Reimplemented in UE::CADKernel::FNURBSSurface.

Member Data Documentation

◆ Boundary

FSurfacicBoundary UE::CADKernel::FSurface::Boundary
protected

◆ MinToleranceIso

TCache<FSurfacicTolerance> UE::CADKernel::FSurface::MinToleranceIso
protected

Tolerance along Iso U/V is very costly to compute and not accurate. A first approximation is based on the surface boundary along U and along V Indeed, defining a Tolerance2D has no sense has the boundary length along an Iso could be very very huge compare to the boundary length along the other Iso like [[0, 1000] [0, 1]] The tolerance along an iso is the length of the boundary along this iso divided by 100 000: if the curve length in 3d is 10m, the tolerance is 0.01mm In the used, a local tolerance has to be estimated

◆ Tolerance3D

double UE::CADKernel::FSurface::Tolerance3D
protected
The documentation for this class was generated from the following files:
